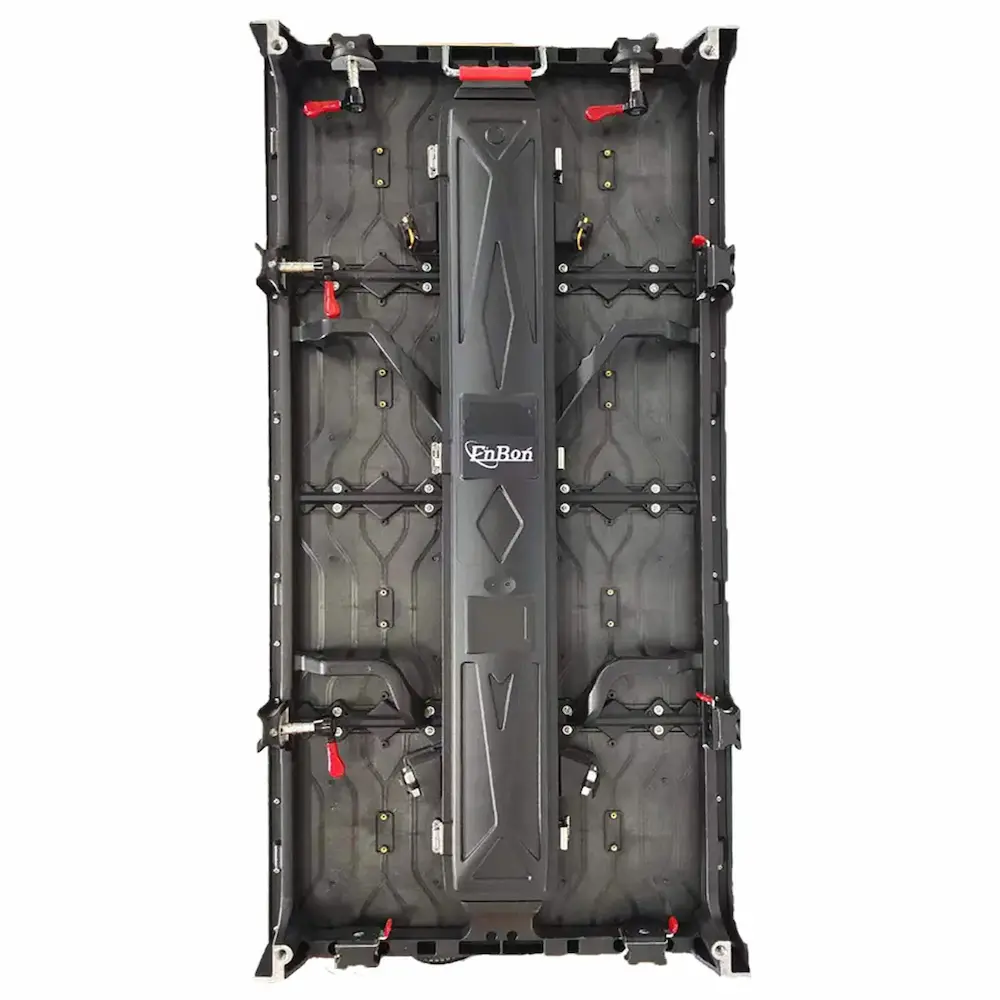

High Definition LED Screen - Enbon R7 Glass LED Video Wall

High Definition LED Screen - Enbon R7 Glass LED Video Wall with indoor pixel pitch 1.5-4.8, outdoor 2.6-4.8, and 20% lighter than normal products.

Enbon R1 Model has been discontinued and upgraded to a new model: Enbon R5 Model or Enbon R5 Plus Model

  1. Technical Design Moudle
  2. LED display screen for advertising outdoor and indoor
  3. Optional brightness meets different visual demands
  4. Lighting Protection, Waterproof and Dustproof
  5. High-advanced LED materials
IP653500nits160w/sqmEnbon R7P2.604P2.976P3.91P4.81SMD202024scan500x500x85mm140(+70/-70) deg-20~-65℃SMD1921

Description

Product Specification

Item Indoor Outdoor
Pixel Pitch 2.604 2.976 3.91 4.81 3.91 4.81
LED lamp SMD2020 SMD2020 SMD2020 SMD2020 SMD1921 SMD1921
Density 147456dots/m2 112896dots/m2 65536dots/m2 43264dots/m2 65536dots/m2 43264dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits 800-1000nits ≥ 3500nits ≥ 3500nits
IP rating IP31 IP31 IP31 IP31 IP65 IP65
Cabinet Materiel Die-casting Aluminum
Scan 24scan 21scan 16scan 13scan 16scan 13scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg 8kg 8kg
Module size 250*250mm 250*250mm 250*250mm 250*250mm 250*500mm 250*500mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm
Module pixel 96*96dots 84*84dots 64*64dots 52*52dots 64*128dots 52*104dots
Cabinet pixel 192*192dots 168*168dots 128*128dots 104*104dots 128*128dots 104*104dots
Max Power 500w/sqm 500w/sqm 500w/sqm 500w/sqm 550w/sqm 550w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm 160w/sqm 200w/sqm 200w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃


LED Module

Pixel Pitch Indoor: 2.604,2.976, 3.91
Outdoor: 3.91, 4.81
LED lamp Indoor: SMD2020
Outdoor: SMD1921
Brightness Indoor: 1000nits(P2.604,P2.976),3500nits(P3.91)
Outdoor: 3500nits(P3.91,P4.81)
Module pixel Indoor: 96*96 dots(P2.604) 84*84 dots(P2.976) 64*64dots(P3.91)
Outdoor: 64*64dots(P3.91) 52*52dots(P4.81)
Cabinet pixel Indoor: 192*192 dots(P2.604) 168*168dots(P2.976) 128*128dots(P3.91)
Outdoor: 128*128dots(P3.91) 104*104dots(P4.81)

Appearance

Module size Indoor: 250*250mm(2.604,2.976, 3.91)
Outdoor:250*250mm (3.91, 4.81)
Cabinet size Indoor: 500*500*85mm(2.604,2.976, 3.91)
Outdoor: 500*500*85mm (3.91, 4.81)
Module weight Indoor: 0.5kg(2.604,2.976, 3.91)
Outdoor: 0.5kg(3.91, 4.81)
Cabinet Weight Indoor: 7.5kg(2.604,2.976, 3.91)
Outdoor:8kg(3.91, 4.81)


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 500w/sqm(2.604,2.976, 3.91)
Outdoor:550w/sqm(3.91, 4.81)
Average Power Indoor: 160w/sqm(2.604,2.976, 3.91)
Outdoor: 200w/sqm(P3.91)
160w/sqm(P4.81)


Waterproof grade

IP rating Indoor : IP31         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70) deg V140(+70/-70)deg
Scan Indoor:32scan (P2.604) 21scan(P2.976) 16scan(P3.91)
Outdoor:16scan(P3.91) 13scan(P4.81)

Material density

Density Indoor:147456dots/m2 (P2.604) 112896dots/m2(P2.976) 65536dots/m2(P3.91)
Outdoor:65536dots/m2(P3.91) 43264dots/m2(P4.81)
Cabinet Materiel Die-casting Aluminum
