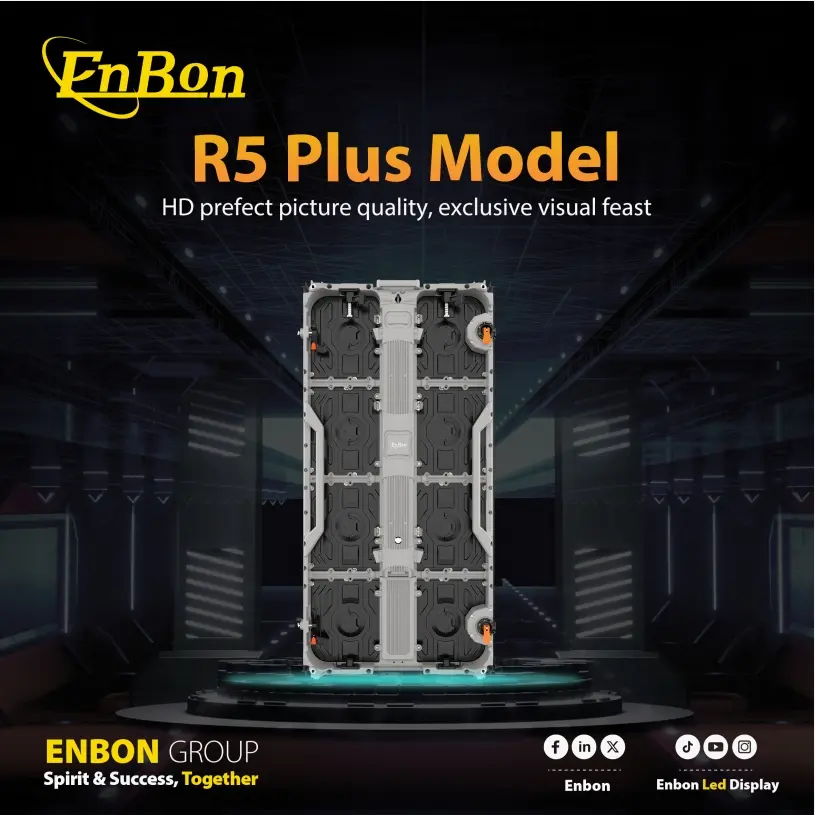

R5 Plus Model New

Indoor LED Screen Rental products Enbon R5 Plus Display

Indoor LED Screen Rental products Enbon R5 delivers 4000 nits brightness, IP65 waterproofing, and adjustable arc lock for versatile stage use.
  1. Integrated cabinet design saves maintenance time
  2. Plane lock and radian lock are integrated to support a variety of scene applications
  3. Radian lock support  0°/±2.5°/±5°±7.5°
  4. Modular design of power control cabinet, no wire is needed to connect the module
  5. The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
IP654000nitsP2.604P2.976P3.91P4.81P1.56P1.95

Description

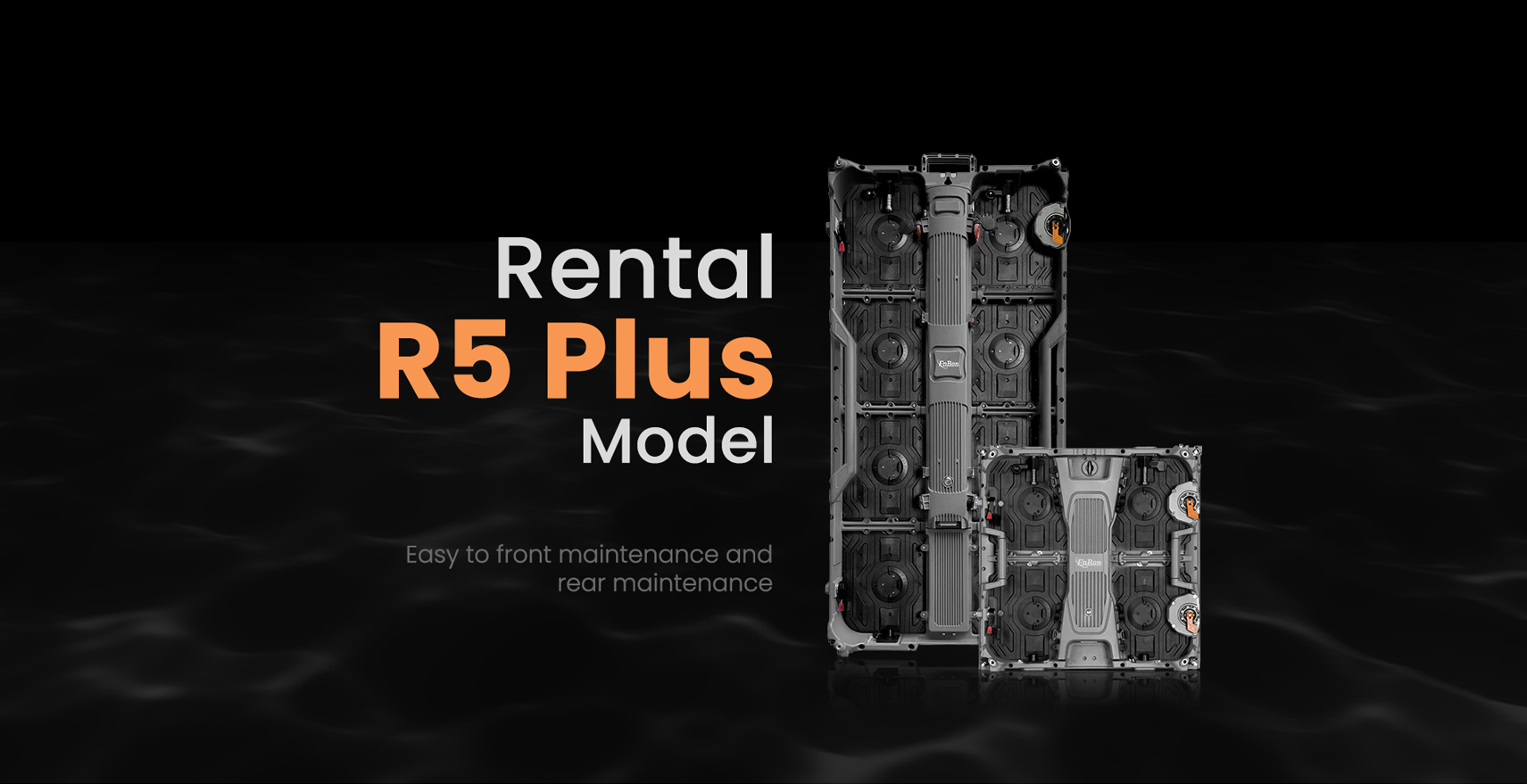

Rental

R5 Plus

Model

Easy to front maintenance and rear maintenance

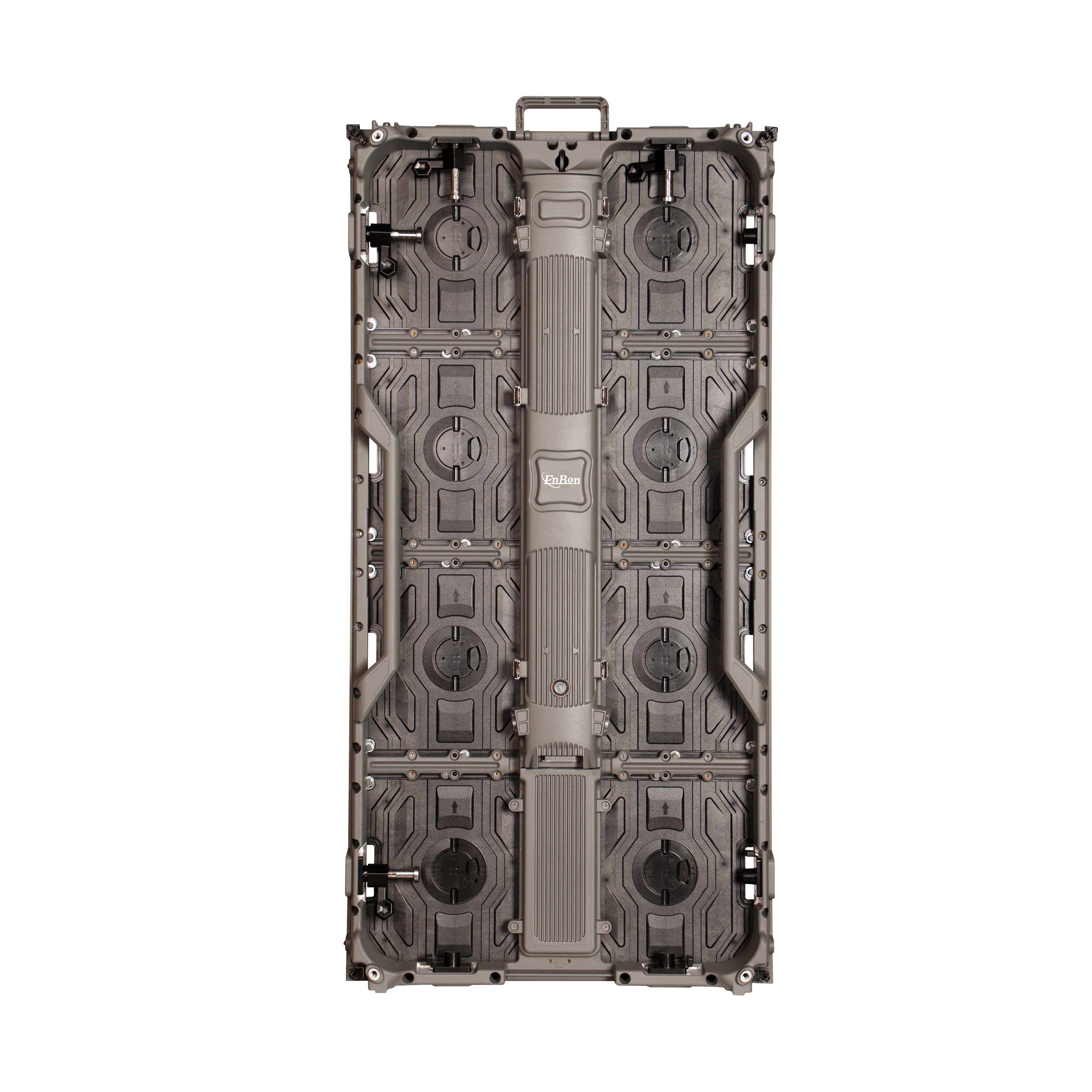

R5 Plus Img
IP65 Waterproof Rating

IP65 Weatherproof

High Refresh Rate

3840Hz Refresh Rate

Lightweight Design

Ultra-Lightweight

Fast-Lock System

Quick-Lock Mechanism

Rental-Ready Design

Rental-Optimized

Enhanced Performance

High Performance

High-Intensity Display

High-Brightness

Slim Profile

Ultra-Slim Design

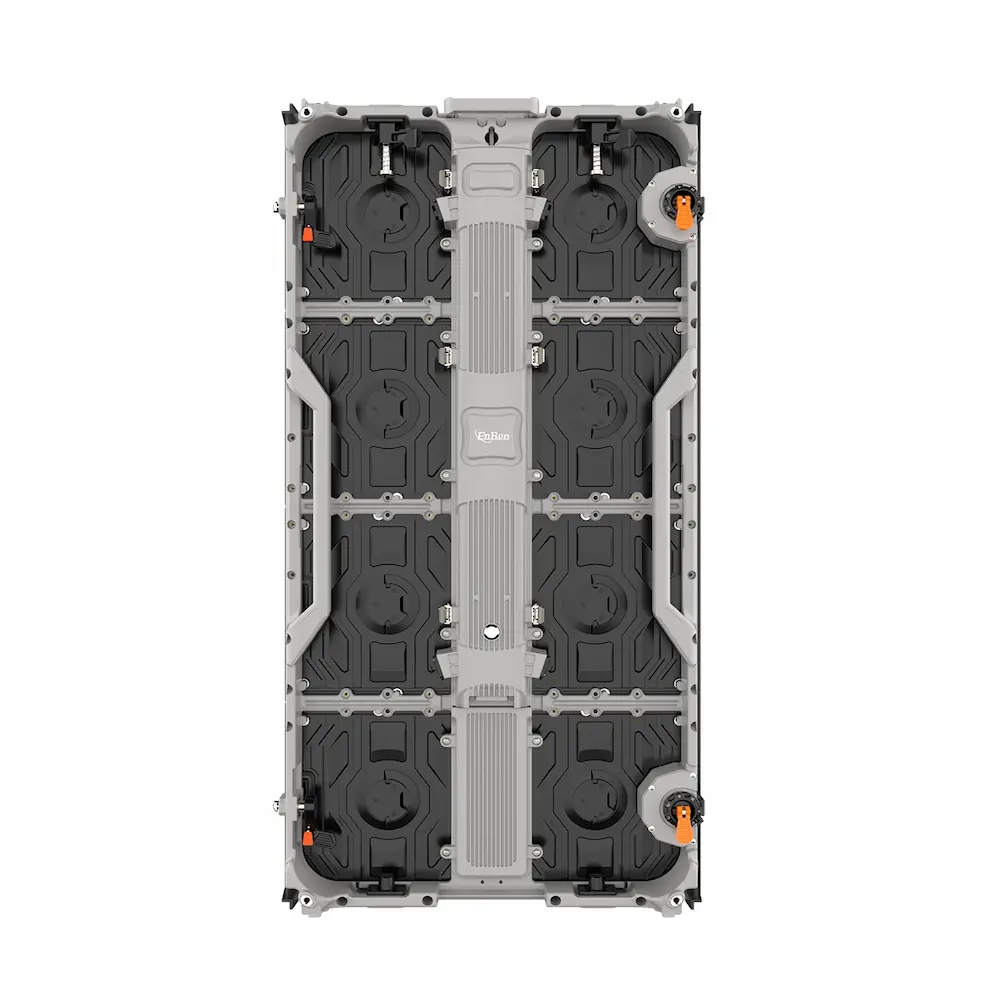

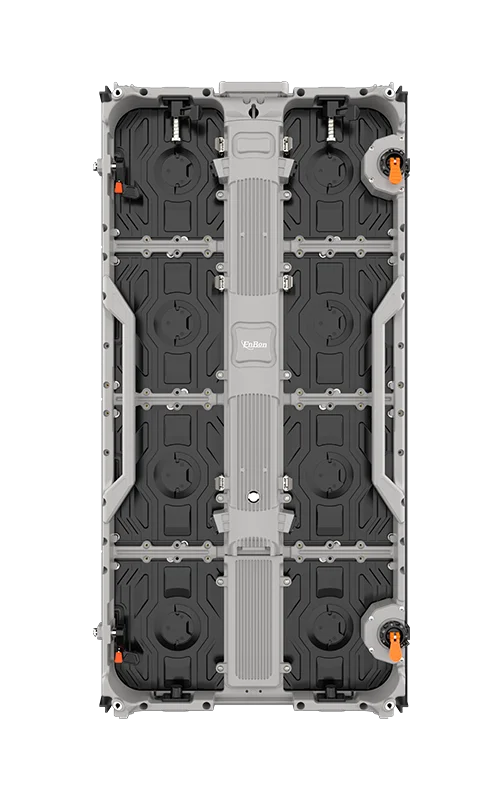

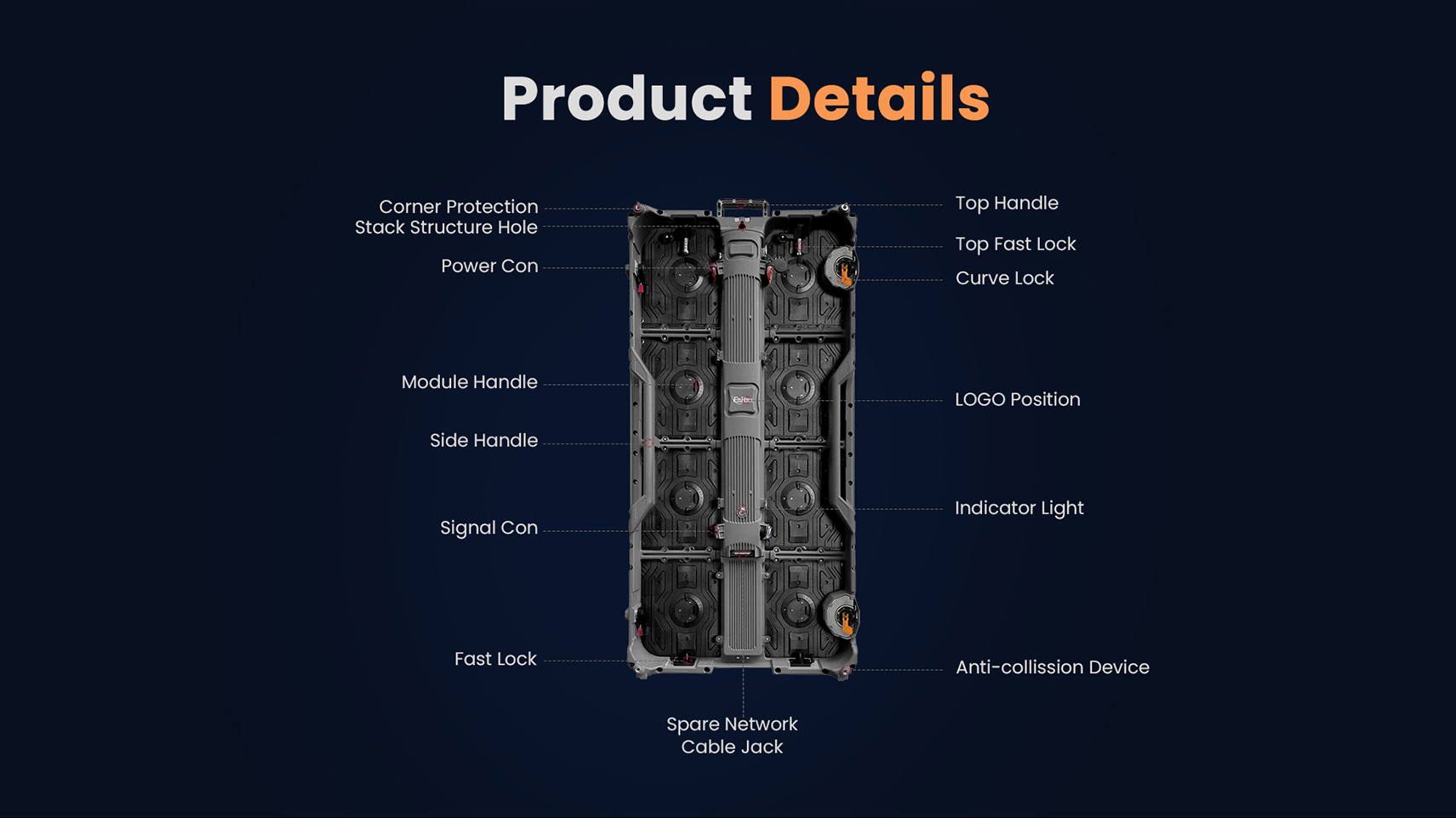

Cabinet Structure

R5 Plus Cabinet Structure Image

Corner Protection



Stack Structure Hole



Power Con



Module Handle



Side Handle



Signal Con



Fast Lock



Top Handle



Top Fast Lock



Curve Lock



LOGO Position



Indicator light



Anti-collission Device

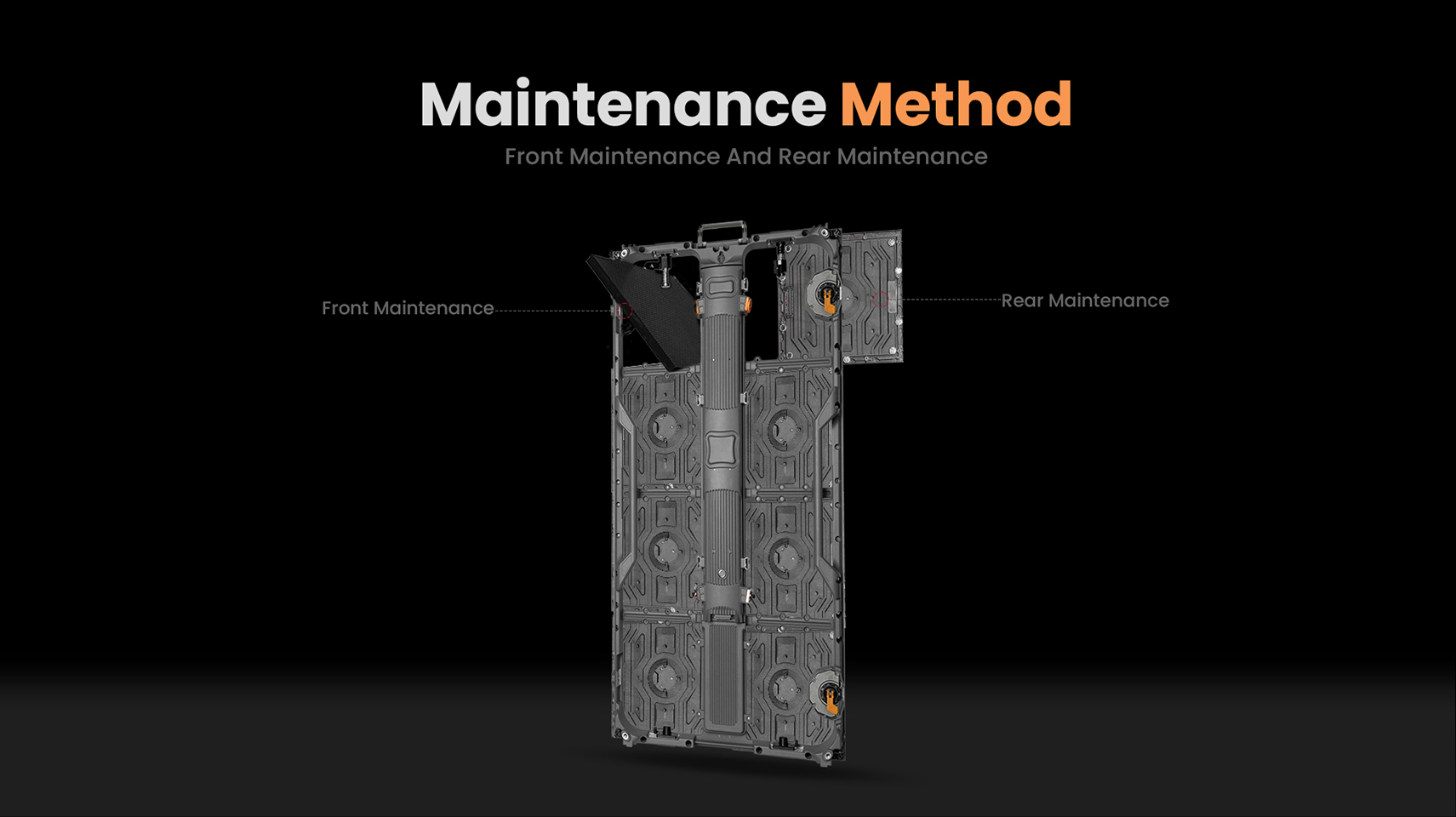

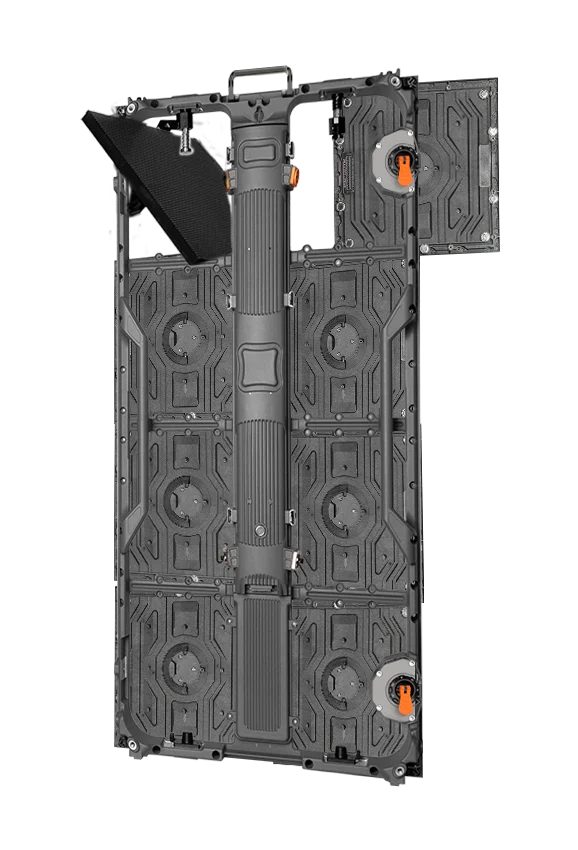

Maintenance Method

Front Maintenance And Rear Maintenance

R5 Plus Maintenance Method Image

Front Maintenance



Rear Maintenance

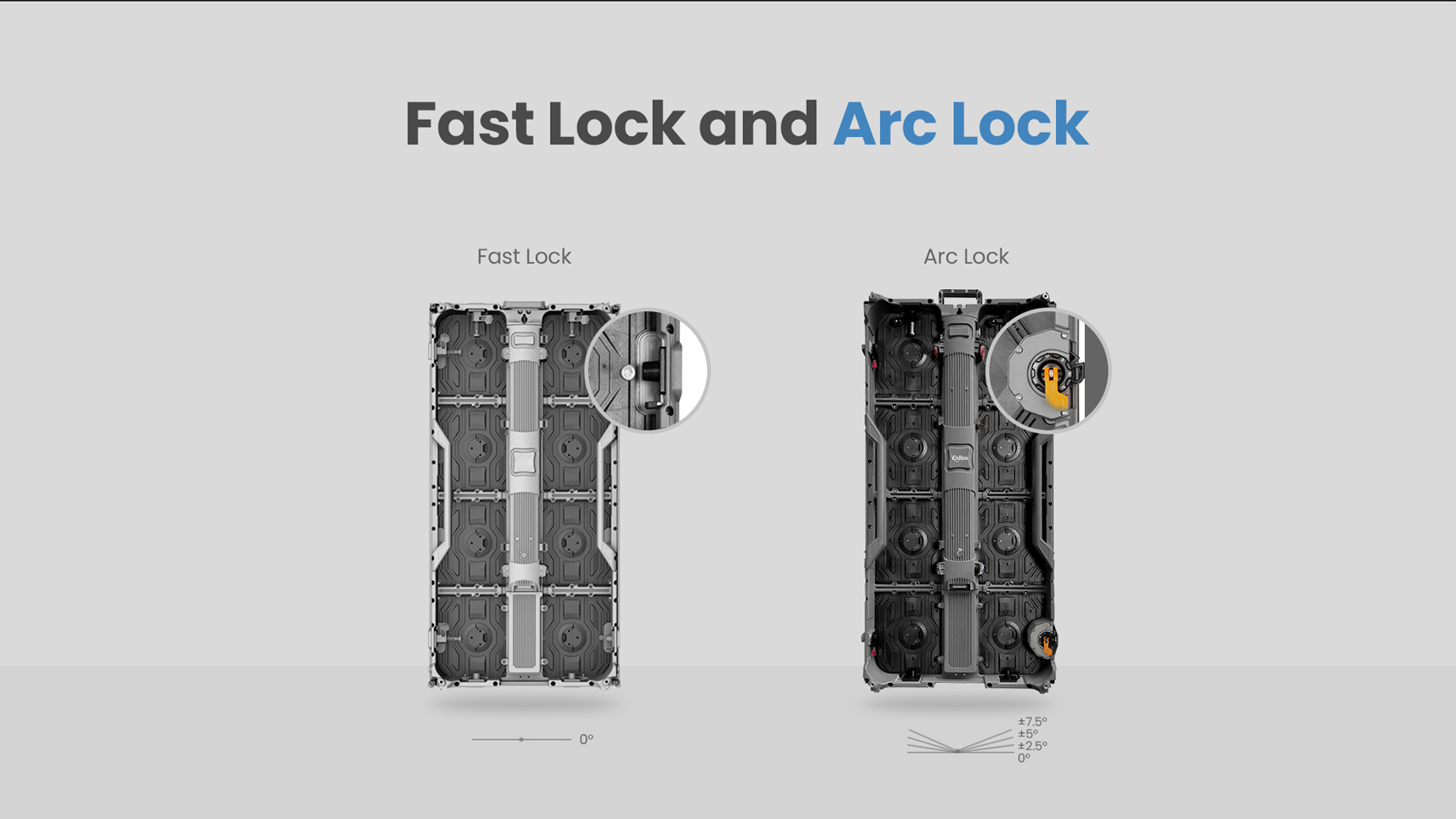

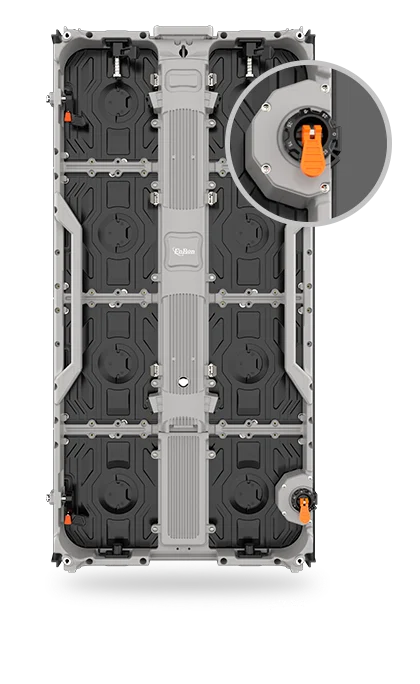

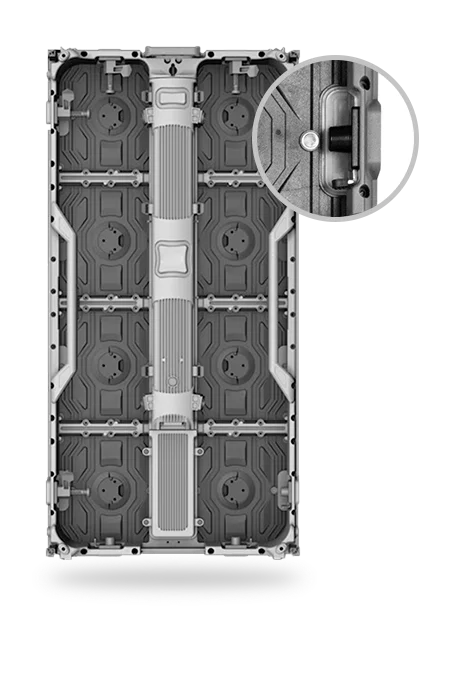

Fast Lock and Arc Lock

R5 Plus Fast Lock
R5 Plus Arc Lock

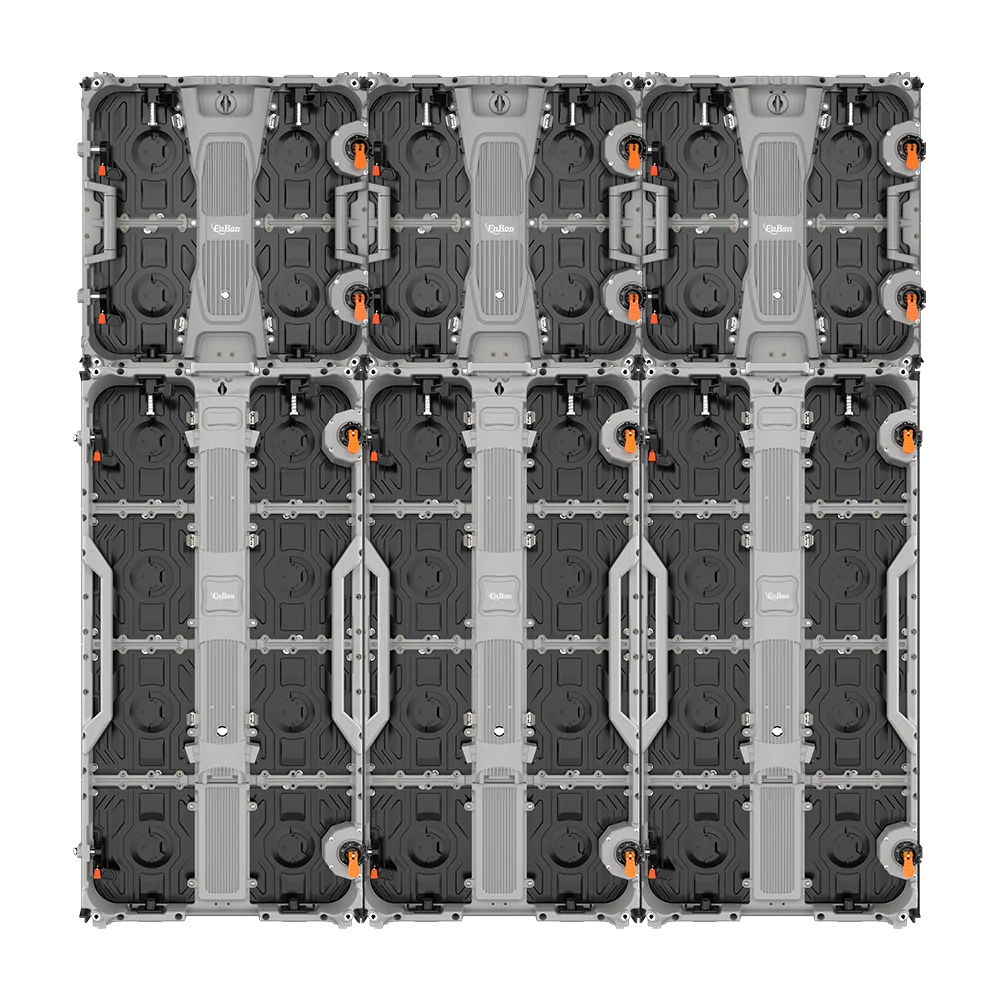

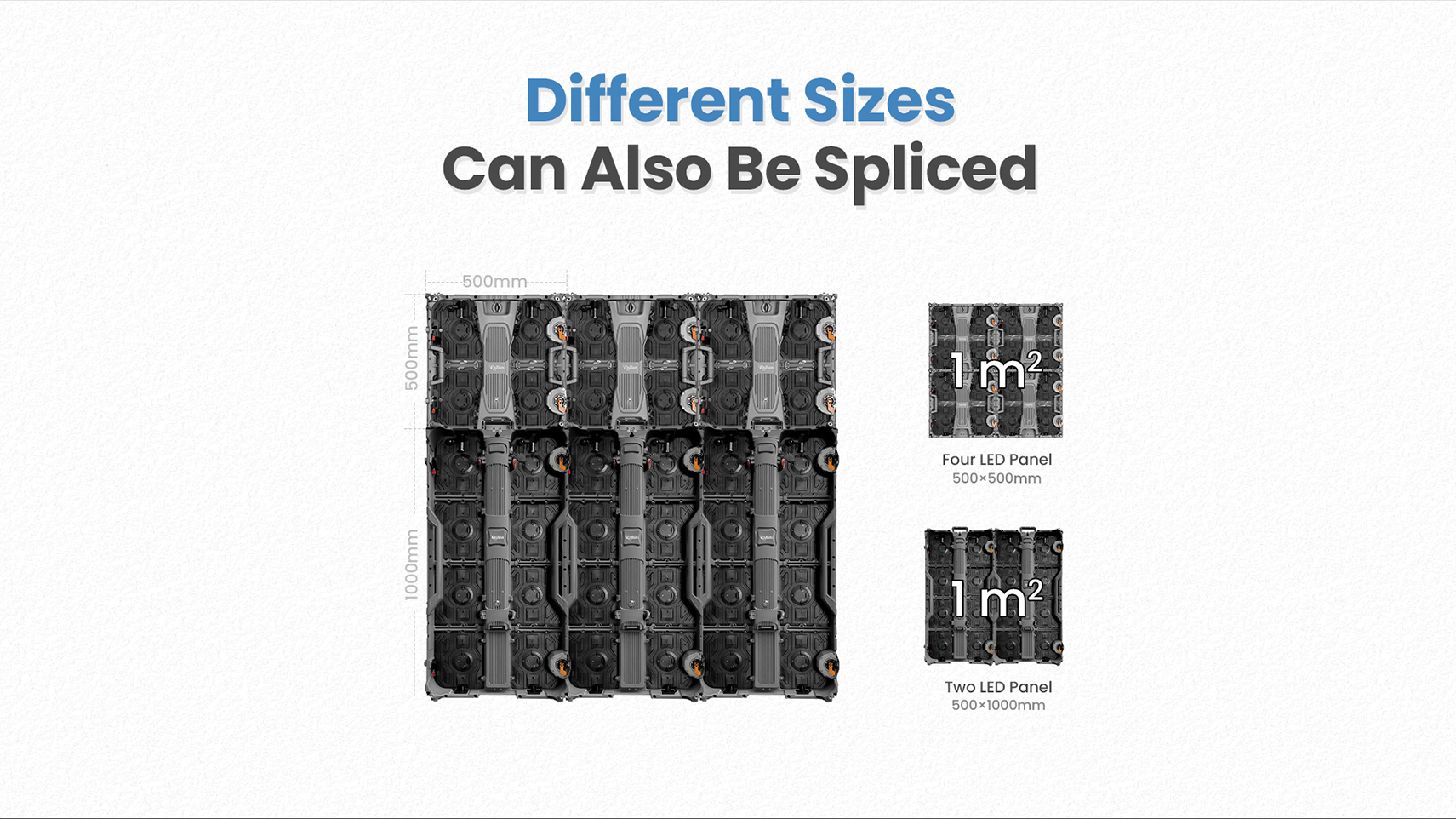

Different Sizes
Can Also Be Spliced

R5 Plus Img 500mm 500mm 1000mm
R5 Plus Img

Four LED Panel

500x500mm

R5 Plus Img

Two LED Panel

500x1000mm

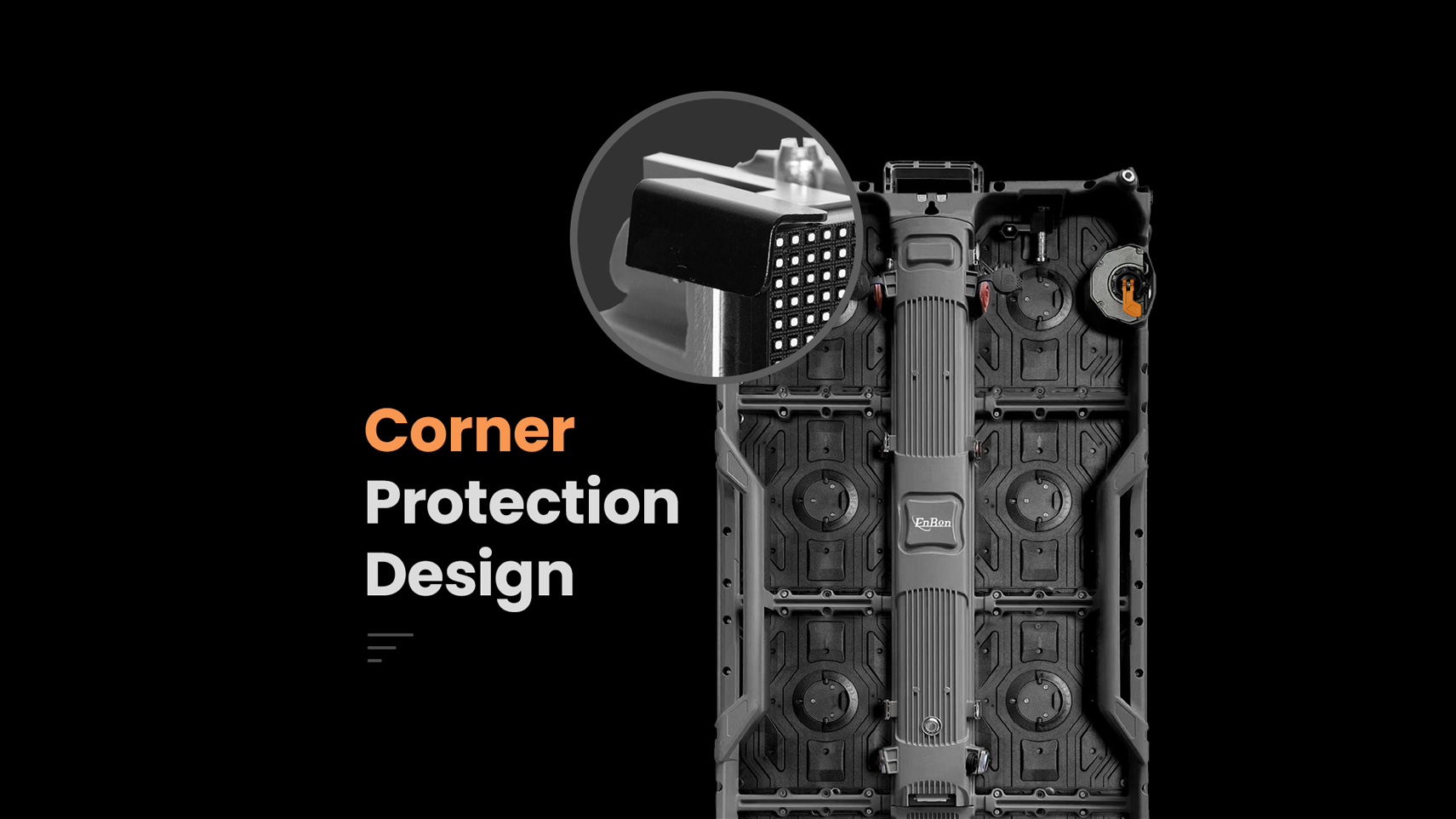

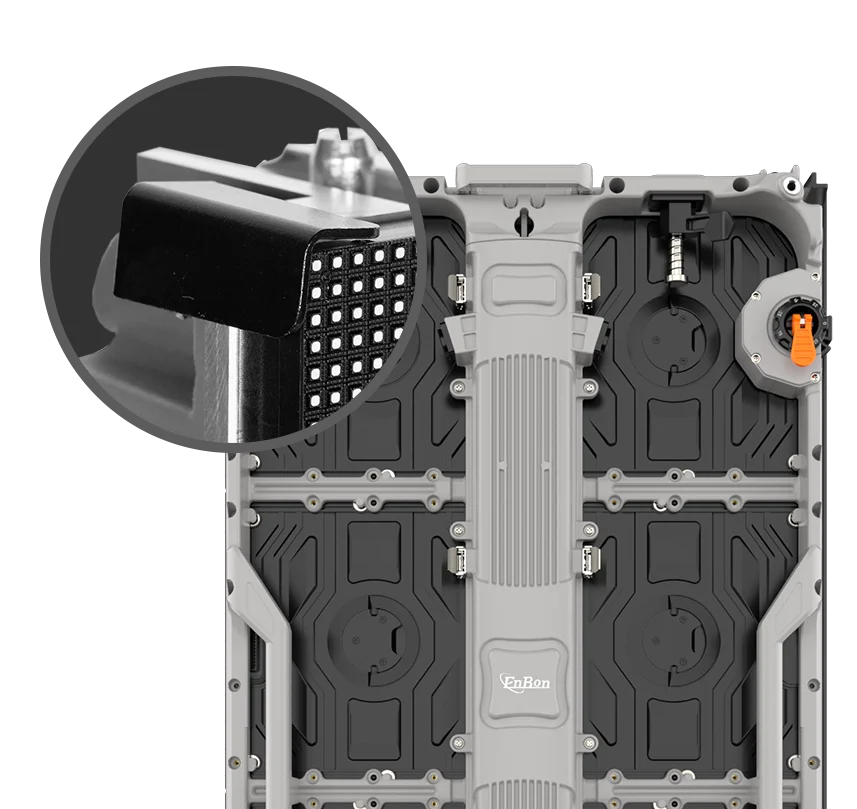

Corner
Protection
Design

R5 Plus Img

IP65 Waterproof

R5 Plus Img

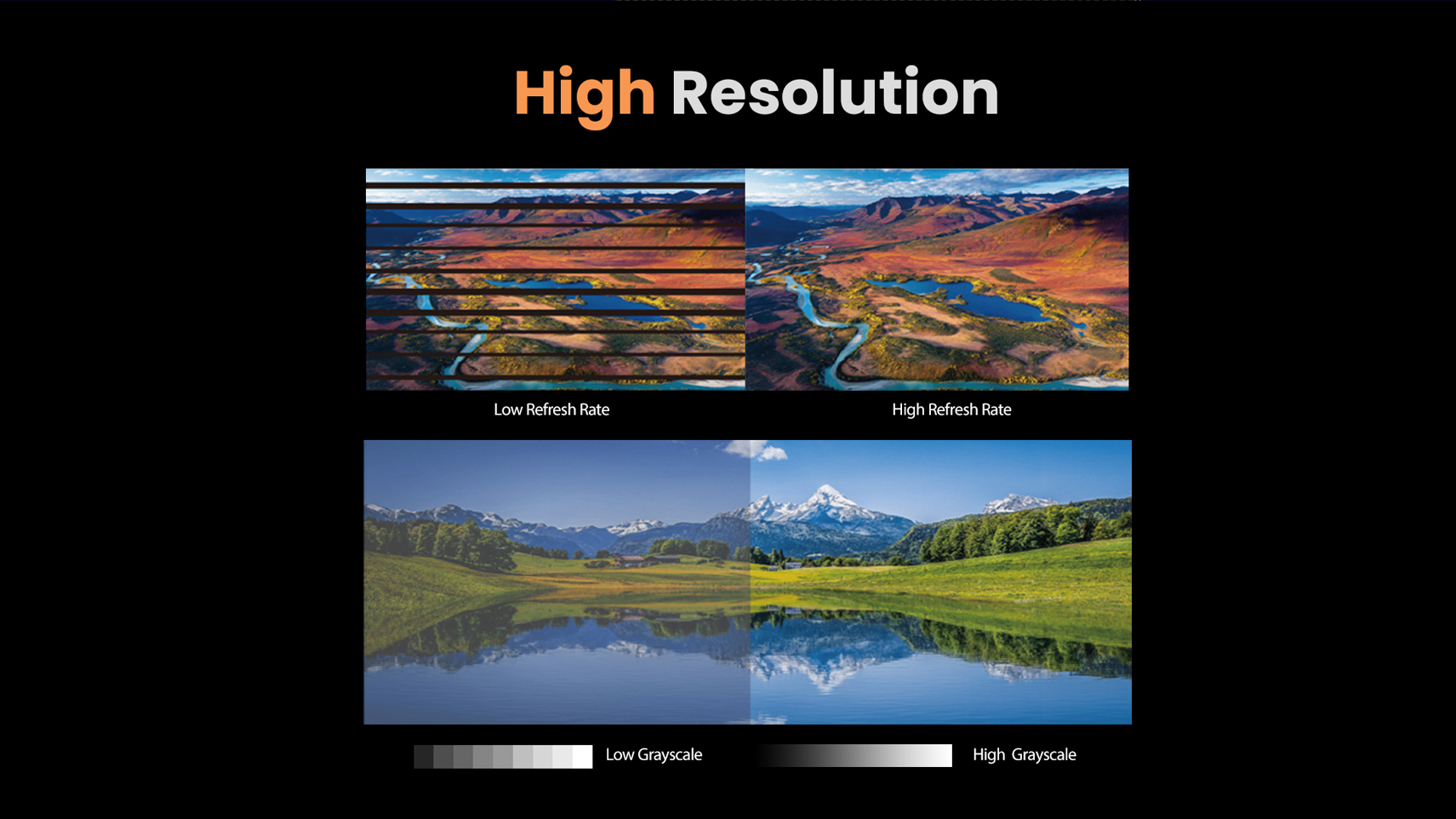

High Resolution

R5 Plus Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

R5 Plus Grayscale Comparison Image


Low Grayscale



High Grayscale

Product Specification

Item Indoor Outdoor
Pixel Pitch 1.56 1.95 2.604 2.976 3.91 2.604 2.976 3.91
LED lamp SMD1212 SMD1515 SMD1515 SMD2020 SMD2020 SMD1415 SMD1415 SMD1921
Density(dots/m2) 410881 262144 147456 112896 65536 147456 112896 65536
Brightness ≤ 800nits ≤ 800nits ≤ 800nits ≤ 800nits ≤  800nits ≥ 4000nits ≥ 4000its ≥ 4000nits
IP rating IP45 IP45 IP45 IP45 IP45 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 40scan 32scan 32scan 13scan 16scan 13scan 13scan 16scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 15kg 15kg 15kg 15kg 15kg 16kg 16kg 16kg
Module size(mm) 250*250 250*250 250*250 250*250 250*500 250*500 250*250 250*500
Cabinet size(mm) 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85 1000*500*85
Module pixel 160*160dots 128*128dots 96*96dots 84*84dots 64*64dots 96*96dots 84*84dots 64*64dots
Cabinet pixel 320*640dots 256*512dots 192*384dots 168*336dots 128*256dots 192*384dots 168*336dots 128*256dots
Max Power 600w/sqm 600w/sqm 600w/sqm 600w/sqm 600w/sqm 750w/sqm 750w/sqm 750w/sqm
Average Power 360w/sqm 360w/sqm 360w/sqm 360w/sqm 360w/sqm 450w/sqm 450w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous synchronous/asynchronous
Gray Scale 16 bit 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90% 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃  ﹣20 ~﹢65℃


LED Module

Pixel Pitch Indoor:1.56,1.95,2.604,
2.976,3.91
Outdoor:2.604,2.976,
3.91
LED lamp Indoor: SMD1212/1515/2020
Outdoor: SMD1415/1921
Brightness Indoor: ≤800 nits
Outdoor: ≥4000 nits
Module pixel Indoor:160*160/128*128/96*96/
84*84/64*64(dots)
Outdoor: 96*96/84*84/64*64/
52*52(dots)
Cabinet pixel Indoor: 320*320/256*256/
192*192/168*168/
128*128(dots)
Outdoor: 192*192/168*168/128*128/
104*104(dots)

Appearance

Module size Indoor: 250*250mm
Outdoor:250*250mm
Cabinet size Indoor: 500*500*85mm
Outdoor: 500*500*85mm
Module weight Indoor: 0.5kg
Outdoor: 0.5kg
Cabinet Weight Indoor: 15kg
Outdoor:16kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 600w/sqm
Outdoor:750w/sqm
Average Power Indoor: 360w/sqm
Outdoor: 450w/sqm(P3.91)


Waterproof grade

IP rating Indoor : IP45         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70)
deg V140(+70/-70)deg
Scan Indoor:40/32/21/16(scan)
Outdoor:32/21/16/13(scan)

Material density

Density Indoor:410881/262144/147456/
112896/65536dots/m2
Outdoor:147456/112896/65536/
43264dots/m2
Cabinet Materiel Die-casting Aluminum
