LED Video Wall Rental: Enbon R1 Outdoor LED Display Screen 1

R1 Model Stop

LED Video Wall Rental: Enbon R1 Outdoor LED Display Screen

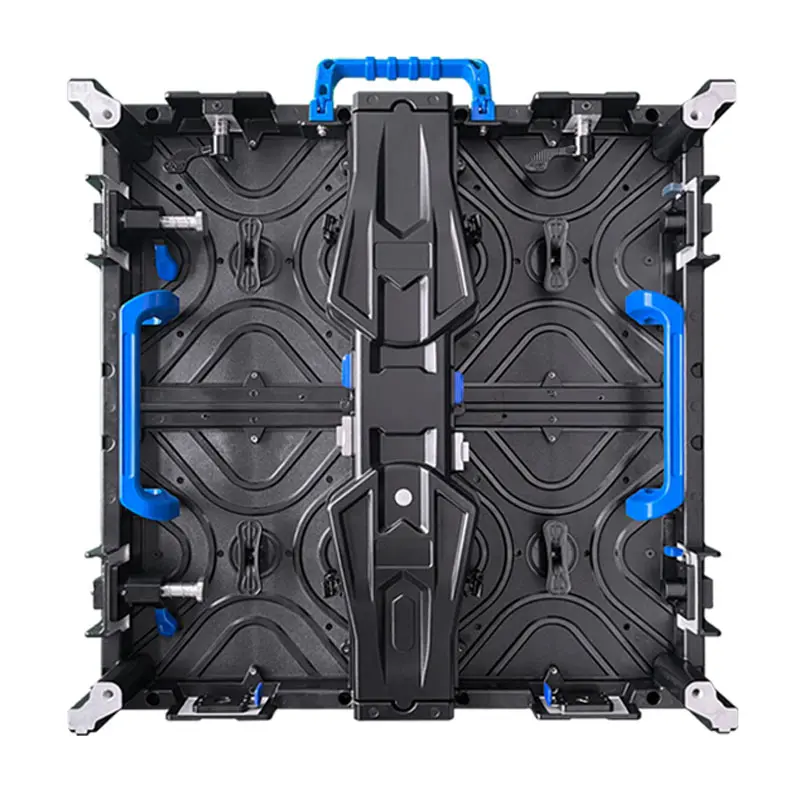

LED Video Wall Rental: Enbon R1 outdoor LED display screen with modular cabinet and quick lock design for easy setup and maintenance on stage

Enbon R1 Model has been discontinued and upgraded to a new model: Enbon R5 Model or Enbon R5 Plus Model

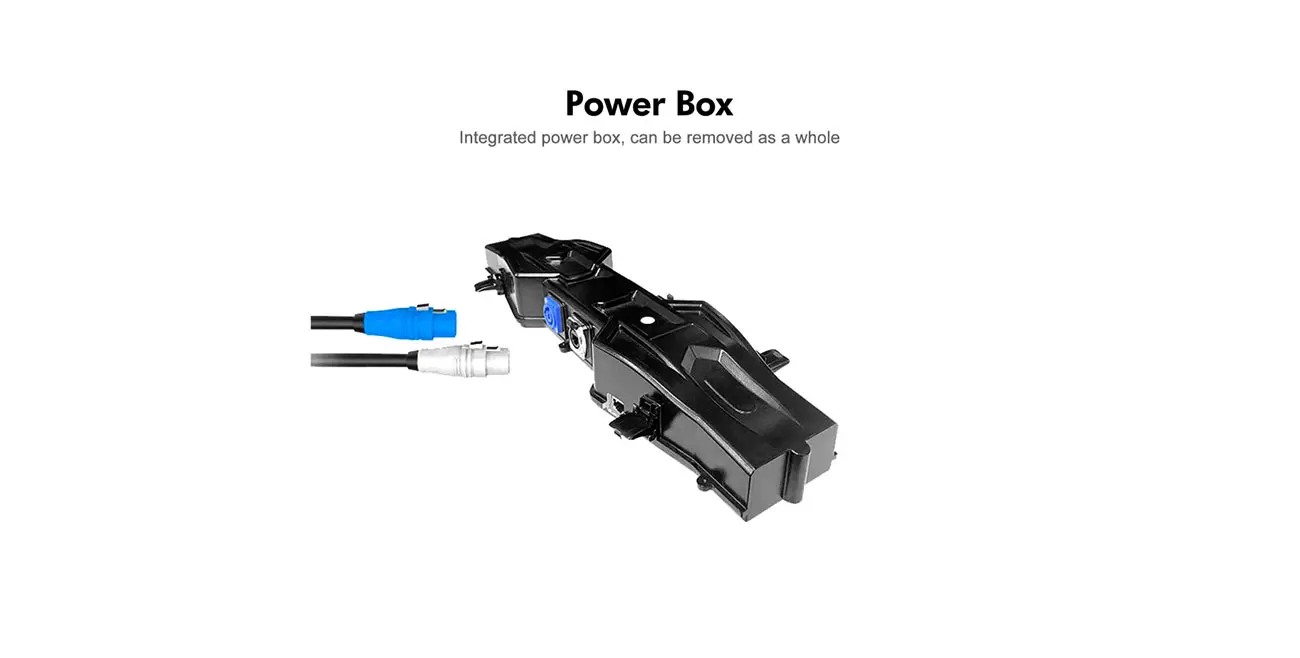

Integrated power cabinet design saves maintenance time
Double quick lock design, more durable, single operation, quick installation and maintenance

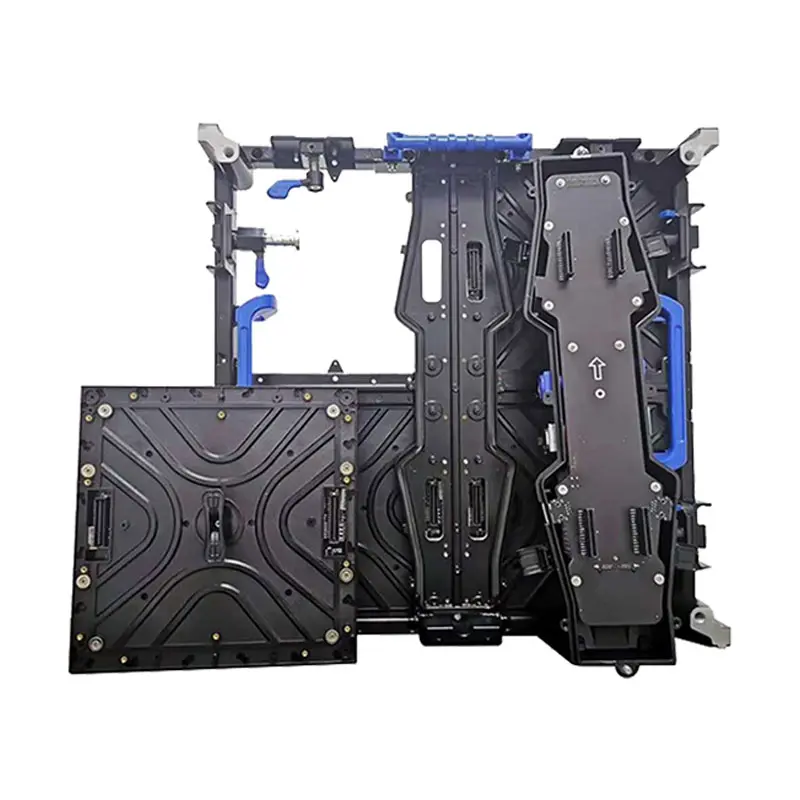

Modular design of power control cabinet, no wire is needed to connect with the module
The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
The cabinet is light and thin

Enbon R1IP653500nits160w/sqmP2.604P2.976P3.91P4.81SMD20201000nits24scan500x500x85mm140(+70/-70) deg-20~-65℃

Description

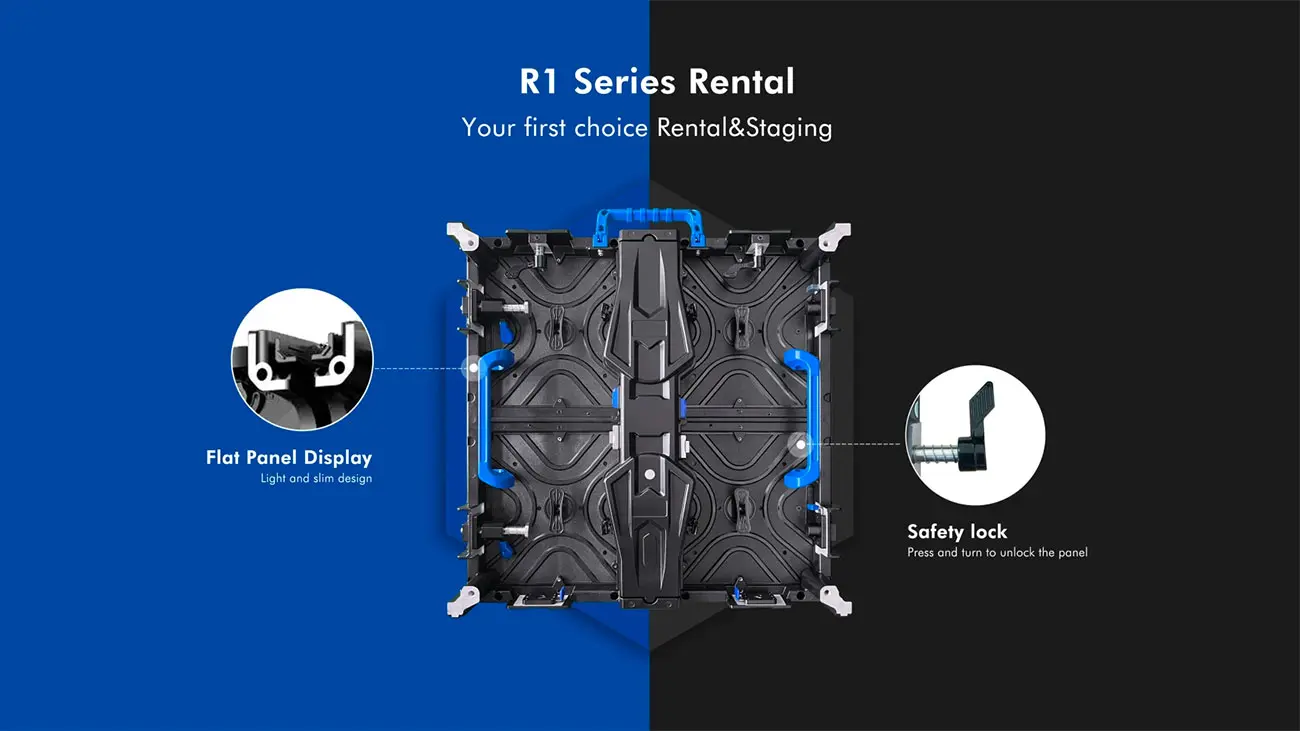

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 1

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 2

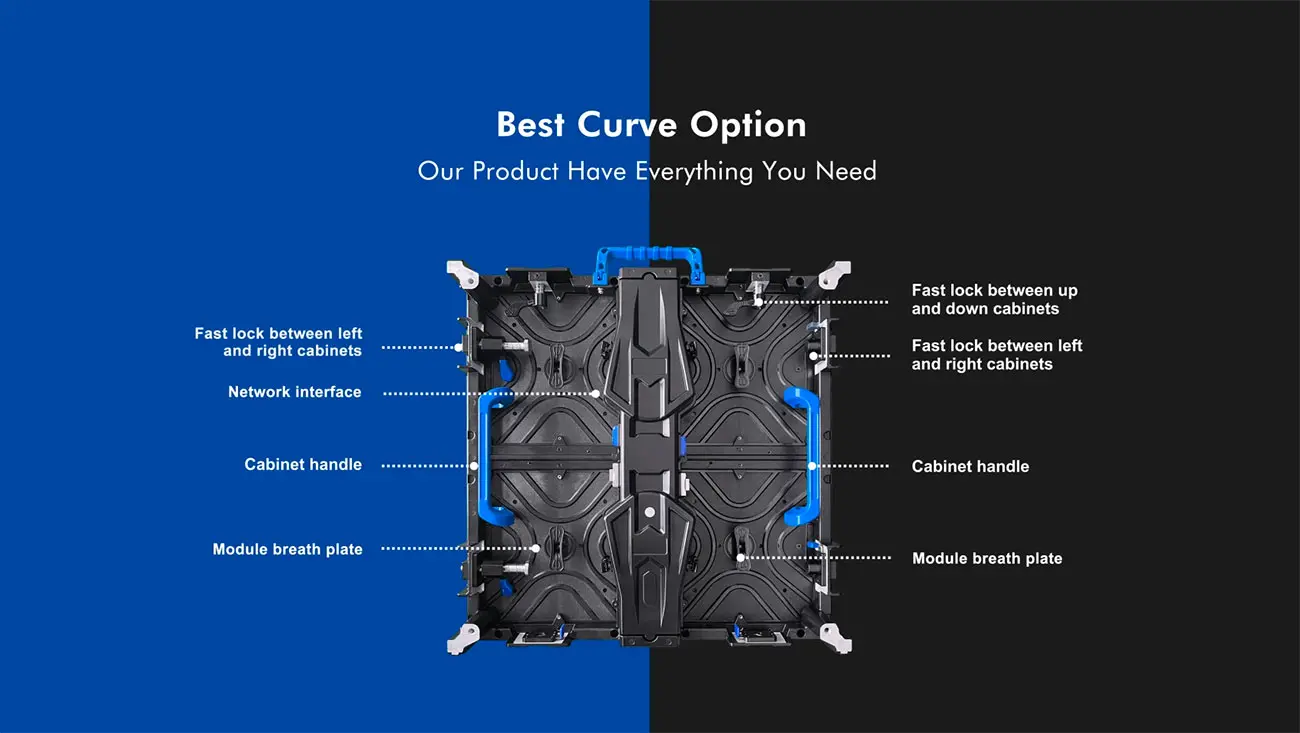

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 3

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 4

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 5

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 6

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 7

Enbon R1 LED Video Wall Rental For Outdoor Outdoor LED Display Screen 8

Product Specification

Item	Indoor				Outdoor
Pixel Pitch	2.604	2.976	3.91	4.81	3.91	4.81
LED lamp	SMD2020	SMD2020	SMD2020	SMD2020	SMD1921	SMD1921
Density	147456dots/m2	112896dots/m2	65536dots/m2	43264dots/m2	65536dots/m2	43264dots/m2
Brightness	800-1000nits	800-1000nits	800-1000nits	800-1000nits	≥ 3500nits	≥ 3500nits
IP rating	IP31	IP31	IP31	IP31	IP65	IP65
Cabinet Materiel	Die-casting Aluminum
Scan	24scan	21scan	16scan	13scan	16scan	13scan
Module weight	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg
Cabinet Weight	7.5kg	7.5kg	7.5kg	7.5kg	8kg	8kg
Module size	250*250mm	250*250mm	250*250mm	250*250mm	250*500mm	250*500mm
Cabinet size	50050085mm	50050085mm	50050085mm	50050085mm	50050085mm	50050085mm
Module pixel	96*96dots	84*84dots	64*64dots	52*52dots	64*128dots	52*104dots
Cabinet pixel	192*192dots	168*168dots	128*128dots	104*104dots	128*128dots	104*104dots
Max Power	500w/sqm	500w/sqm	500w/sqm	500w/sqm	550w/sqm	550w/sqm
Average Power	160w/sqm	160w/sqm	160w/sqm	160w/sqm	200w/sqm	200w/sqm
Viewing Angle	Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg
Control way	synchronous/asynchronous
Brightness control	256 level
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity	10% ~ 90%
Work temperature	﹣20 ~﹢65℃


LED Module
Pixel Pitch	Indoor: 2.604,2.976, 3.91 Outdoor: 3.91, 4.81
LED lamp	Indoor: SMD2020 Outdoor: SMD1921
Brightness	Indoor: 1000nits(P2.604,P2.976),3500nits(P3.91) Outdoor: 3500nits(P3.91,P4.81)
Module pixel	Indoor: 9696 dots(P2.604) 8484 dots(P2.976) 6464dots(P3.91) Outdoor: 6464dots(P3.91) 52*52dots(P4.81)
Cabinet pixel	Indoor: 192192 dots(P2.604) 168168dots(P2.976) 128128dots(P3.91) Outdoor: 128128dots(P3.91) 104*104dots(P4.81)
Appearance
Module size	Indoor: 250250mm(2.604,2.976, 3.91) Outdoor:250250mm (3.91, 4.81)
Cabinet size	Indoor: 50050085mm(2.604,2.976, 3.91) Outdoor: 50050085mm (3.91, 4.81)
Module weight	Indoor: 0.5kg(2.604,2.976, 3.91) Outdoor: 0.5kg(3.91, 4.81)
Cabinet Weight	Indoor: 7.5kg(2.604,2.976, 3.91) Outdoor:8kg(3.91, 4.81)

Working Environment
Work humidity	10％～ 90％
Work temperature	﹣20 ～﹢65℃

System parameter
Operating system	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

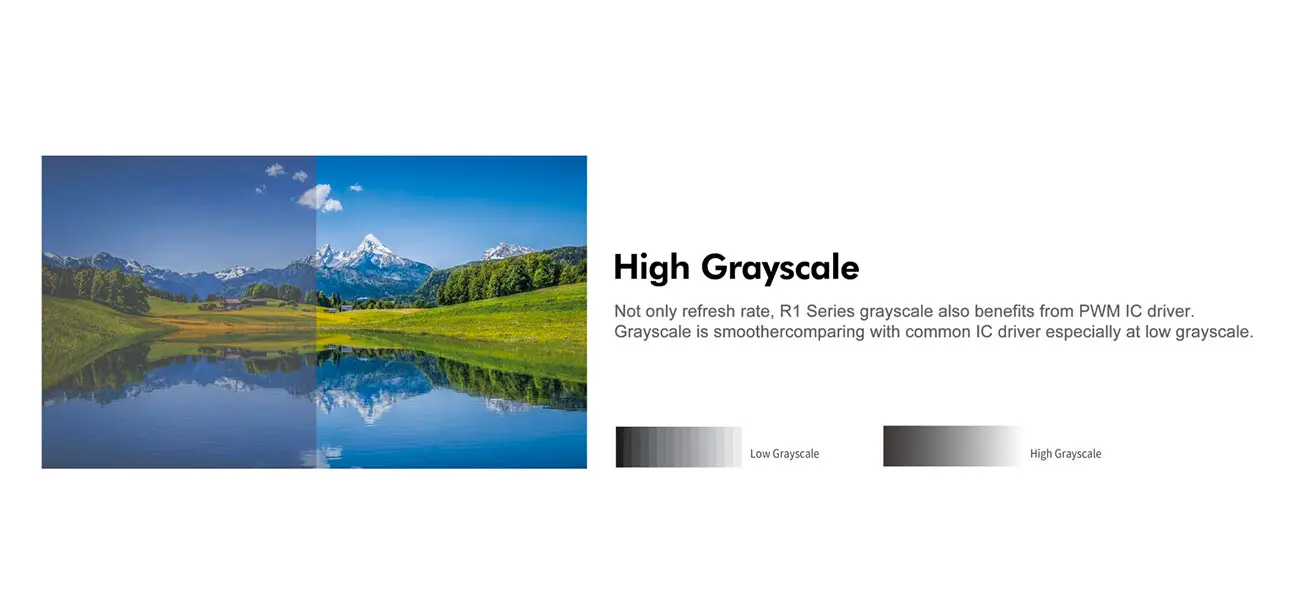

Gray scale	16bit

Power
Max Power	Indoor: 500w/sqm(2.604,2.976, 3.91) Outdoor:550w/sqm(3.91, 4.81)
Average Power	Indoor: 160w/sqm(2.604,2.976, 3.91) Outdoor: 200w/sqm(P3.91) 160w/sqm(P4.81)

Waterproof grade
IP rating	Indoor : IP31 Outdoor: IP65
Control system
Control way	Synchronous/Asynchronous
Viewing Angle	H140(+70/-70) deg V140(+70/-70)deg
Scan	Indoor:32scan (P2.604) 21scan(P2.976) 16scan(P3.91) Outdoor:16scan(P3.91) 13scan(P4.81)
Material density
Density	Indoor:147456dots/m2 (P2.604) 112896dots/m2(P2.976) 65536dots/m2(P3.91) Outdoor:65536dots/m2(P3.91) 43264dots/m2(P4.81)
Cabinet Materiel	Die-casting Aluminum
