Enbon R1 Model has been discontinued and upgraded to a new model: Enbon B Pro Model
Item | Indoor | Outdoor | ||||
---|---|---|---|---|---|---|
Pixel Pitch | 2.604 | 2.976 | 3.91 | 4.81 | 3.91 | 4.81 |
LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
Density(dots/m2) | 147456 | 112896 | 65536 | 43264 | 65536 | 43264 |
Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
IP rating | IP31 | IP31 | IP31 | IP31 | IP65 | IP65 |
Cabinet Materiel | Die-casting Aluminum | |||||
Scan | 24scan | 21scan | 16scan | 13scan | 16scan | 13scan |
Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*500 | 250*500 |
Cabinet size(mm) | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 |
Module pixel | 96*96dots | 84*84dots | 64*64dots | 52*52dots | 64*128dots | 52*104dots |
Cabinet pixel | 192*192dots | 168*168dots | 128*128dots | 104*104dots | 128*128dots | 104*104dots |
Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
Control way | synchronous/asynchronous | |||||
Brightness control | 256 level | |||||
Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
Work humidity | 10% ~ 90% | |||||
Work temperature | ﹣20 ~﹢65℃ |

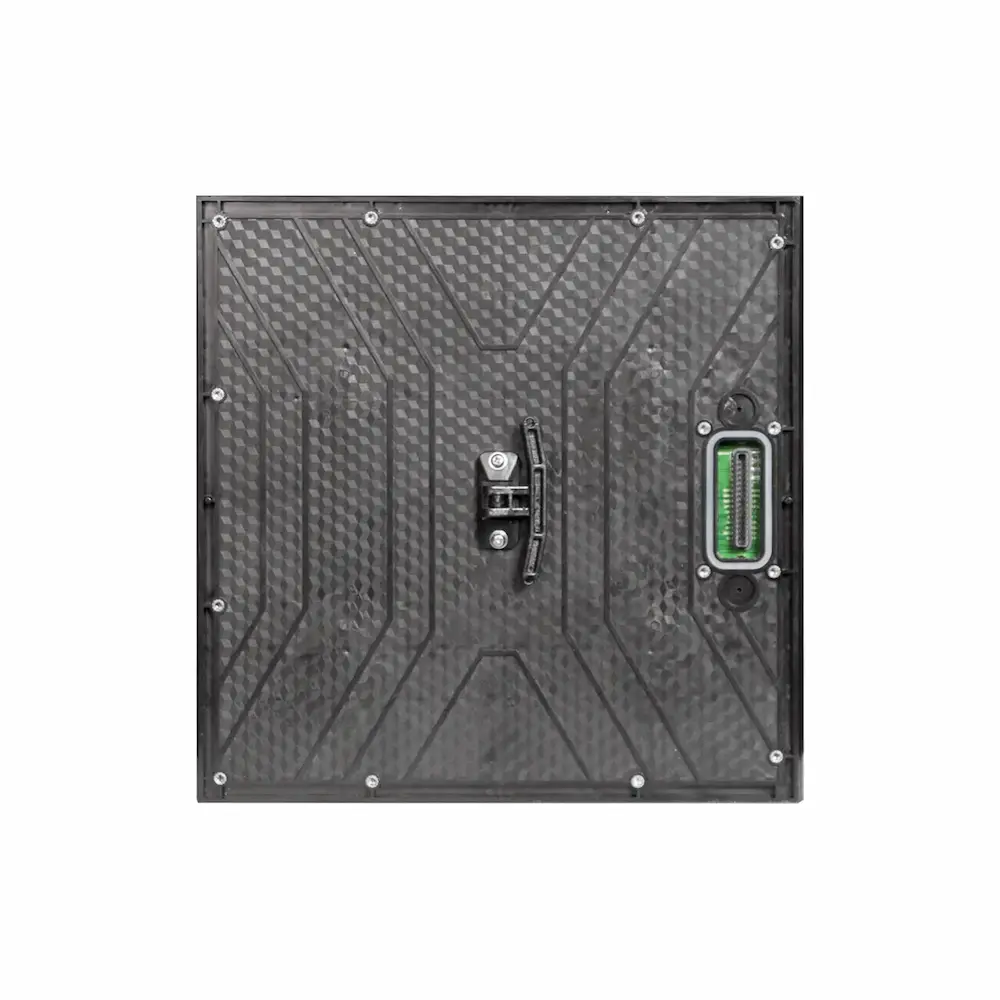

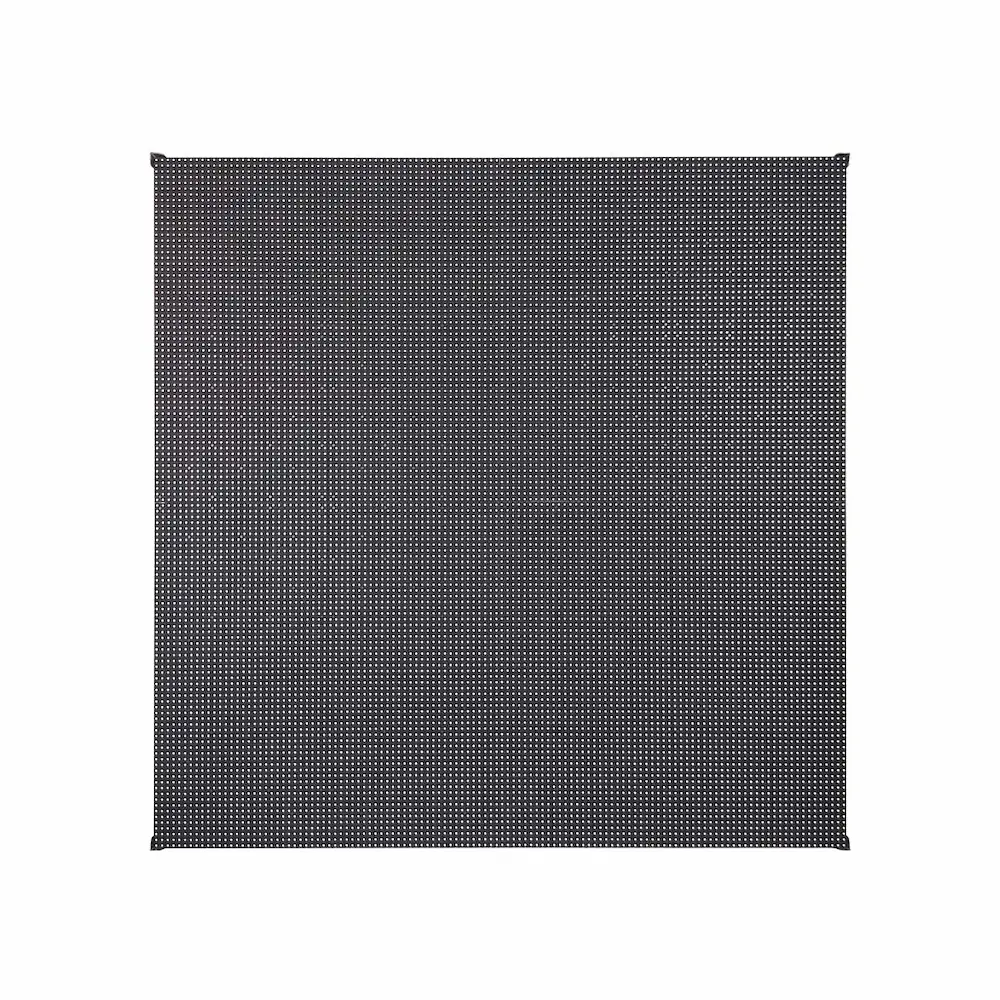

LED Module |
|
Pixel Pitch | Indoor: 2.604,2.976, 3.91 Outdoor: 3.91, 4.81 |
---|---|
LED lamp | Indoor: SMD2020 Outdoor: SMD1921 |
Brightness | Indoor: 1000nits(P2.604,P2.976),3500nits(P3.91) Outdoor: 3500nits(P3.91,P4.81) |
Module pixel | Indoor: 96*96 dots(P2.604) 84*84 dots(P2.976) 64*64dots(P3.91) Outdoor: 64*64dots(P3.91) 52*52dots(P4.81) |
Cabinet pixel | Indoor: 192*192 dots(P2.604) 168*168dots(P2.976) 128*128dots(P3.91) Outdoor: 128*128dots(P3.91) 104*104dots(P4.81) |
Appearance |
|
Module size | Indoor: 250*250mm(2.604,2.976, 3.91) Outdoor:250*250mm (3.91, 4.81) |
Cabinet size | Indoor: 500*500*85mm(2.604,2.976, 3.91) Outdoor: 500*500*85mm (3.91, 4.81) |
Module weight | Indoor: 0.5kg(2.604,2.976, 3.91) Outdoor: 0.5kg(3.91, 4.81) |
Cabinet Weight | Indoor: 7.5kg(2.604,2.976, 3.91) Outdoor:8kg(3.91, 4.81) |
Working Environment |
|
Work humidity | 10% ~ 90% |
Work temperature | ﹣20 ~﹢65℃ |
System parameter |
|
Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
Gray scale | 16bit |
Power |
|
Max Power | Indoor: 500w/sqm(2.604,2.976, 3.91) Outdoor:550w/sqm(3.91, 4.81) |
Average Power | Indoor: 160w/sqm(2.604,2.976, 3.91) Outdoor: 200w/sqm(P3.91) 160w/sqm(P4.81) |
Waterproof grade |
|
IP rating | Indoor : IP31 Outdoor: IP65 |
Control system |
|
Control way | Synchronous/Asynchronous |
Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
Scan | Indoor:32scan (P2.604) 21scan(P2.976) 16scan(P3.91) Outdoor:16scan(P3.91) 13scan(P4.81) |
Material density |
|
Density | Indoor:147456dots/m2 (P2.604) 112896dots/m2(P2.976) 65536dots/m2(P3.91) Outdoor:65536dots/m2(P3.91) 43264dots/m2(P4.81) |
Cabinet Materiel | Die-casting Aluminum |
