FC Model Hot

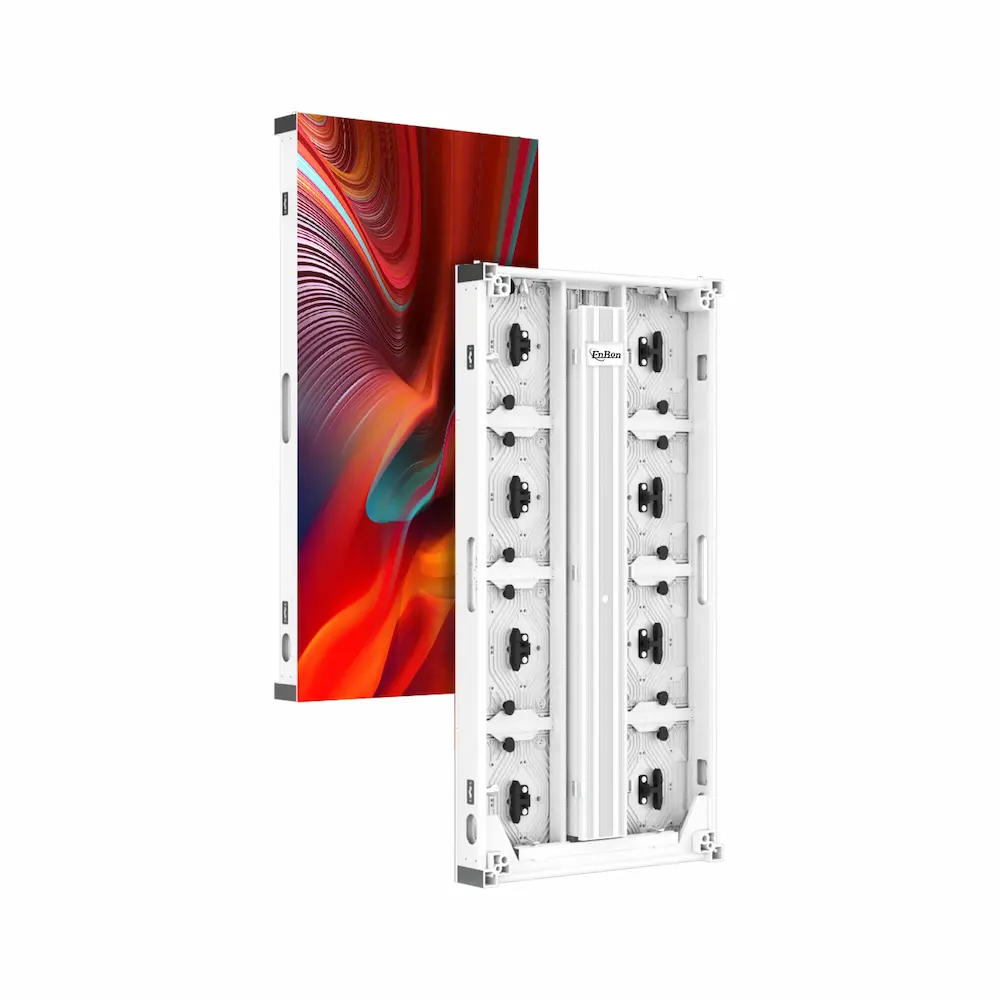

Enbon FC Ultra Thin LED Screen With Low Consumption, Waterproof And Outdoor Fixed Mount

Enbon FC Ultra thin LED screen used for outdoor fixed front and back install, customize thinner panels,lower cost, lighter weight cabinet, aluminum profile, outdoor led billboard
  1. Lightweight Cabinet 8KG
  2. Special waterproof design : IP65
  3. Support front and back service
  4. Low power consumption
  5. Different modules use same HUB
IP65P2.604P3.91P1.95P2.97

Description

OUTDOOR FIXED

FC Model

Outdoor Permanent Totally Front Maintenace LED Screen

icon 1

Performance

icon 2

Highlight

icon 3

Quick Lock

icon 4

IP65

icon 5

3840Hz

icon 6

Energy

Enbon FC Img 1

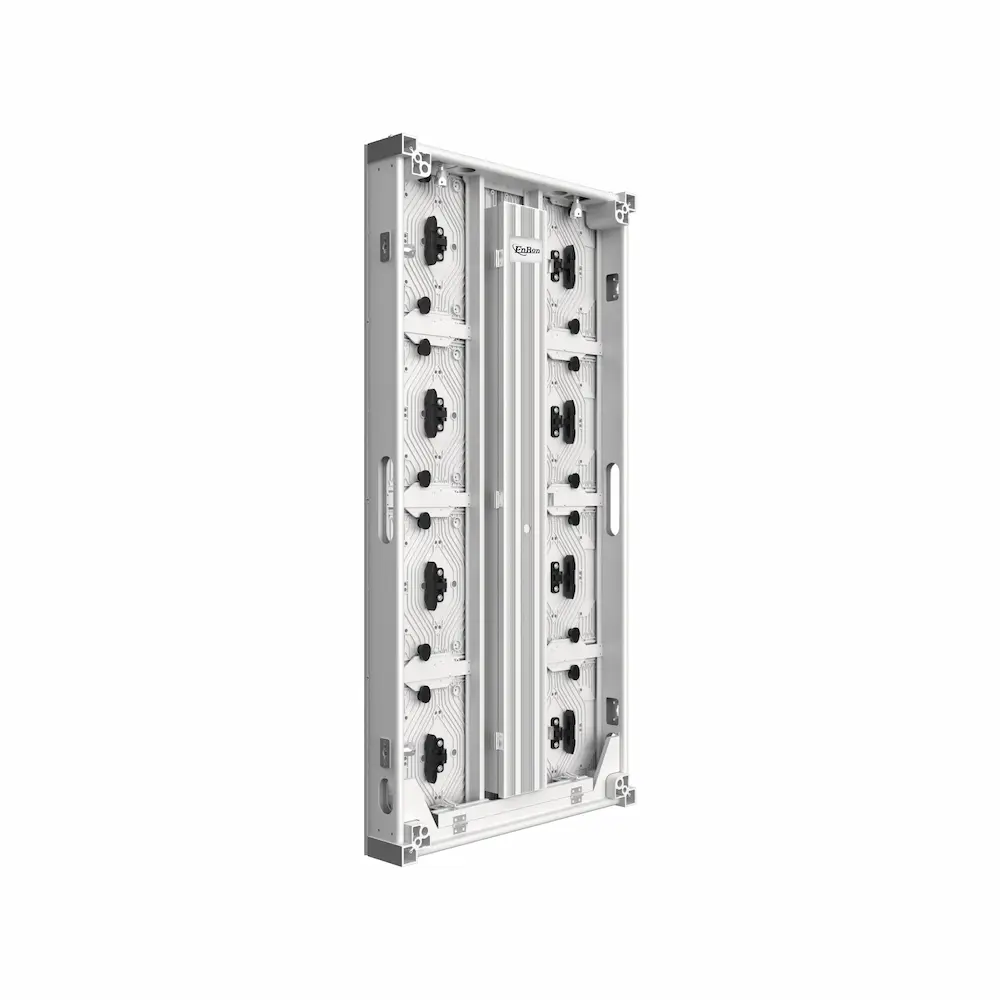

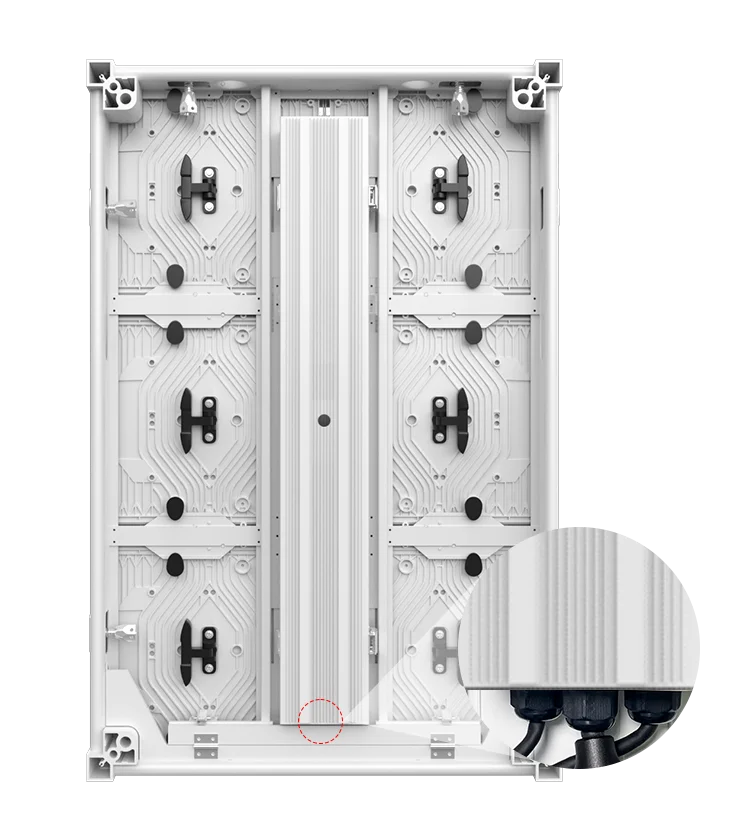

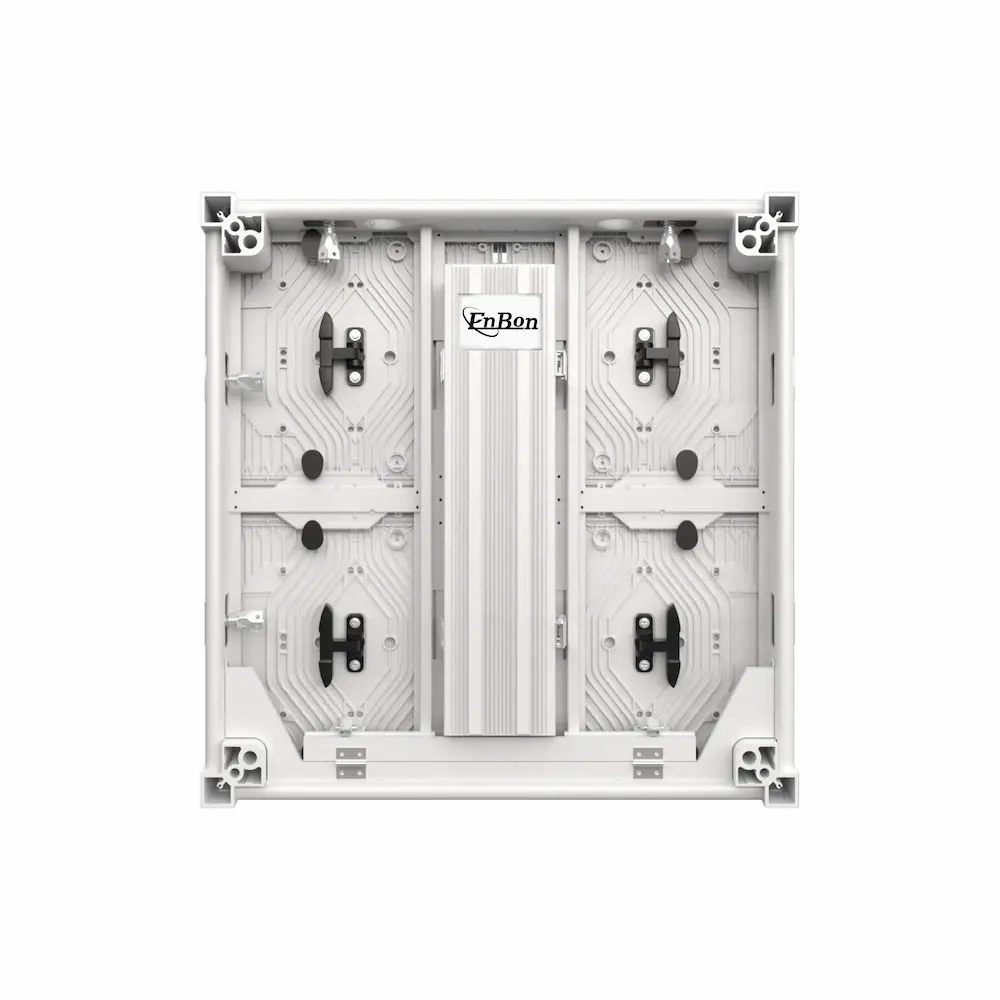

Cabinet Structure

FC Cabinet Structure Image

Corner Protection



Side Fast Lock



Power Pack



Side Handle



Cable slot



Top Handle



Top Fast lock



Module Handle



indicator light



Network



Network



Power

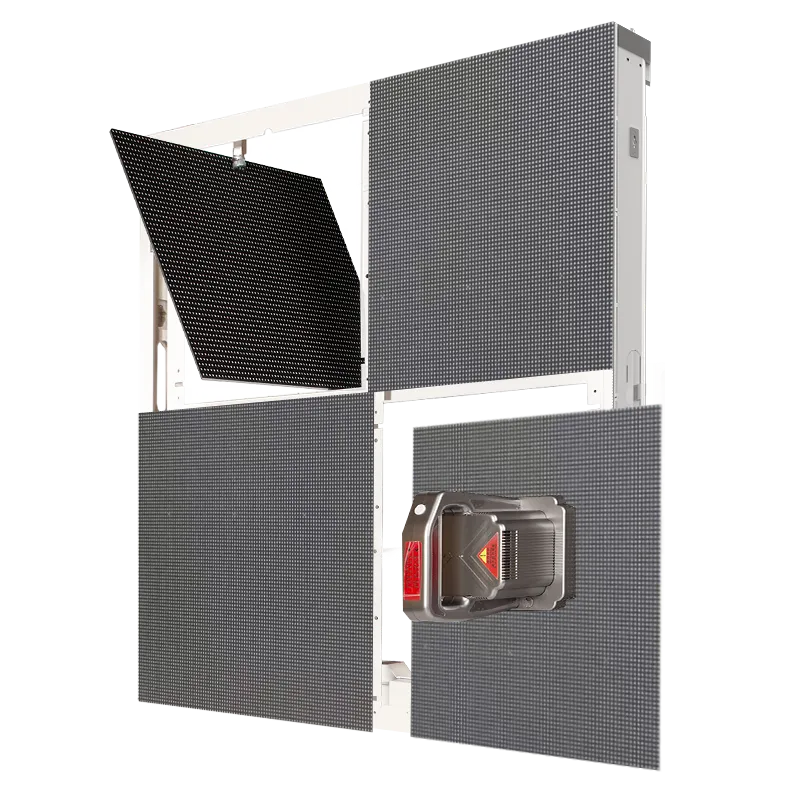

Maintenance Method

Support Full Front Or Full Rear Maintenance.Front Maintenance Can Be installedDirectly On The Wall

FC Maintenance Method Image

Rear Maintenance



Front Maintenance



Super Energy Saving

FC Super Energy Saving Image

Super Lightweight

Light Weight, Aluminum Panel 8kg /pcs With Thickness is 85mm

FC Super Lightweight Image
Aluminum Icon

Lightweight Cabinet 8kg

Die-casting Aluminum Icon

Die-casting Aluminum Module and Cabinet

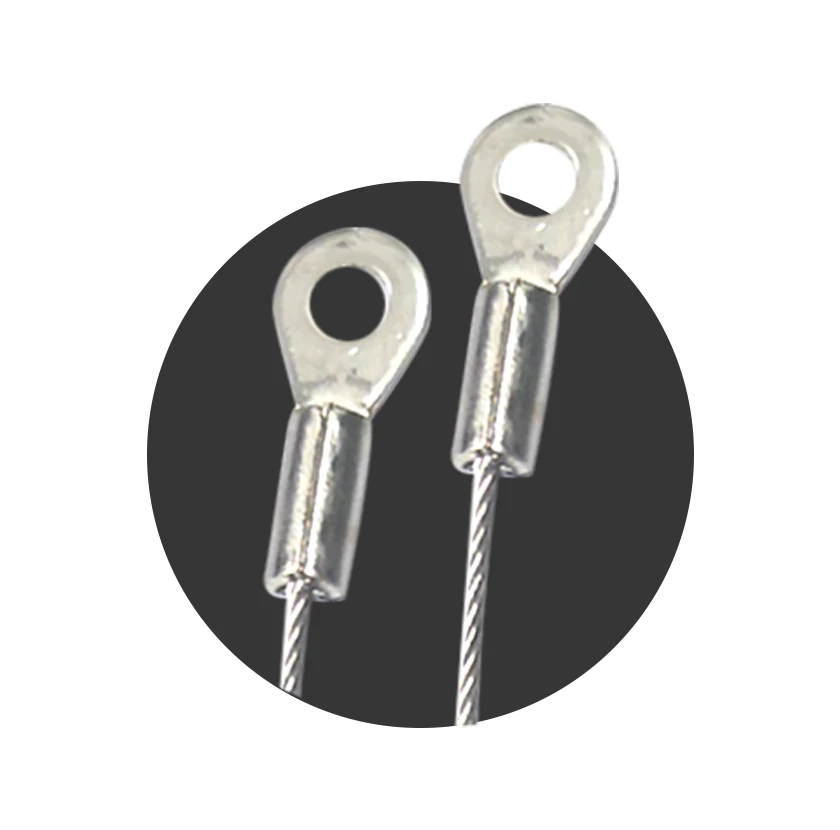

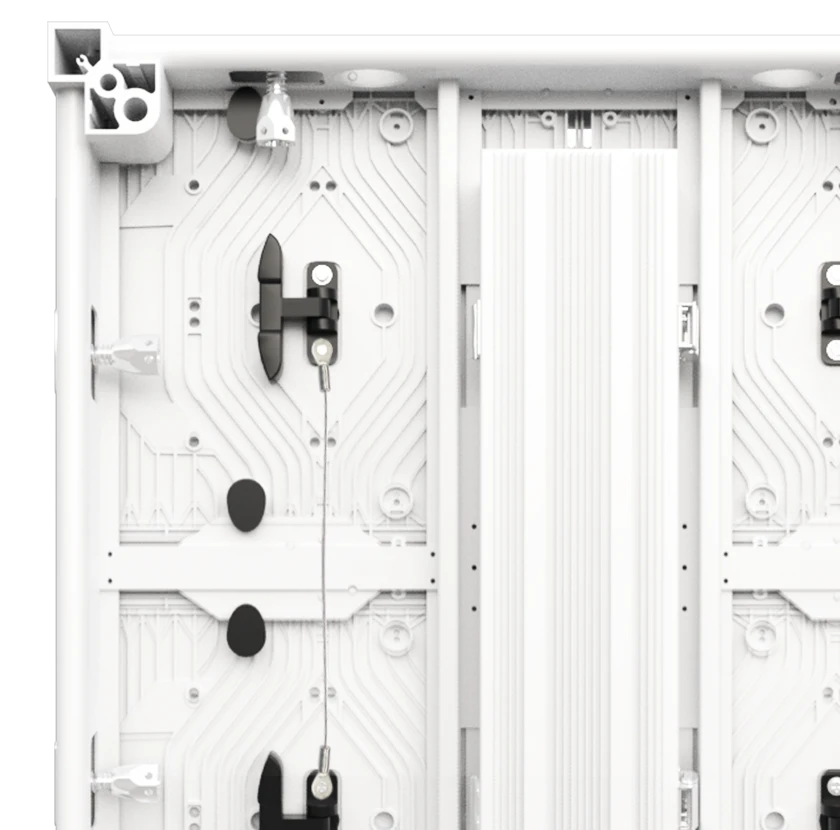

Anti-hanging
Chain Design

FC Img 5
FC Img 6

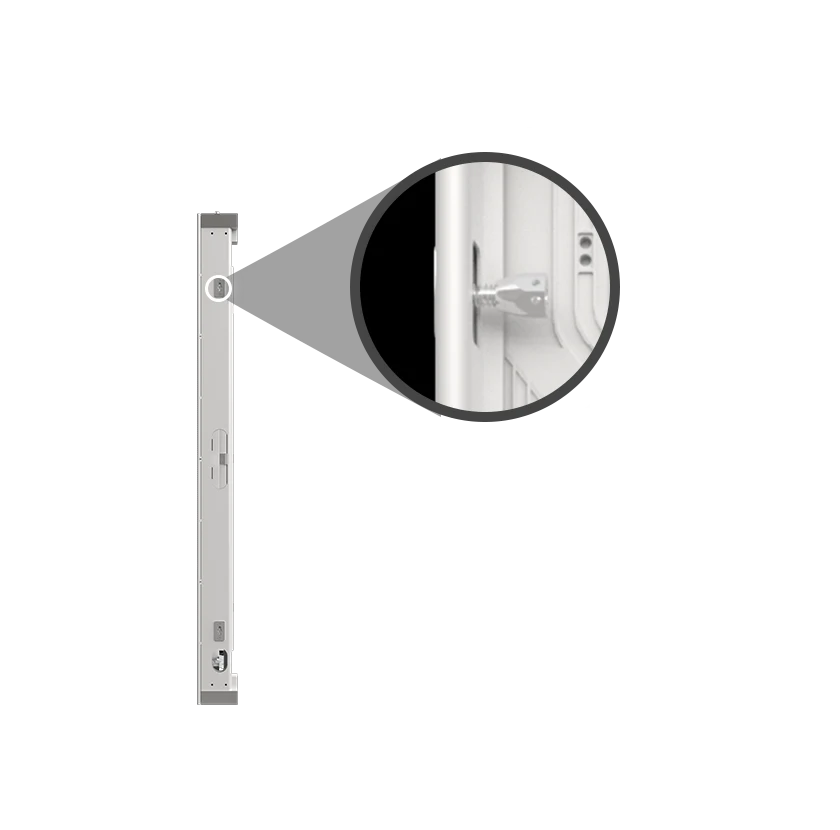

Advanced Lock, Quick Installation

FC Img8
FC Img9

Safety Lock

Press and turn to unlock the panel

High Resolution

FC Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

FC Grayscale Comparison Image


Low Grayscale



High Grayscale

Installation Case

FC Hanging Beam Installation Image

Hanging Beam Installation

FC Vertical Installation Image

Vertical Installation

Product Specification

Item Outdoor
Pixel Pitch 1.95 2.604 2.97 3.91
LED lamp SMD1415 SMD1415 SMD1415 SMD1921
Density(dots/m2) 262144 112896 112896 65536
Brightness ≥4500 nits ≥4500 nits ≥4500 nits ≥6000 nits
IP rating IP65 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum
Scan 32scan 24scan 21scan 16scan
Module weight 1kg 1kg 1kg 1kg
Cabinet Weight 8kg 8kg 8kg 8kg
Module size(mm) 250*250 250*250 250*250 250*250
Cabinet size(mm) 500*500*85 500*500*85 500*500*85 500*500*85
Module pixel 128*128dots 96*96dots 84*84dots 64*64dots
Cabinet pixel 256*256dots 168*168dots 168*168dots 128*128dots
Max Power 550w/sqm 550w/sqm 550w/sqm 550w/sqm
Average Power 185w/sqm 185w/sqm 185w/sqm 185w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

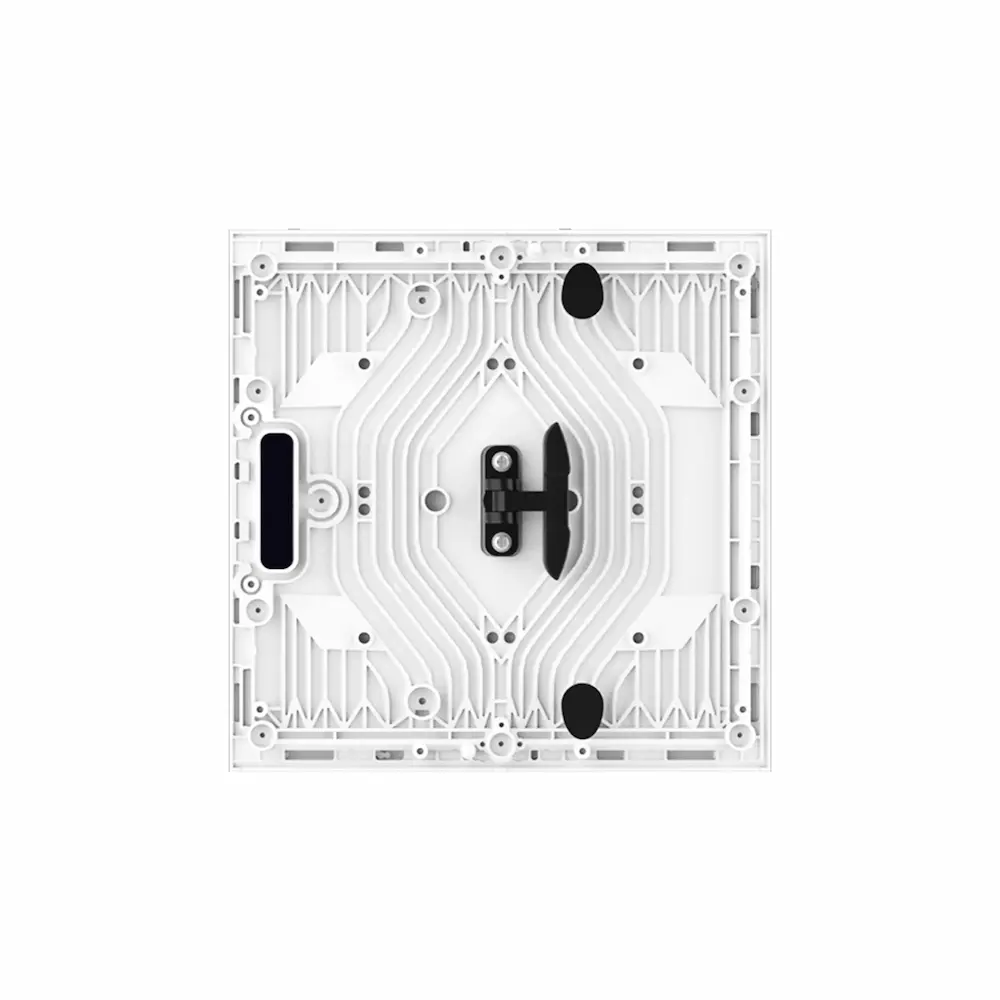

LED Module

Pixel Pitch P1.95,P2.604,P2.97,P3.91
LED lamp SMD1415/1921
Brightness ≥4500nits
Module pixel 128*128/96*96/84*84/64*64dots
Cabinet pixel 256*256/168*168/128*128

Appearance

Module size 250*250mm
Cabinet size 500*500*85mm
Module weight 1kg
Cabinet Weight 8kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power 550w/sqm
Average Power 185w/sqm


Waterproof grade

IP rating IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70) deg
V140(+70/-70)deg
Scan 32scan,24sacn,21scan,16scan

Material density

Density 262144/1128961/65536dots
Cabinet Materiel Die-casting Aluminum
