X Model

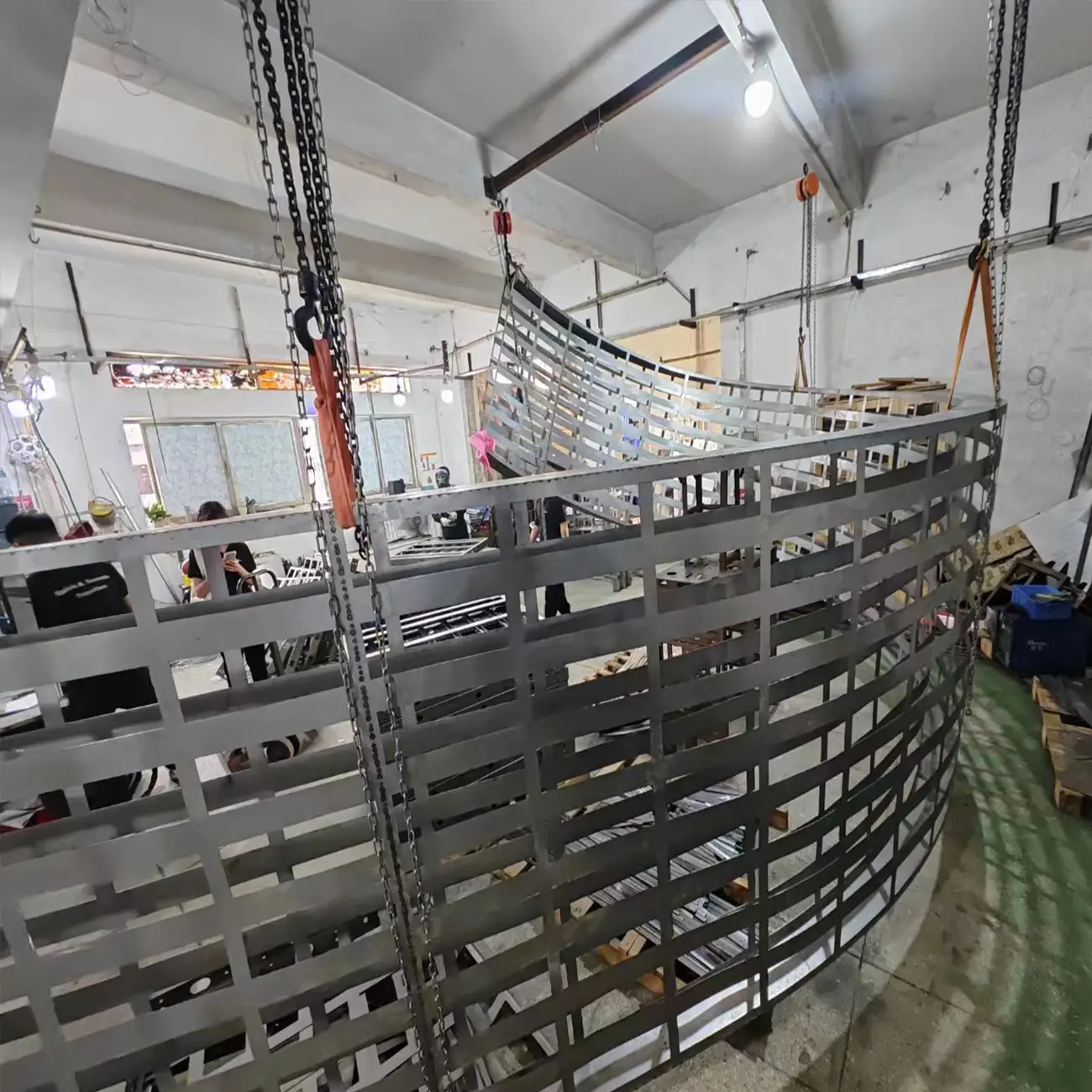

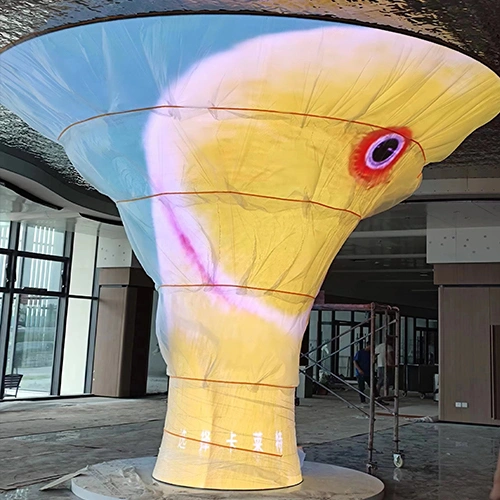

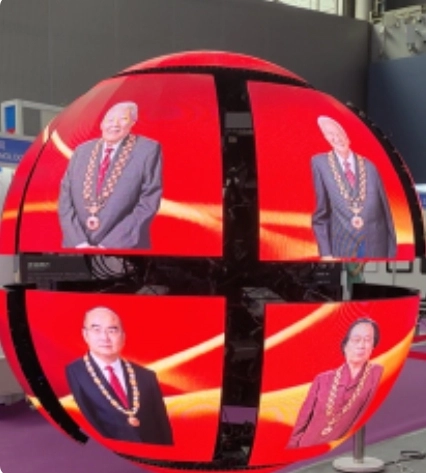

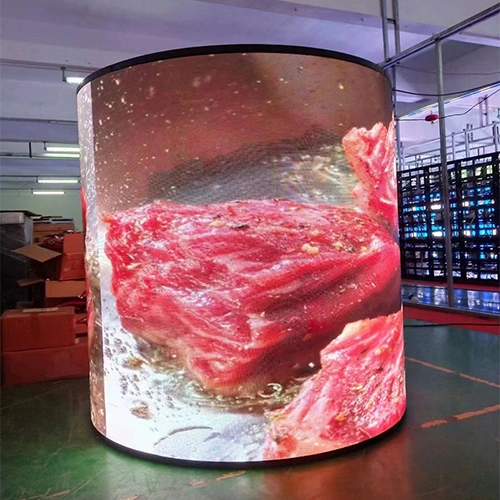

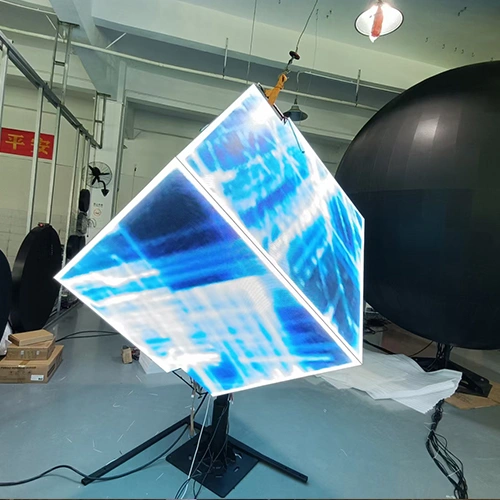

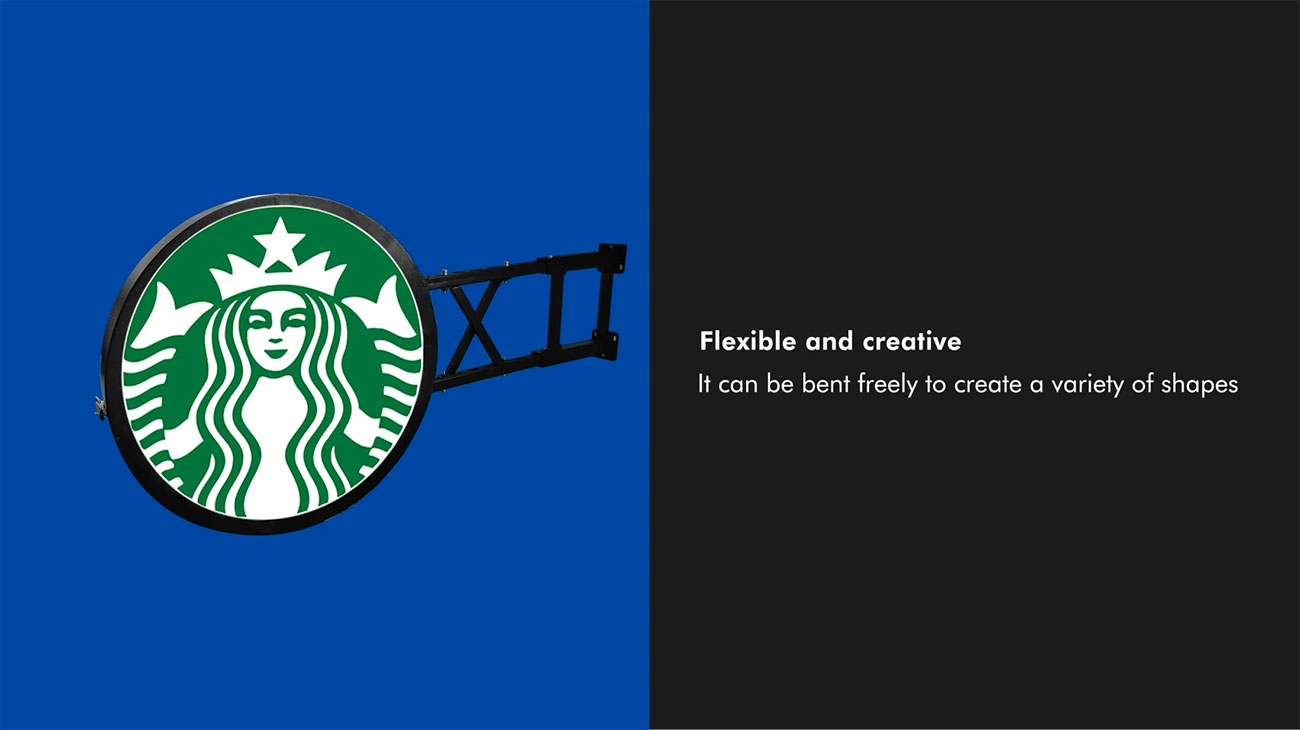

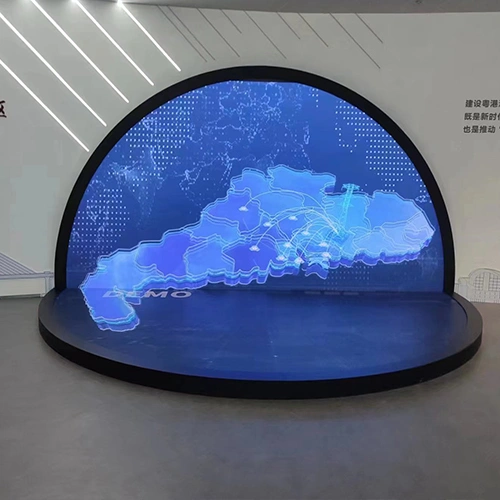

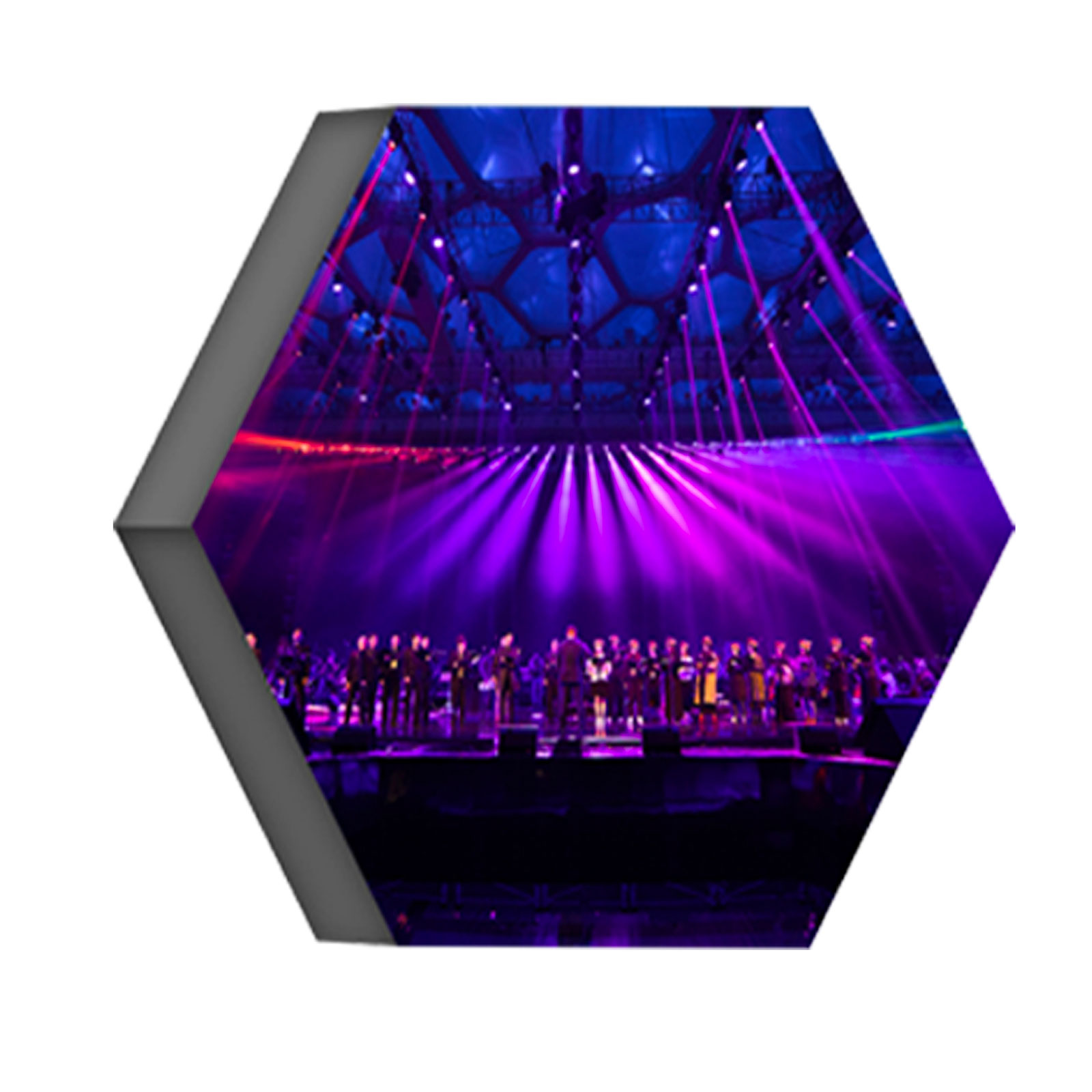

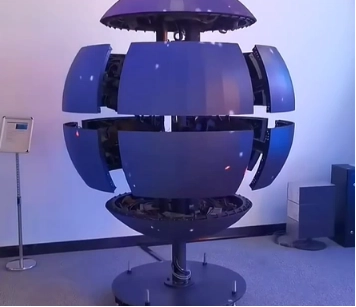

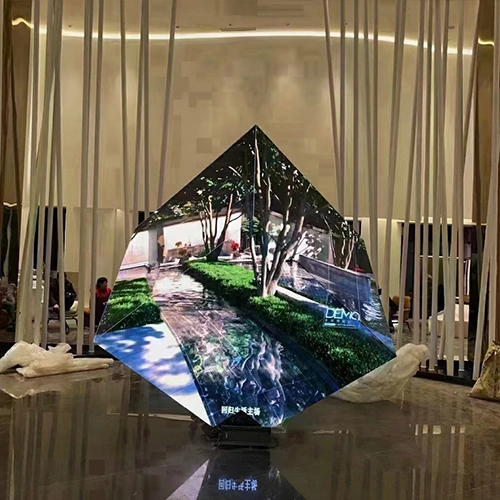

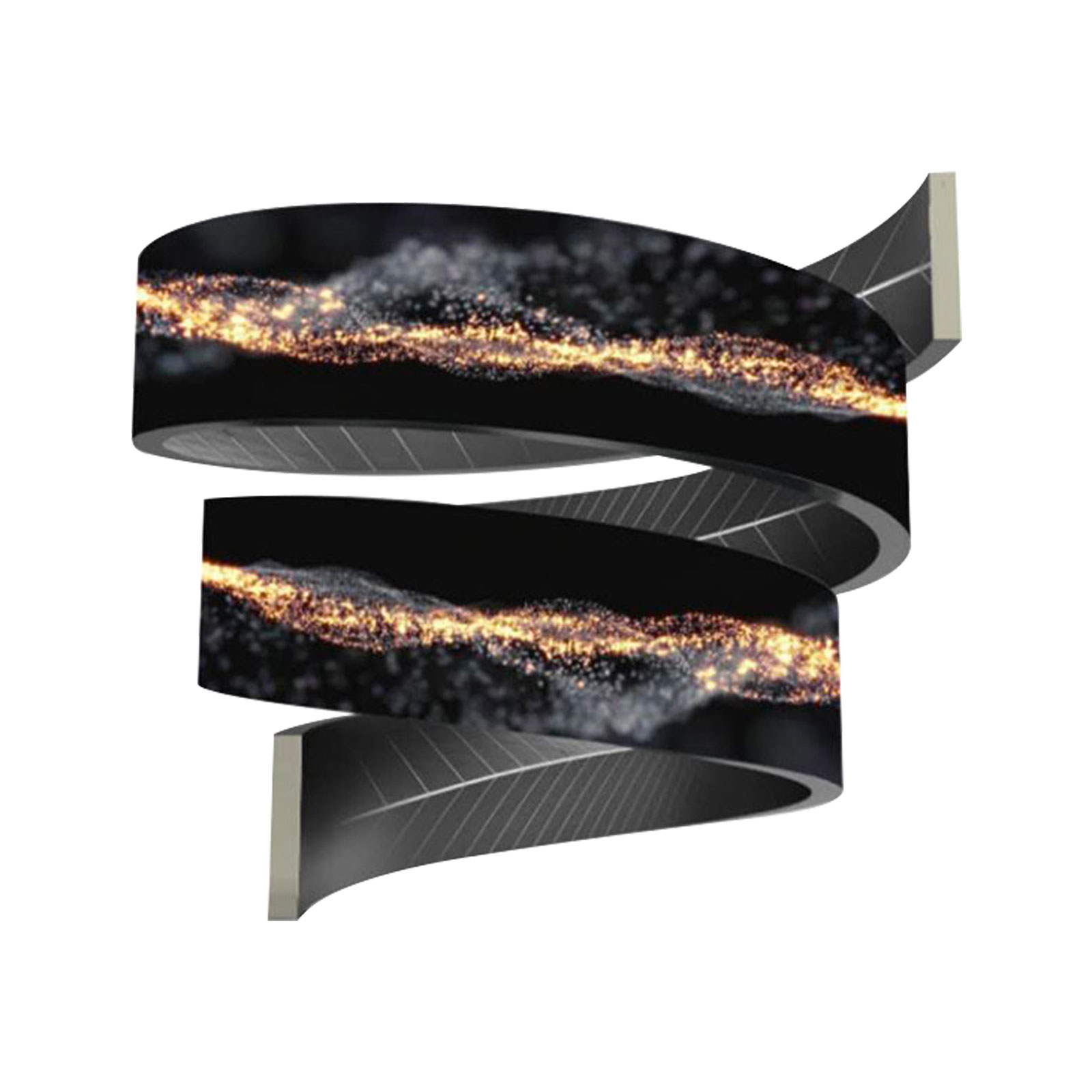

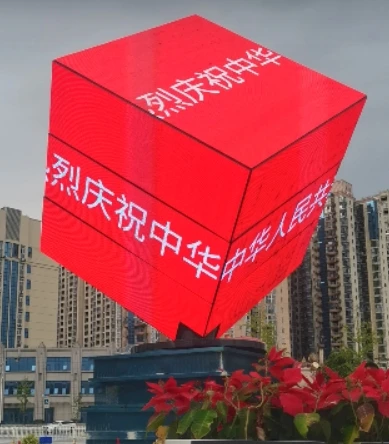

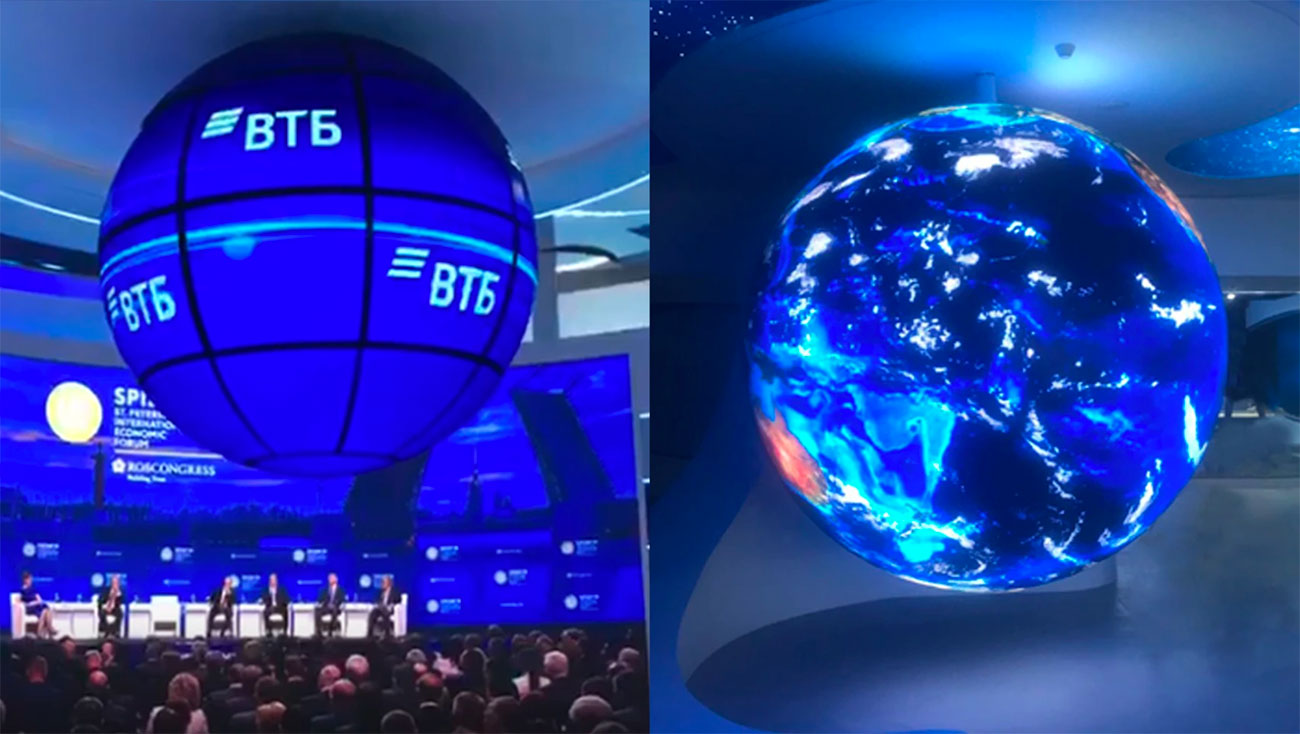

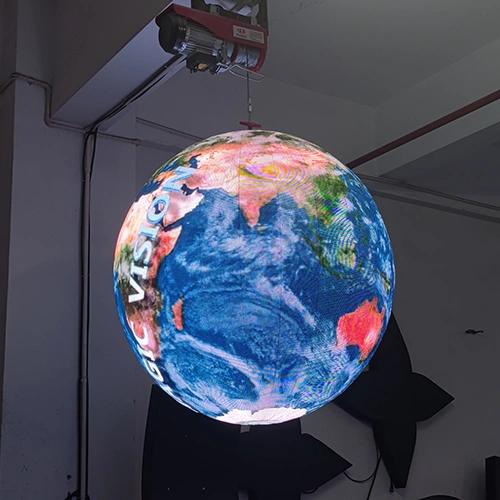

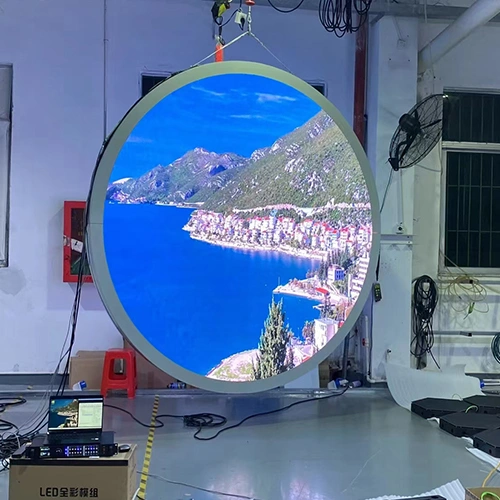

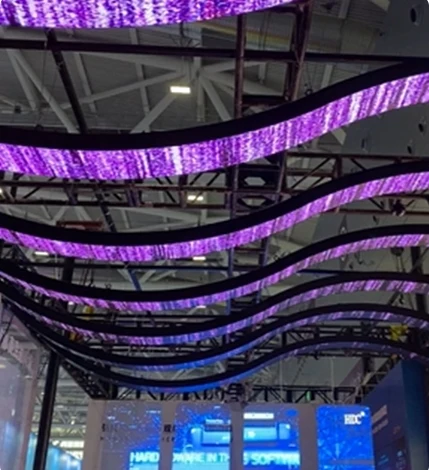

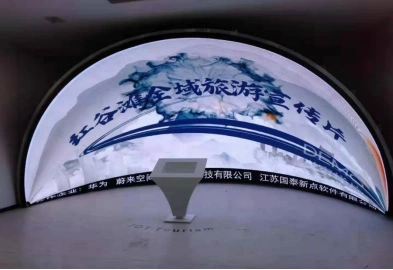

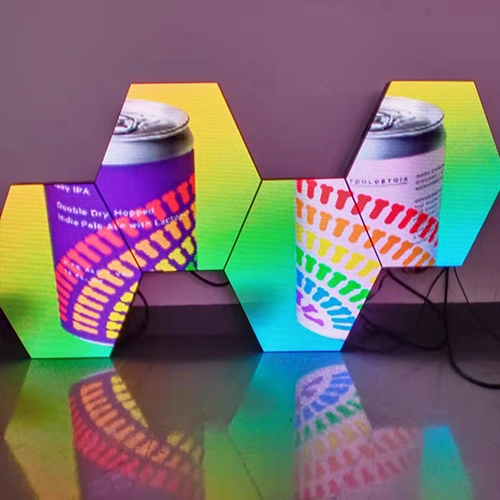

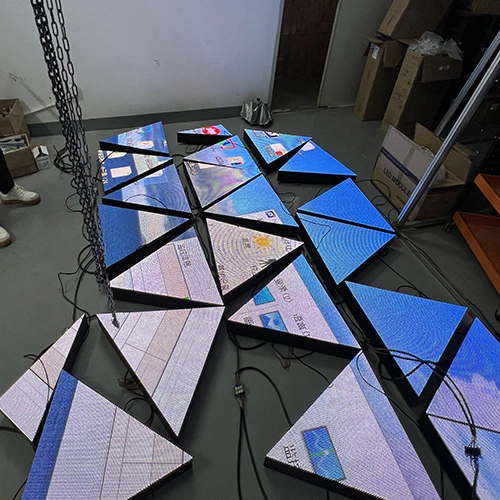

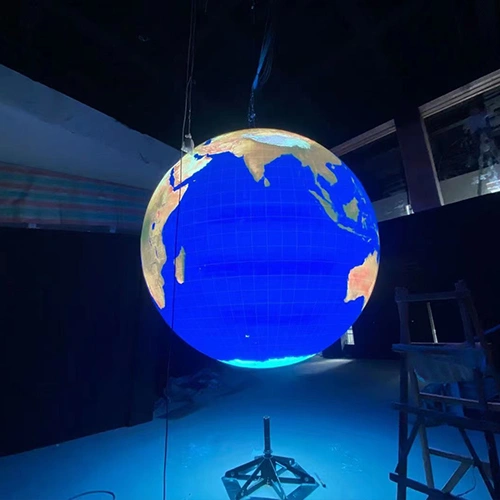

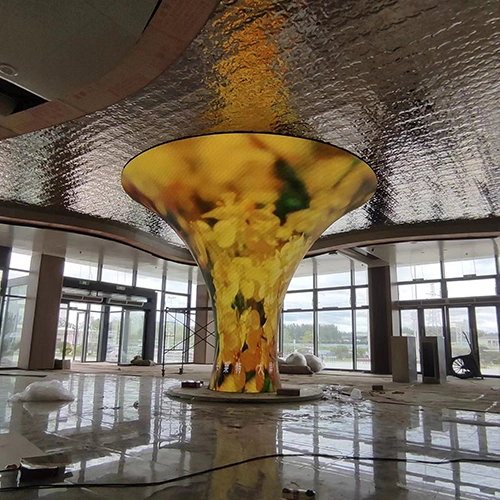

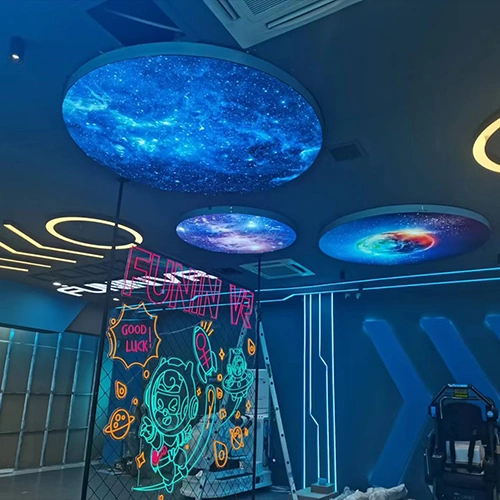

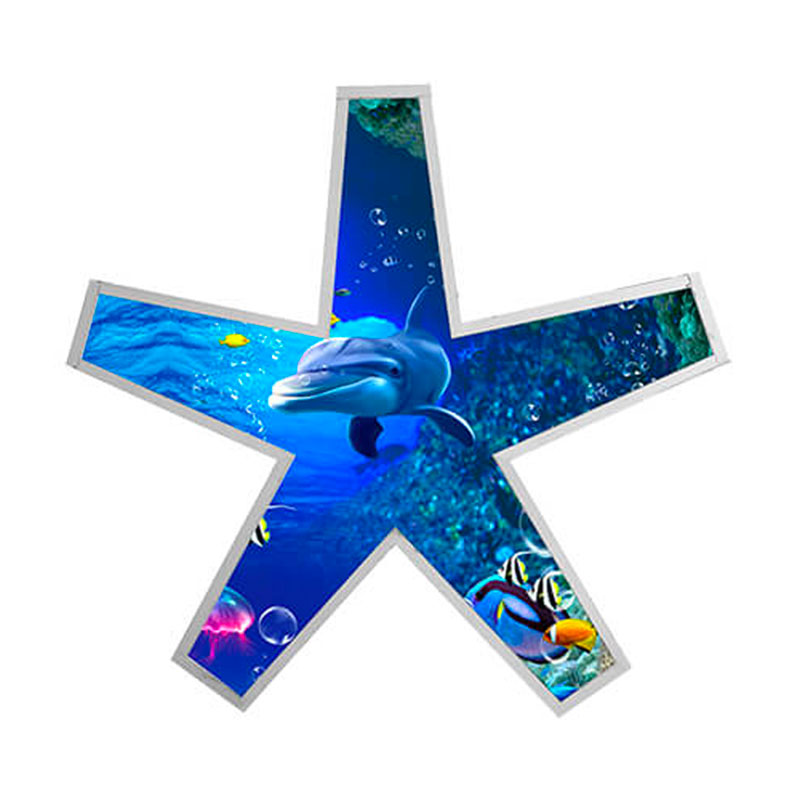

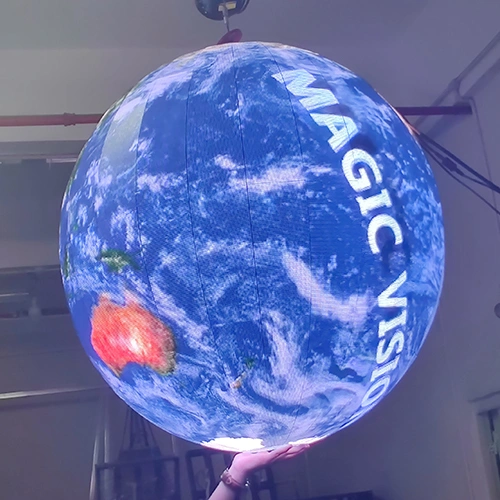

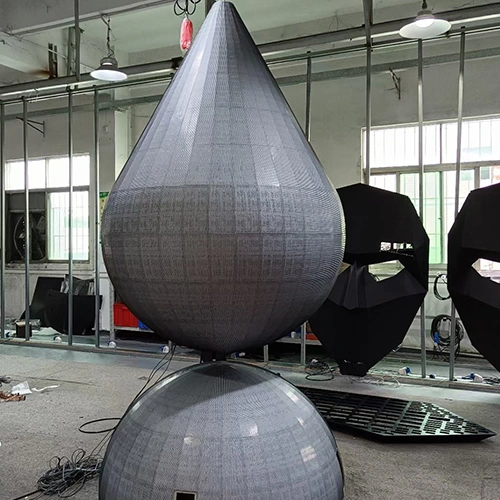

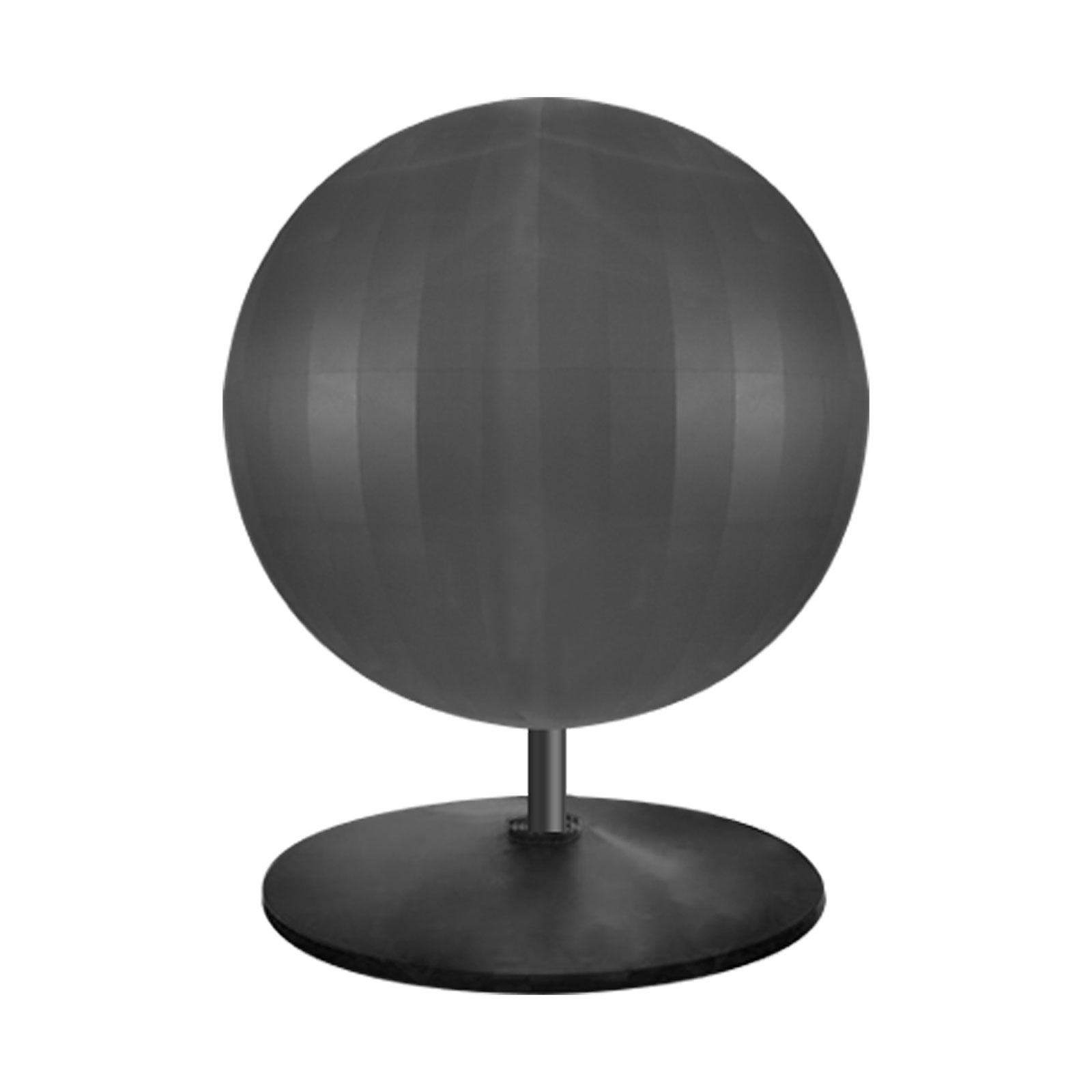

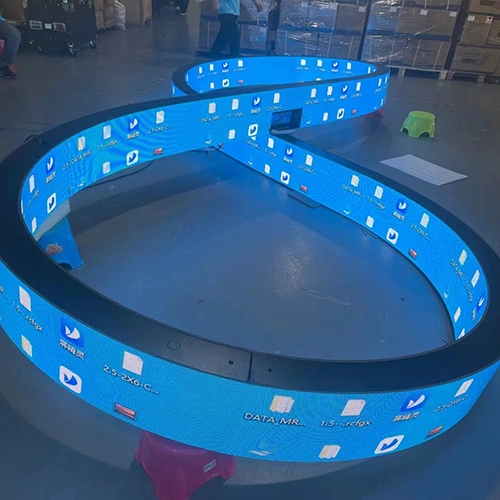

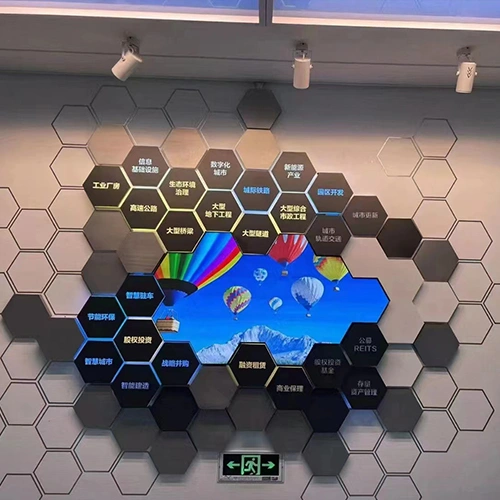

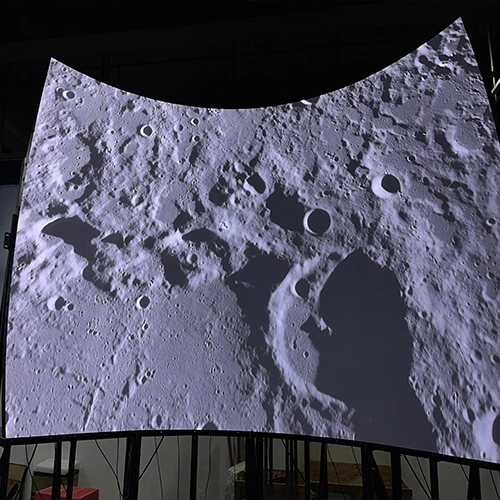

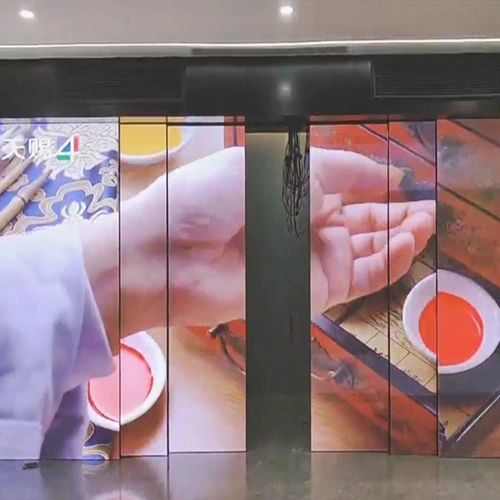

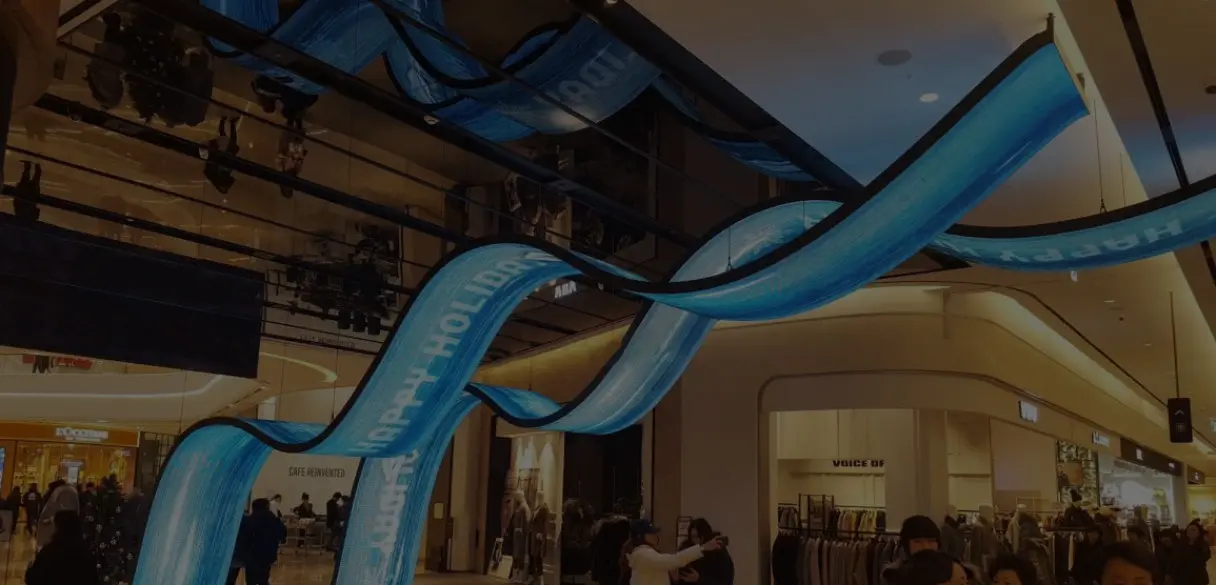

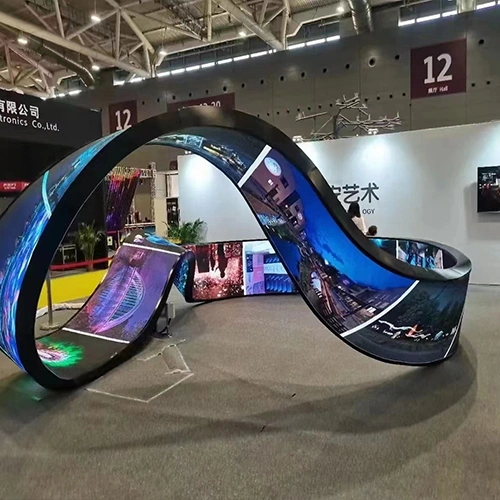

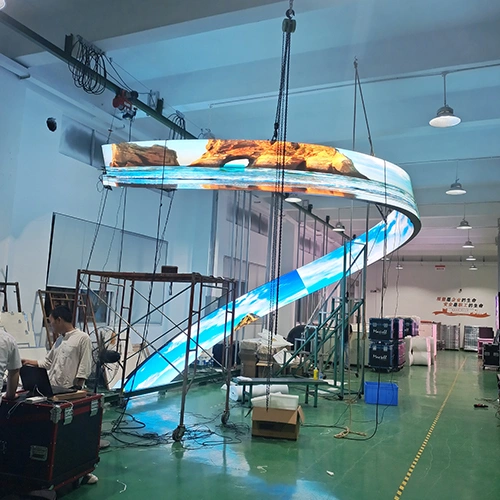

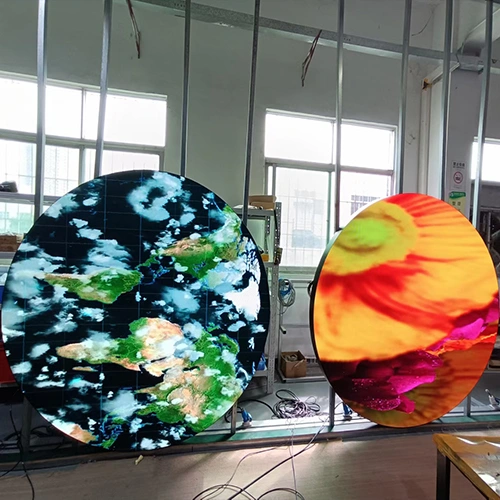

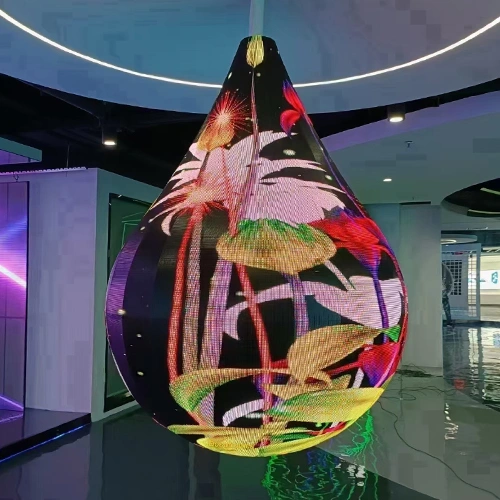

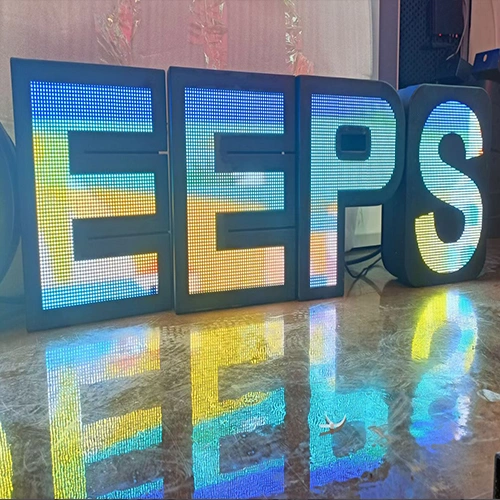

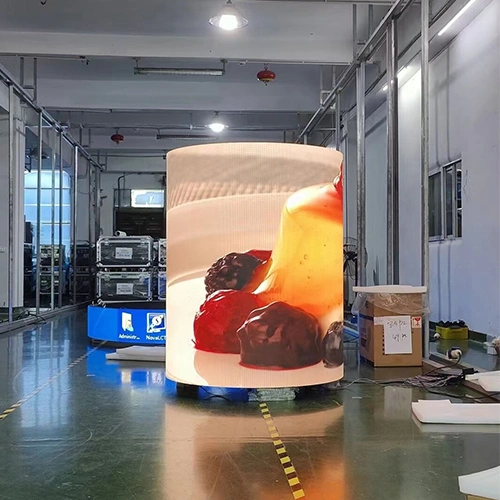

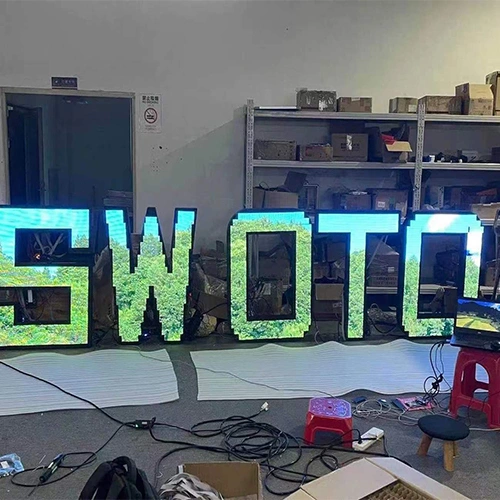

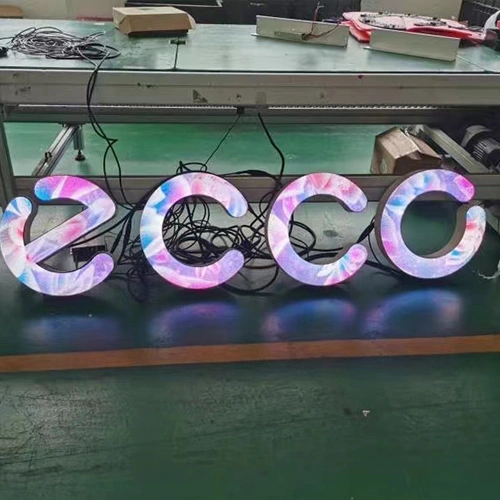

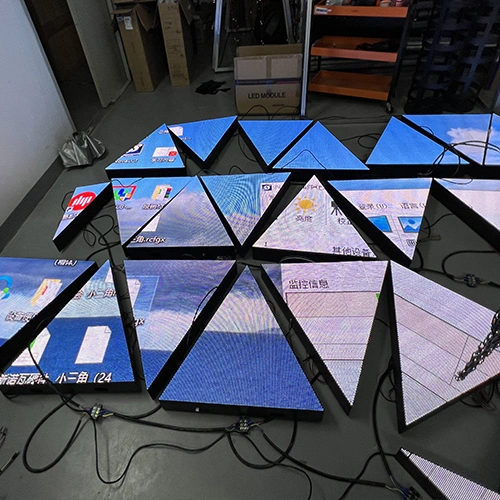

Enbon X series customised high definition full colour LED displays in various shapes

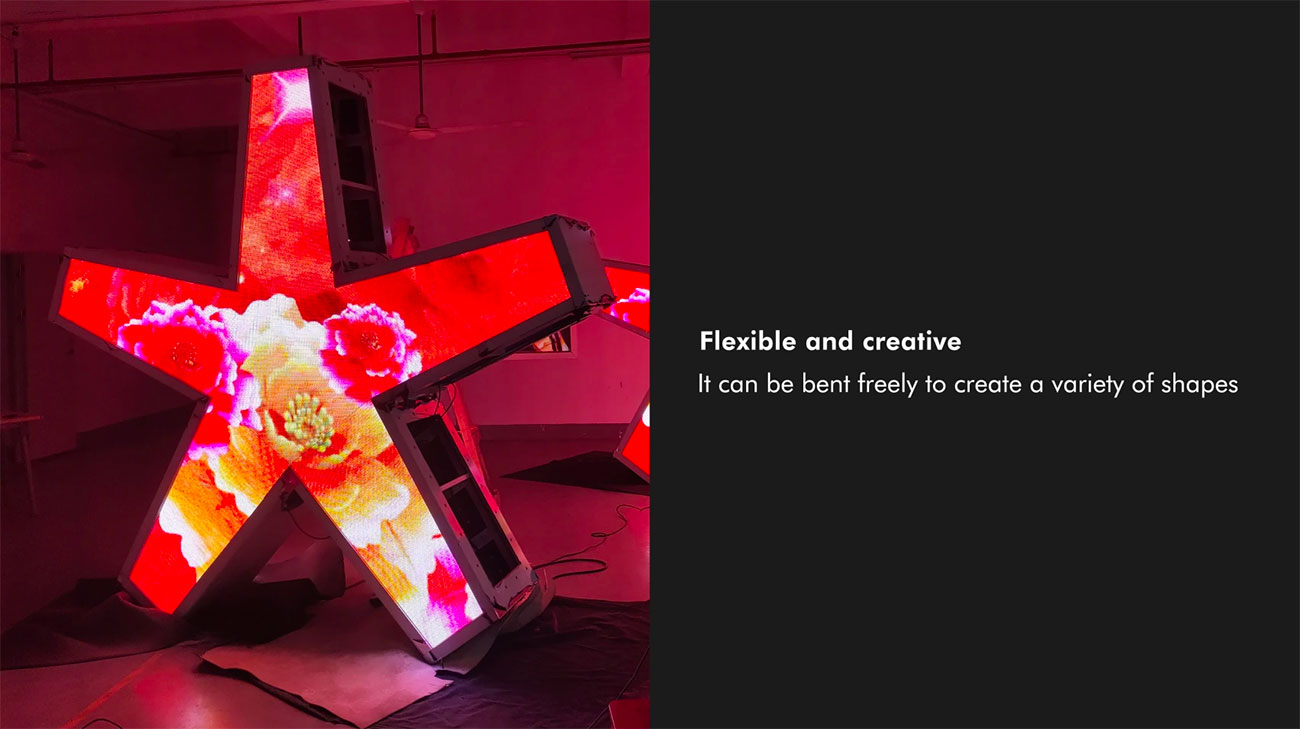

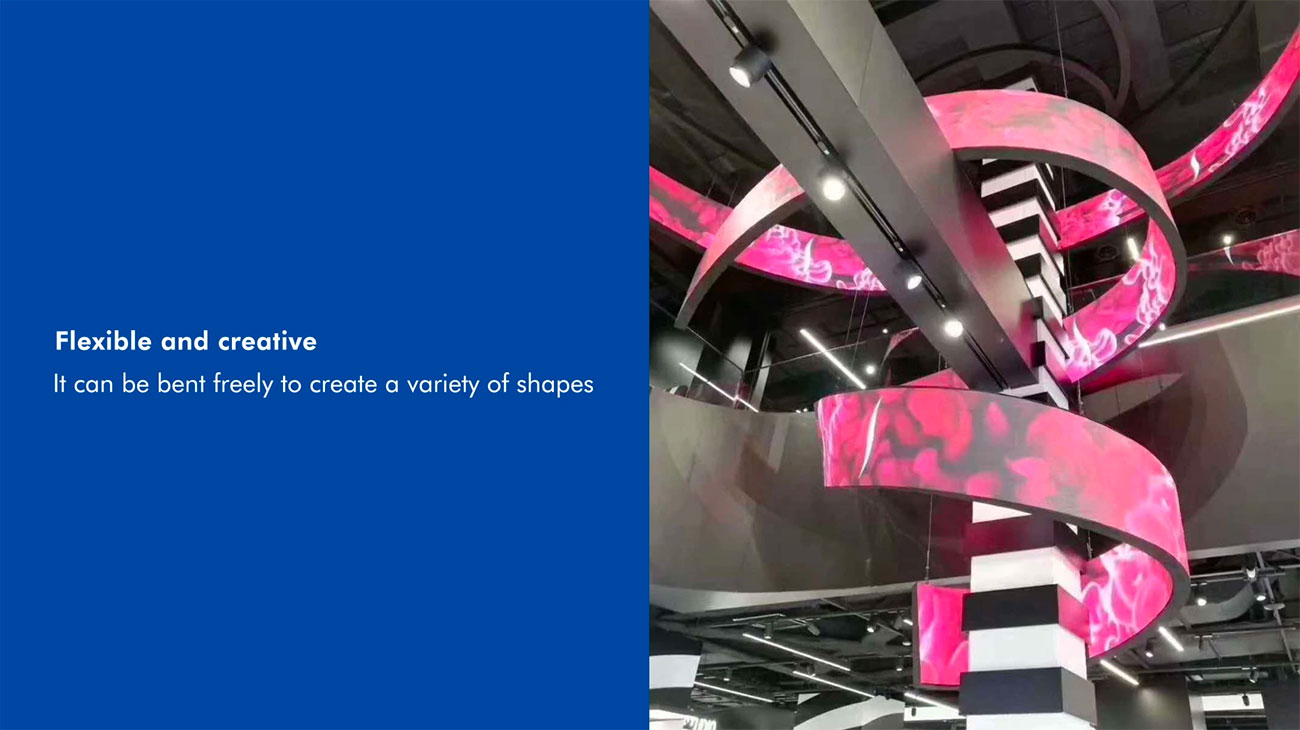

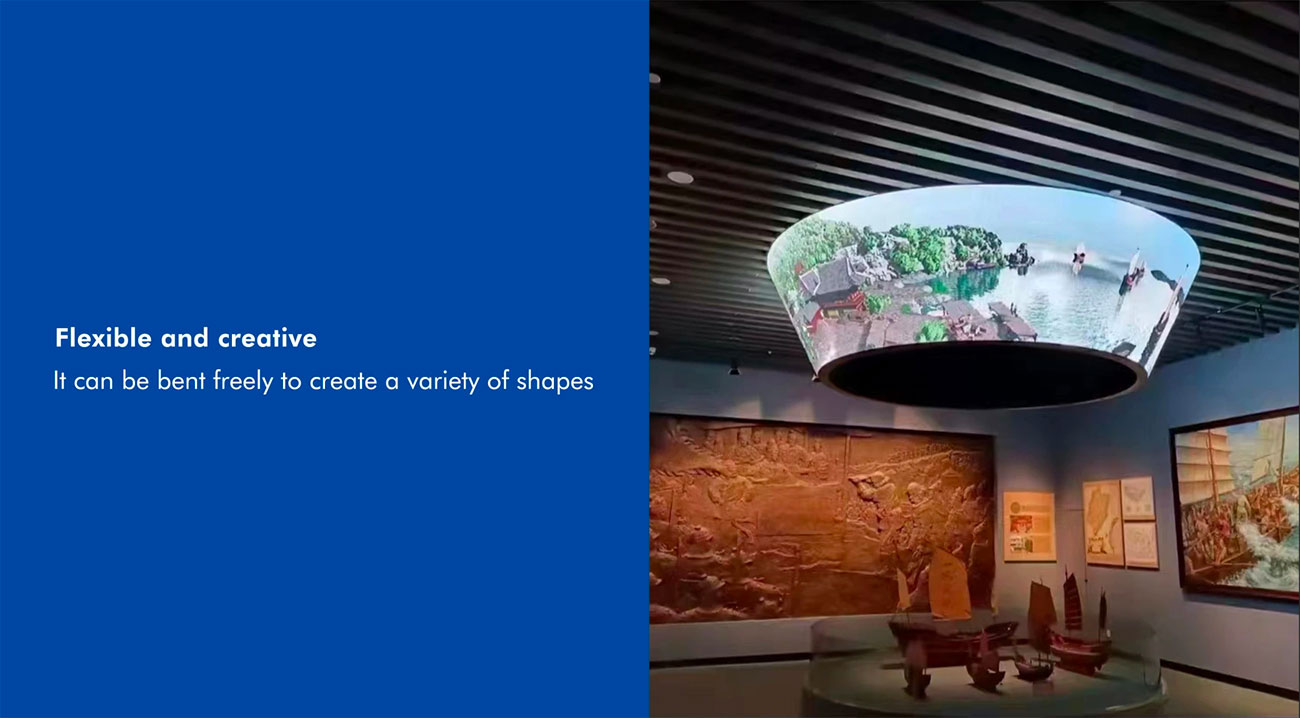

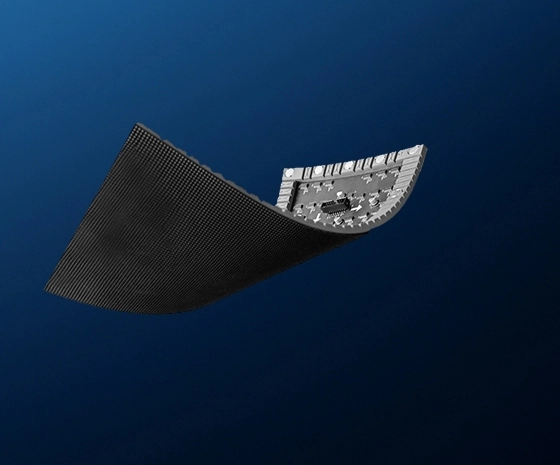

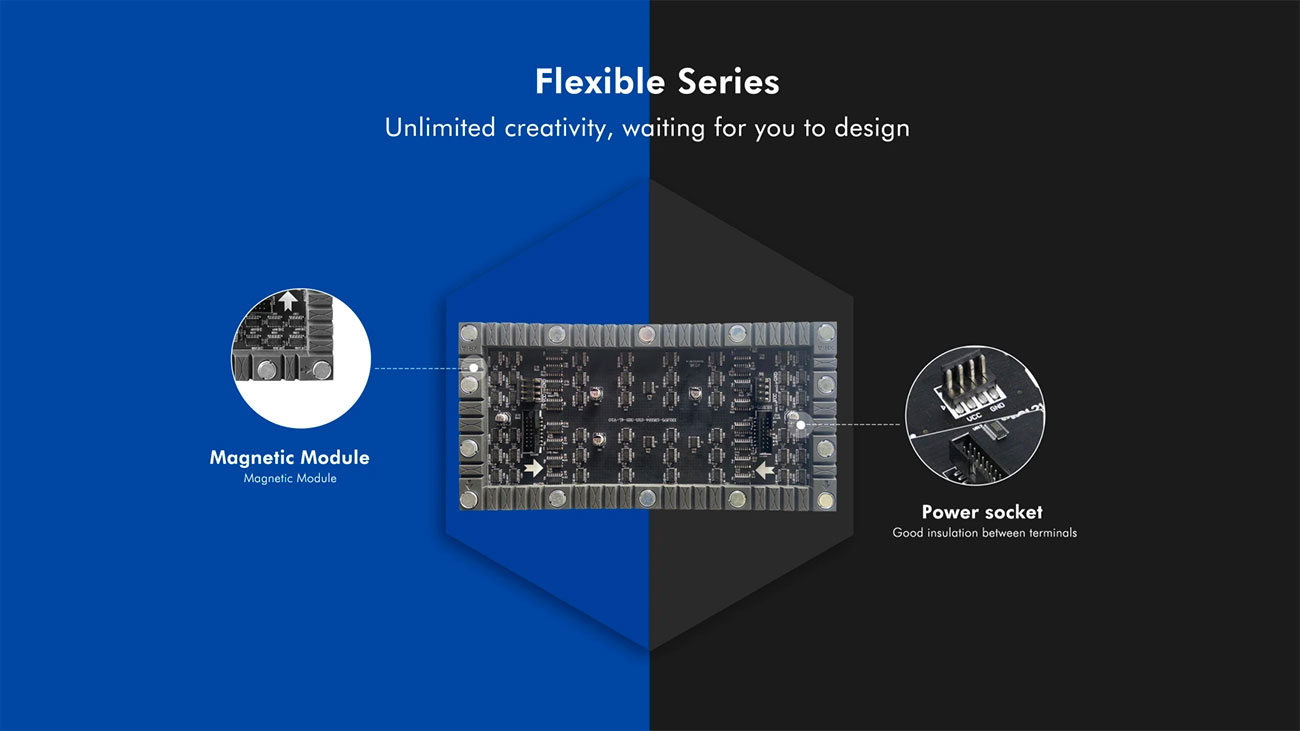

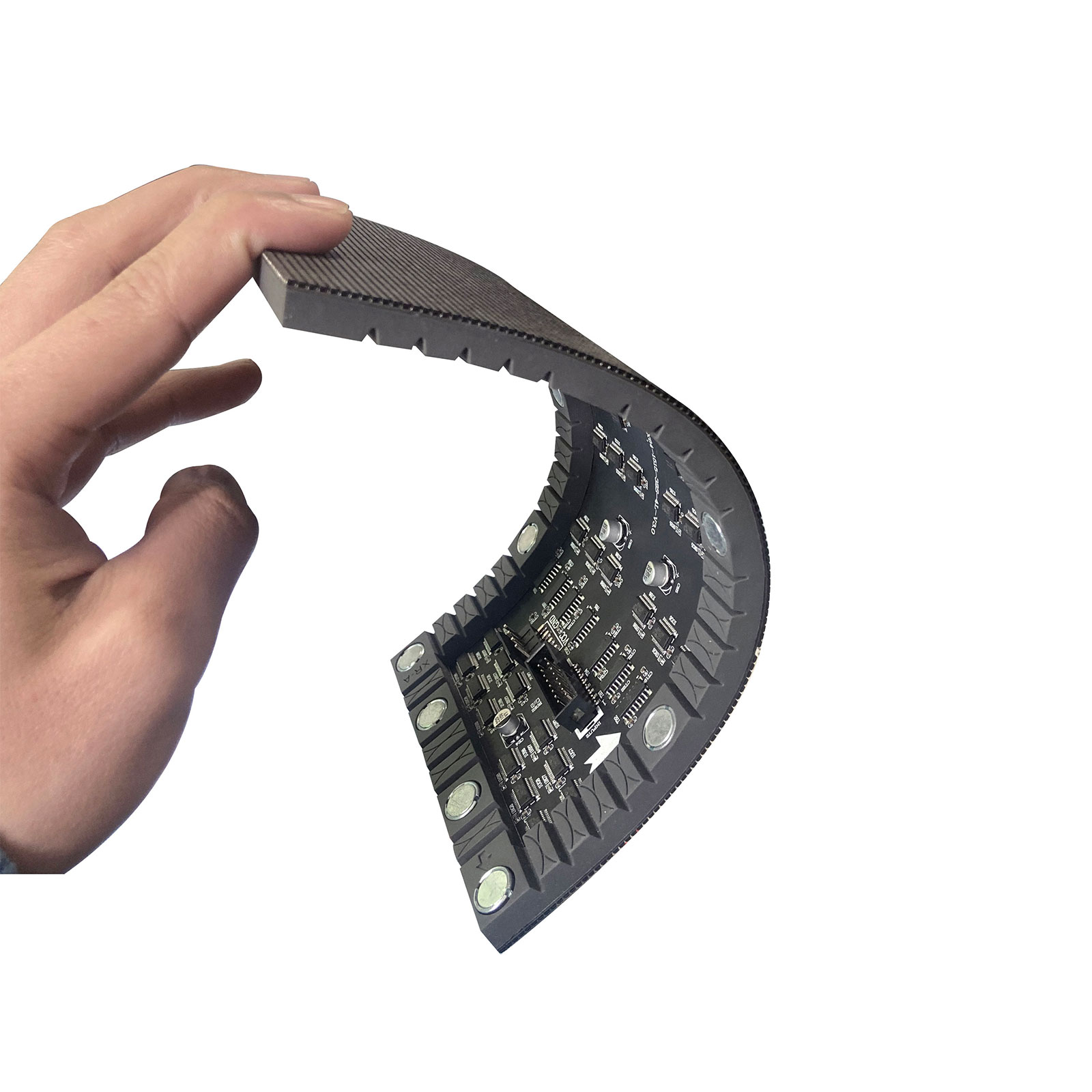

  1. Enbon soft flexible modules make all type shape screen
  2.  Can support any creative design indoor and outdoor
  3. Easy for installation and assembling, front magnetic
  4. Enbon flexible module, have240*120mm and 320*160mm size
  5. Mask made of silicone, flat and transparent

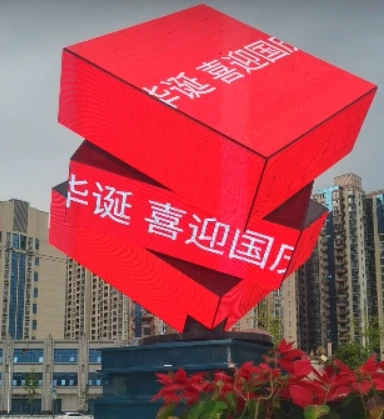

  6. Enbon especially perfect making for Outdoor Flexible
  7. Enbon soft mods are the basis for all special styling projects

Description

Product Specification

Item Indoor
Pixel Pitch 2.604 2.976 3.91 4.81
LED lamp SMD2020 SMD2020 SMD2020 SMD2020
Density 147456dots/m2 112896dots/m2 65536dots/m2 43264dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits 800-1000nits
IP rating IP31 IP31 IP31 IP31
Cabinet Materiel Die-casting Aluminum
Scan 24scan 21scan 16scan 13scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg
Module size 250*250mm 250*250mm 250*250mm 250*250mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm
Module pixel 96*96dots 84*84dots 64*64dots 52*52dots
Cabinet pixel 192*192dots 168*168dots 128*128dots 104*104dots
Max Power 500w/sqm 500w/sqm 500w/sqm 500w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm 160w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

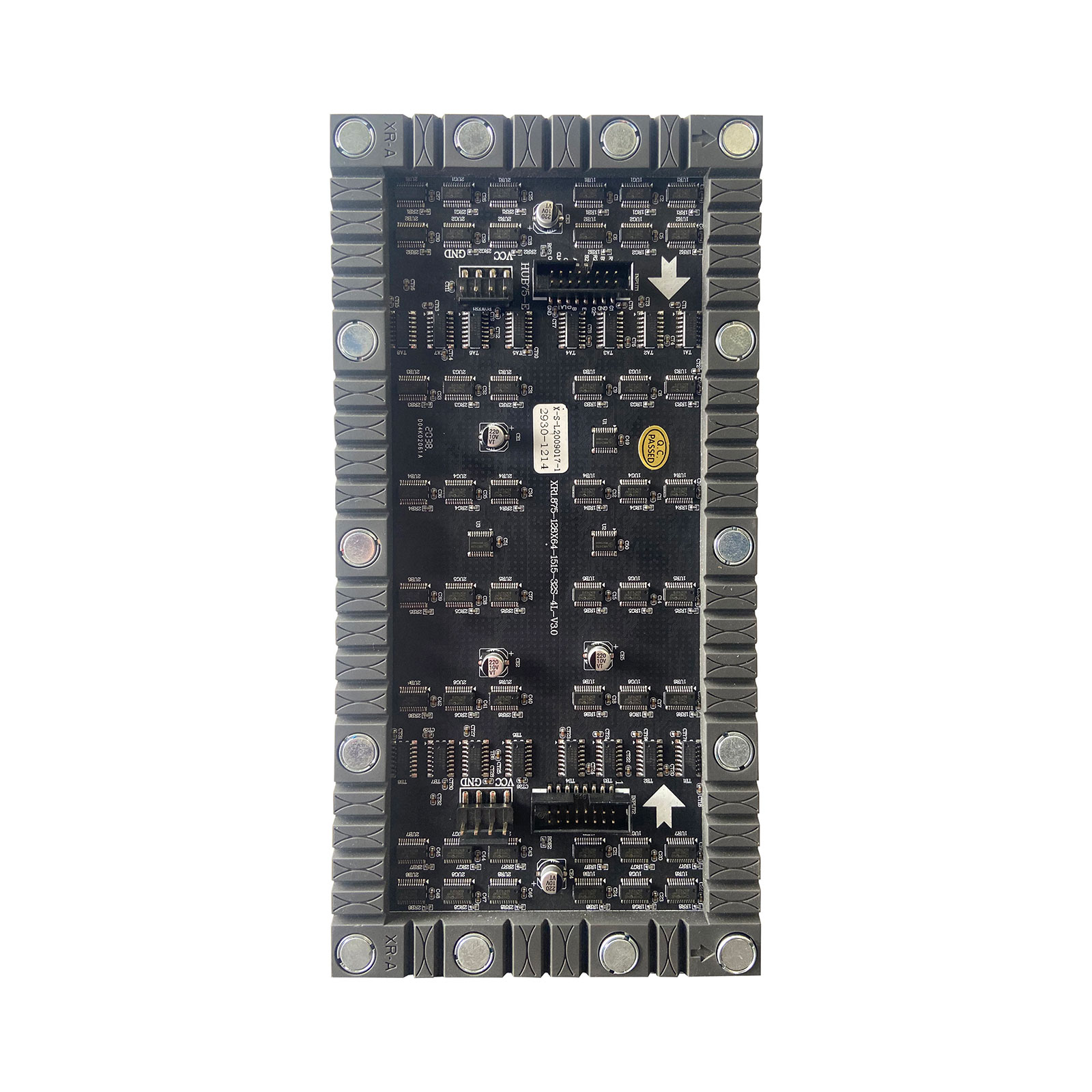

LED Module

Pixel Pitch Indoor: 2.604,2.976, 3.91
Outdoor: 3.91, 4.81
LED lamp Indoor: SMD2020
Outdoor: SMD1921
Brightness Indoor: 1000nits(P2.604,P2.976),3500nits(P3.91)
Outdoor: 3500nits(P3.91,P4.81)
Module pixel Indoor: 96*96 dots(P2.604) 84*84 dots(P2.976) 64*64dots(P3.91)
Outdoor: 64*64dots(P3.91) 52*52dots(P4.81)
Cabinet pixel Indoor: 192*192 dots(P2.604) 168*168dots(P2.976) 128*128dots(P3.91)
Outdoor: 128*128dots(P3.91) 104*104dots(P4.81)

Appearance

Module size Indoor: 250*250mm(2.604,2.976, 3.91)
Outdoor:250*250mm (3.91, 4.81)
Cabinet size Indoor: 500*500*85mm(2.604,2.976, 3.91)
Outdoor: 500*500*85mm (3.91, 4.81)
Module weight Indoor: 0.5kg(2.604,2.976, 3.91)
Outdoor: 0.5kg(3.91, 4.81)
Cabinet Weight Indoor: 7.5kg(2.604,2.976, 3.91)
Outdoor:8kg(3.91, 4.81)


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 500w/sqm(2.604,2.976, 3.91)
Outdoor:550w/sqm(3.91, 4.81)
Average Power Indoor: 160w/sqm(2.604,2.976, 3.91)
Outdoor: 200w/sqm(P3.91)
160w/sqm(P4.81)


Waterproof grade

IP rating Indoor : IP31         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70) deg V140(+70/-70)deg
Scan Indoor:32scan (P2.604) 21scan(P2.976) 16scan(P3.91)
Outdoor:16scan(P3.91) 13scan(P4.81)

Material density

Density Indoor:147456dots/m2 (P2.604) 112896dots/m2(P2.976) 65536dots/m2(P3.91)
Outdoor:65536dots/m2(P3.91) 43264dots/m2(P4.81)
Cabinet Materiel Die-casting Aluminum
