COB Model

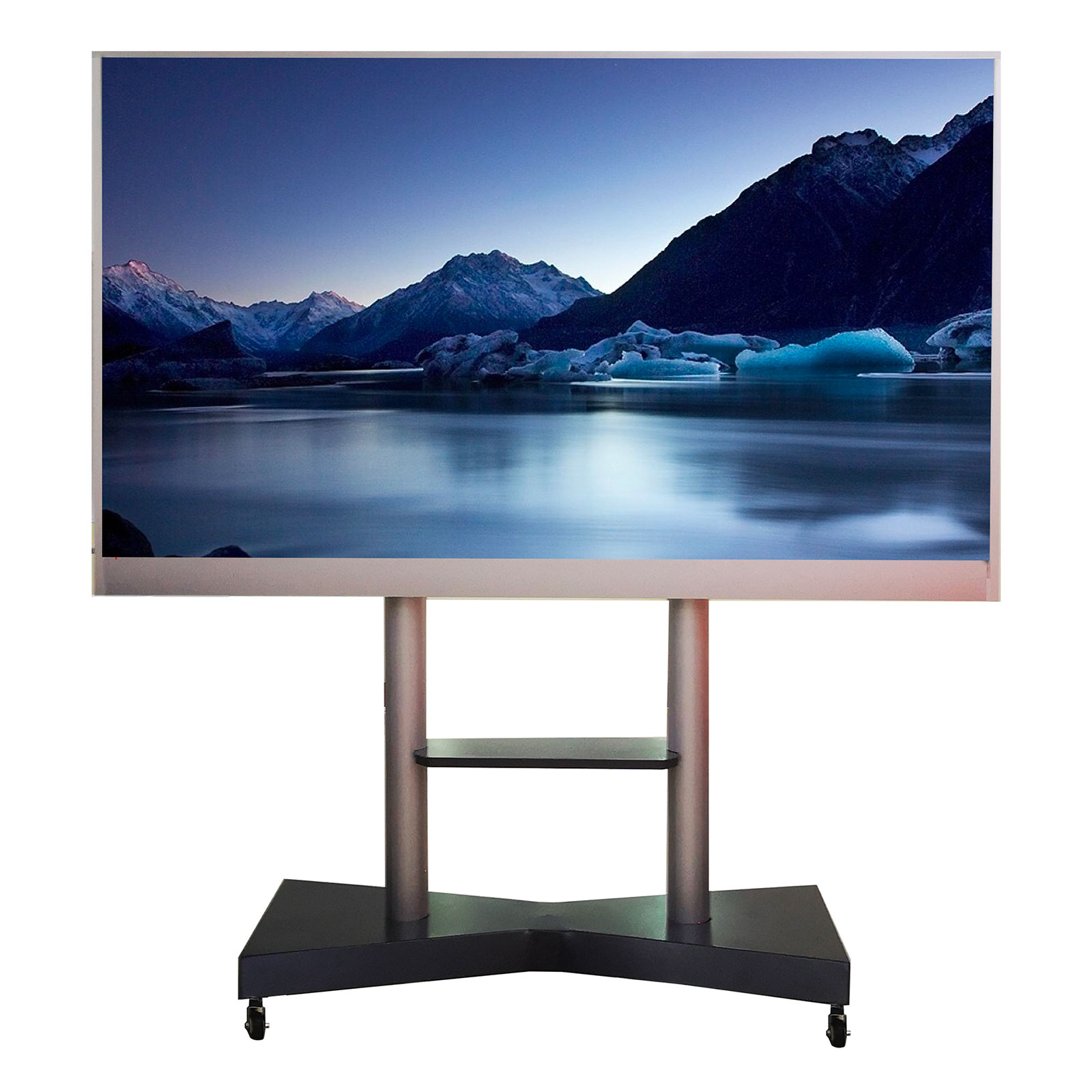

COB LED Display Wall-Mounted & Vertical Fixed HD Screen

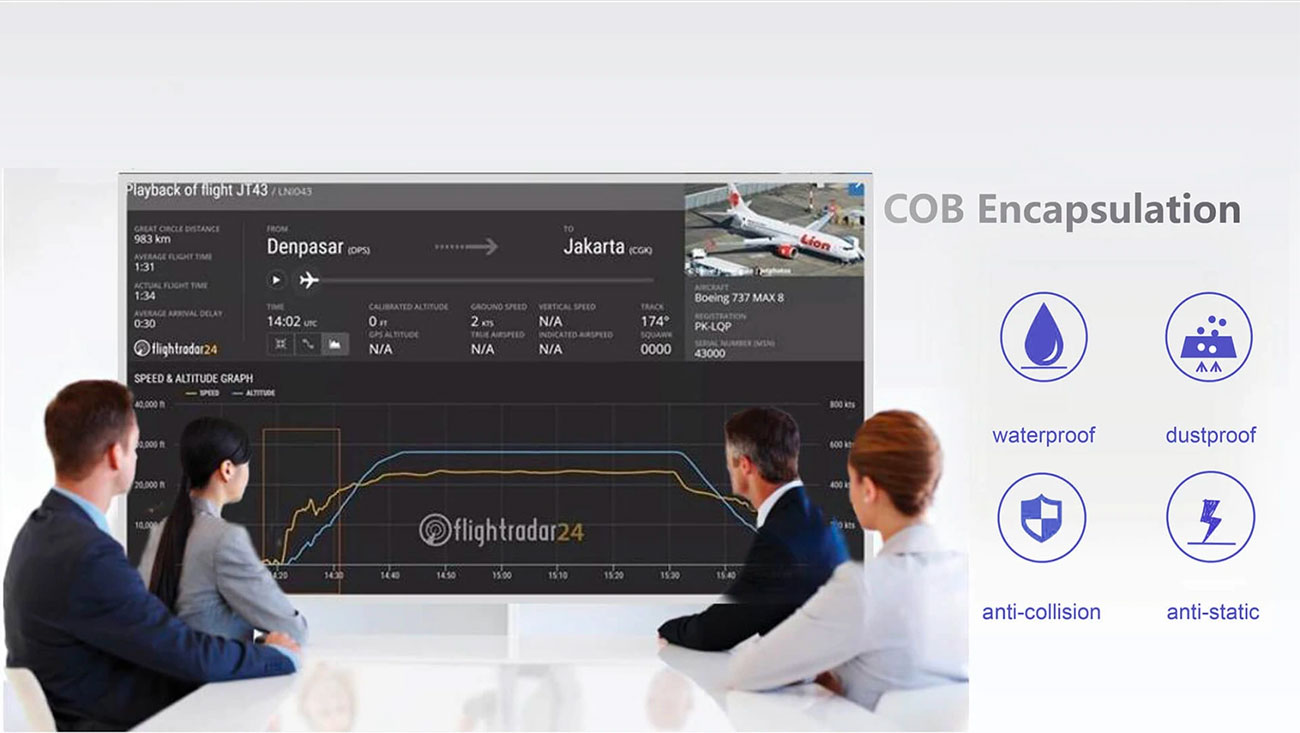

COB LED display with waterproof, dustproof, anti-collision features and wireless mirroring, supports WiFi writing and commenting via Android devices
  1. Waterproof, dustproof
  2. Anti-collision, anti-static

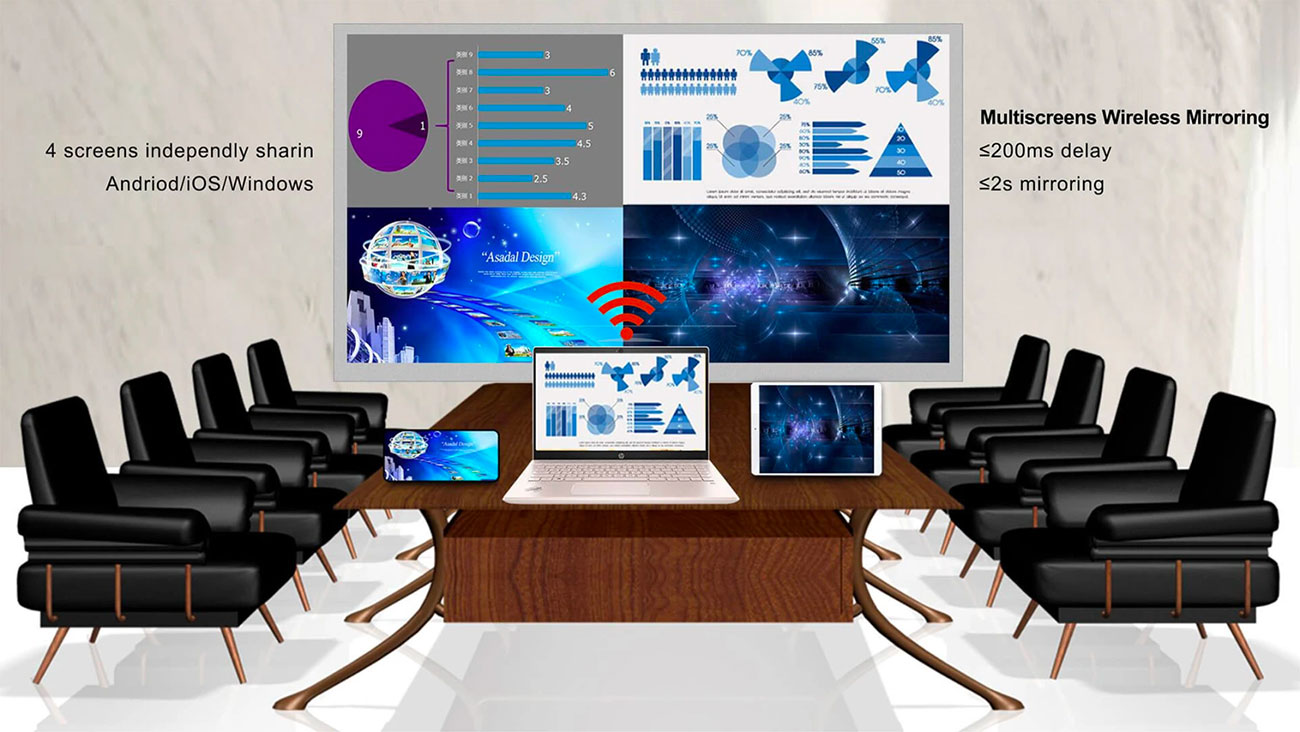

  3. Multiscreens wireless mirroring

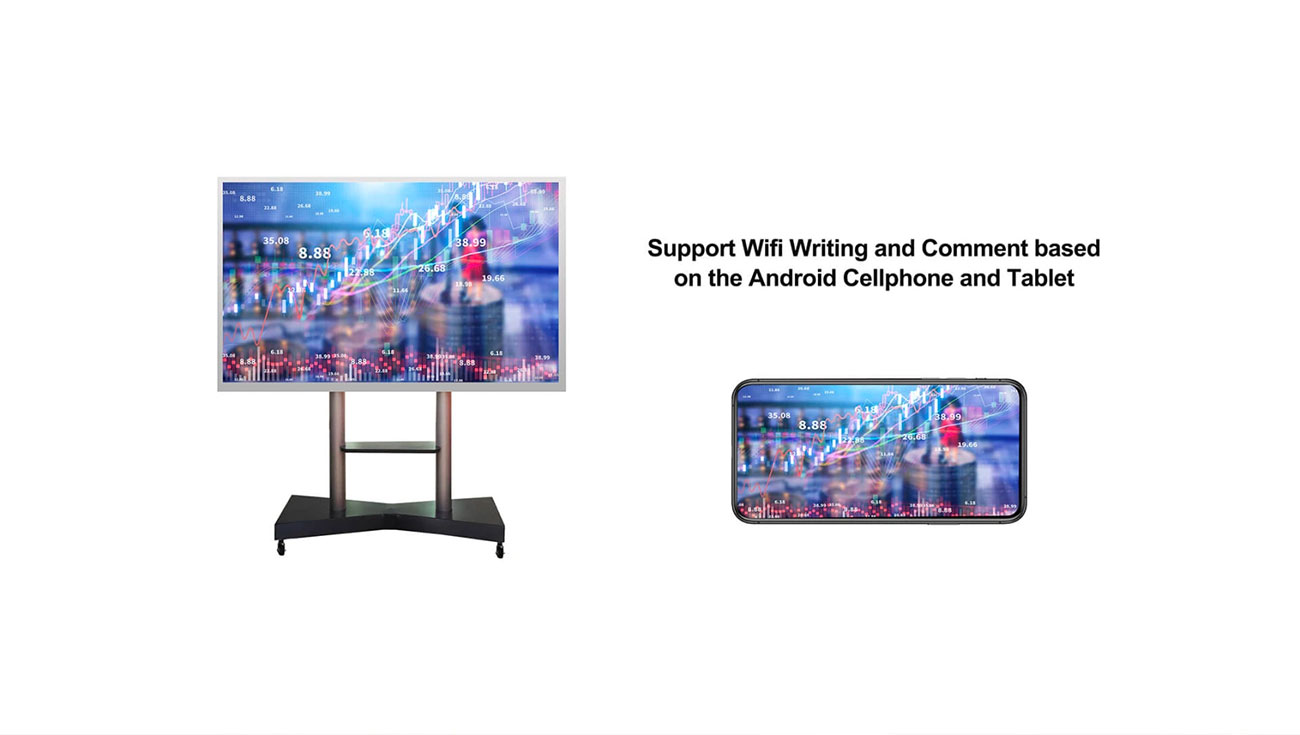

  4. Support Wifi writing and comment
  5. Based on the Android Cellphone and tablet
160w/sqmP2.604P2.976P3.91P4.81Enbon COB

Description

HD Indoor LED Display

COB Model

Cutting-edge Flip COB Fine Pitch LED Wall!

COB
icon 1

Performance

icon 2

Highlight

icon 3

Quick Lock

icon 4

16:9

icon 5

3840Hz

icon 6

Energy

Product Details

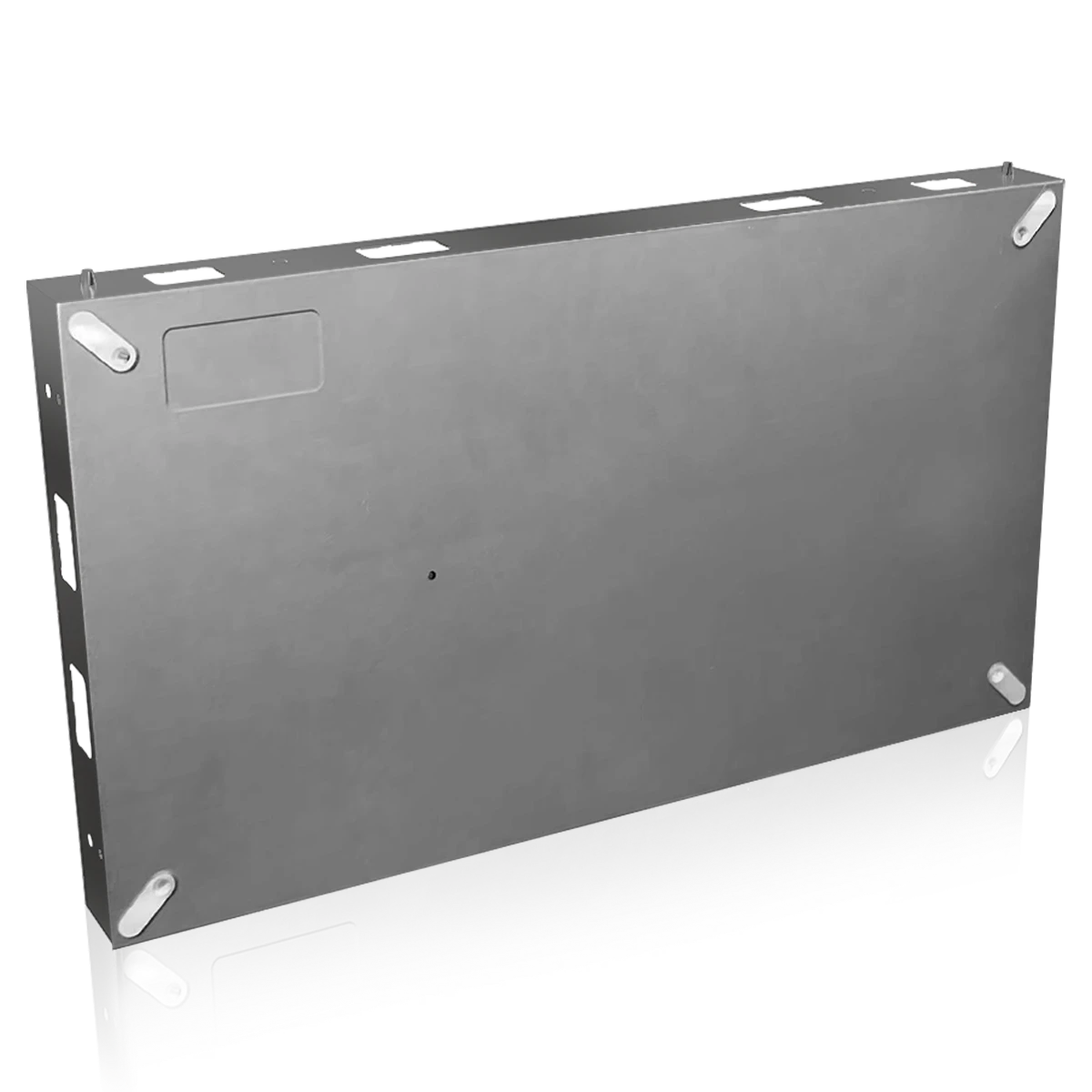

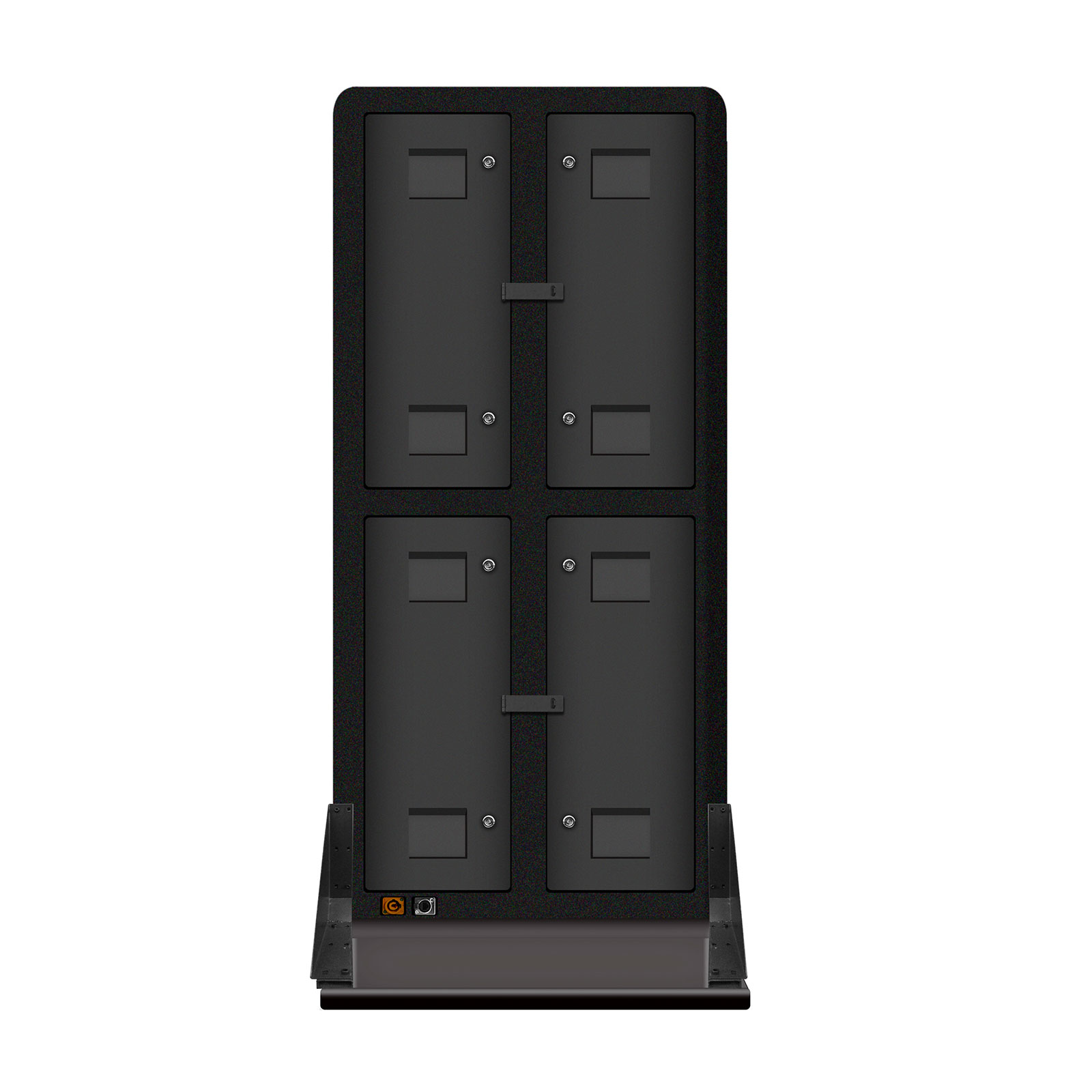

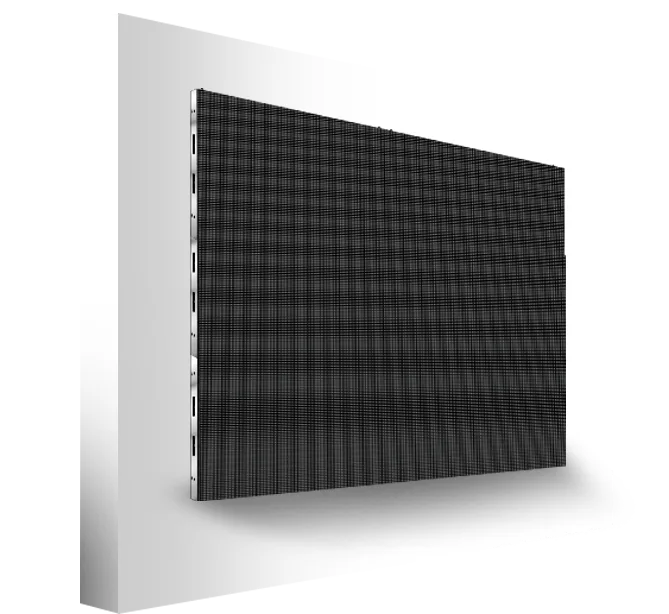

IM Cabinet Structure Image

Thickness 30mm

Top Fast Lock



Side Hide



TOP Hide



Corner Protection



Maintenance Method

Enbon COB Maintenance Method Image

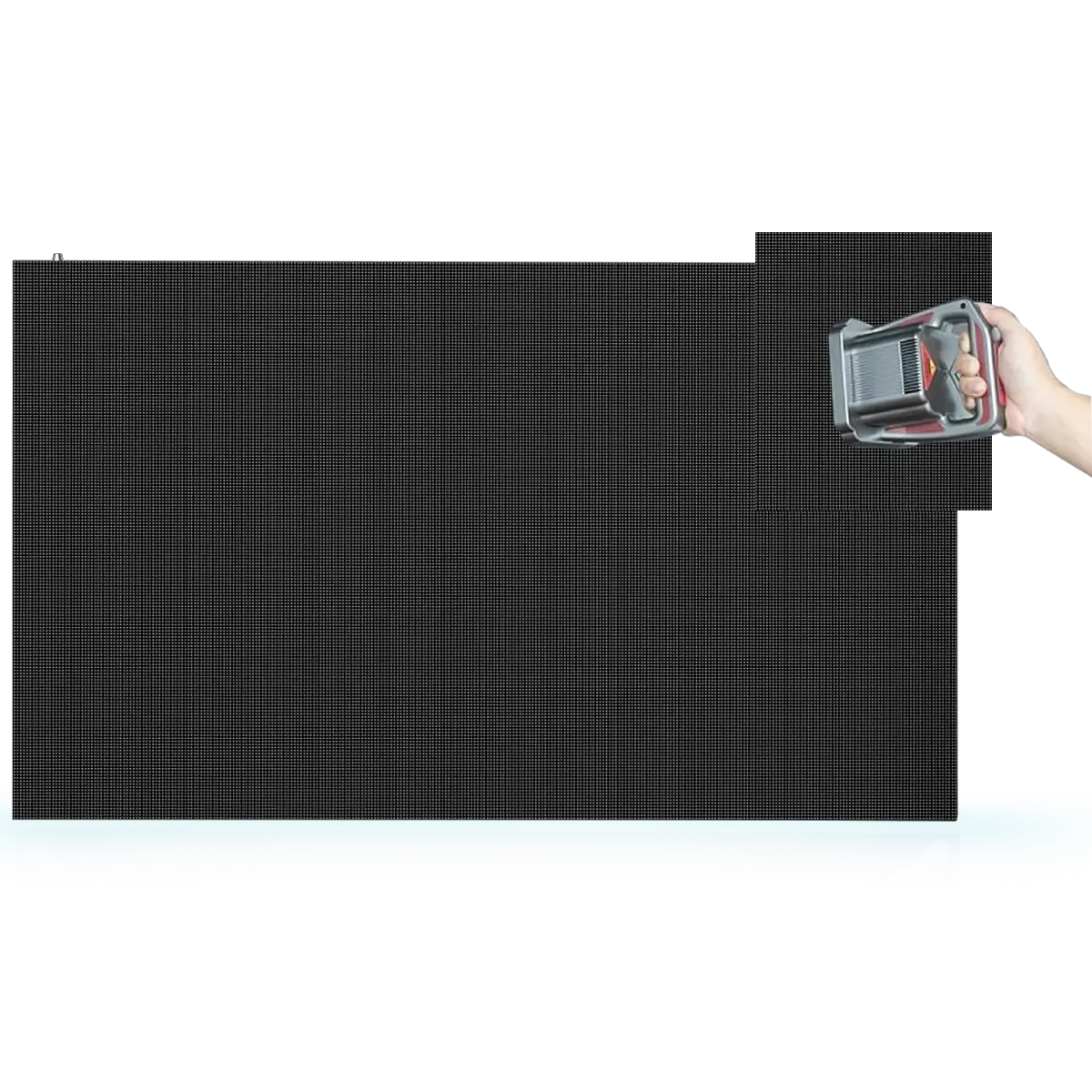

Front Maintenance

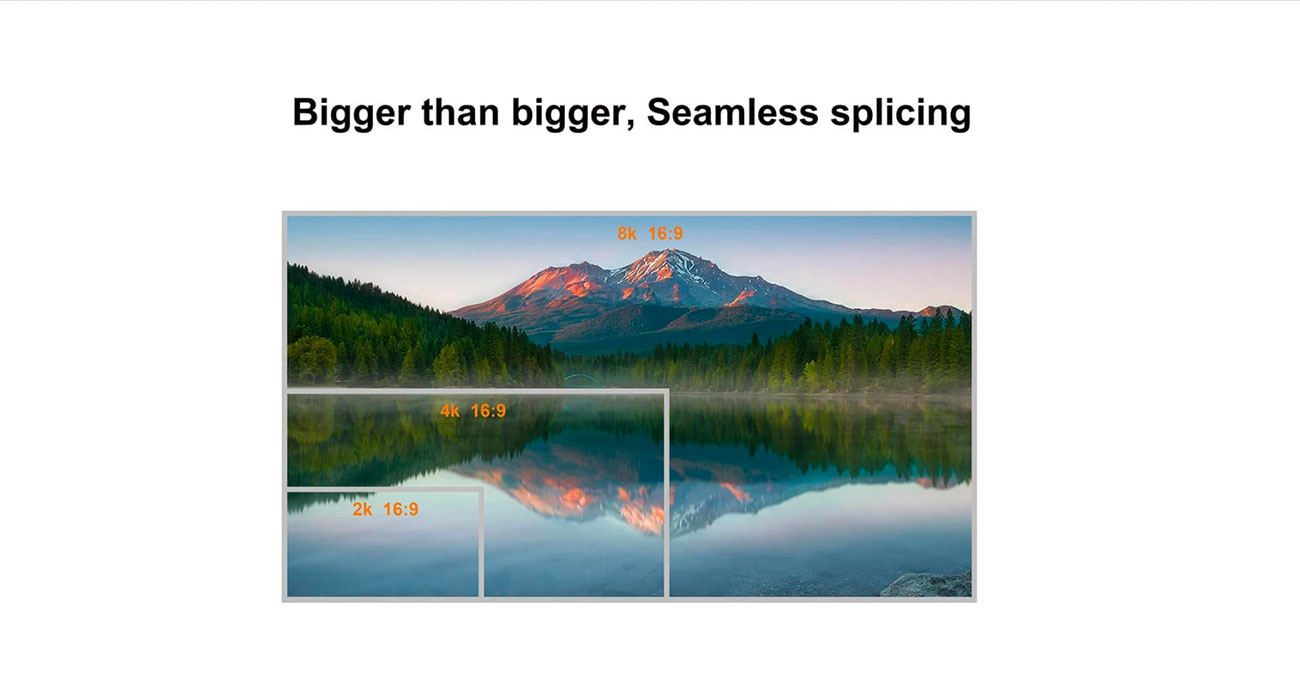

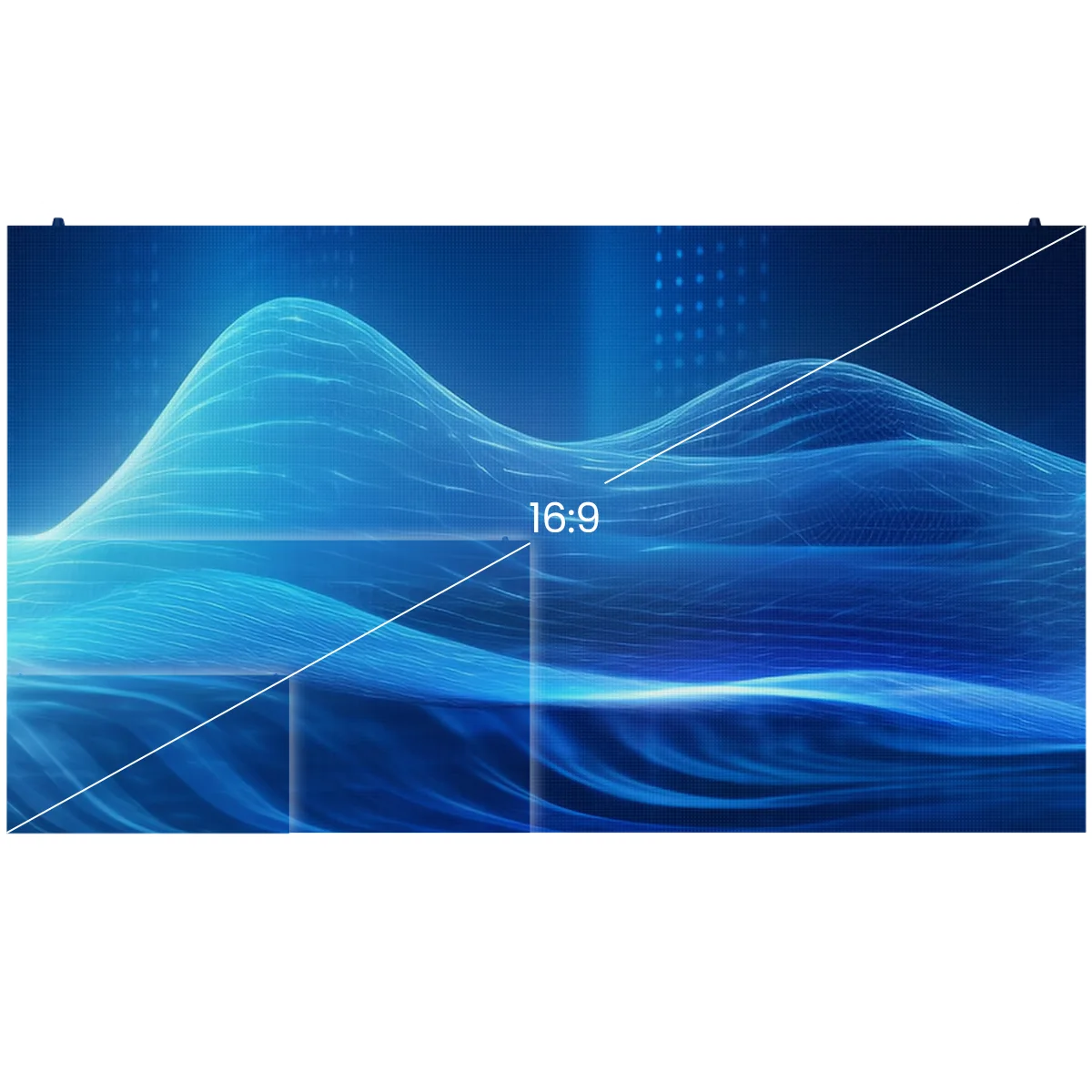

16:9 Golden Ratio

Standard 27.5" Size FHD 4K Pixel to Pixel Resolutions

COB Img

High Resolution

COB Image

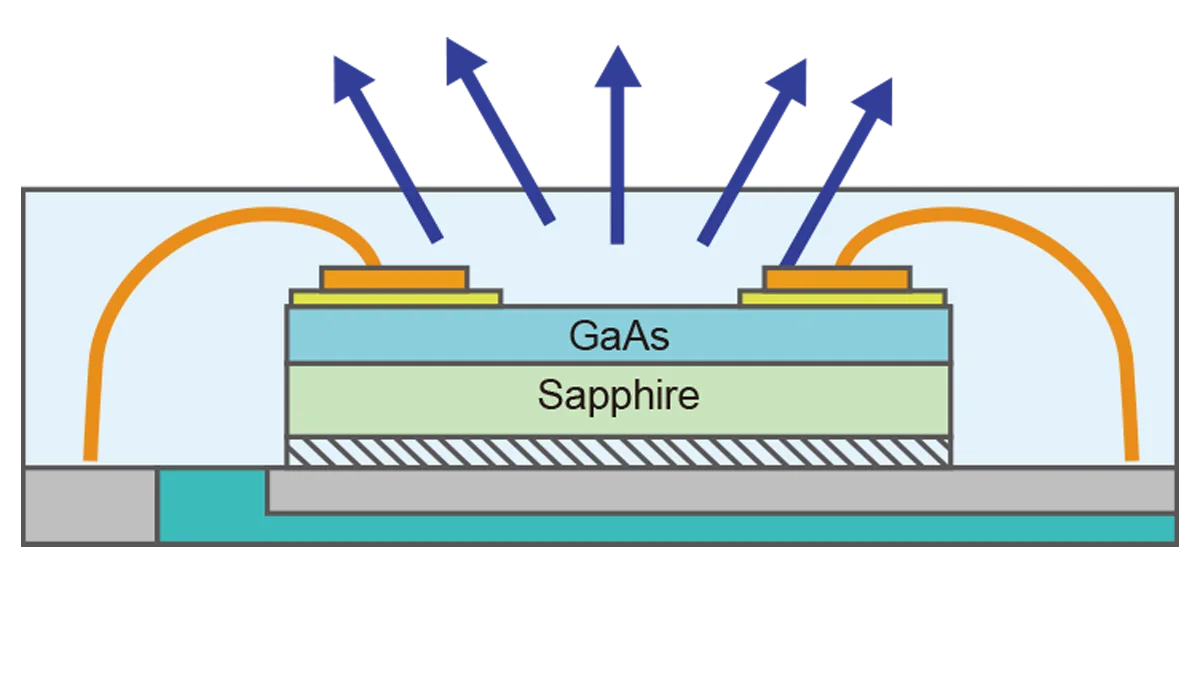

Wire Bond LED

Lights

  • 20% radiate light covered by wires
  • Chip-by-chip Encapsulating (LeadFrame) Phosphor
  • Require lots of equipments because of point 2

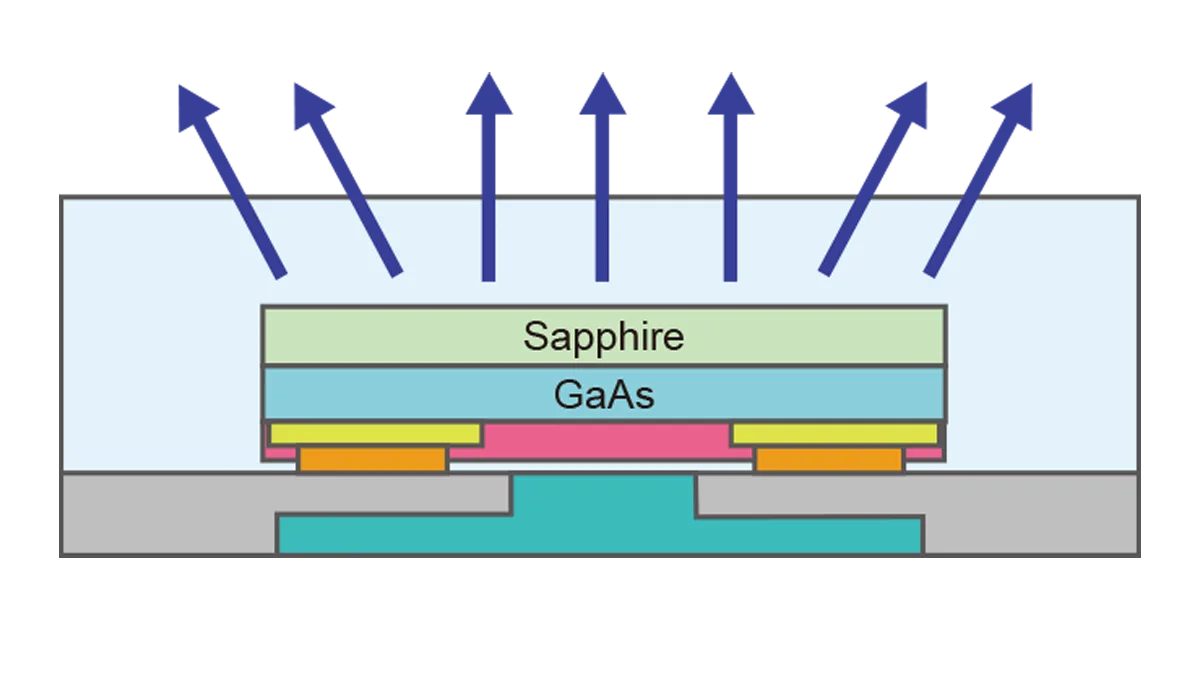

FC LED

Lights

No wire no cover for radiate surfacePhosphor powder printing by module 90% less equipments required

COB Image

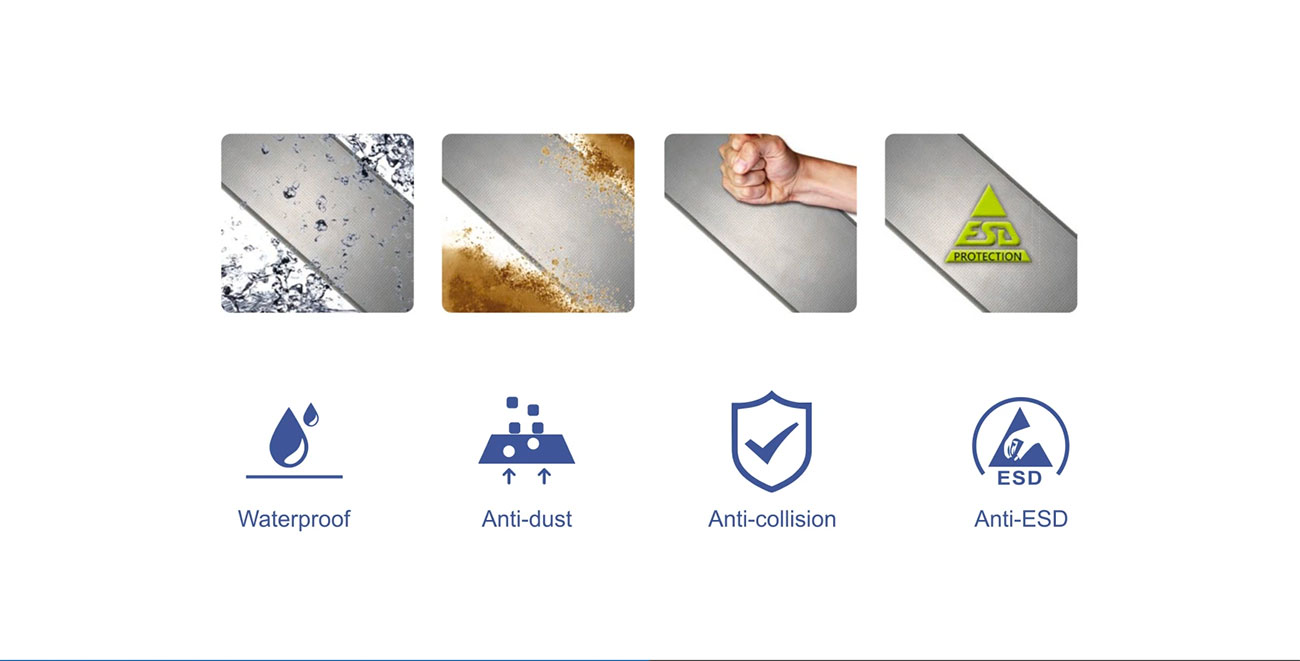

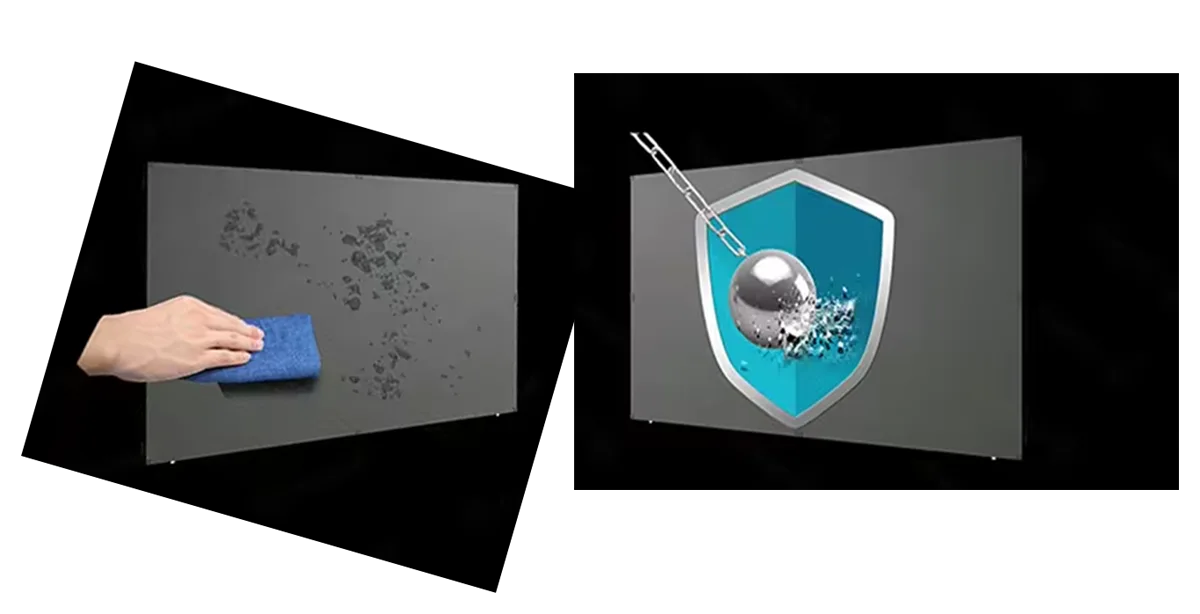

High Protection
Package Technology

Can Be Cleaned Directly With Wet Cloth, completely solve
The Damage caused By Bumps, lmpacts, Moisture, SaltSpray
Corrosion, Electrostatic Breakdown Etc.

COB Image

High Resolution

FS Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

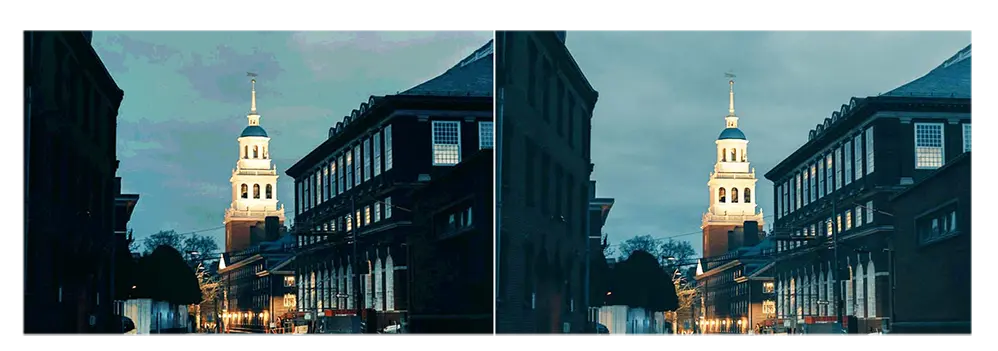

FS Grayscale Comparison Image


Low Grayscale



High Grayscale

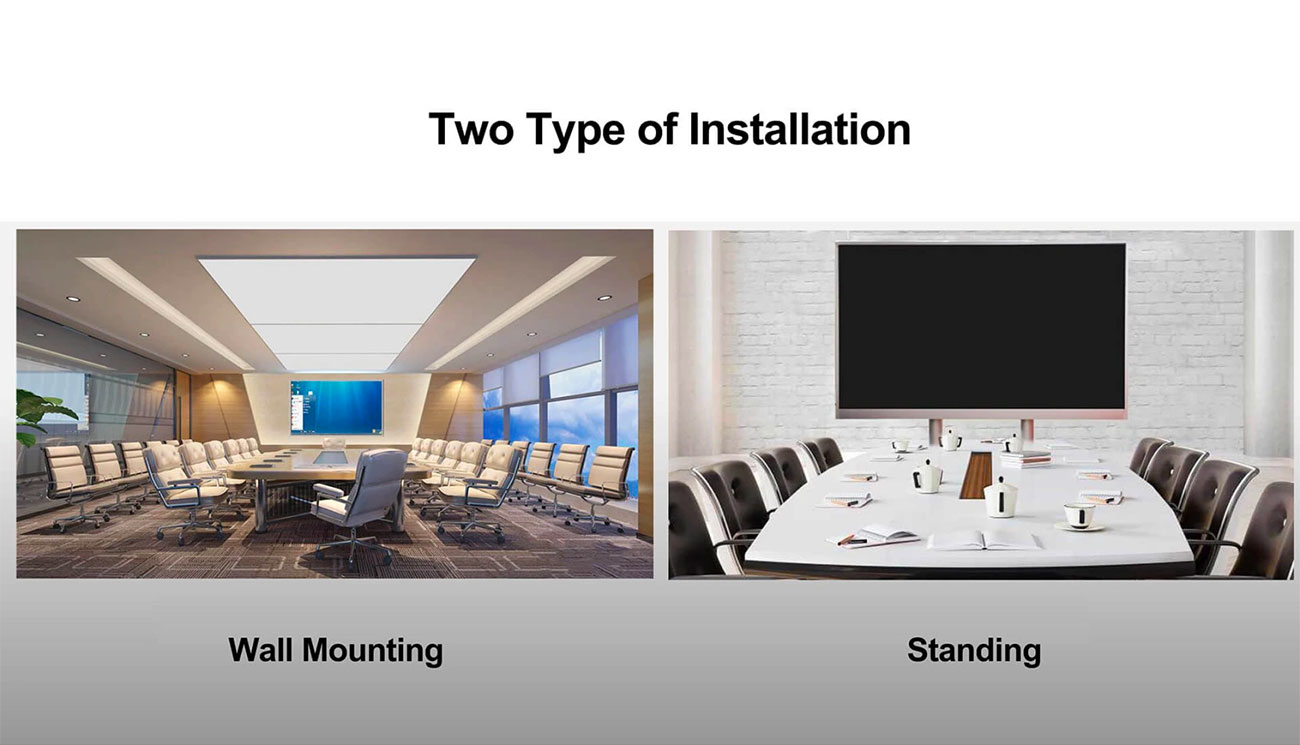

Installation Case

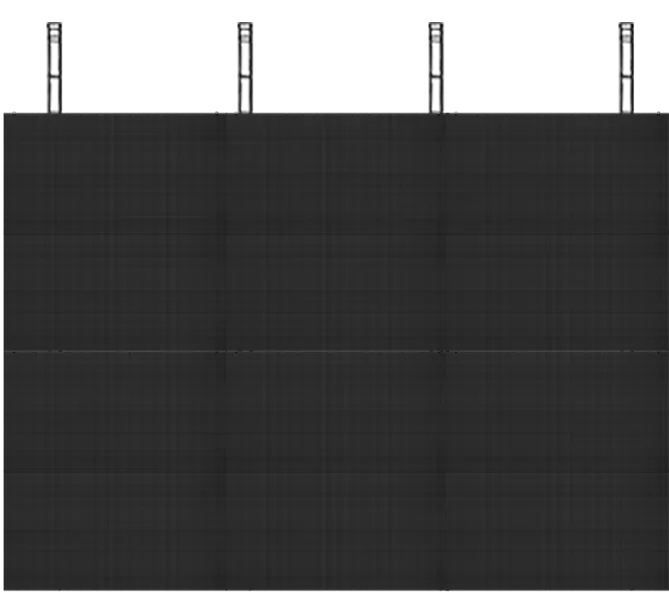

Wall Mounting Installation

Wall Mounting Installation

Steel Base Stacking lnstallation

Steel Base Stacking lnstallation

Product Specification

Item Indoor
Pixel Pitch 2.604 2.976 3.91 4.81
LED lamp SMD2020 SMD2020 SMD2020 SMD2020
Density 147456dots/m2 112896dots/m2 65536dots/m2 43264dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits 800-1000nits
IP rating IP31 IP31 IP31 IP31
Cabinet Materiel Die-casting Aluminum
Scan 24scan 21scan 16scan 13scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg
Module size 250*250mm 250*250mm 250*250mm 250*250mm
Cabinet size 500*500*85mm 500*500*85mm 500*500*85mm 500*500*85mm
Module pixel 96*96dots 84*84dots 64*64dots 52*52dots
Cabinet pixel 192*192dots 168*168dots 128*128dots 104*104dots
Max Power 500w/sqm 500w/sqm 500w/sqm 500w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm 160w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

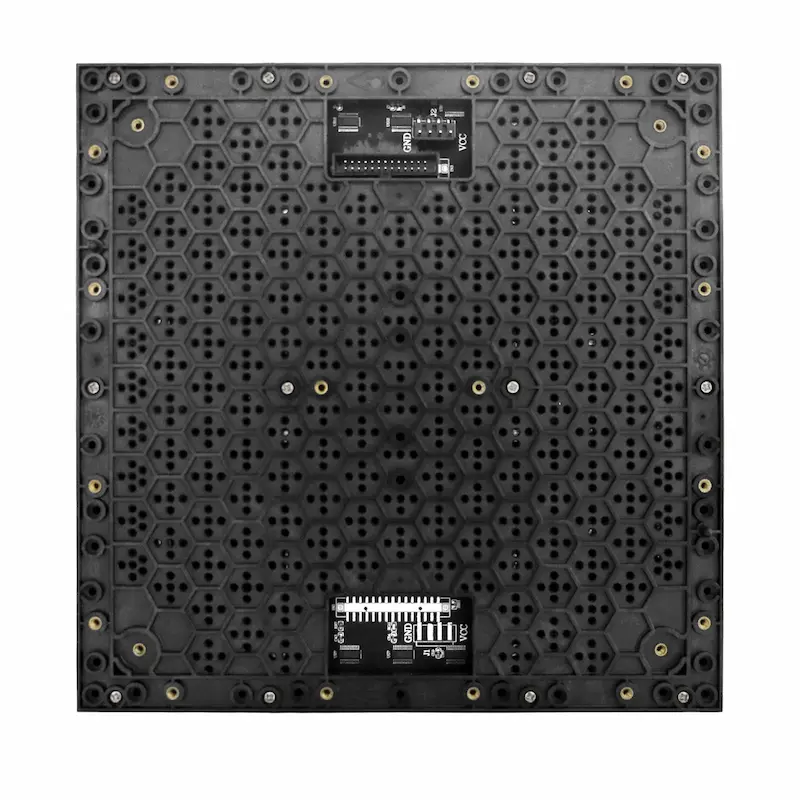

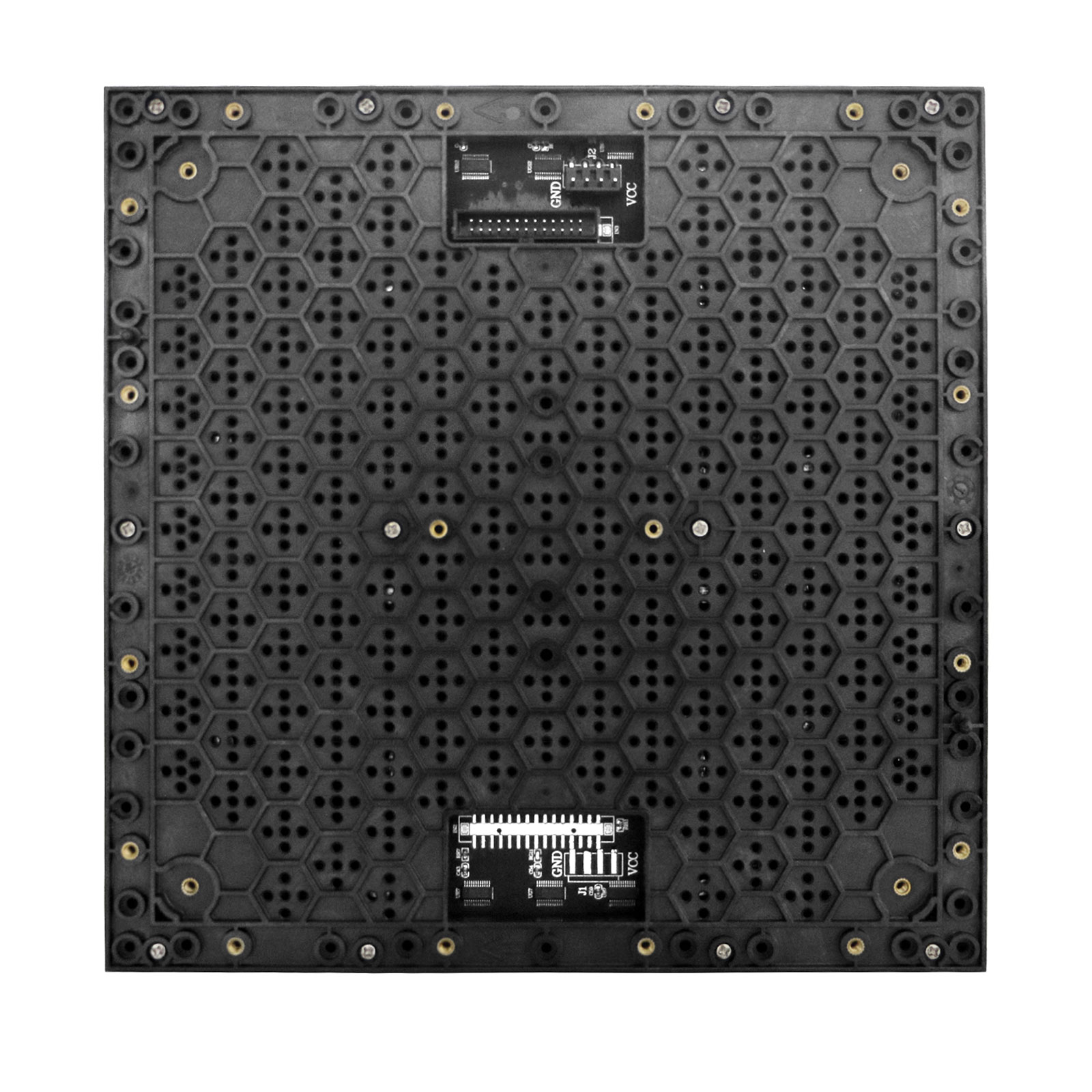

LED Module

Pixel Pitch Indoor: 2.604,2.976, 3.91
Outdoor: 3.91, 4.81
LED lamp Indoor: SMD2020
Outdoor: SMD1921
Brightness Indoor: 1000nits(P2.604,P2.976),3500nits(P3.91)
Outdoor: 3500nits(P3.91,P4.81)
Module pixel Indoor: 96*96 dots(P2.604) 84*84 dots(P2.976) 64*64dots(P3.91)
Outdoor: 64*64dots(P3.91) 52*52dots(P4.81)
Cabinet pixel Indoor: 192*192 dots(P2.604) 168*168dots(P2.976) 128*128dots(P3.91)
Outdoor: 128*128dots(P3.91) 104*104dots(P4.81)

Appearance

Module size Indoor: 250*250mm(2.604,2.976, 3.91)
Outdoor:250*250mm (3.91, 4.81)
Cabinet size Indoor: 500*500*85mm(2.604,2.976, 3.91)
Outdoor: 500*500*85mm (3.91, 4.81)
Module weight Indoor: 0.5kg(2.604,2.976, 3.91)
Outdoor: 0.5kg(3.91, 4.81)
Cabinet Weight Indoor: 7.5kg(2.604,2.976, 3.91)
Outdoor:8kg(3.91, 4.81)


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 500w/sqm(2.604,2.976, 3.91)
Outdoor:550w/sqm(3.91, 4.81)
Average Power Indoor: 160w/sqm(2.604,2.976, 3.91)
Outdoor: 200w/sqm(P3.91)
160w/sqm(P4.81)


Waterproof grade

IP rating Indoor : IP31         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70) deg V140(+70/-70)deg
Scan Indoor:32scan (P2.604) 21scan(P2.976) 16scan(P3.91)
Outdoor:16scan(P3.91) 13scan(P4.81)

Material density

Density Indoor:147456dots/m2 (P2.604) 112896dots/m2(P2.976) 65536dots/m2(P3.91)
Outdoor:65536dots/m2(P3.91) 43264dots/m2(P4.81)
Cabinet Materiel Die-casting Aluminum
