R5 90° Design New

Enbon R5 90° Design Hypotenuse Cabinet With Pixel Pitch P2.604 And P3.91

The latest Enbon R5 45° hypotenuse cabinet has better performance than R5 model products before, the pixel pitchs are P2.604 (for outdoor) and P3.91 (for indoor).
  • Cabinet size is 500*500mm, pixel pitches are P2.604 (for outdoor) and P3.91 (for indoor)
  • Hardlink cabinet, support front and rear maintenance
  • Waterproof level is IP65, don't need to afraid of rainy days

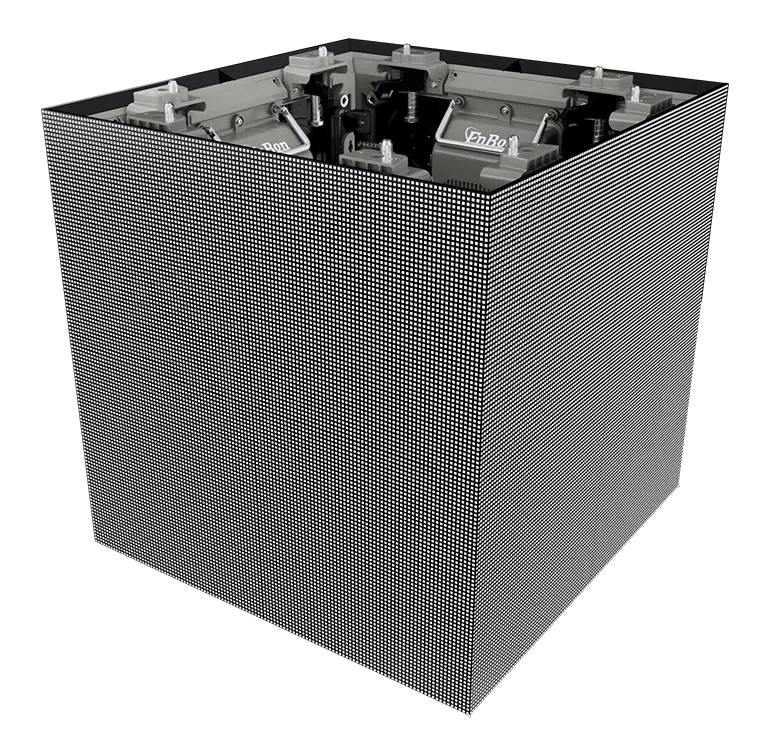

  • Can be assembled into a cube or cuboid LED display
  • Brightness reaches 4000nits, with very excellent display effect
IP654000nitsP2.604P3.91

Description

45° oblique Angle

R5 Model

Can be connected to right-angle side cabinets

Enbon R5 90° Img1

Cabinet size 500*500*85mm

Waterproof lP65

Waterproof IP65

Refresh 3840Hz

Refresh 3840Hz

Ultra Light

Ultra Light

Quick Lock

Quick Lock

Designed for Rental

Designed for Rental

Performance

Performance

Highlight

Highlight

Ultra Thin

Ultra Thin

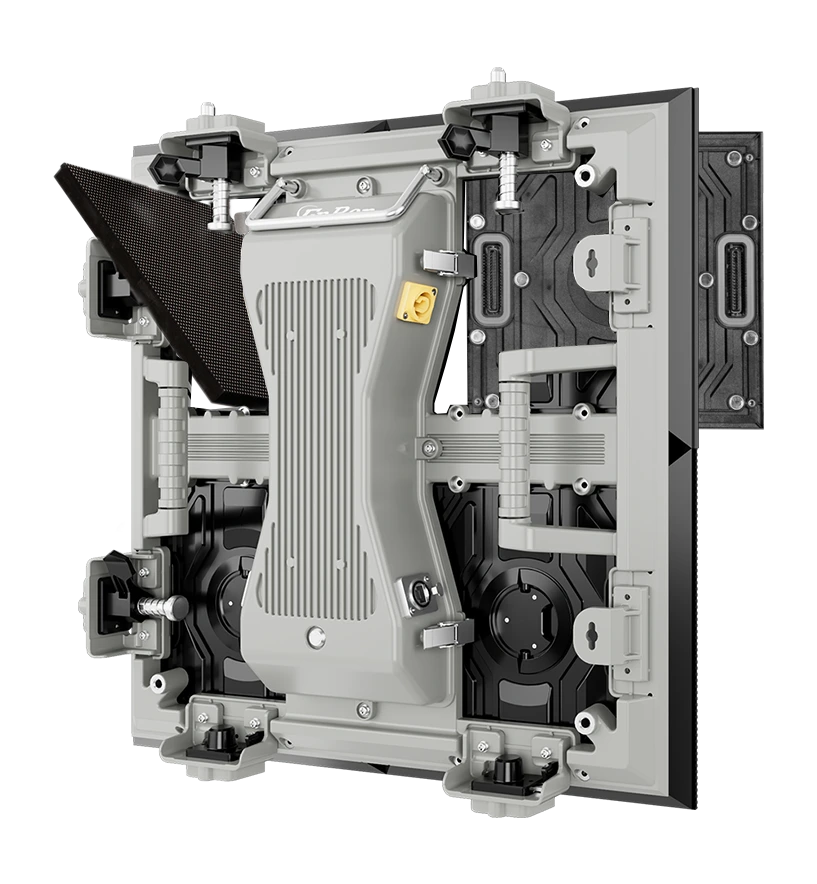

Cabinet Structure

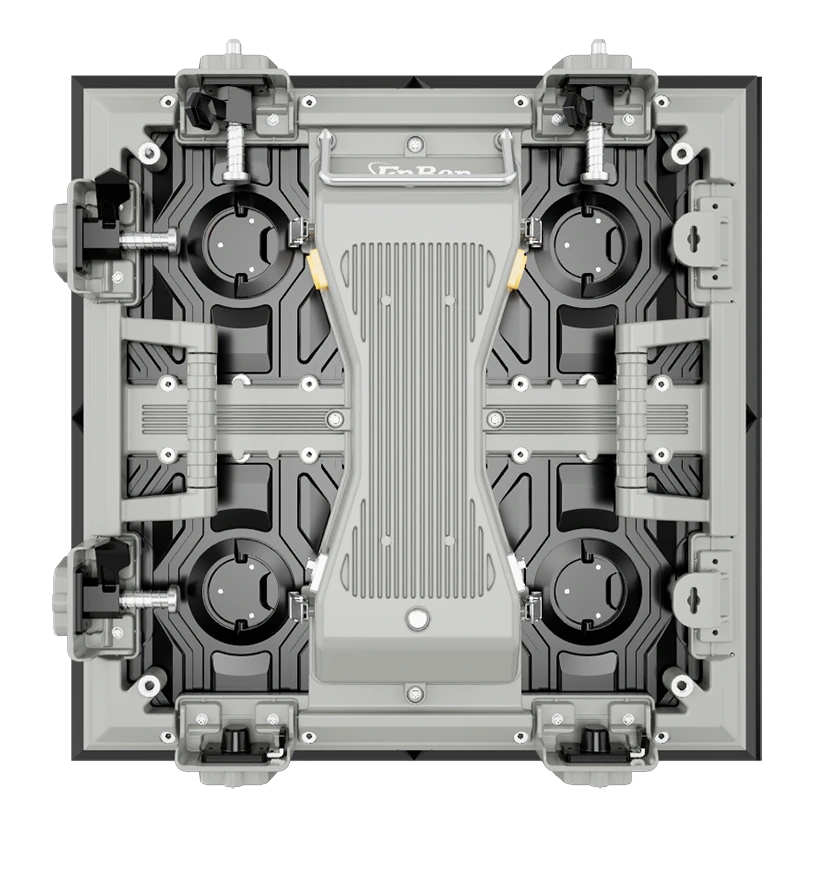

R5 90° Cabinet Structure Image

Top Handle



Power Con



Module Handle



Signal Con



Fast Lock



Top Fast Lock



Curve Lock



Side Handle



Indicator light



Maintenance Method

Front Maintenance And Rear Maintenance

Enbon R5 90° Maintenance Method Image

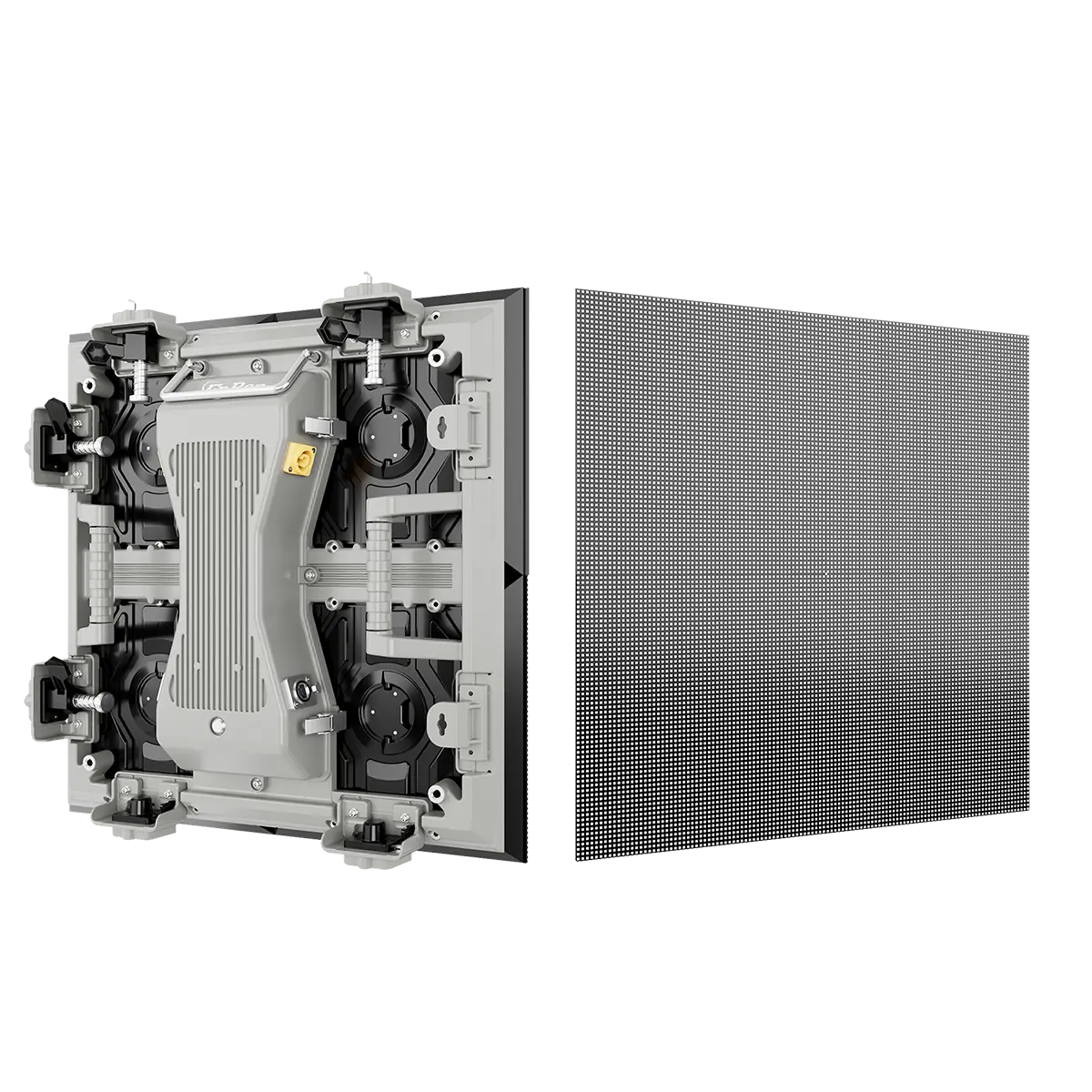

Front Maintenance



Rear Maintenance

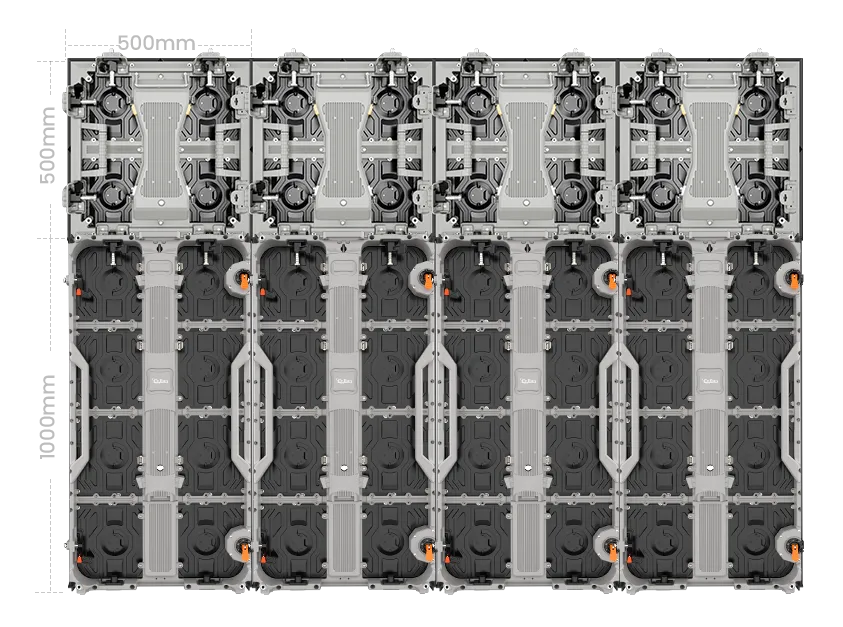

Different Sizes Can Also Be Spliced

Enbon R5 90° Img4

IP65 Waterproof

Enbon R5 90° Img5

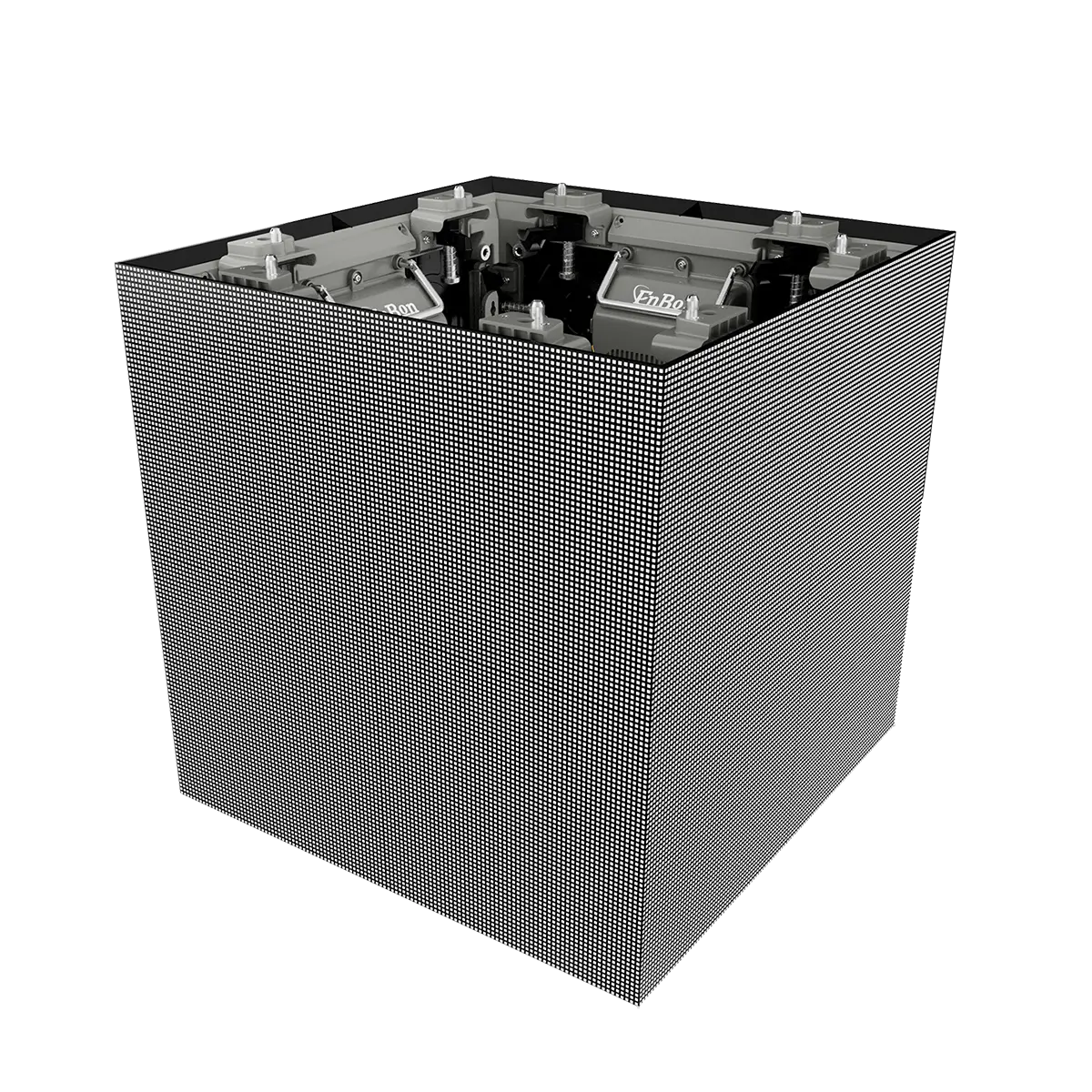

Supports 90°
Right Angle installation

Enbon R5 90° Img7

High Resolution

R5 Plus Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

R5 Plus Grayscale Comparison Image


Low Grayscale



High Grayscale

Product Specification

Item Indoor Outdoor
Pixel Pitch 3.91 2.604
LED lamp SMD2020 SMD1415
Density(dots/m2) 65536 147456
Brightness ≤  800nits ≥ 4000nits
IP rating IP45 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 16 scan 32 scan
Module weight 0.5kg 0.5kg
Cabinet Weight 7.5kg 8kg
Module size(mm) 250*250 250*250
Cabinet size(mm) 500*500*85 500*500*85
Module pixel 64*64 dots 96*96 dots
Cabinet pixel 128*128 dots 192*192 dots
Max Power 600w/sqm 750w/sqm
Average Power 360w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way Synchronous/Asynchronous Synchronous/Asynchronous
Gray Scale 16 bit 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90% 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃  ﹣20 ~﹢65℃


LED Module

Pixel Pitch Indoor:1.56,1.95,2.604,
2.976,3.91
Outdoor:2.604,2.976,
3.91,4.81
LED lamp Indoor: SMD1212/1515/2020
Outdoor: SMD1415/1921
Brightness Indoor: ≤800 nits
Outdoor: ≥4000 nits
Module pixel Indoor:160*160/128*128/96*96/
84*84/64*64(dots)
Outdoor: 96*96/84*84/64*64/
52*52(dots)
Cabinet pixel Indoor: 320*320/256*256/
192*192/168*168/
128*128(dots)
Outdoor: 192*192/168*168/128*128/
104*104(dots)

Appearance

Module size Indoor: 250*250mm
Outdoor:250*250mm
Cabinet size Indoor: 500*500*85mm
Outdoor: 500*500*85mm
Module weight Indoor: 0.5kg
Outdoor: 0.5kg
Cabinet Weight Indoor: 7.5kg
Outdoor:8kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power Indoor: 600w/sqm
Outdoor:750w/sqm
Average Power Indoor: 360w/sqm
Outdoor: 450w/sqm(P3.91)


Waterproof grade

IP rating Indoor : IP45         Outdoor: IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70)
deg V140(+70/-70)deg
Scan Indoor:40/32/21/16(scan)
Outdoor:32/21/16/13(scan)

Material density

Density Indoor:410881/262144/147456/
112896/65536dots/m2
Outdoor:147456/112896/65536/
43264dots/m2
Cabinet Materiel Die-casting Aluminum
