FR Model

Outdoor Digital Signage Displays - Enbon FR Fixed LED Screen

Outdoor digital signage displays with IP65 waterproof LED screens, customizable sizes (320mm160mm, 960mm960mm) for perfect flatness.
  1. High cost performance
  2. Special waterproof design : IP65
  3. Perfect screen flatness
  4. Support back service
  5. 320mm*160mm size module
  6. Standard 960mm*960mm size cabinet
  7. Different modules use same cabinet
  8. Iron cabinet material, can be customized
IP65P3P2.5P3.33P5P65500nits

Description

OHH LED Display

FR Model

Outdoor Fixed Front And Back Service Design

Perigct Flatness

Perigct Flatness

Refresh 7680Hz

Refresh 7680Hz

Ultra Light

Ultra Light

Highlight

Highlight

Performance

Performance

IP65

IP65

FR Model Image

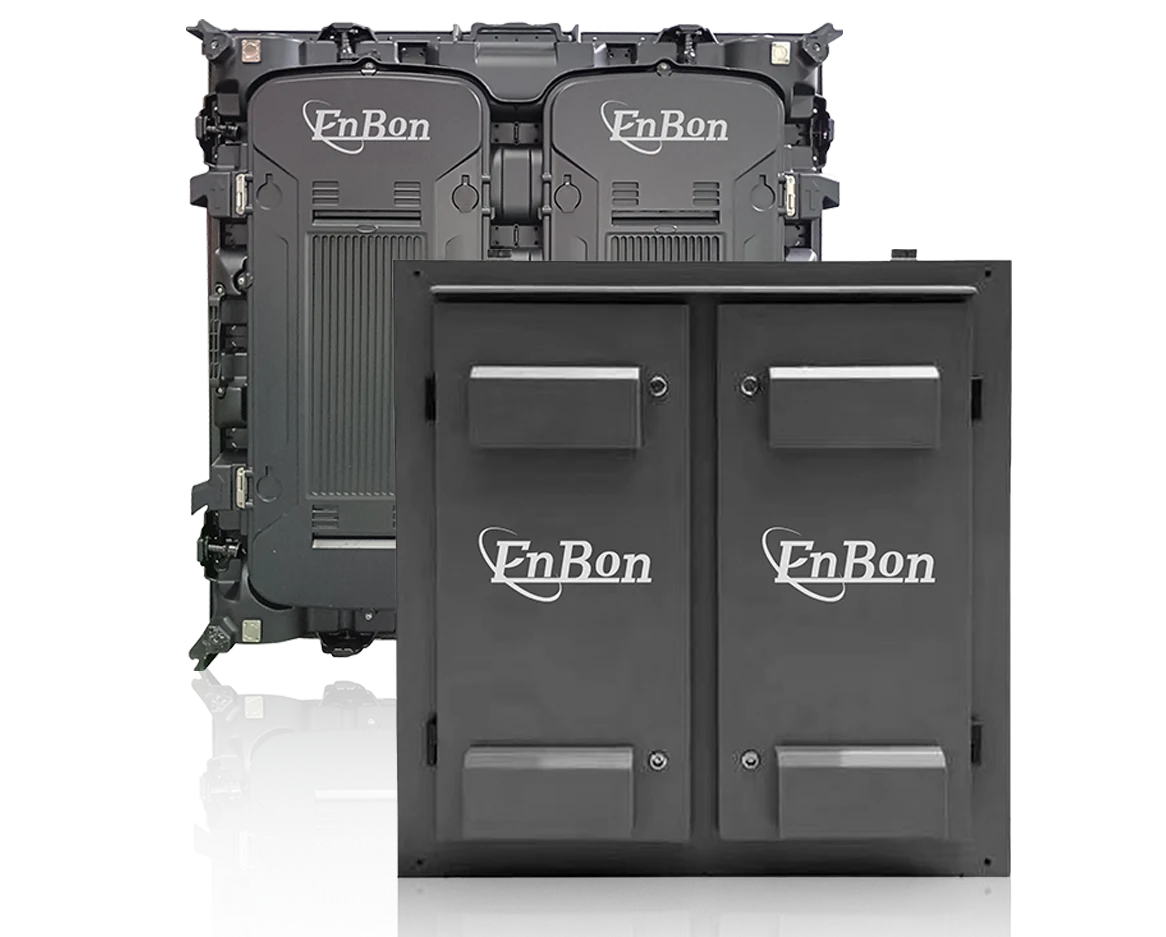

Special Design

Die-casting Aluminum and lron two different materials to meet the needs of a variety of scenarios

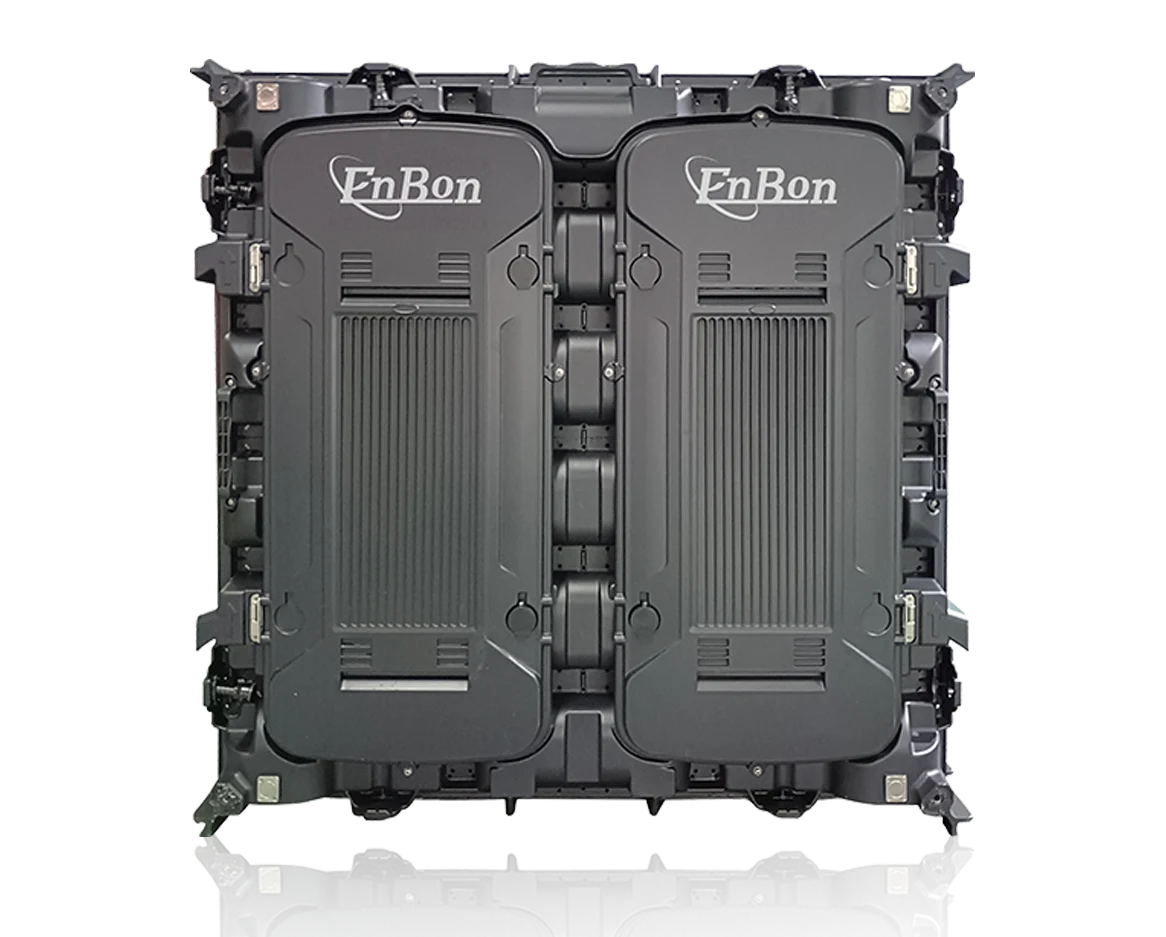

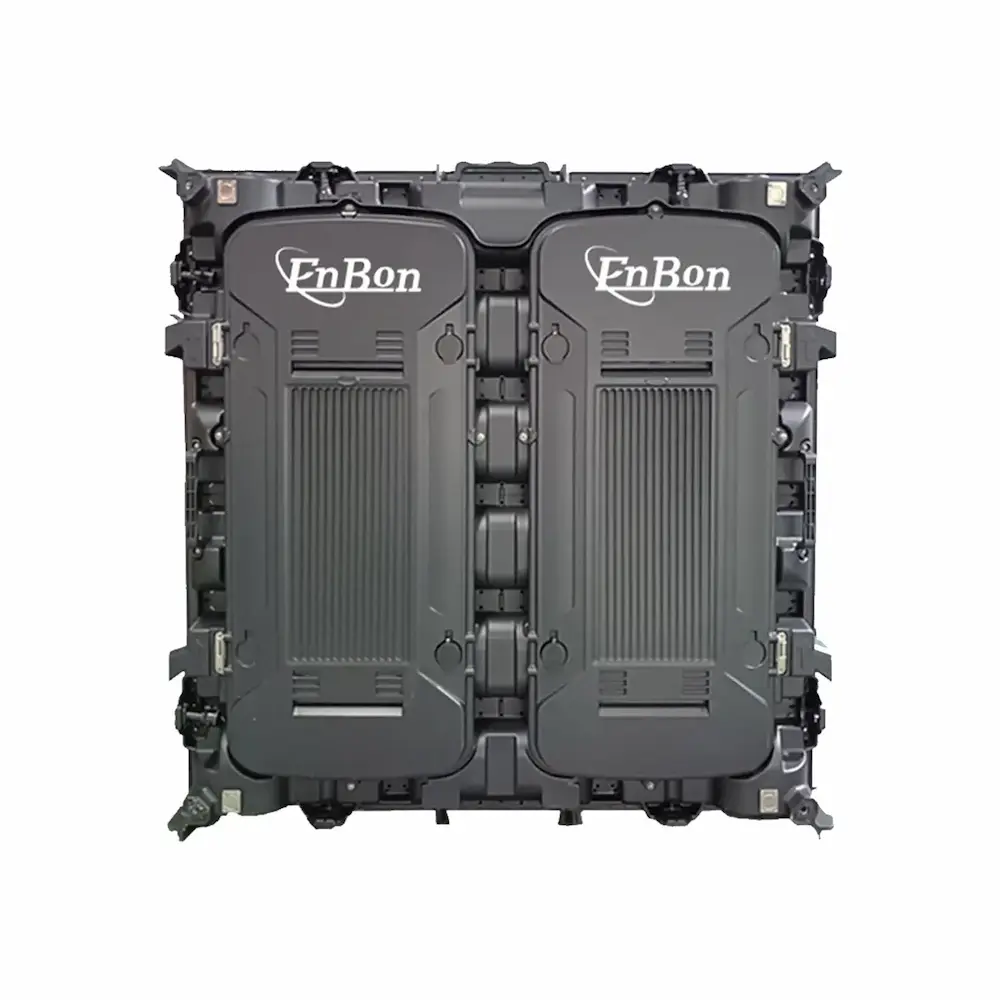

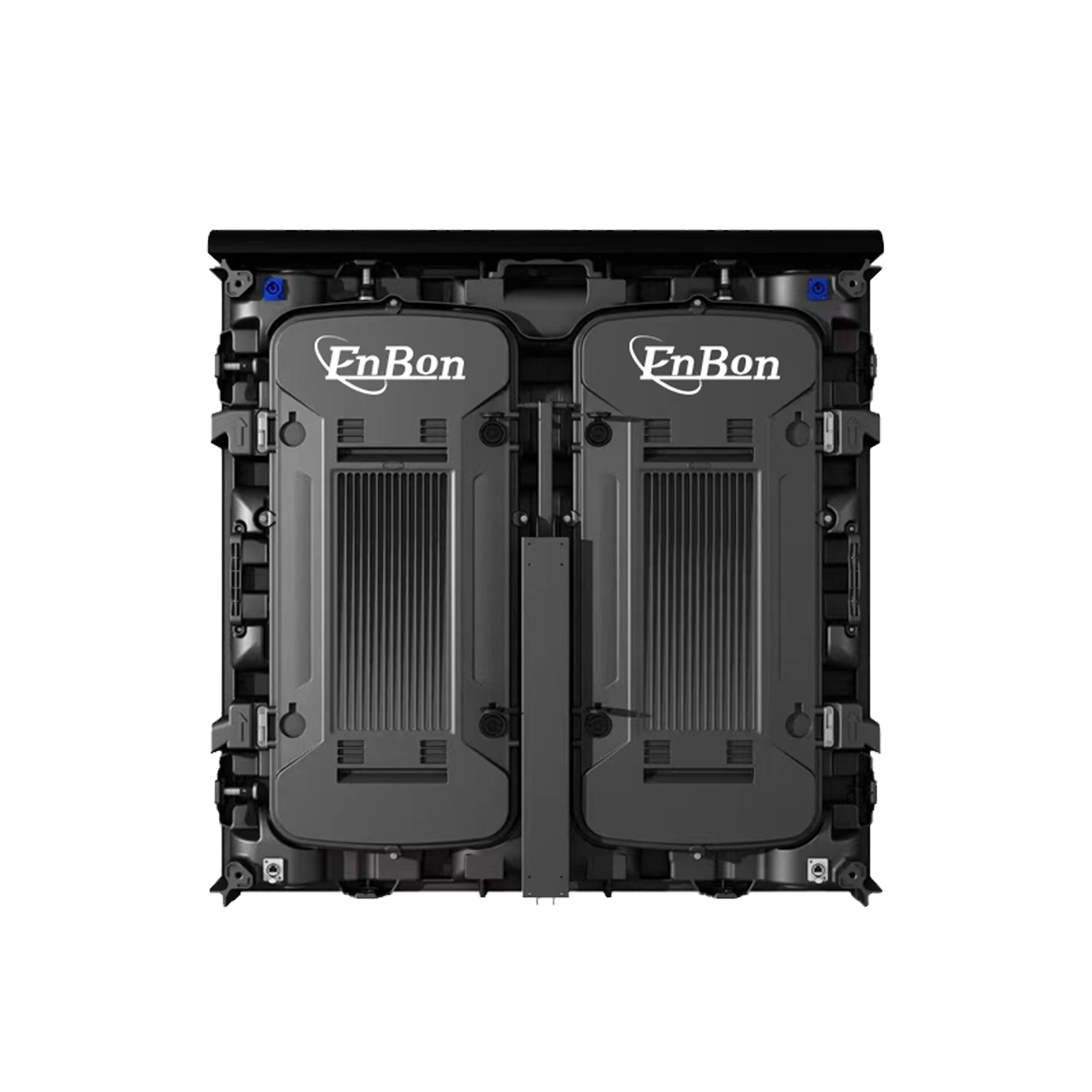

Die-casting Aluminum

Die-casting Aluminum

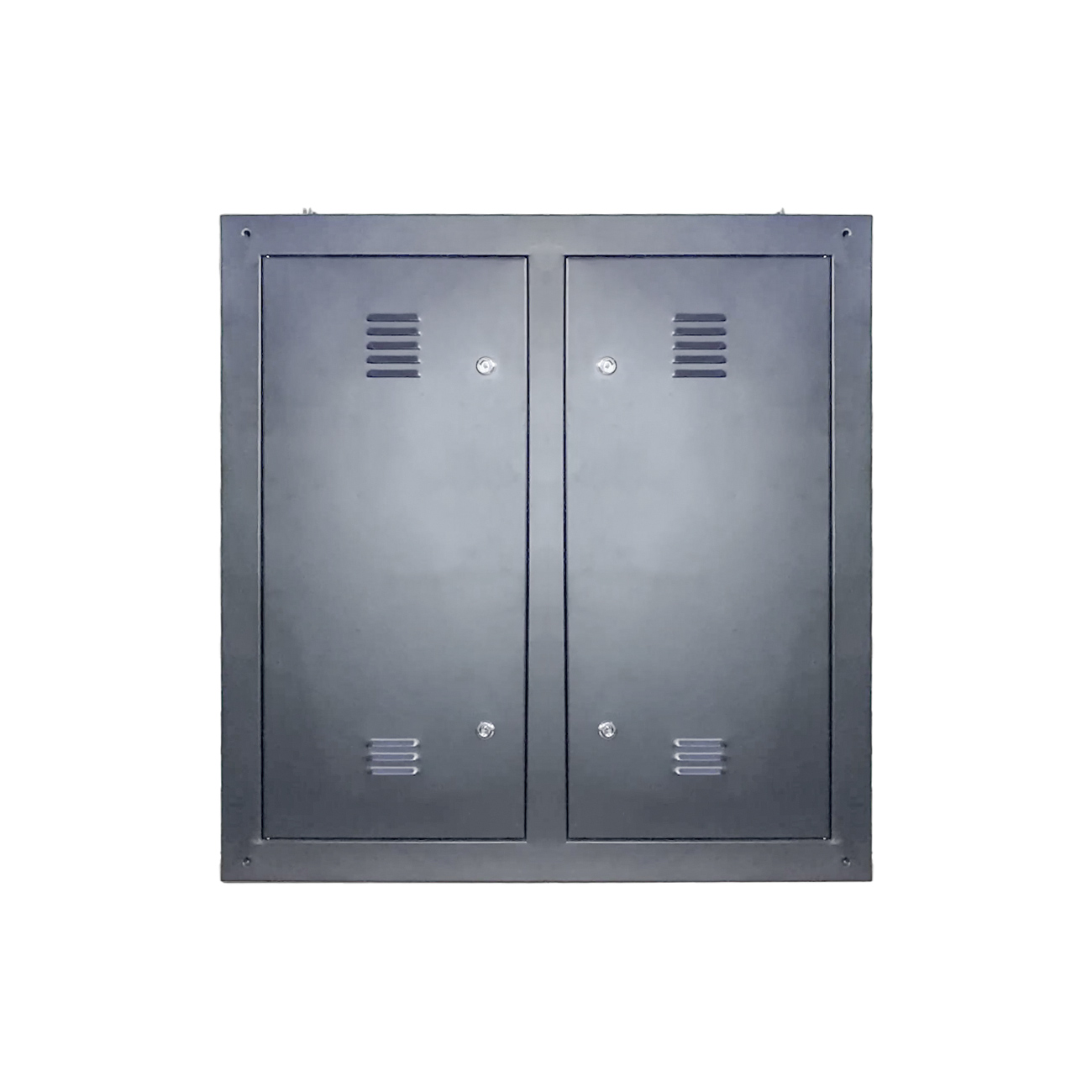

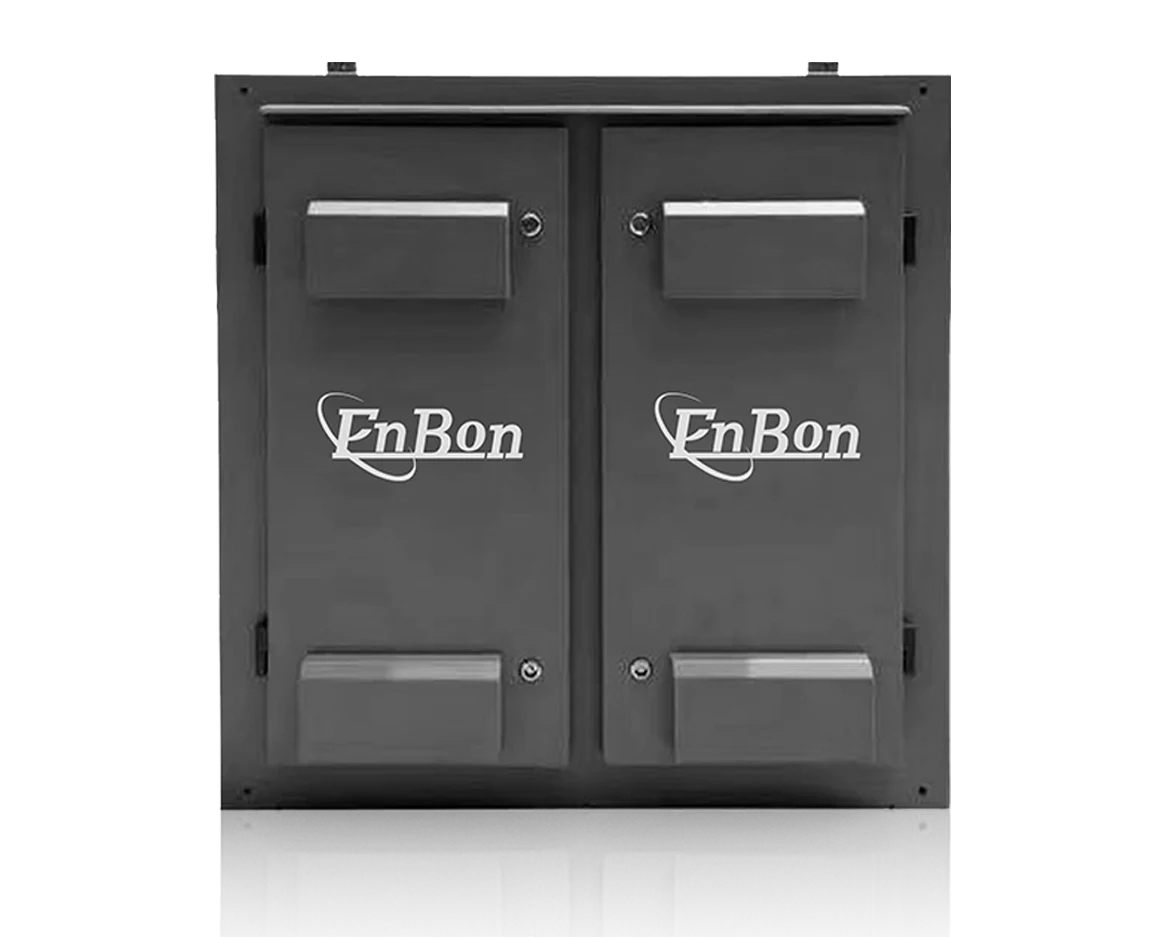

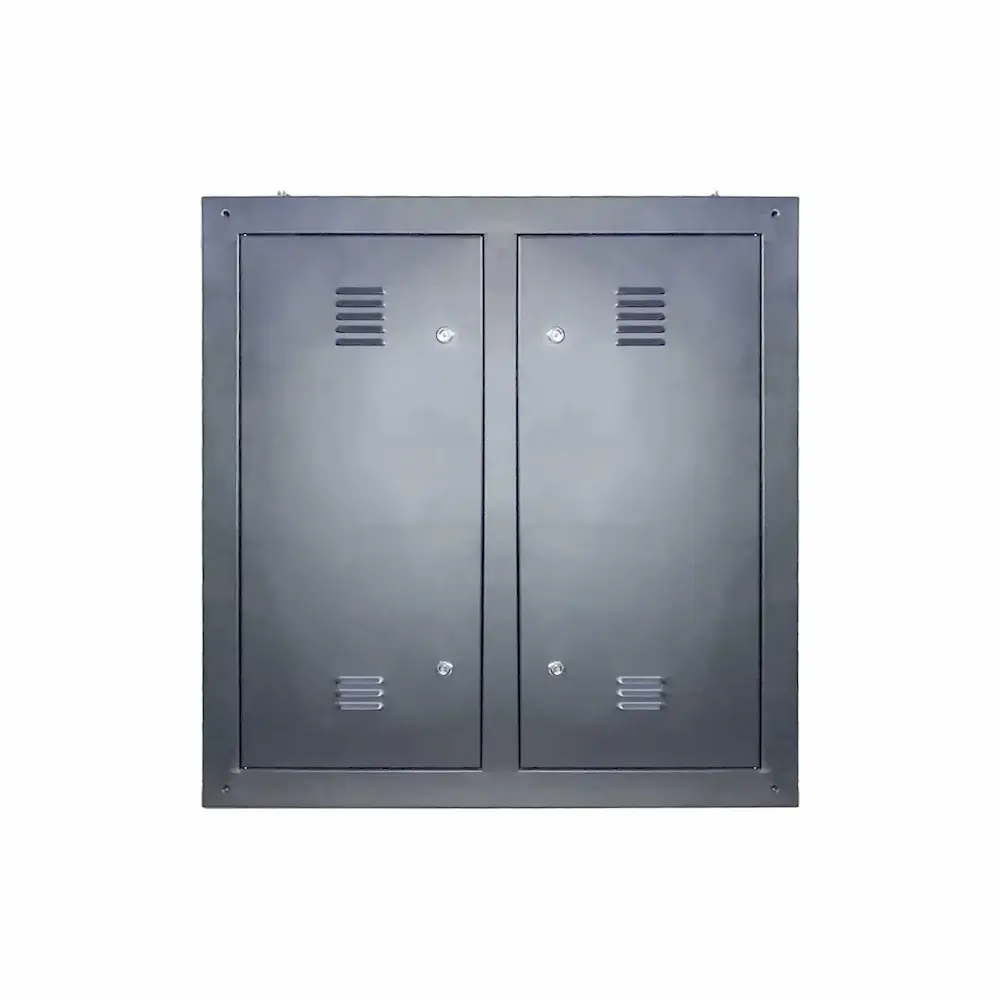

lron

lron

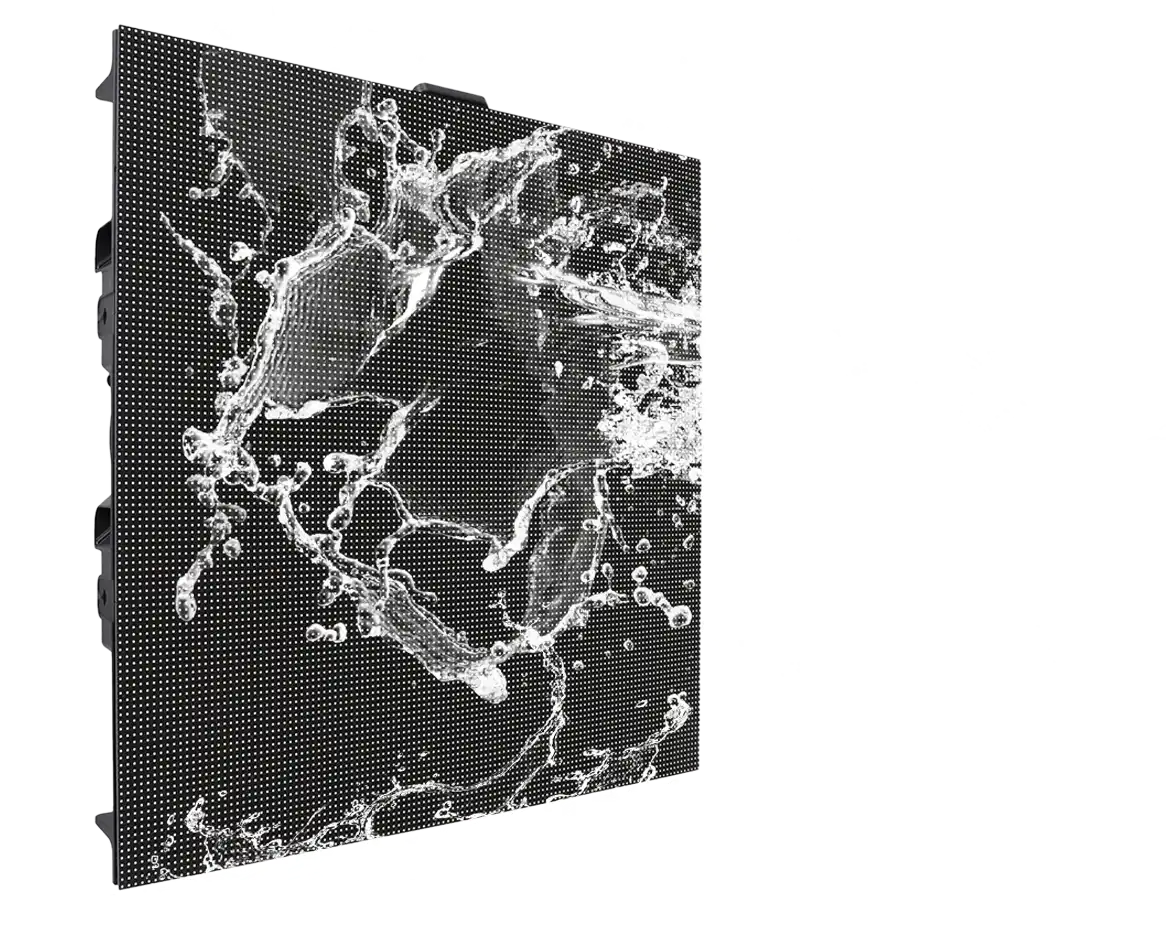

IP65 Waterproof

FR Waterproof

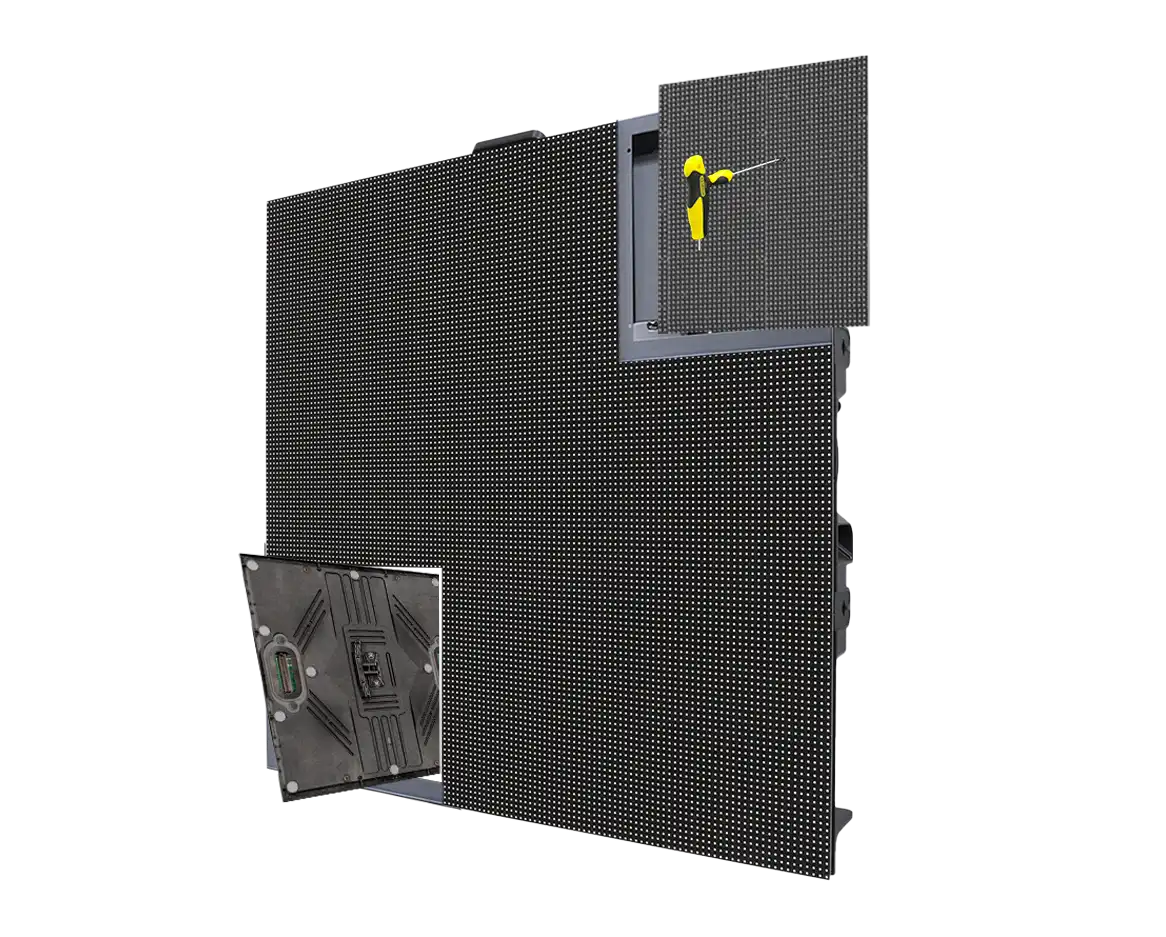

Maintenance Method

Support Full Front Or Full Rear Maintenance,Front Maintenance Can Be installedDirectly On The Wall

Enbon FR Maintenance Method Image

Front Maintenance



Rear Maintenance



High Resolution

FS Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

FS Grayscale Comparison Image


Low Grayscale



High Grayscale

Installation Case

Embedded Installation

Embedded Installation

Flat Wall Mounted

Flat Wall Mounted

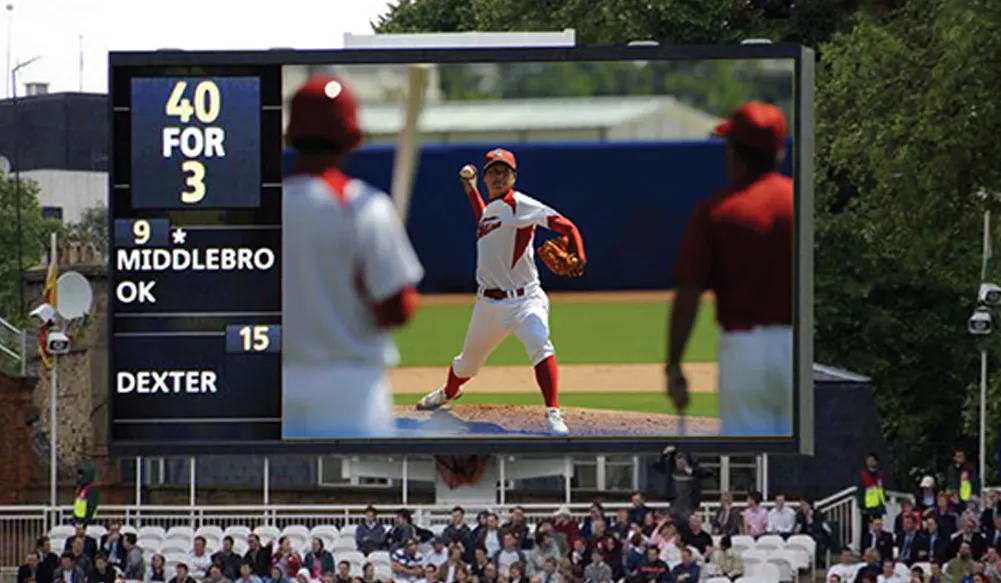

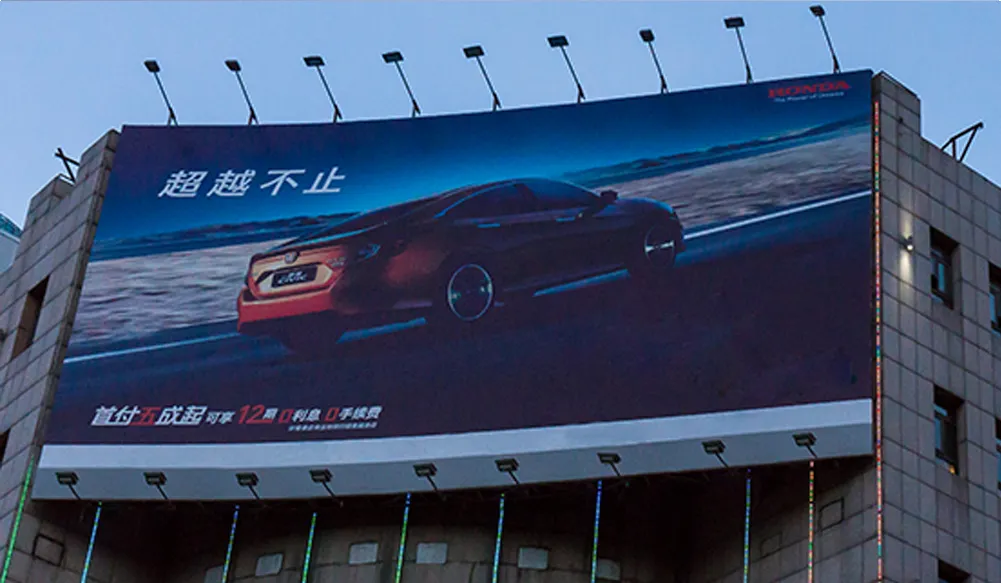

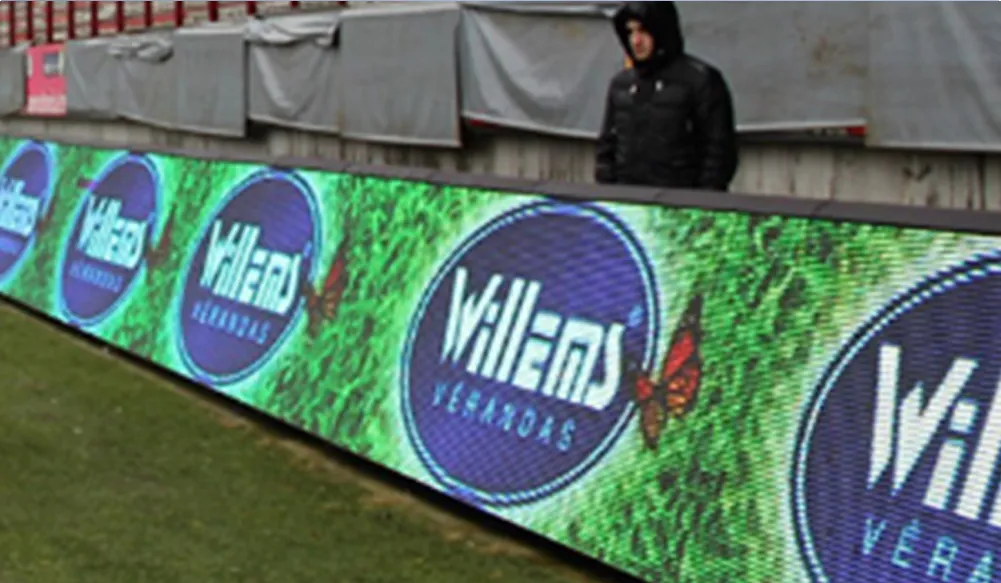

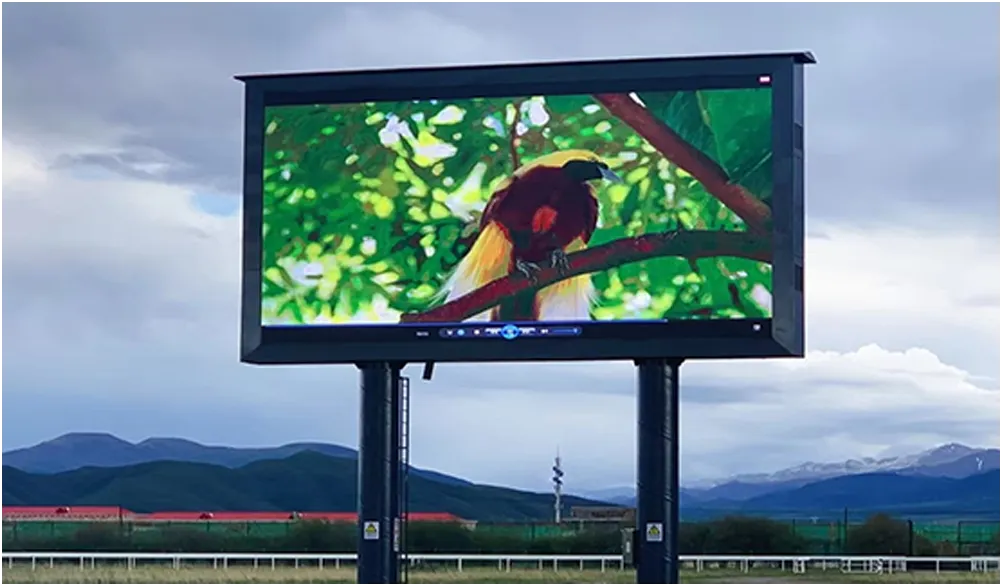

Application Scenarios

FR Image
FR Image
FR Image
FR Image

Product Specification

Item Outdoor
Pixel Pitch 2.5 3 3.33 4 5 6
LED lamp SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD2727
Density(dots/m2) 160000 105625 90000 62500 40000 27889
Brightness ≥5500nits ≥5500nits ≥5500nits ≥5500nits ≥5500nits ≥5500nits
IP rating IP65 IP65 IP65 IP65 IP65 IP65
Cabinet Materiel Die-casting Aluminum
Scan 16scan 13scan 12scan 10scan 8scan 6scan
Module weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
Cabinet Weight 28kg 28kg 28kg 28kg 28kg 28kg
Module size(mm) 320*160 320*160 320*160 320*160 320*160 320*160
Cabinet size(mm) 960*960*120 960*960*120 960*960*120 960*960*120 960*960*120 960*960*120
Module pixel 128*64dots 104*52dots 96*48dots 80*40dots 64*32dots 48*24dots
Cabinet pixel 384*384dots 320*320dots 288*288dots 240*240dots 192*192dots 160*160dots
Max Power 750w/sqm 750w/sqm 750w/sqm 750w/sqm 750w/sqm 750w/sqm
Average Power 450w/sqm 450w/sqm 450w/sqm 450w/sqm 450w/sqm 450w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16 bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃


LED Module

Pixel Pitch P2.5,P3,P3.33,P4,P5,P6
LED lamp SMD1415,SMD1921,SMD2727
Brightness ≥5500nits
Module pixel 128*64/104*52/96*48/80*40/
64*32/48*24dots
Cabinet pixel 384*384/320*320/288*288/240*240/
192*192/160*160dots

Appearance

Module size 320*160mm
Cabinet size 960*960*120mm
Module weight 0.5kg
Cabinet Weight 28kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power 750w/sqm
Average Power 450w/sqm


Waterproof grade

IP rating IP65

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70) deg
V140(+70/-70)deg
Scan 16/13/12/10/8/6scan

Material density

Density 160000/105625/90000/62500/
4000/27889(dots/m2)
Cabinet Materiel Die-casting Aluminum
