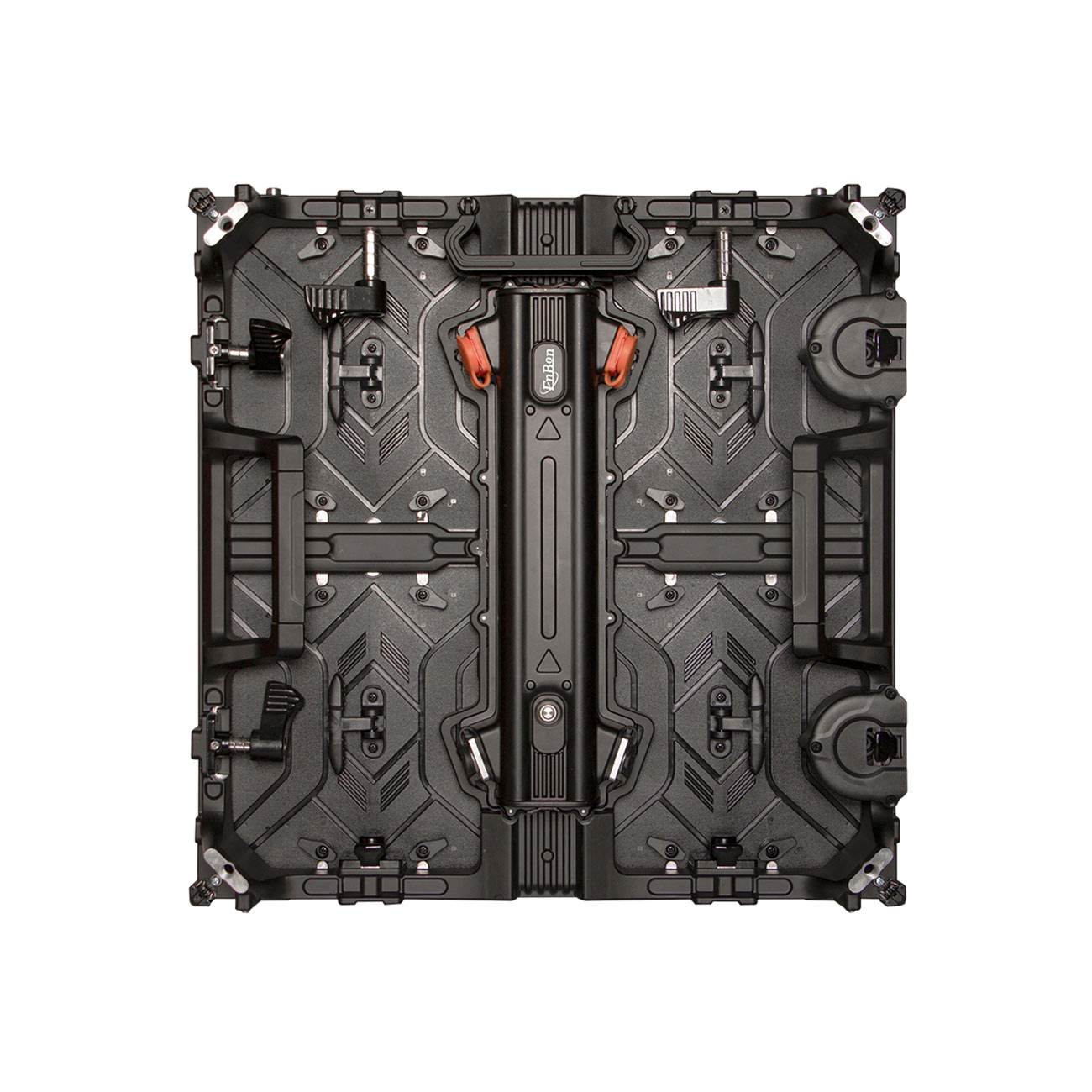

Totally Front Maintenace lED Screen
Top Handle
Top Fast Lock
Logo Position
indicator light
Power Con
Corner Cover
Singal Con
Side Handle
Module Handle
Safety Lock

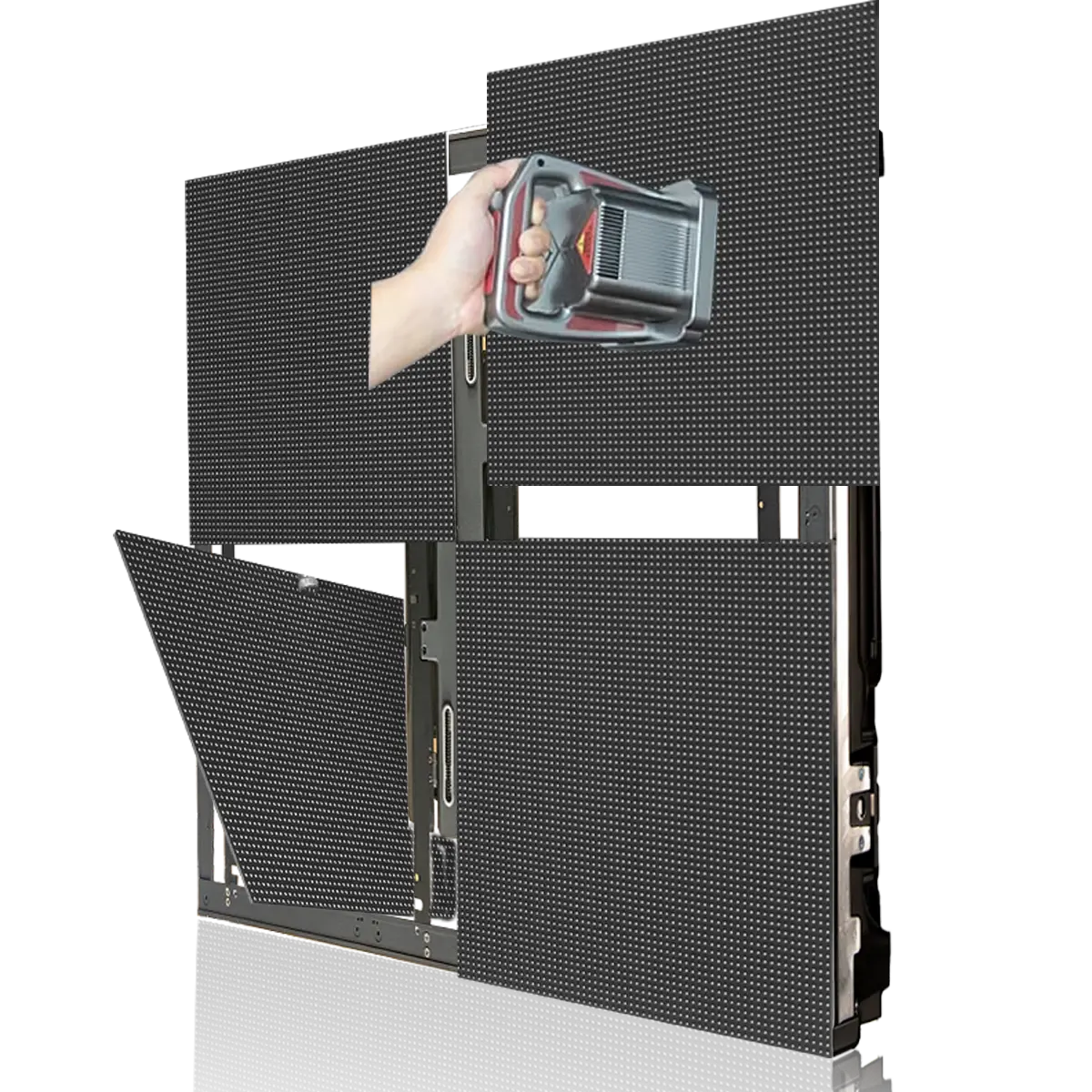

Support Full Front Or Full Rear Maintenance,
Front Maintenance Can Be installed
Directly On The Wall
Rear Maintenance
Front Maintenance
Light Weight, Aluminum Panel 25kg /pcs With Thickness is 100mm
Lightweight Cabinet 25kg
Die-casting Aluminum Module and Cabinet
Low Refresh Rate
High Refresh Rate
Low Grayscale
High Grayscale
Hanging Beam Installation
Vertical Installation
| Item | Outdoor | |||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 4.81 | ||
| LED lamp | SMD1415 | SMD1921 | SMD1921 | SMD1921 | ||
| Density(dots/m2) | 147456 | 112896 | 65536 | 43264 | ||
| Brightness | ≥3500nits | ≥3500nits | ≥3500nits | ≥3500nits | ||
| IP rating | IP65 | IP65 | IP65 | IP65 | ||
| Cabinet Materiel | Die-casting Aluminum | |||||
| Scan | 32scan | 21scan | 16scan | 13scan | ||
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | ||
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 8kg | ||
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | ||
| Cabinet size(mm) | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | ||
| Module pixel | 96*96dots | 84*84dots | 64*64dots | 52*52dots | ||
| Cabinet pixel | 192*192dots | 168*168dots | 128*128dots | 104*104dots | ||
| Max Power | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | ||
| Average Power | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | ||
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Gray Scale | 16 bit | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10% ~ 90% | |||||
| Work temperature | ﹣20 ~﹢65℃ | |||||
LED Module |
|
| Pixel Pitch | 2.604,2.976, 3.91, 4.81 |
|---|---|
| LED lamp | SMD1515/1921 |
| Brightness | ≥3500nits |
| Module pixel | 96*96/84*84/64*64/52*52dots |
| Cabinet pixel | 192*192/168*168/128*128/ 104*104dots |
Appearance |
|
| Module size | 250*250mm |
| Cabinet size | 500*500*85mm |
| Module weight | 0.5kg |
| Cabinet Weight | 7.5kg/8kg(p4.81) |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | 600w/sqm |
| Average Power | 360w/sqm |
Waterproof grade |
|
| IP rating | IP65 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | 32scan,21scan,16scan,13scan |
Material density |
|
| Density | 147456/112896/65536/ 43264dots |
| Cabinet Materiel | Die-casting Aluminum |
