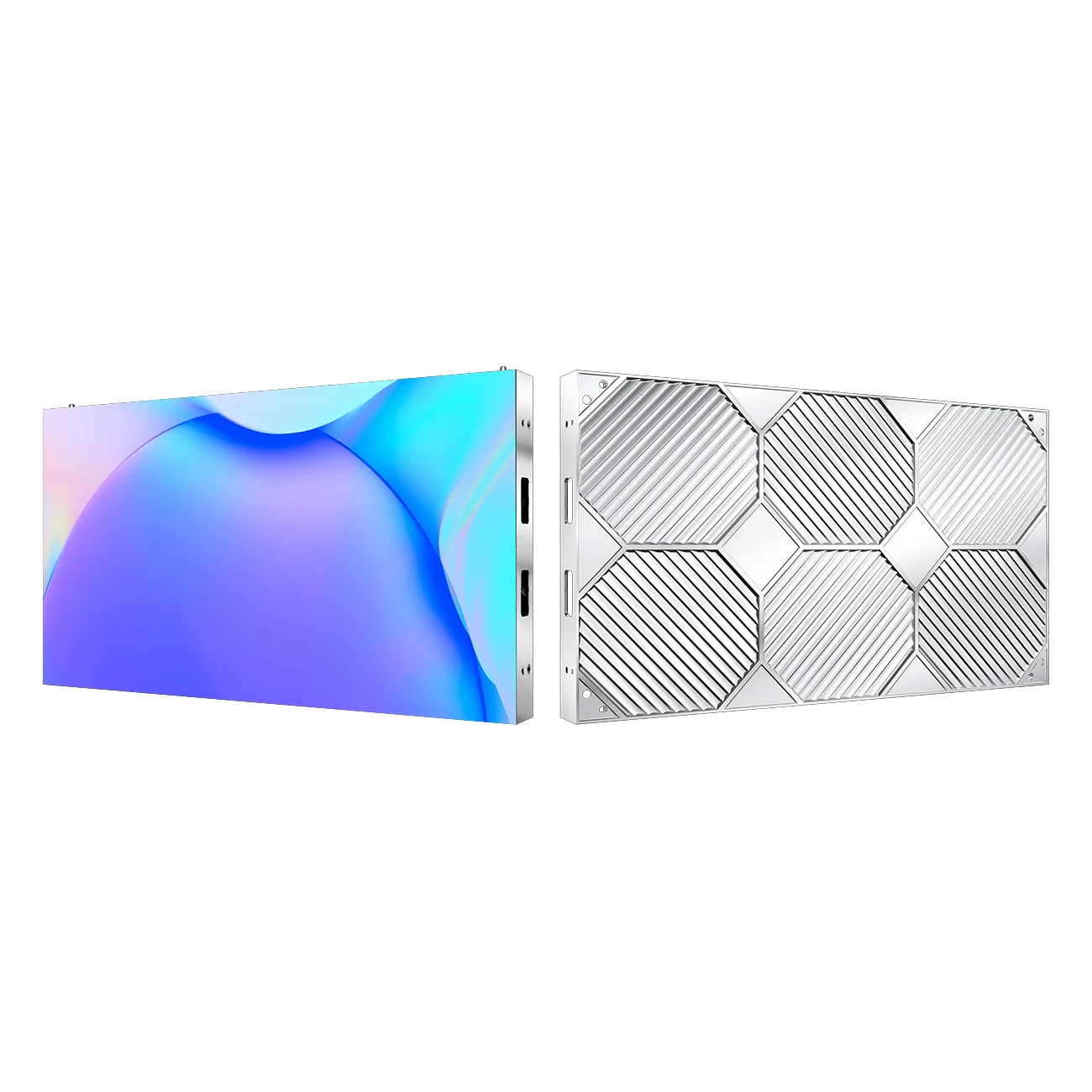

FN Model

Indoor LED Screen Rental – Enbon FN High Refresh Display

Indoor LED Screen Rental - Enbon FN P0.93, ultra-HD, ultra-small pitch, supports 2K/4K/8K studios with front & rear maintenance options.
  1. Excellent heat dissipation
  2. Great water resistance
  3. FN could make 2K/4K/8K Vision studio
  4. Support fully front service
  5. Great water resistance
  6. FN could do with P0.93
  7. Excellent heat dissipation
P1.56IP45P0.93P1.25800nitsP1.875

Description

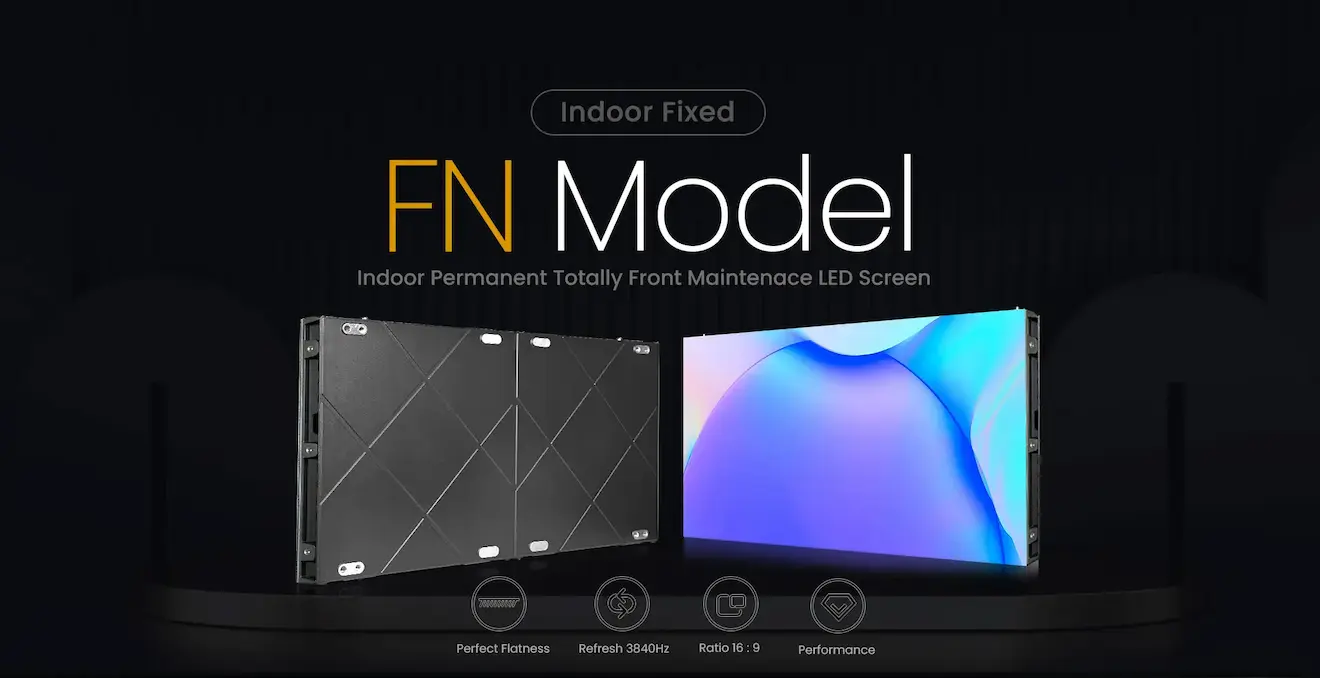

Indoor Fixed

FN Model

Indoor Permanent Totally Front Maintenace LED Screen

FN Img 1
Icon 1

Perfct Flatness

Icon 2

Refresh 3840Hz

Icon 3

Ratio 16 : 9

Icon 4

Performance

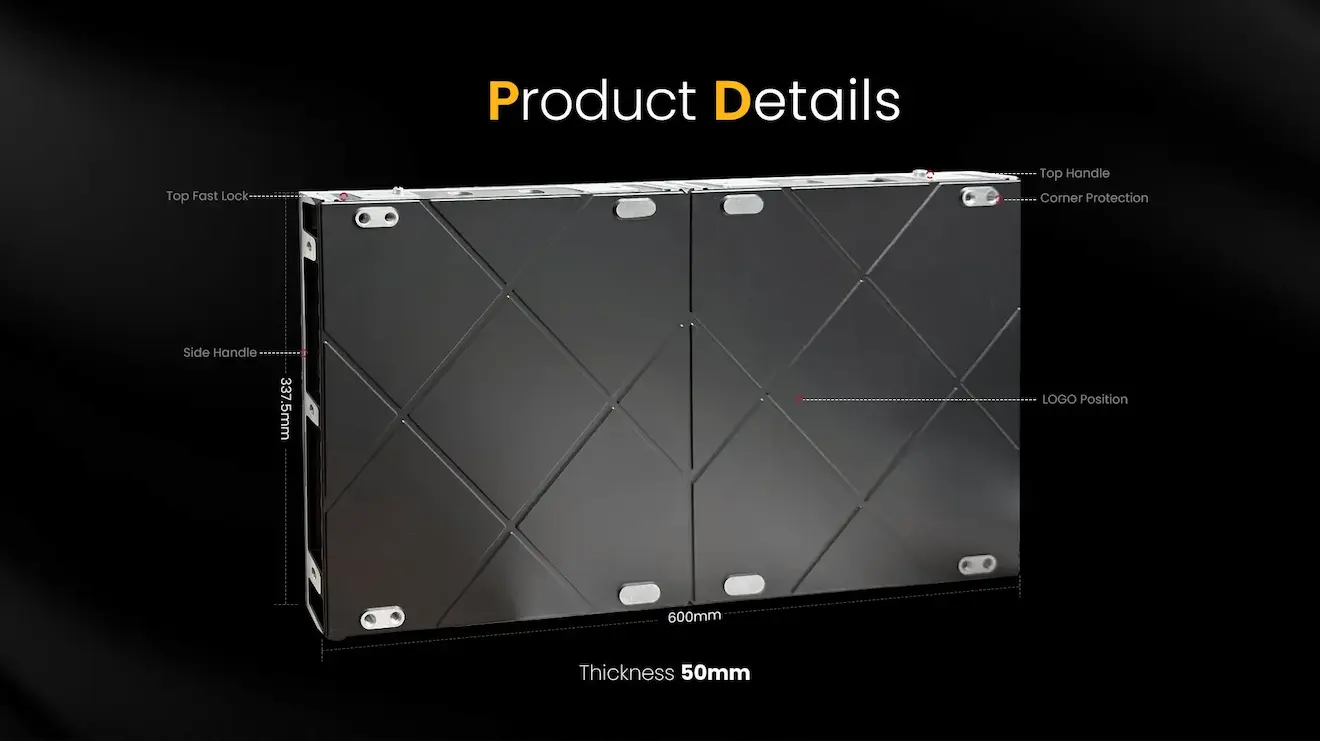

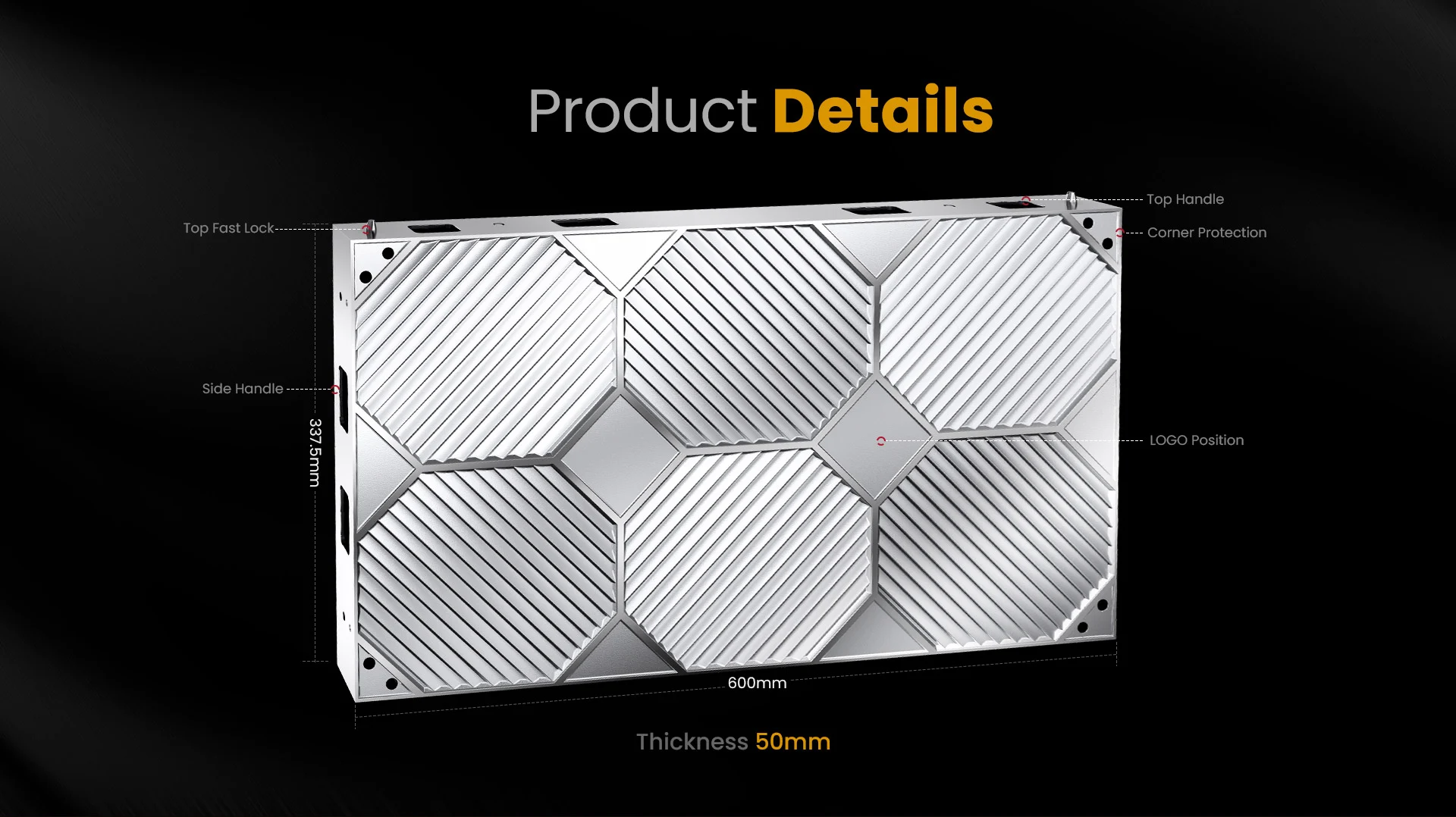

Product Details

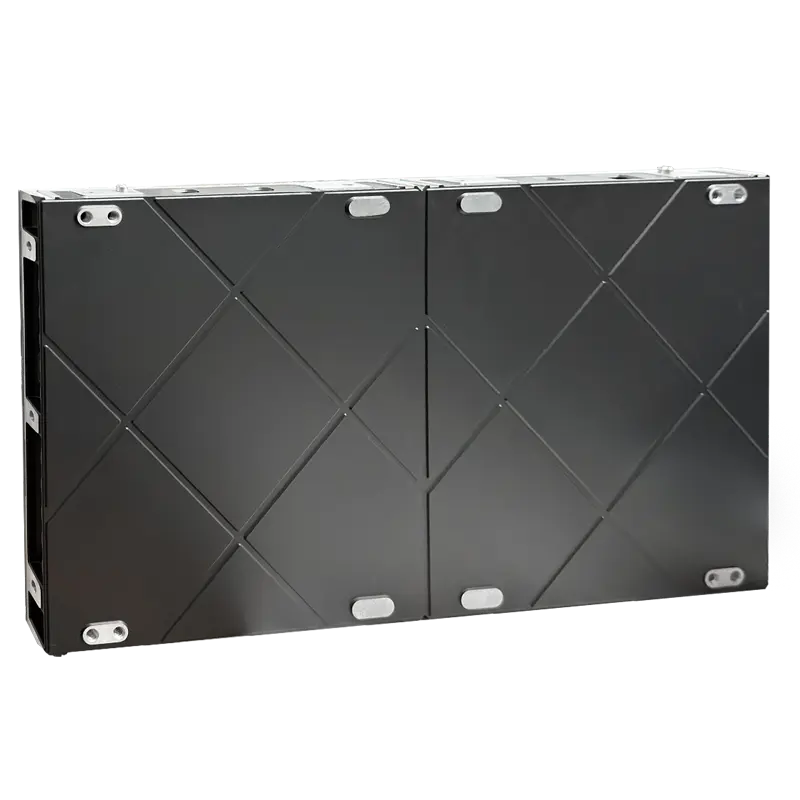

FN Cabinet Structure Image

Top Fast lock



Side Handle



Top Handle



Corner Protection



LOGO Position

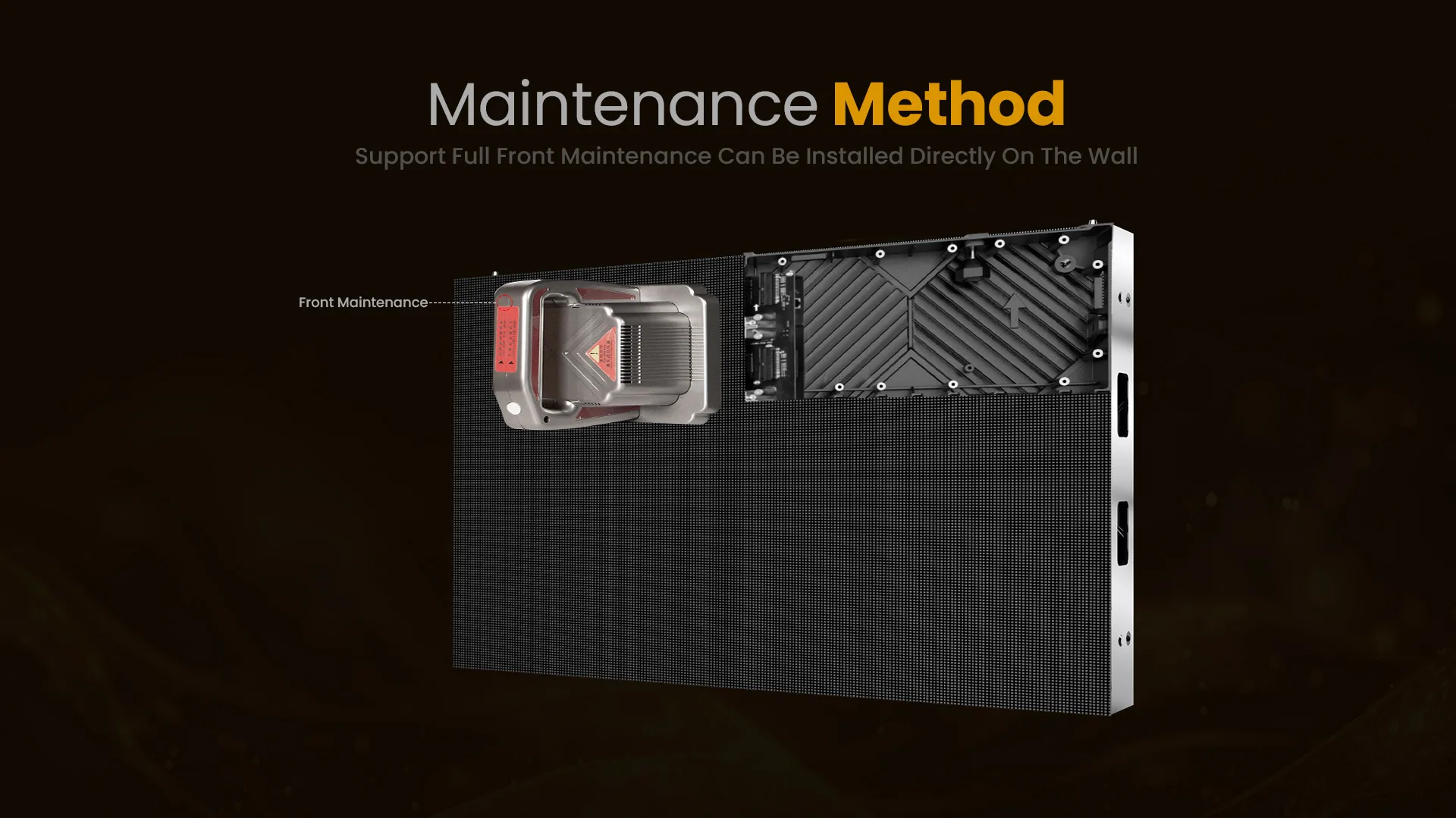

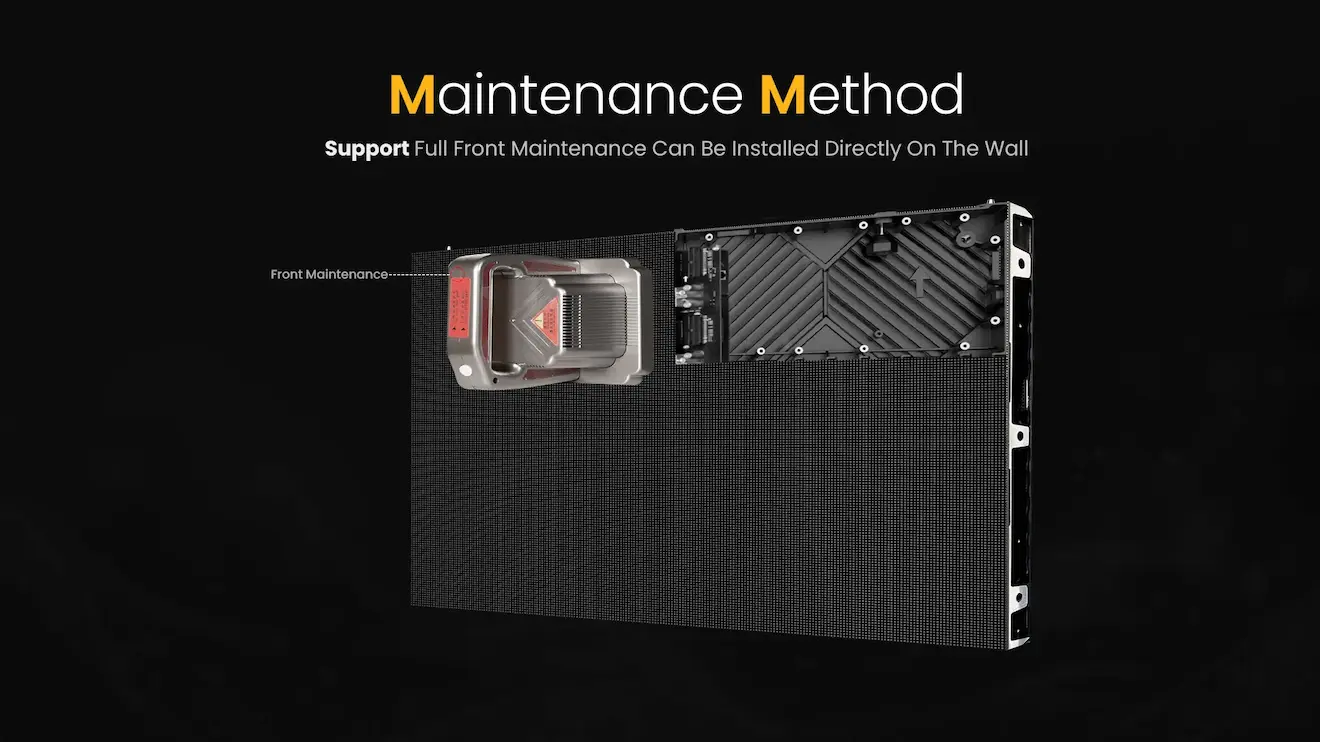

Maintenance
Method

Support Full Front Or Full Rear Maintenance,
Front Maintenance Can Be installed
Directly On The Wall

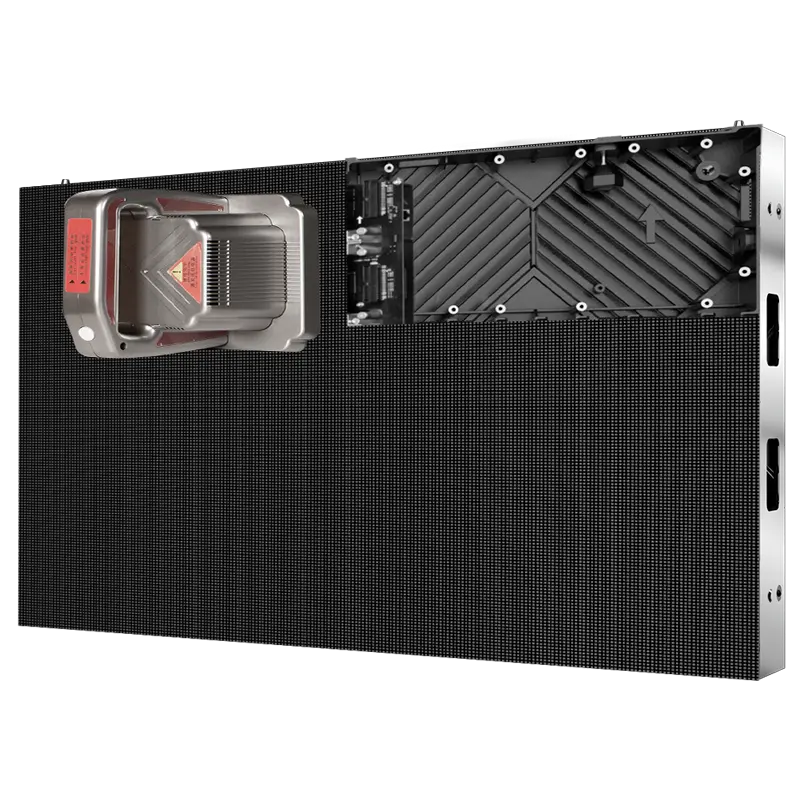

Enbon FN Maintenance Method Image

Front Maintenance

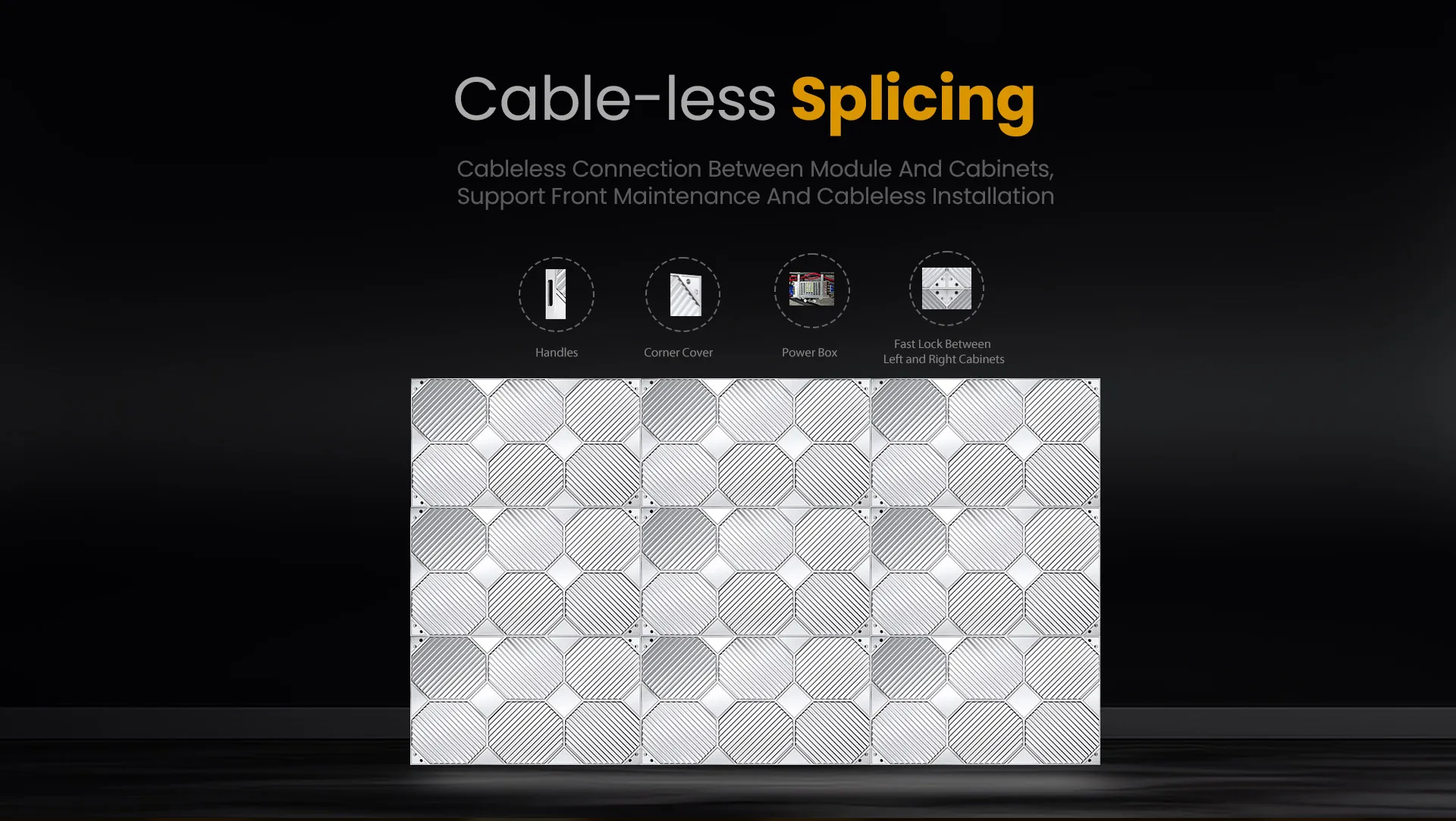

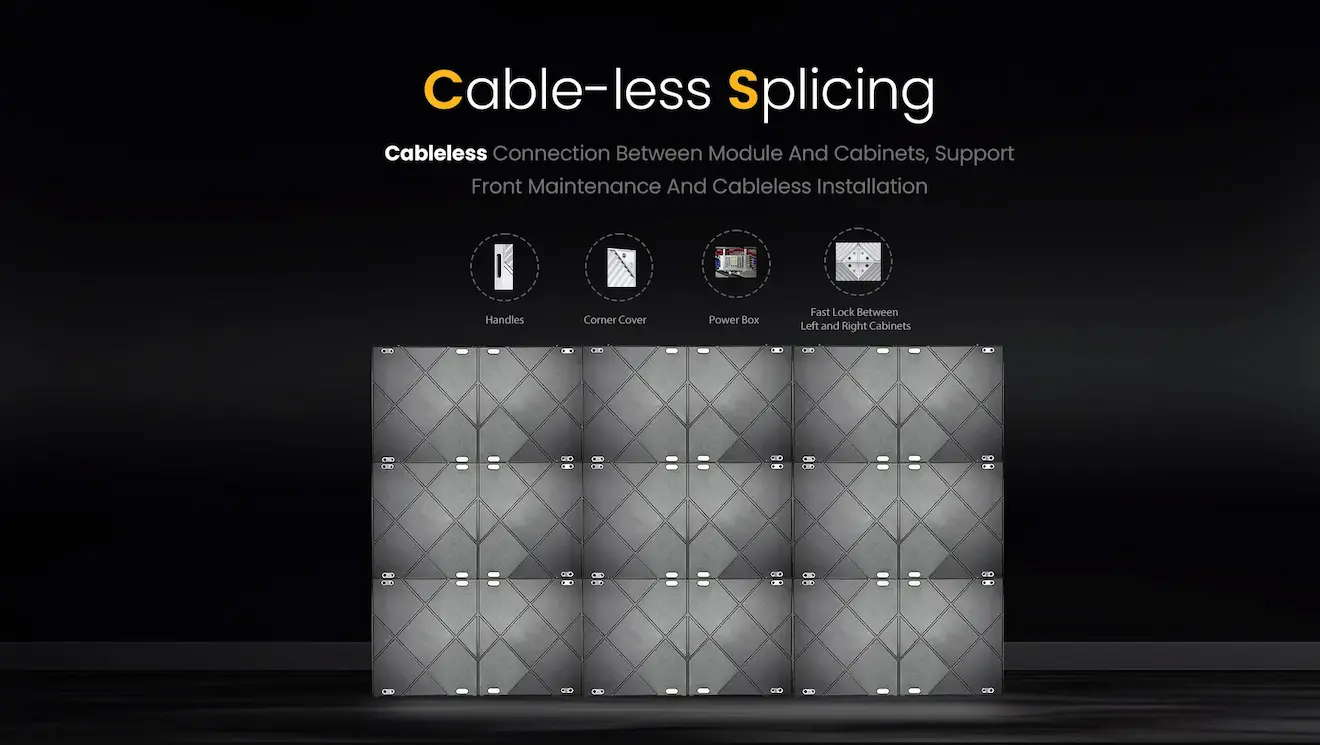

Cable-less Splicing

Cableless Connection Between Module And Cabinets
Support Front Maintenance And Cableless installation

Handles

Handles

Corner Cover

Corner Cover

Power Box

Power Box

Fast Lock BetweenLeft and Right Cabinets

Fast Lock Between
Left and Right Cabinets

Enbon FS Img

16:9 Golden Ratio

Standard 27.5inch Size FHD, Can achievegolden 16:9 aspect ratio in a variety of sizes

FN img

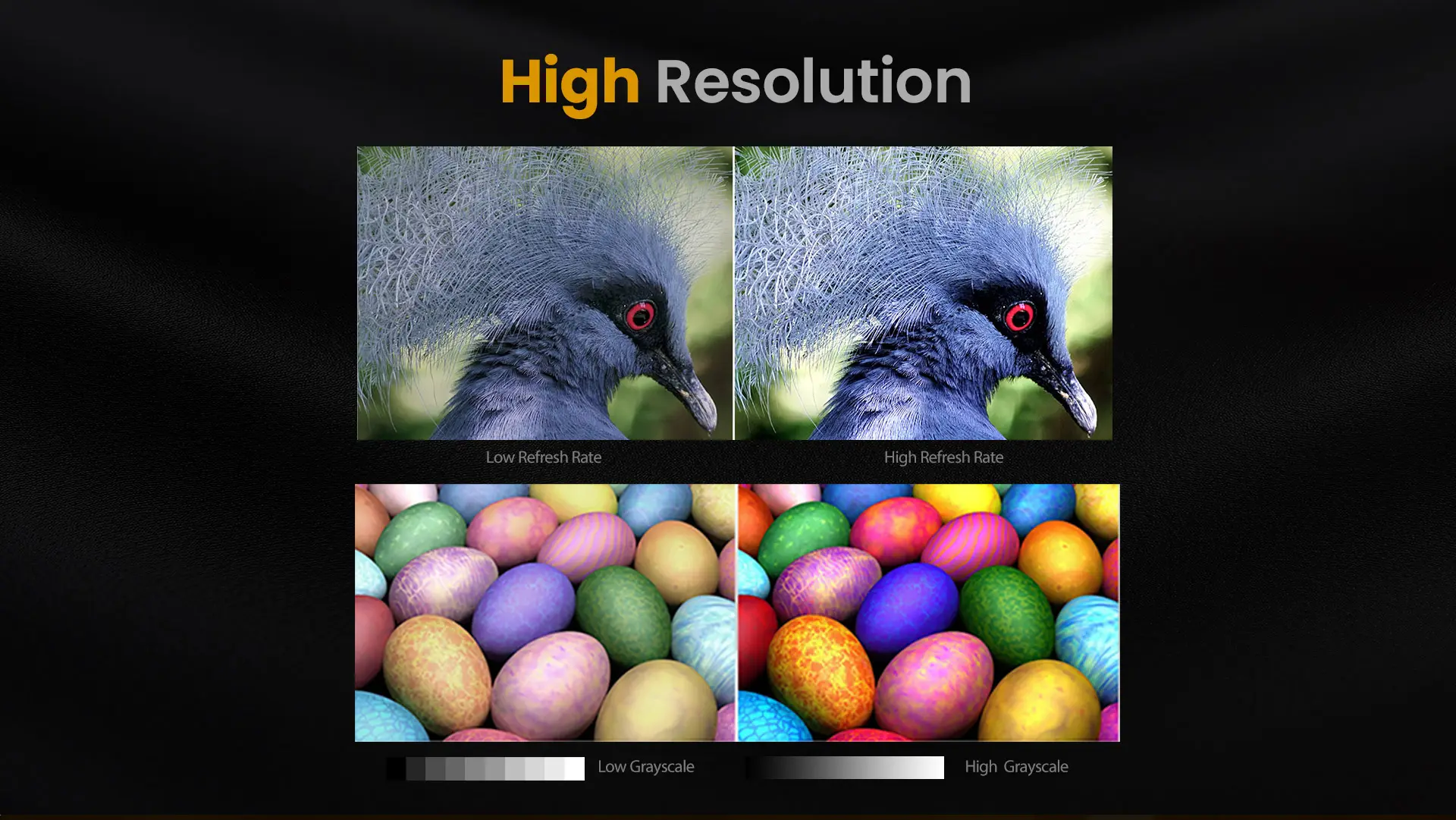

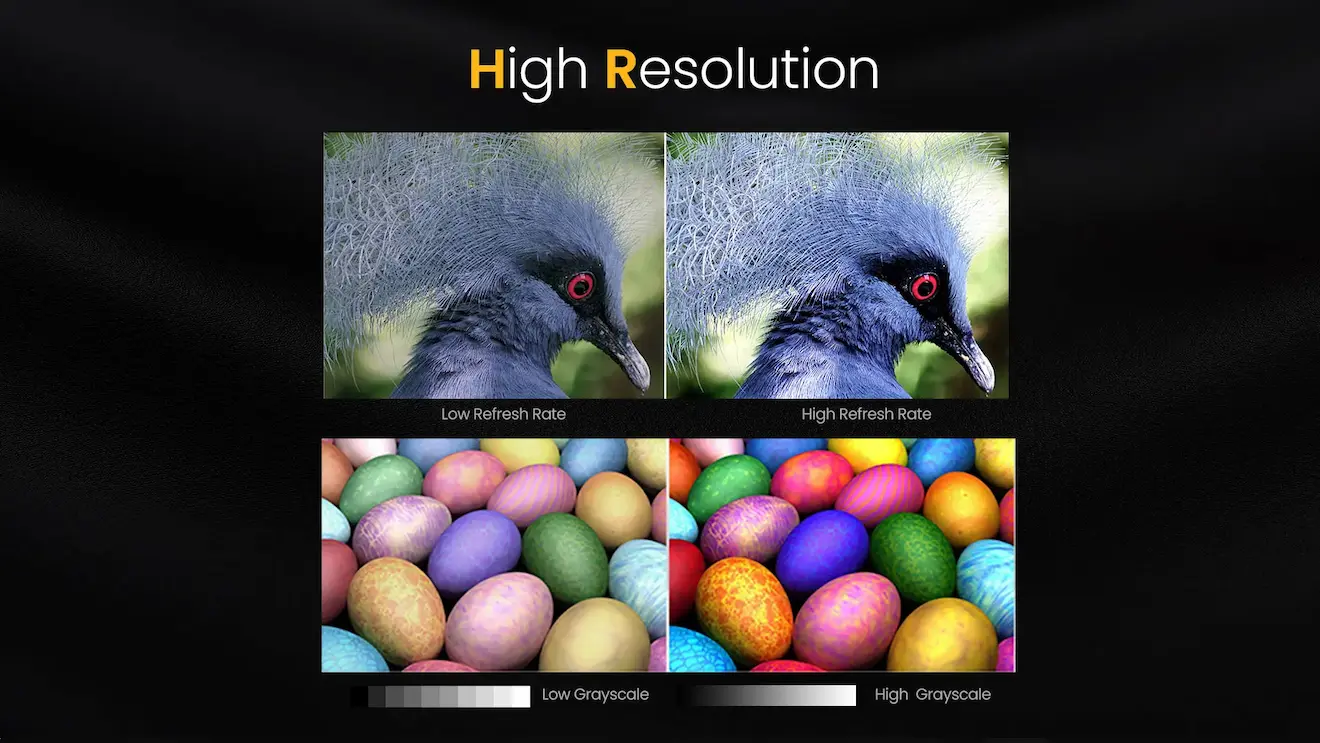

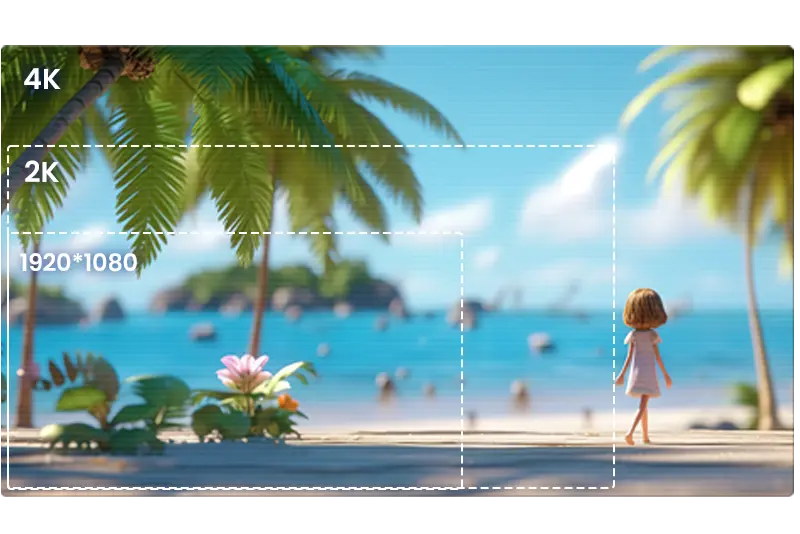

High Resolution

FS Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

FS Grayscale Comparison Image


Low Grayscale



High Grayscale

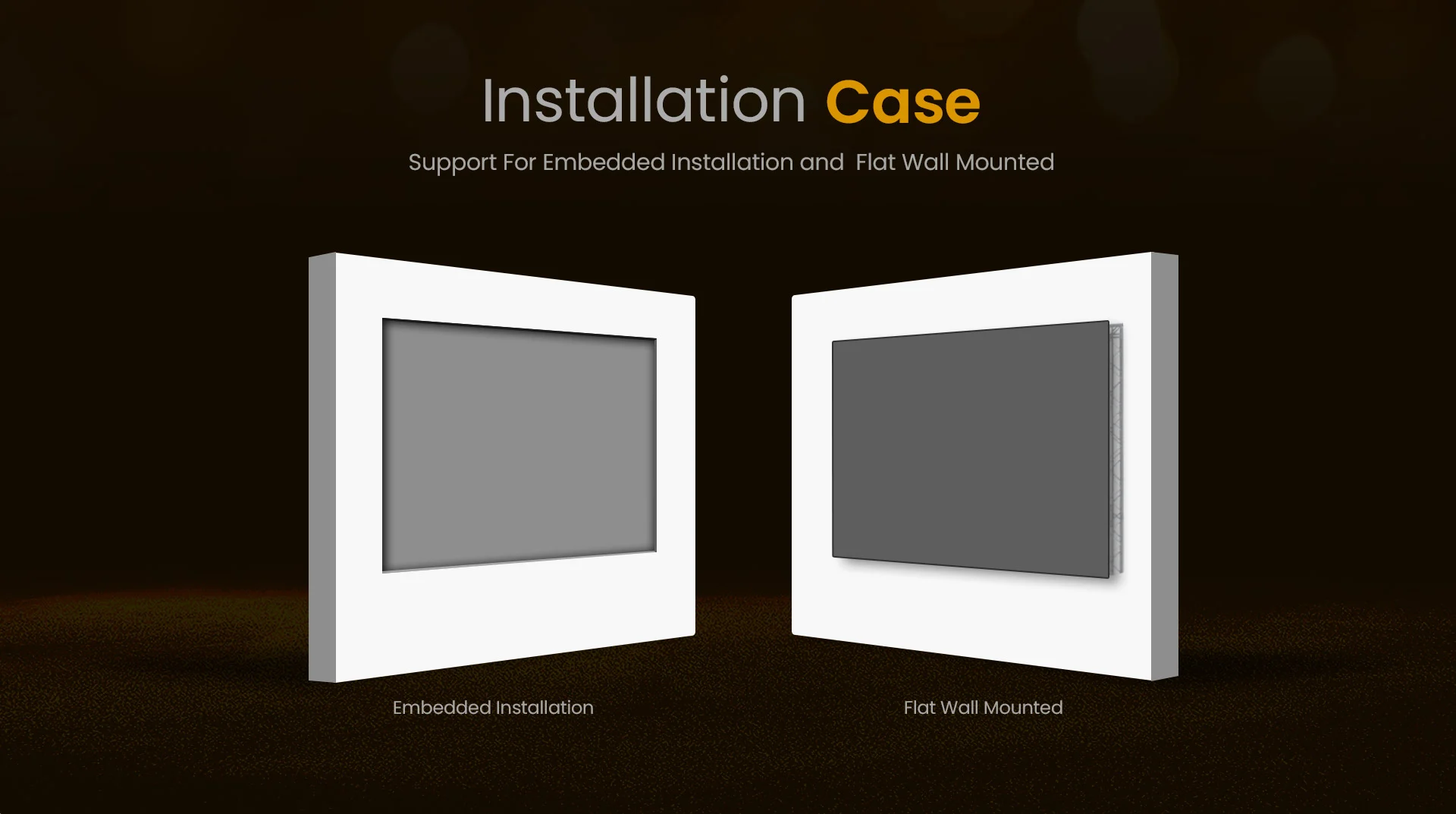

Installation Case

Embedded Installation

Embedded Installation

Flat Wall Mounted

Flat Wall Mounted

Product Specification

Item Indoor
Pixel Pitch 0.93 1.25 1.56 1.875
LED lamp SMD0606 SMD1010 SMD1212 SMD1515
Density(dots/m2) 1137777 640000 4096000 284444
Brightness ≤800nits ≤800nits ≤800nits ≤800nits
IP rating IP45
Cabinet Materiel Die-casting Aluminum
Scan 64scan 45scan 40scan 32scan
Module weight 0.3kg 0.3kg 0.3kg 0.3kg
Cabinet Weight 5.7kg 5.7kg 5.7kg 5.7kg
Module size(mm) 300*168.75 300*168.75 300*168.75 300*168.75
Cabinet size(mm) 600*337.5*59 600*337.5*59 600*337.5*59 600*337.5*59
Module pixel 320*180dots 240*136dots 192*108dots 160*90dots
Cabinet pixel 640*360dots 480*270dots 384*216dots 320*180dots
Max Power 600w/sqm 600w/sqm 600w/sqm 600w/sqm
Average Power 360w/sqm 360w/sqm 360w/sqm 360w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃


LED Module

Pixel Pitch P0.93, P1.25, P1.56, P1.875
LED lamp SMD0606/1010/1212/1515
Brightness ≤800 nits
Module pixel 320*180/240*136/192*108/
160*90(dots)
Cabinet pixel 640*360/480*270/384*216/
320*180(dots)

Appearance

Module size 300*168.75mm
Cabinet size 600*337.5*59mm
Module weight 0.3kg
Cabinet Weight 5.7kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI
Gray scale 16bit


Power

Max Power 600w/sqm
Average Power 360w/sqm


Waterproof grade

IP rating IP45

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70)deg
V140(+70/-70)deg
Scan Indoor:38scan/64scan/32scan
/40scan

Material density

Density 1137777/640000/409600/
284444(dots/m2)
Cabinet Materiel Die-casting Aluminum
