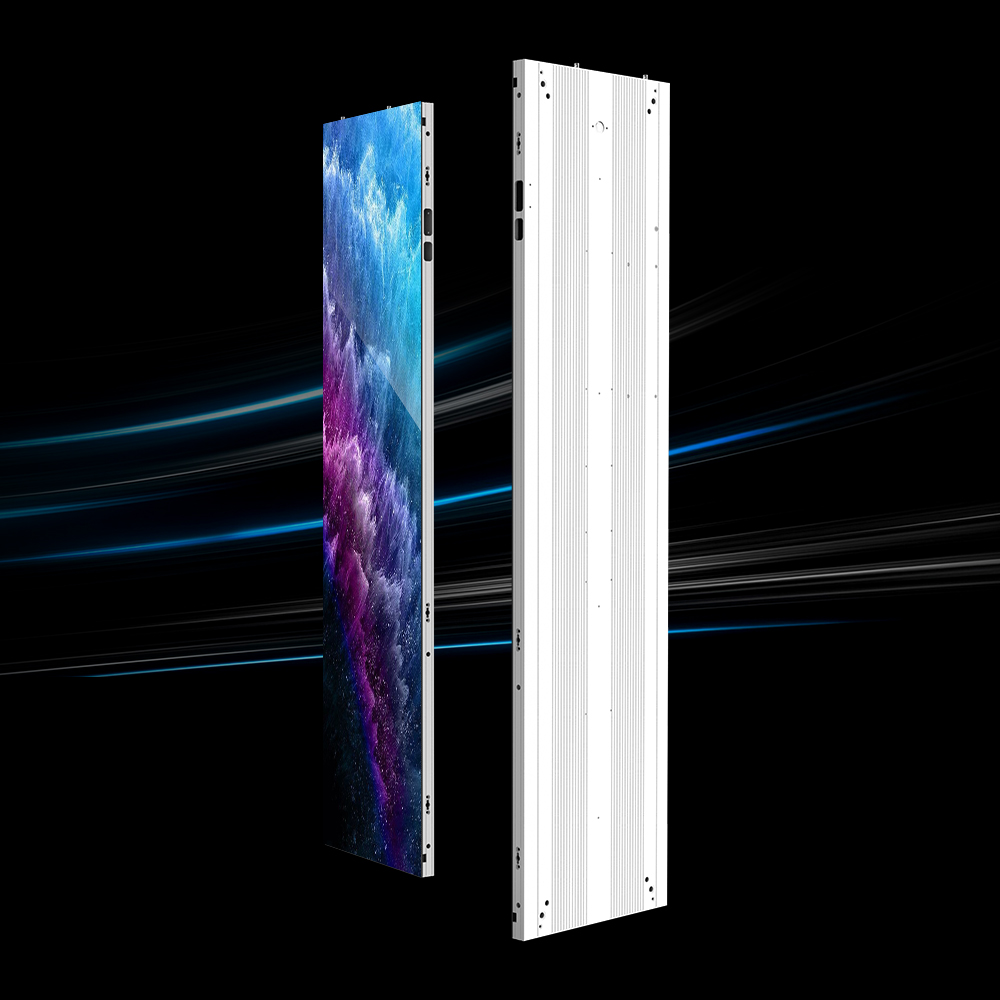

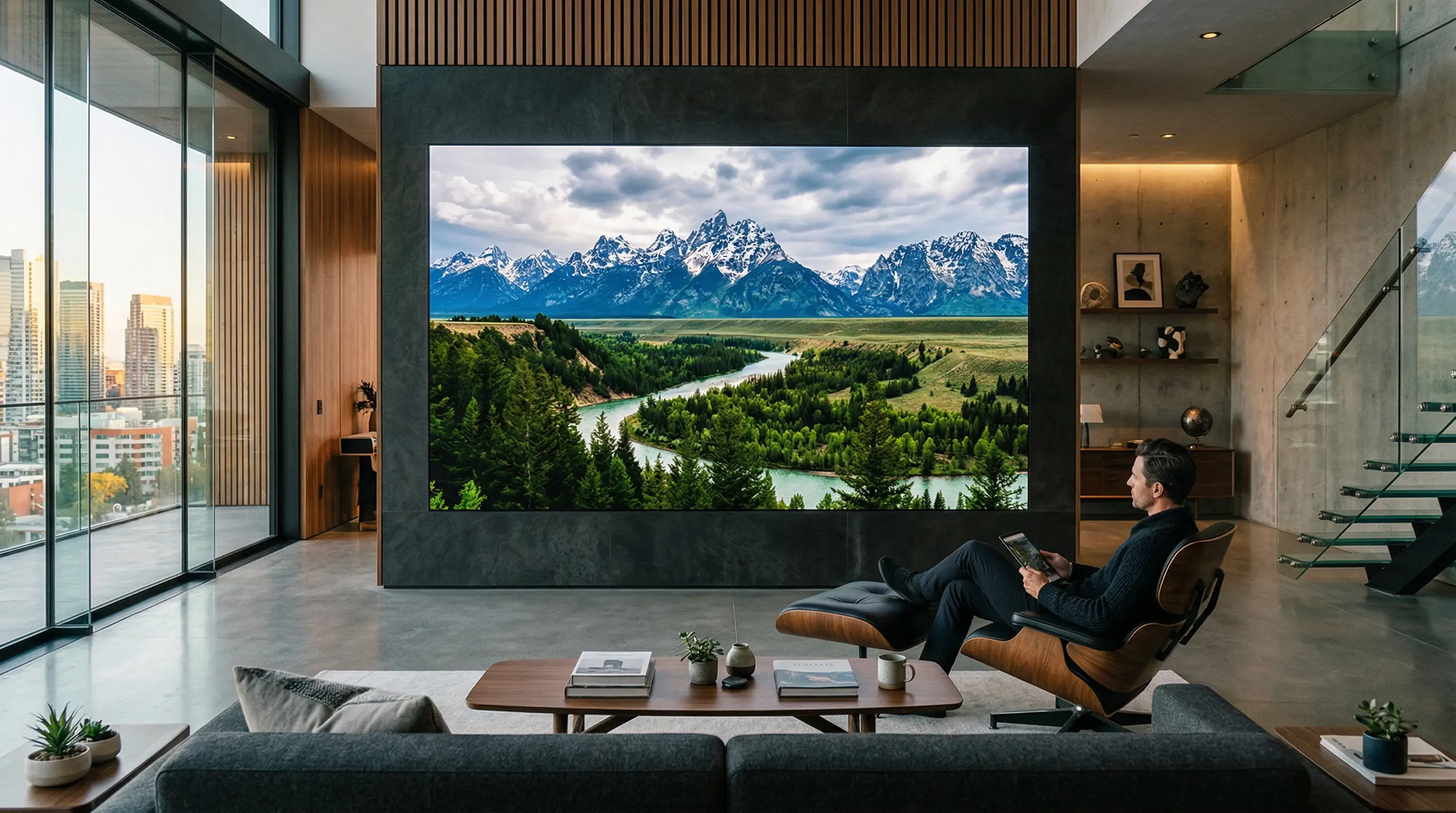

Enbon E Model Indoor LED Screen Support Mixed Assembled And Lighter Weight

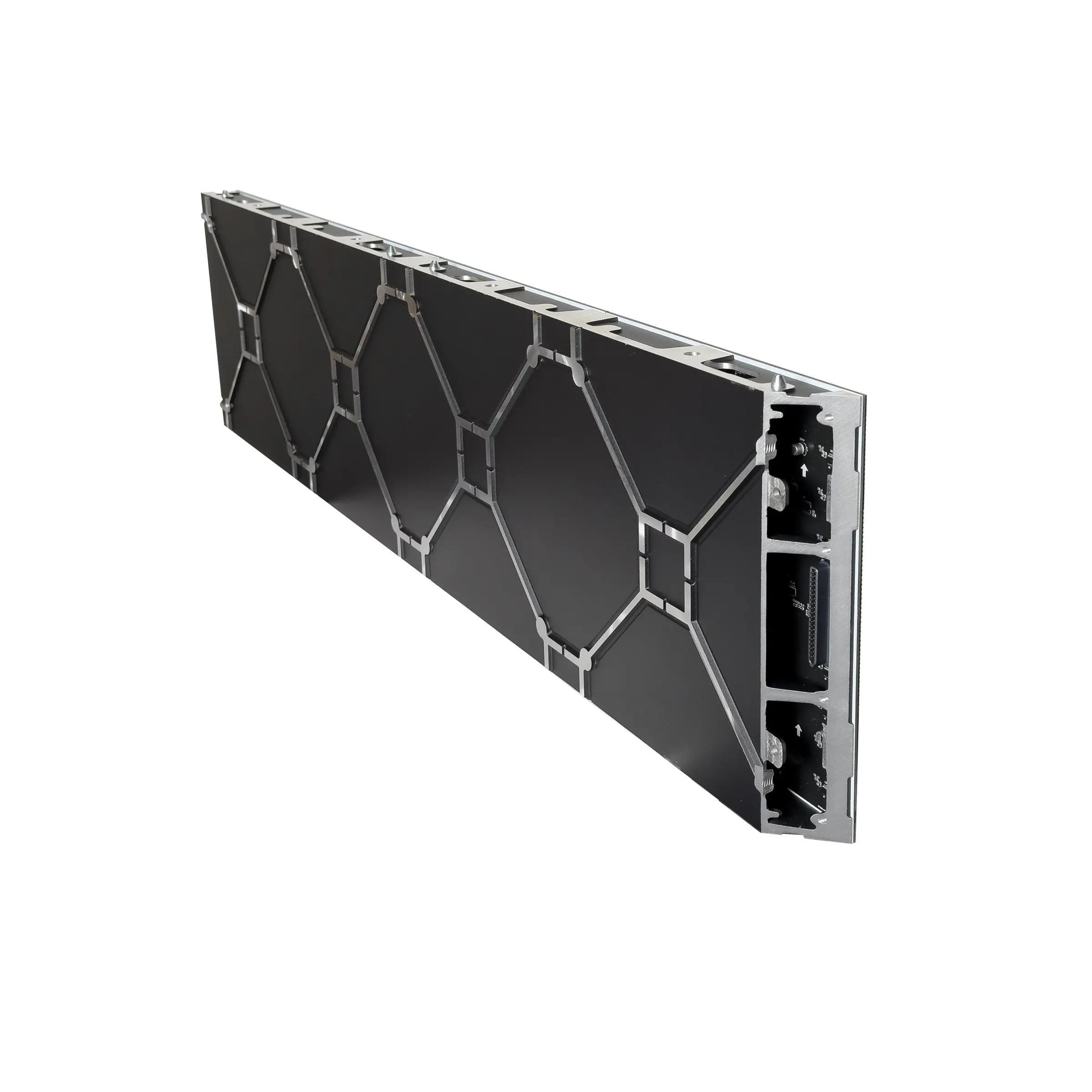

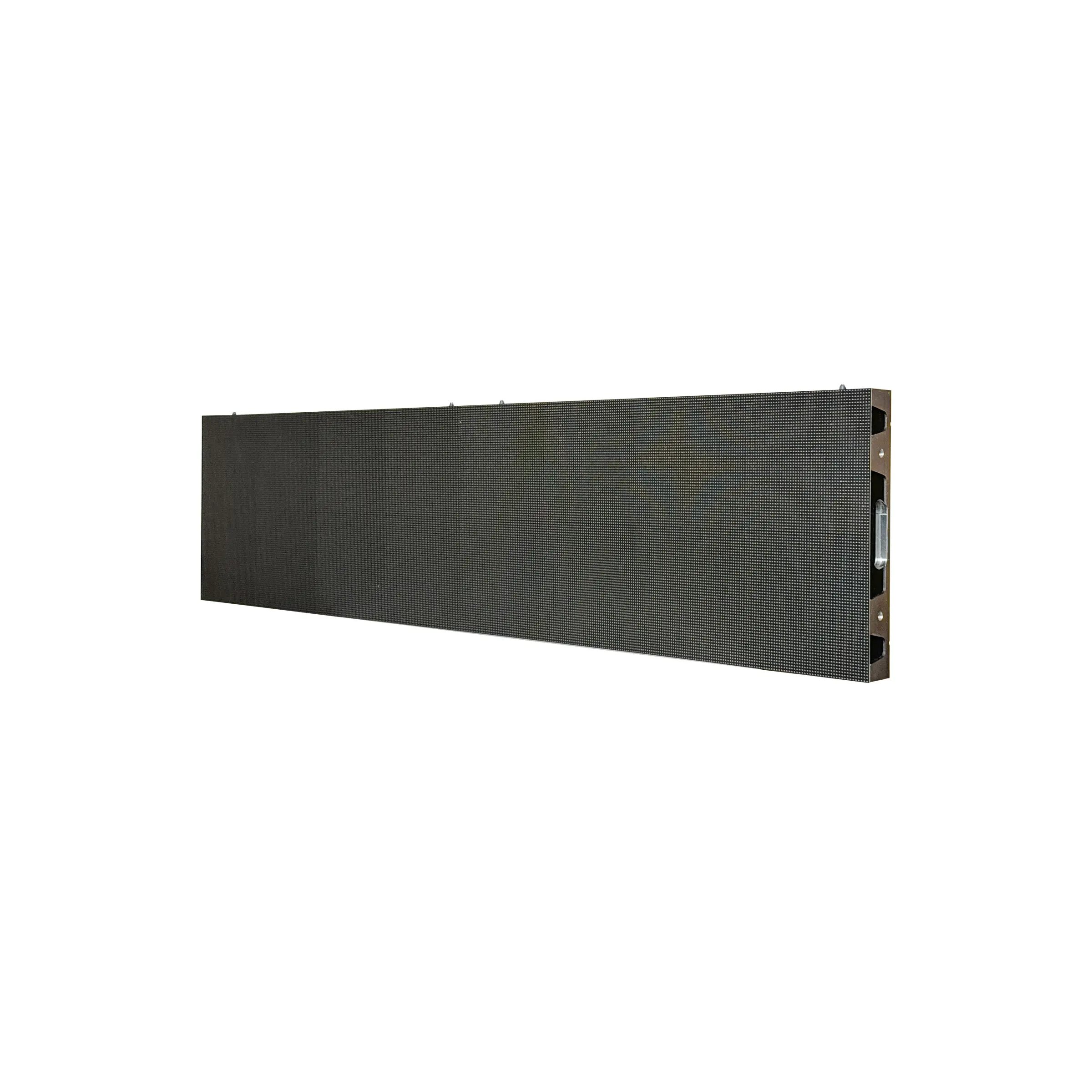

Enbon E model indoor LED screen with special size 250*1000mm, easy install with lighter weight than before, use same HUB with different size led modules

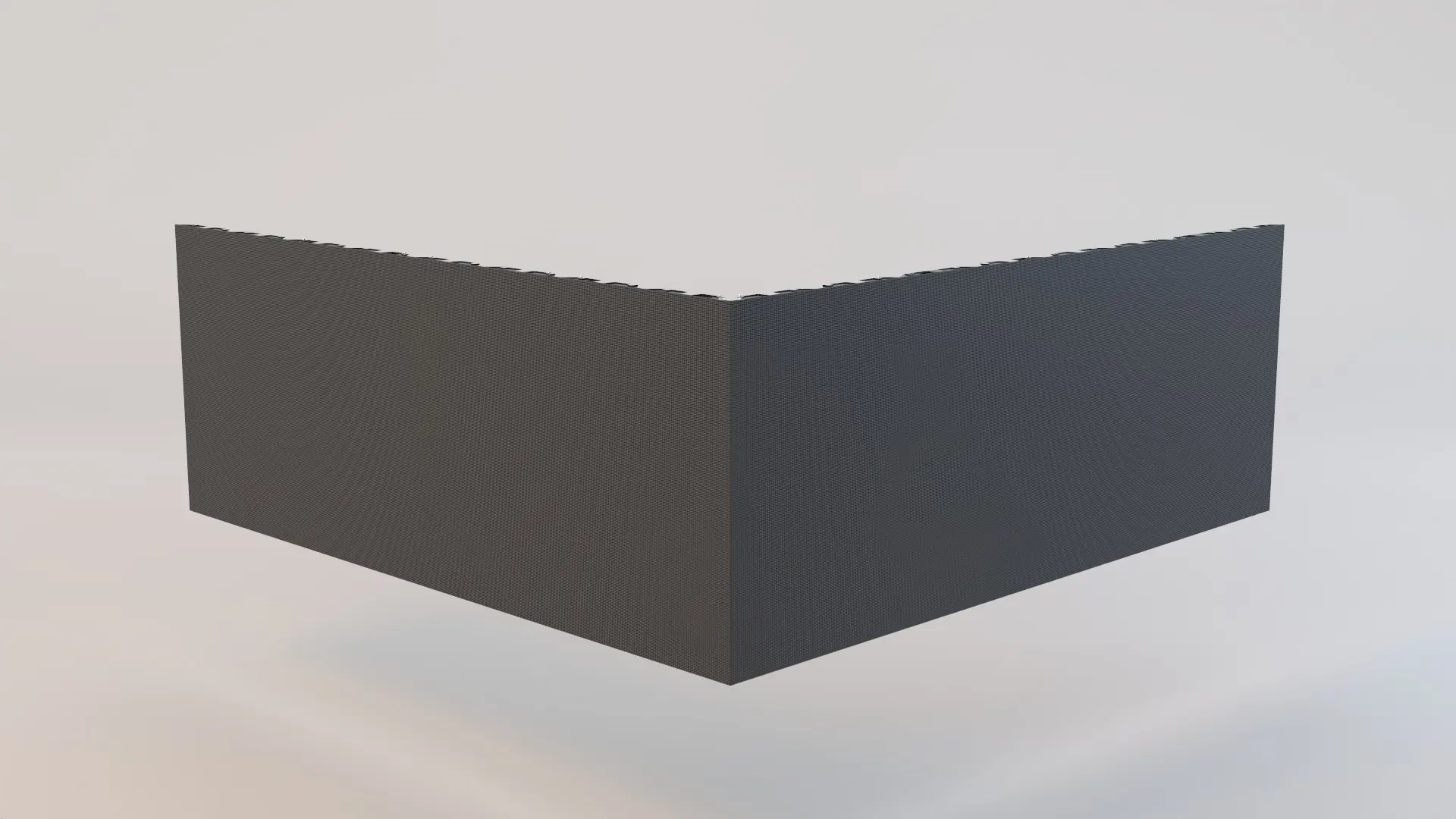

  • A variety of sizes can be mixed and assembled
  • Special size 250*1000 is available.
  • The shape is exquisitely designed

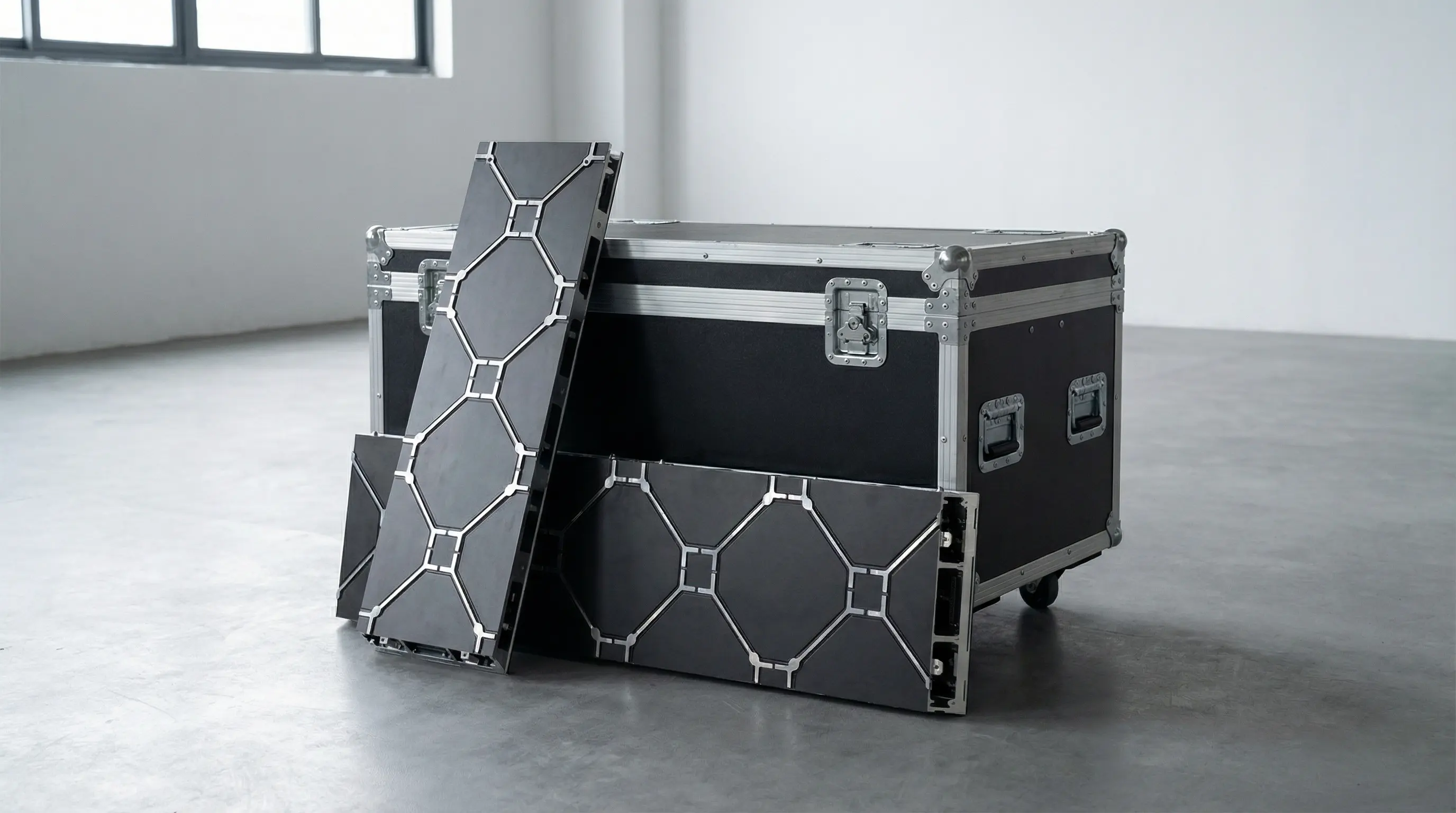

  • Lightweight and easy to use
  • Support front and back service
  • Different modules use the same HUB
  • Convenient for installation and maintenance
P2.604P2.976P3.91P4.81Enbon E

Description

Indoor Fixed

E Model

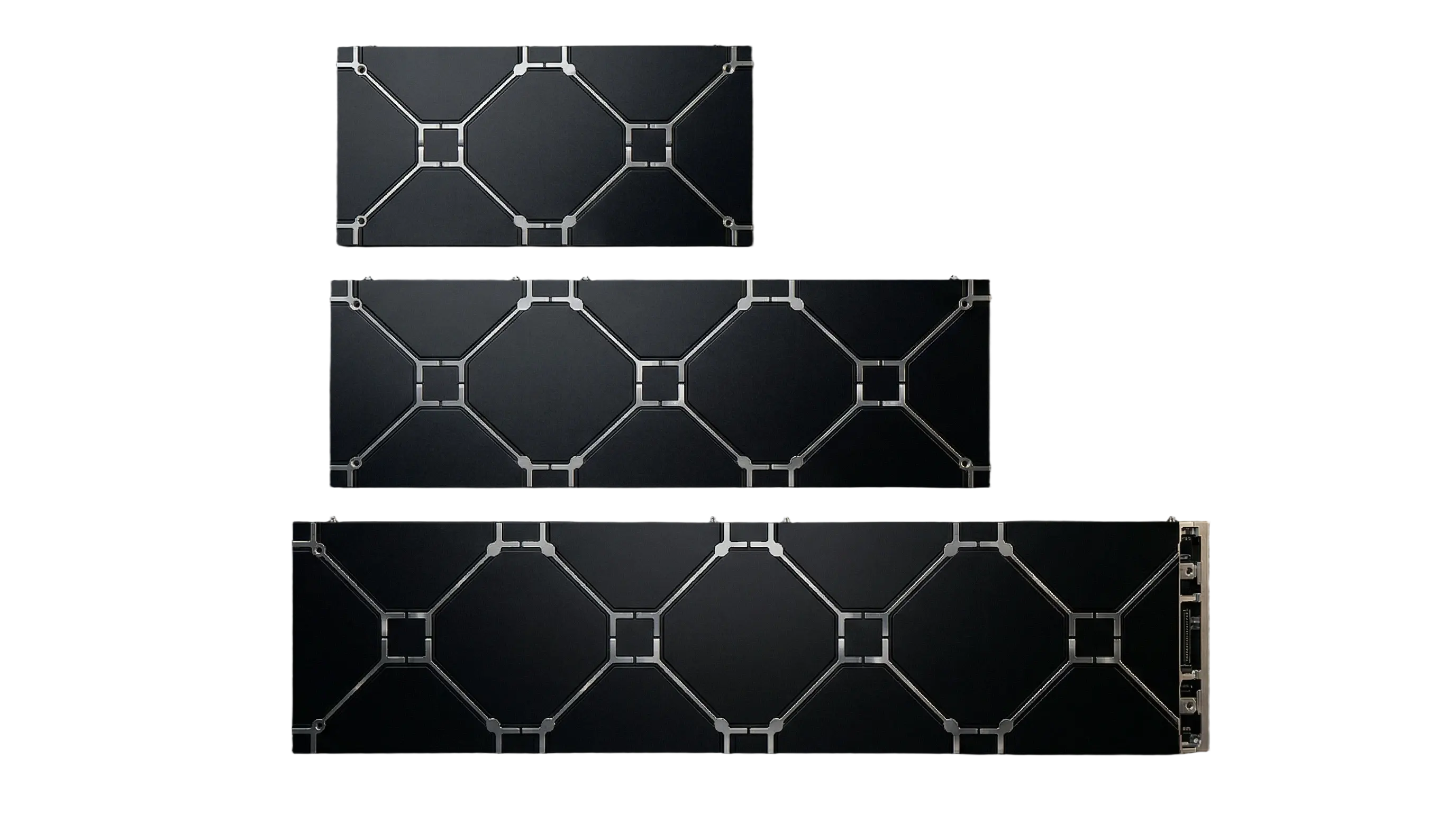

Dimensions support design in multiples of 250mm

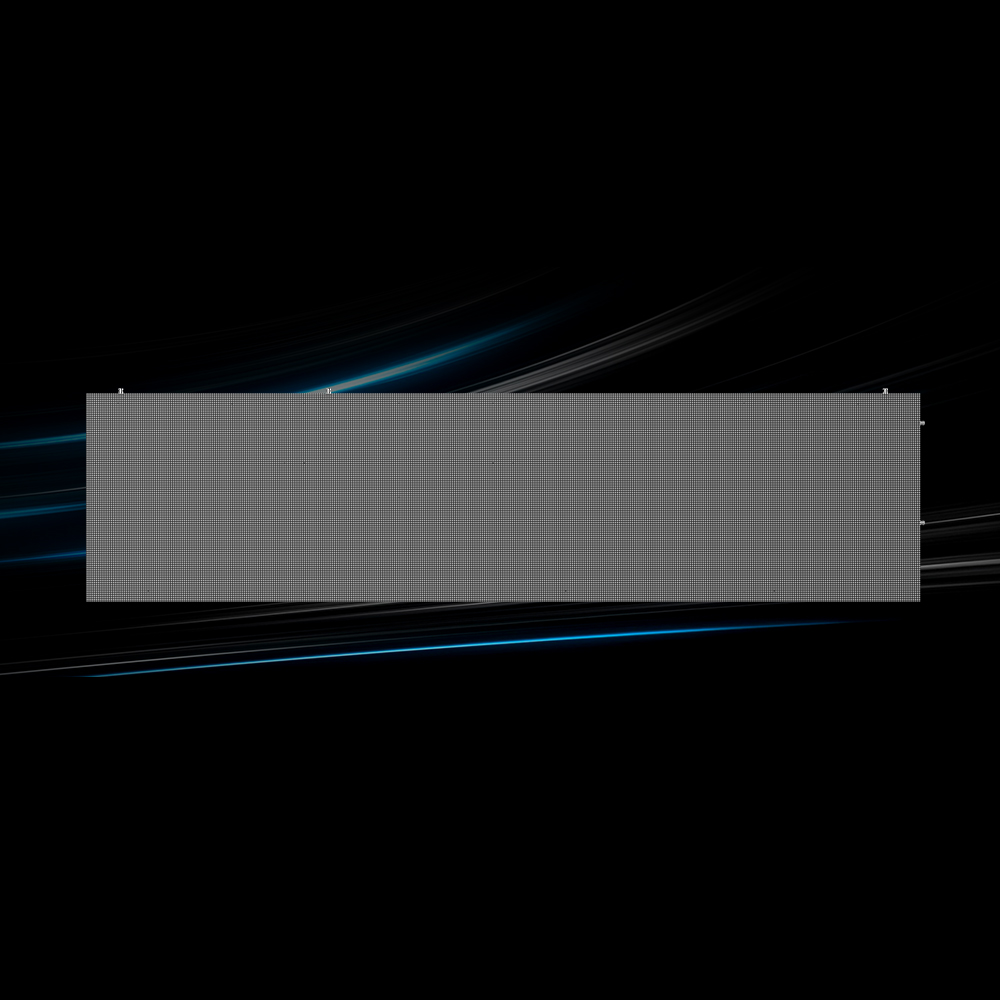

E Img 1
Icon 1

Perfct Flatness

Icon 2

Refresh 7680Hz

Icon 3

Double Backup

Icon 4

Performance

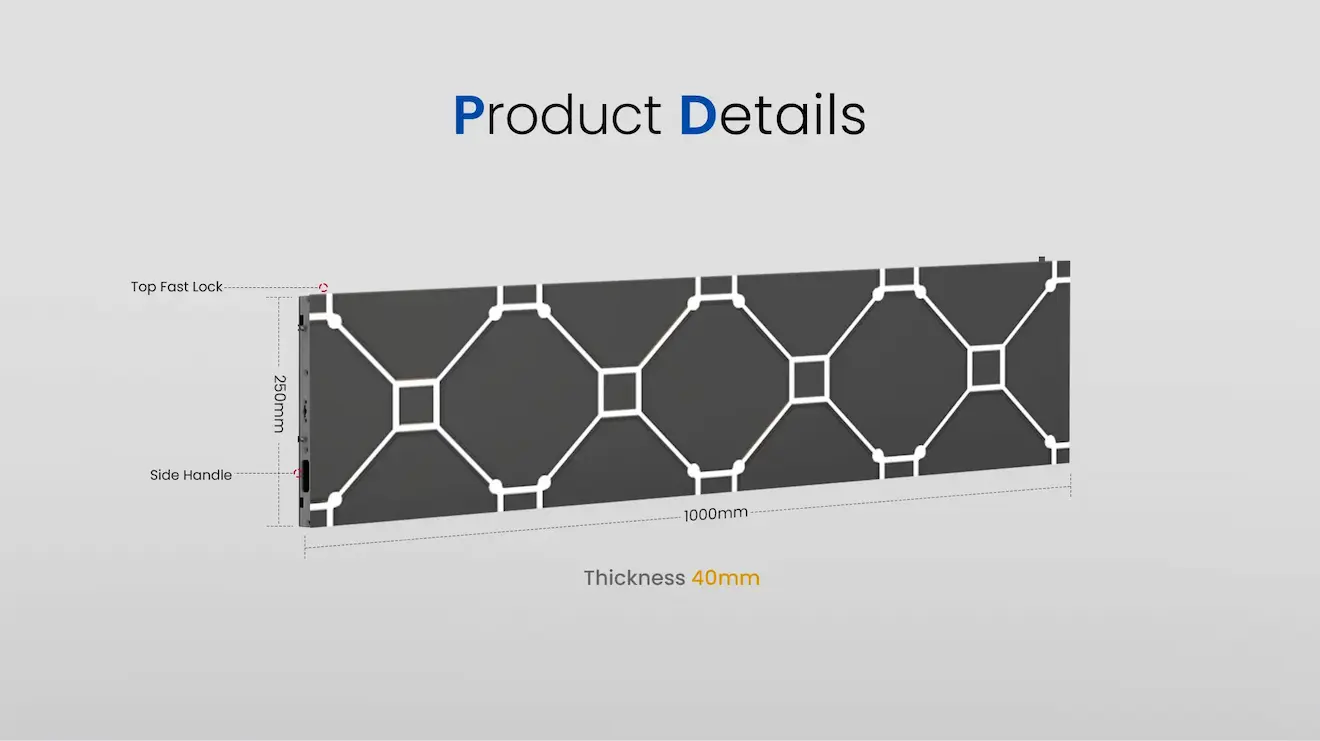

Product Details

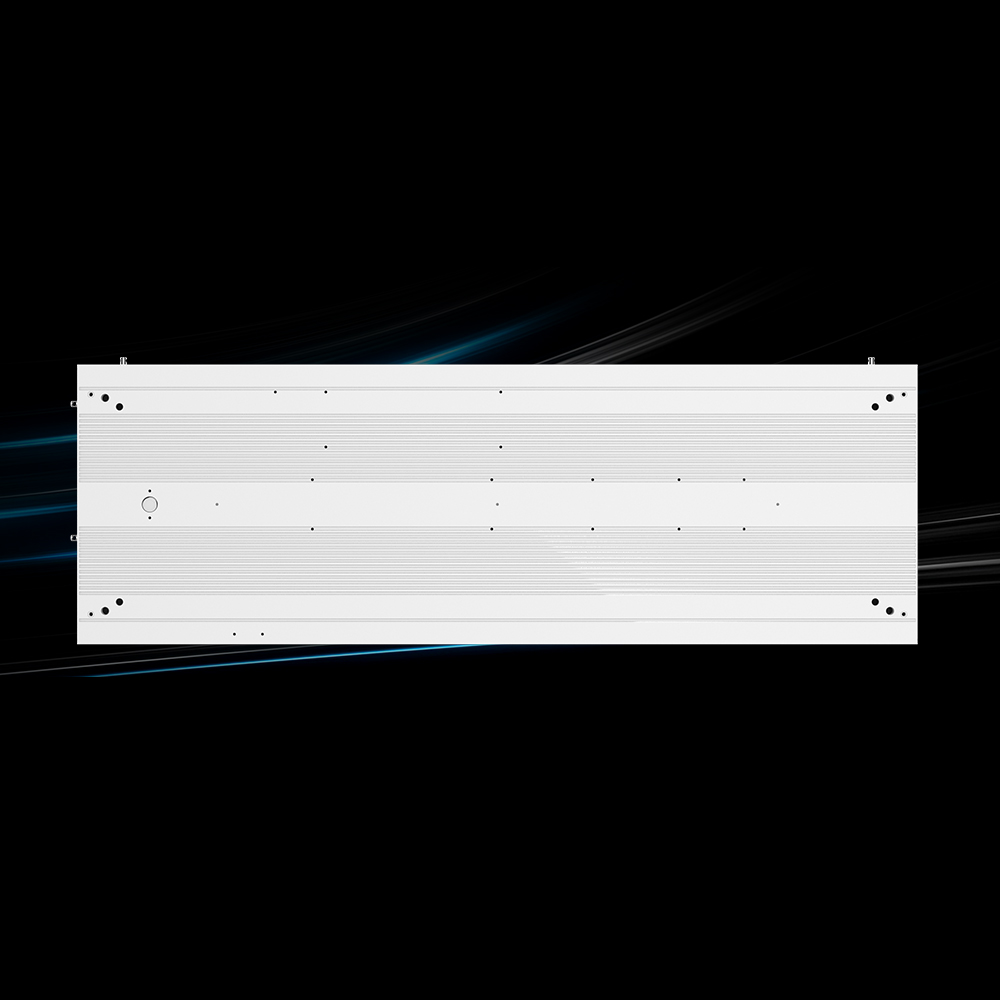

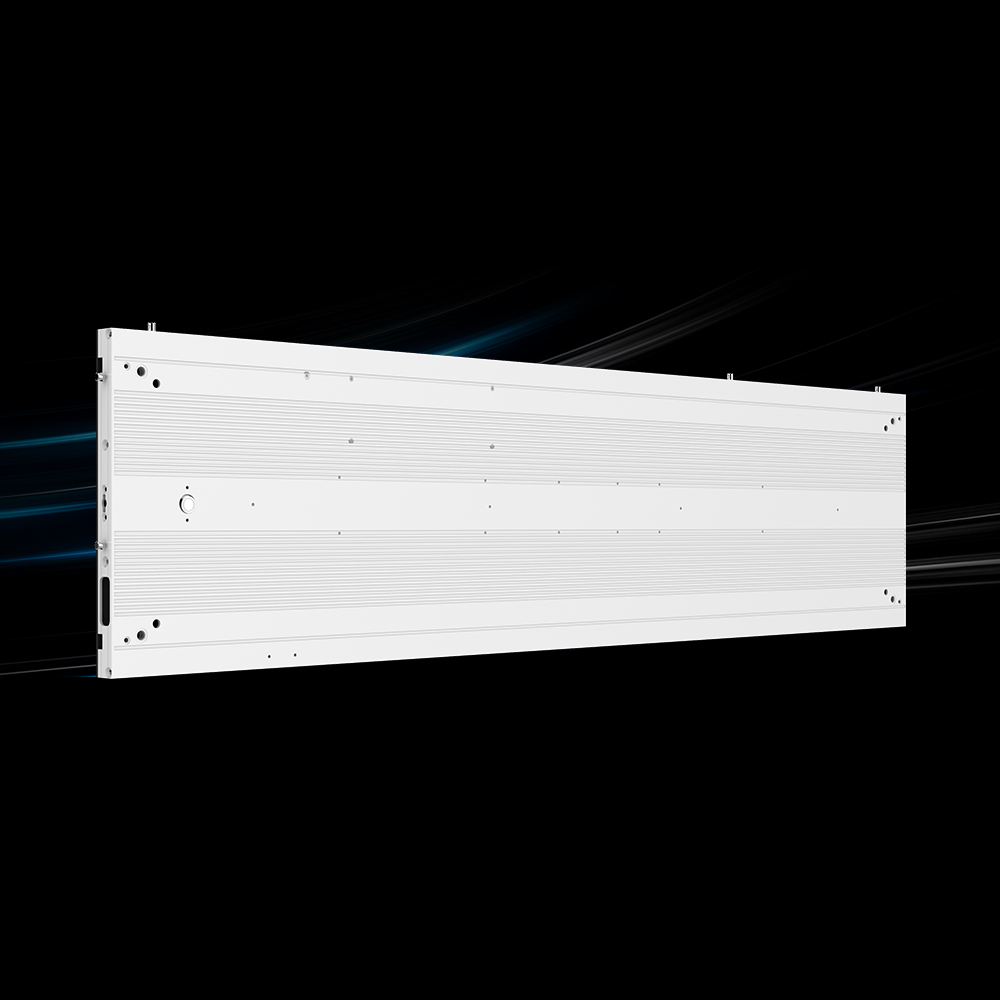

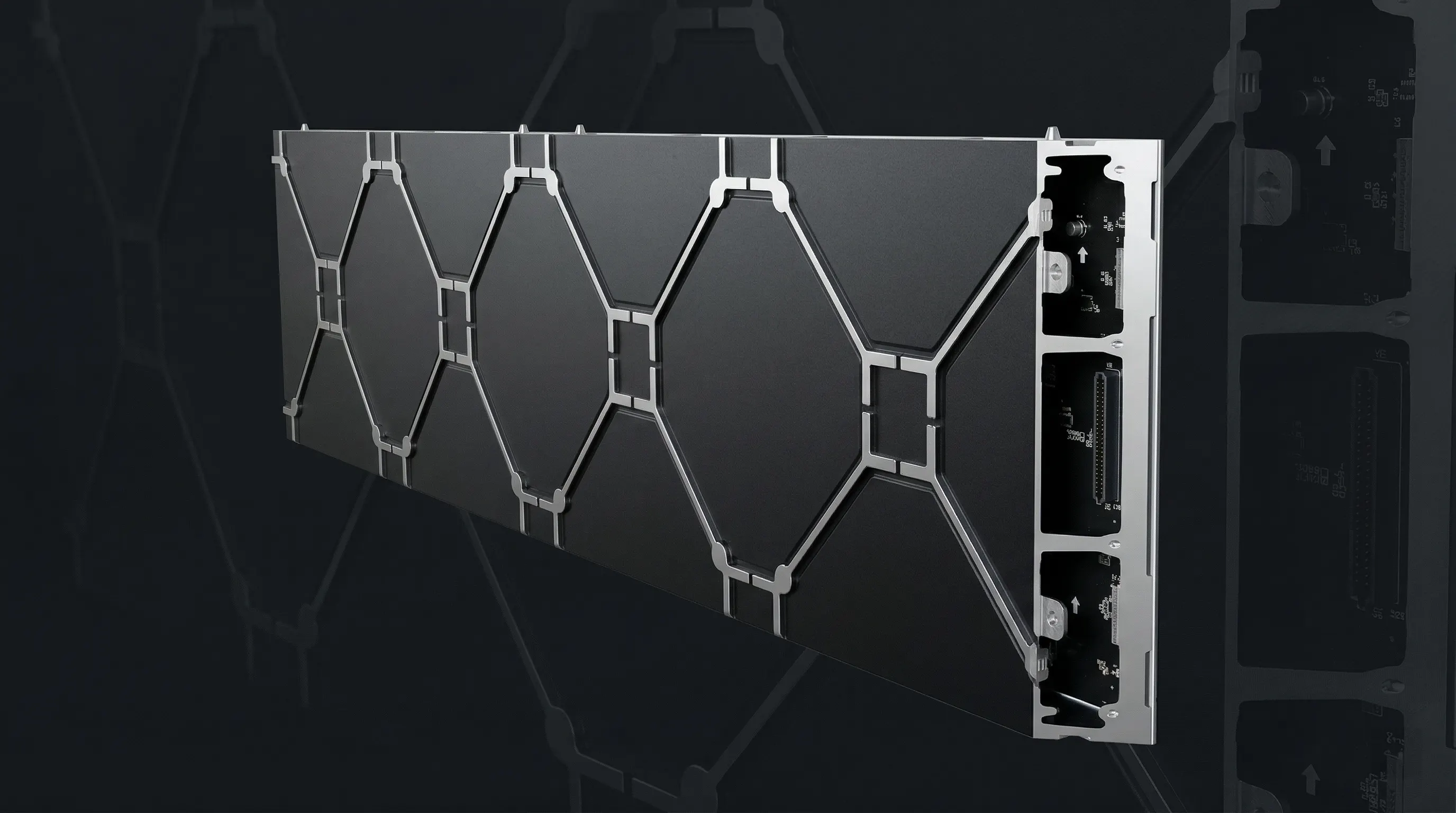

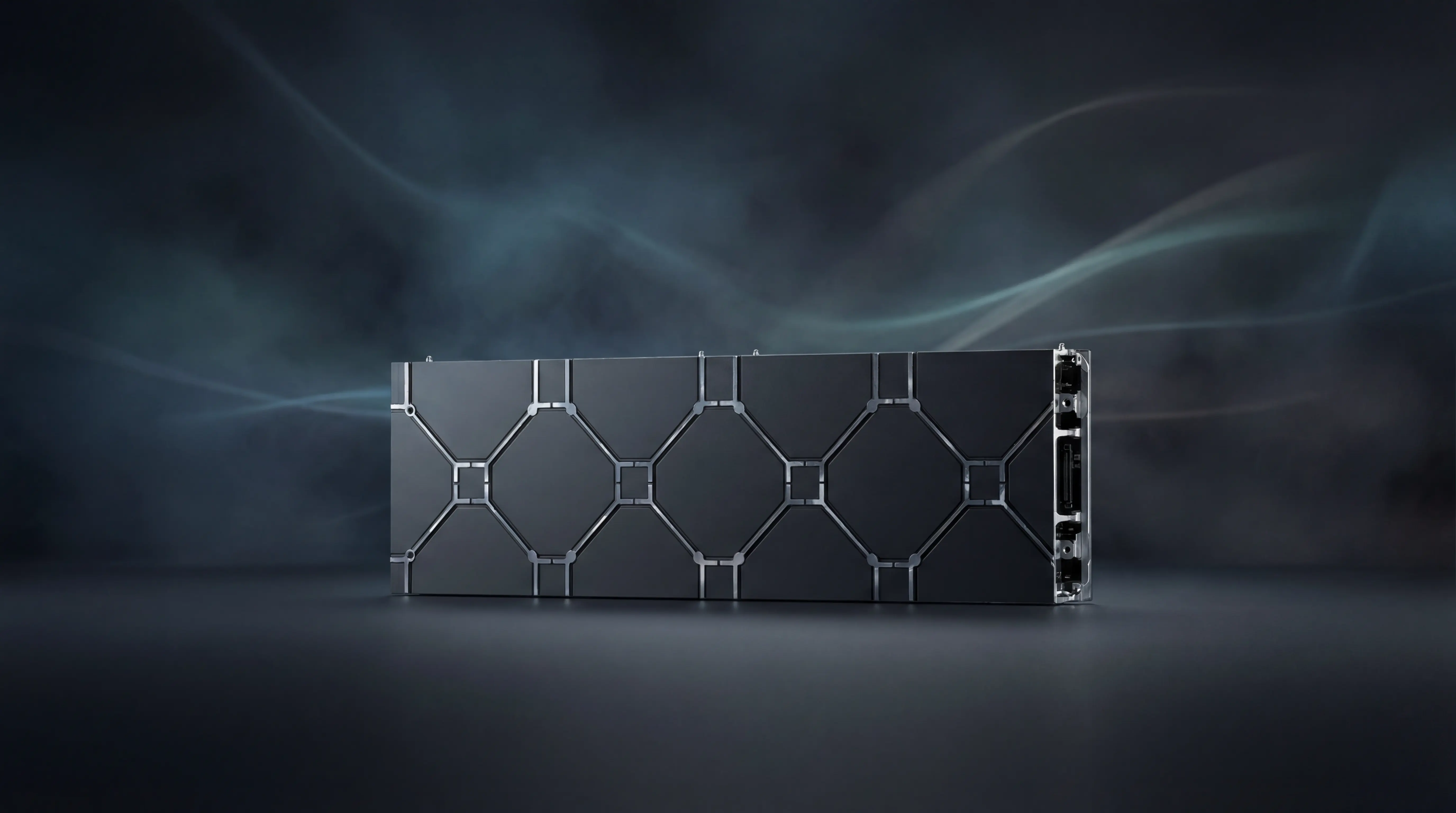

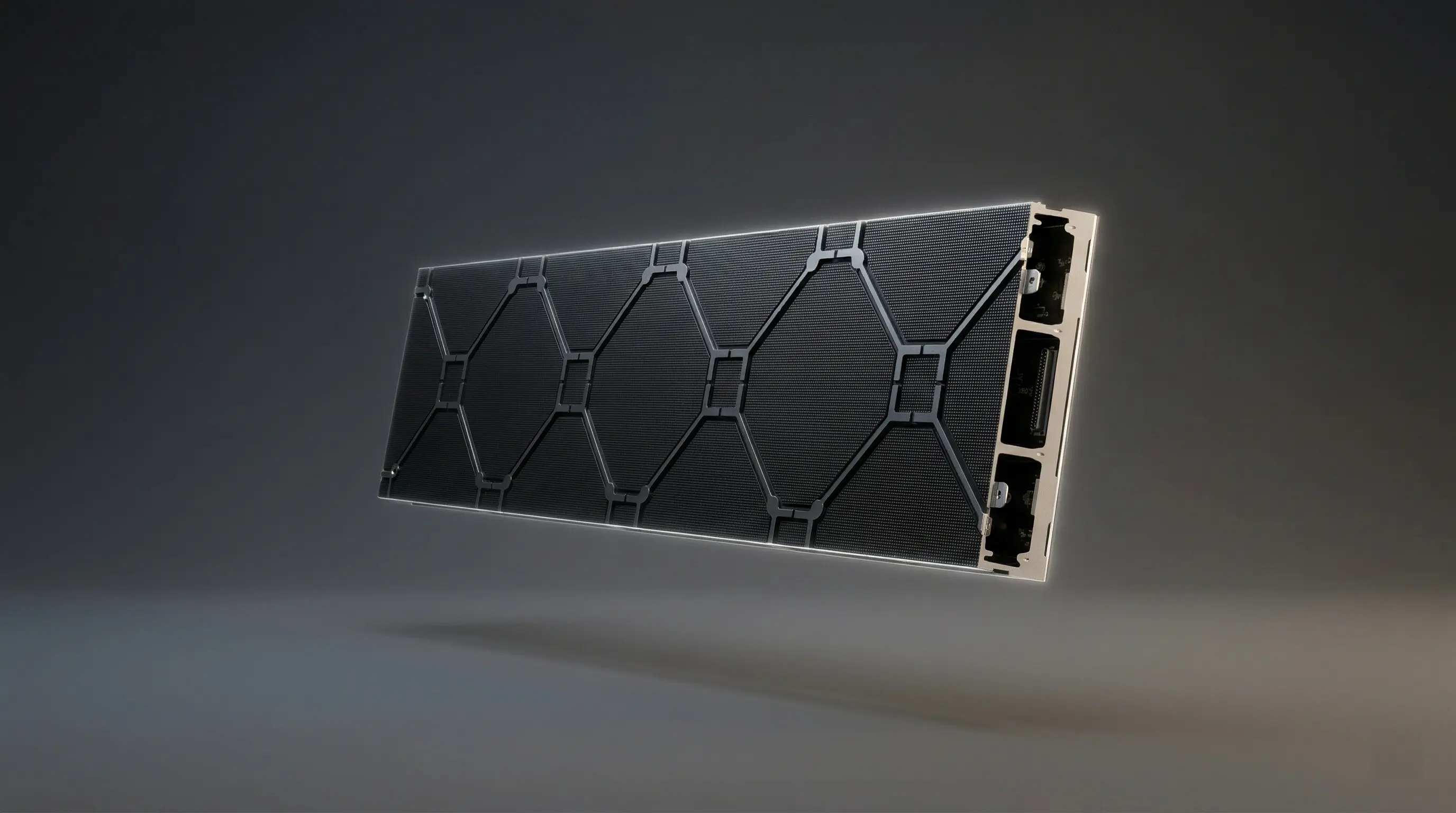

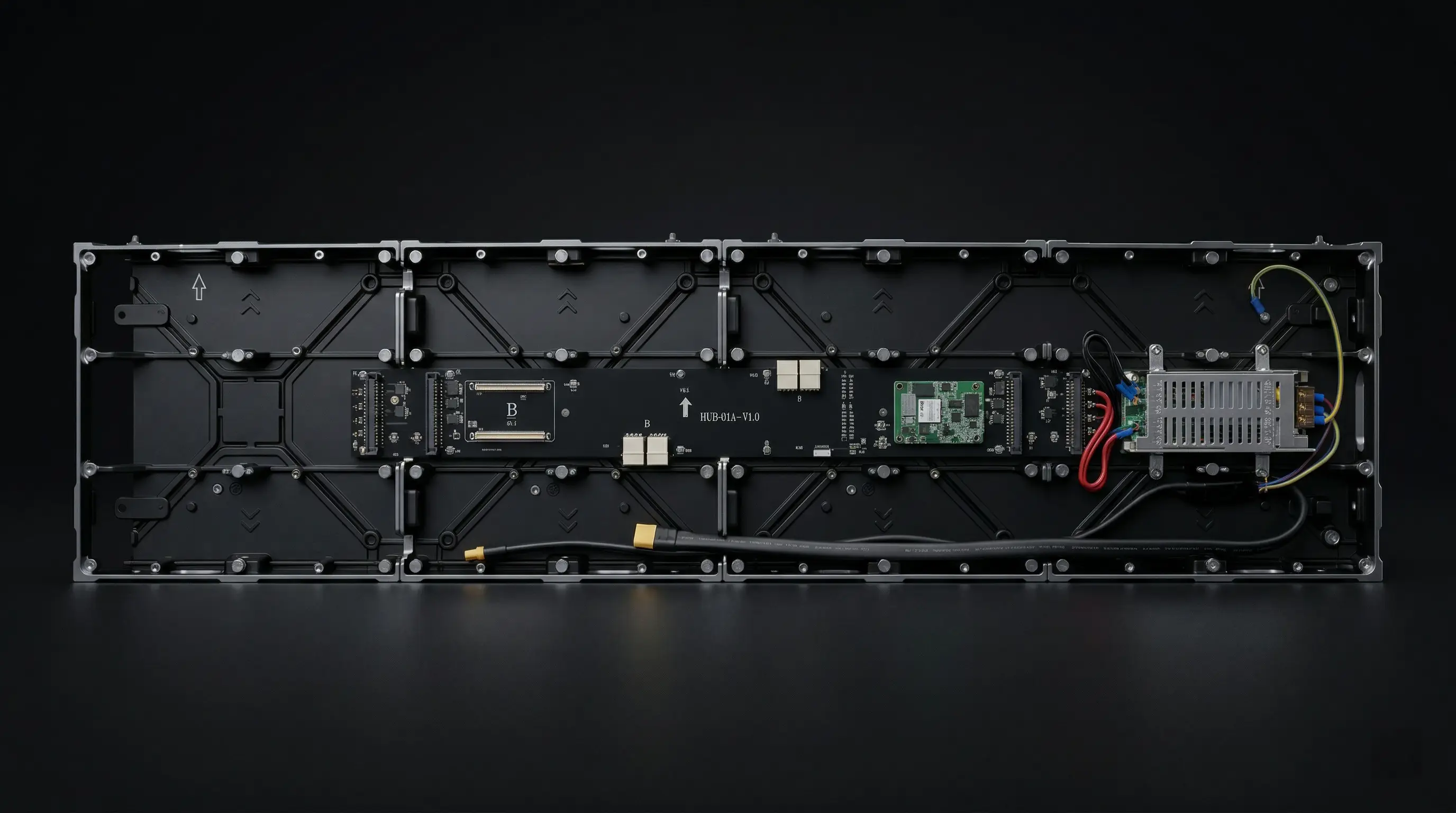

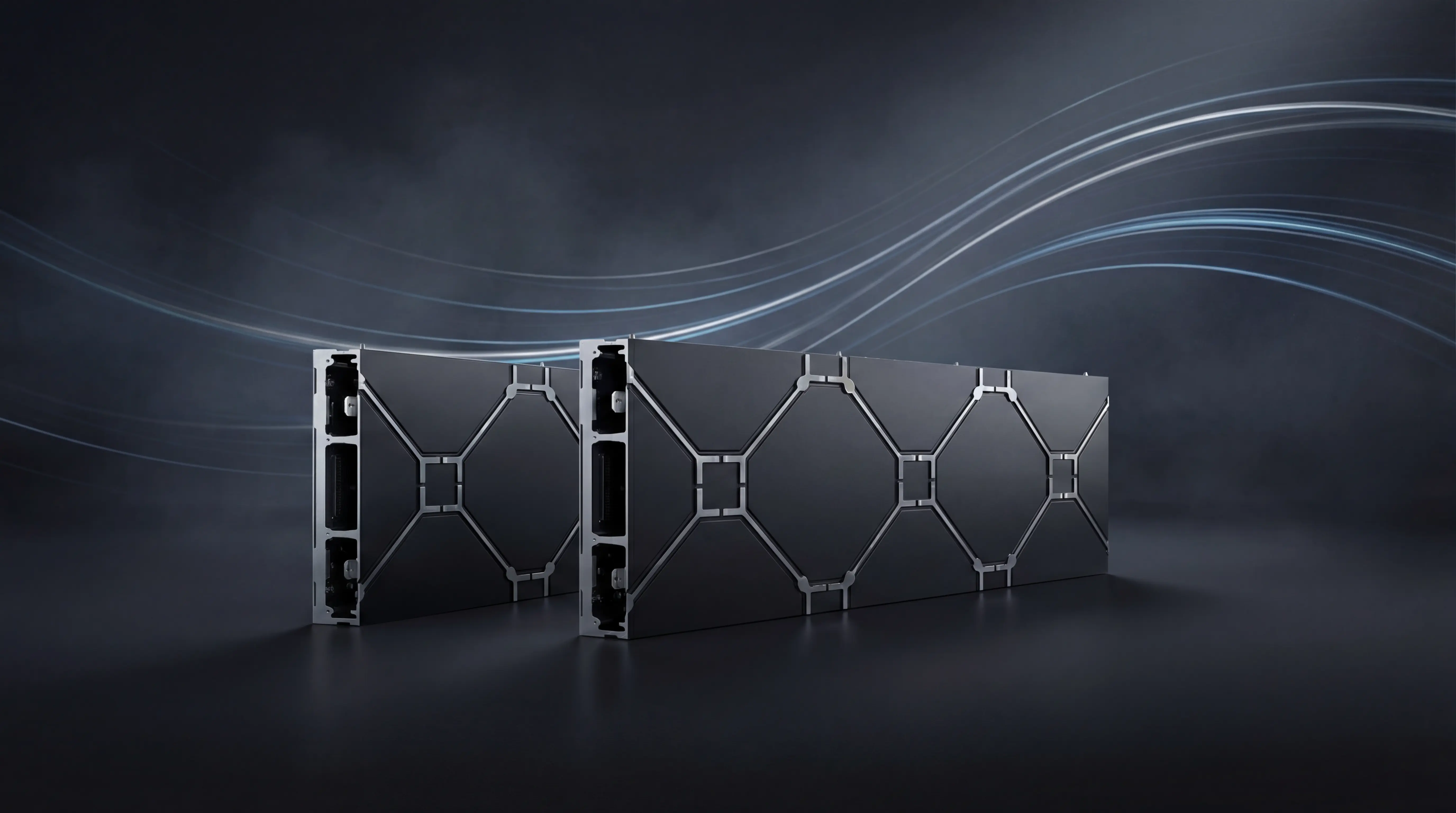

E Cabinet Structure Image

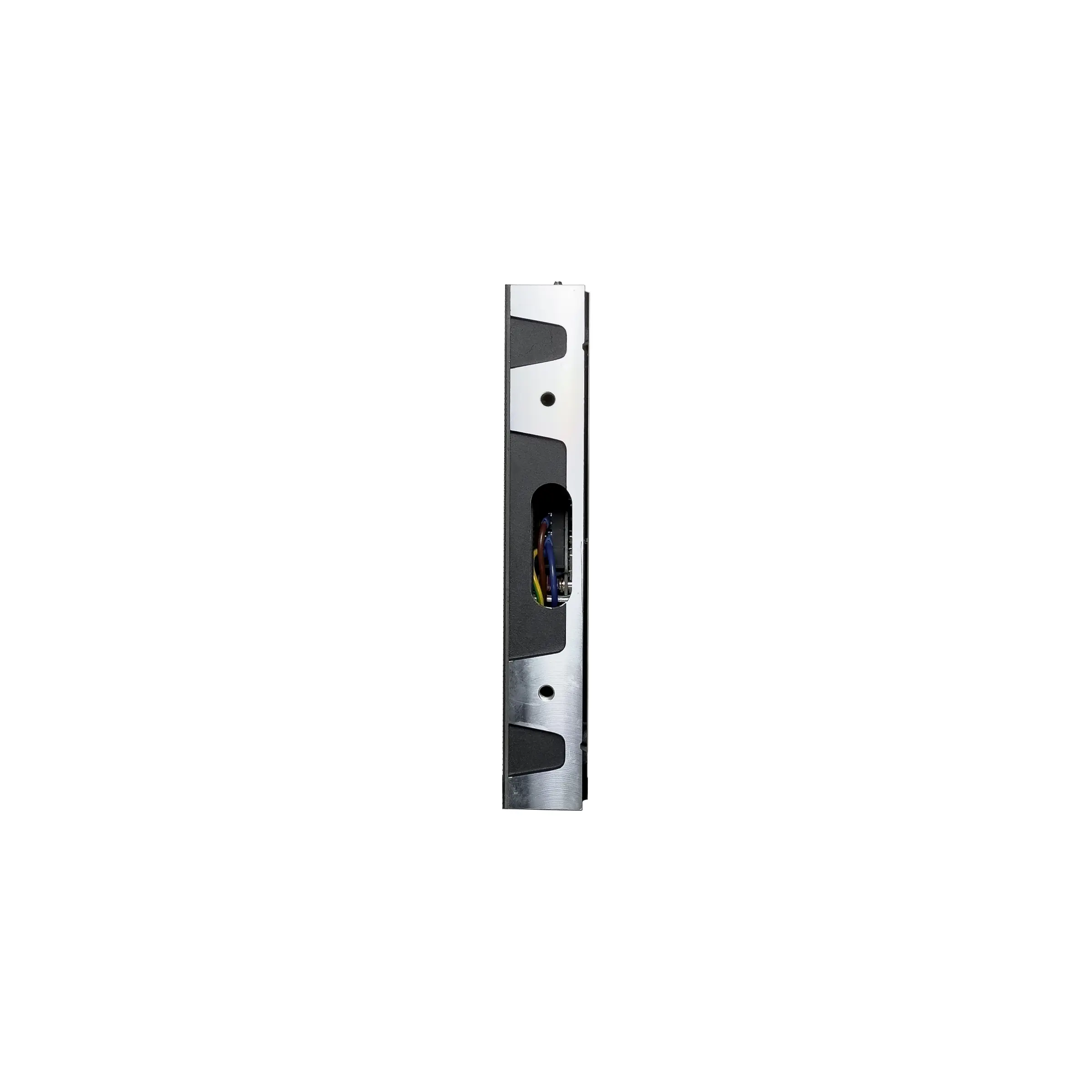

Thickness 40mm

Top Fast lock



Side Handle

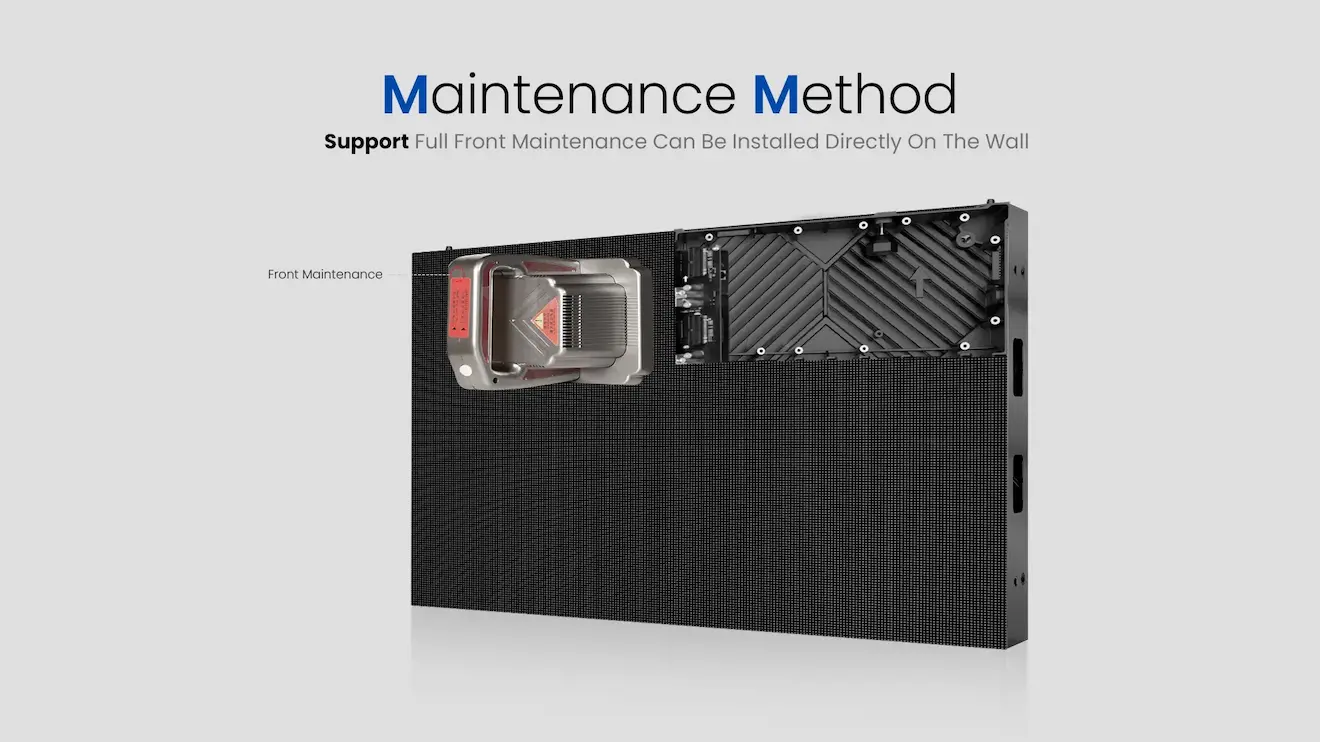

Maintenance
Method

Support Full Front Or Full Rear Maintenance,
Front Maintenance Can Be installed
Directly On The Wall

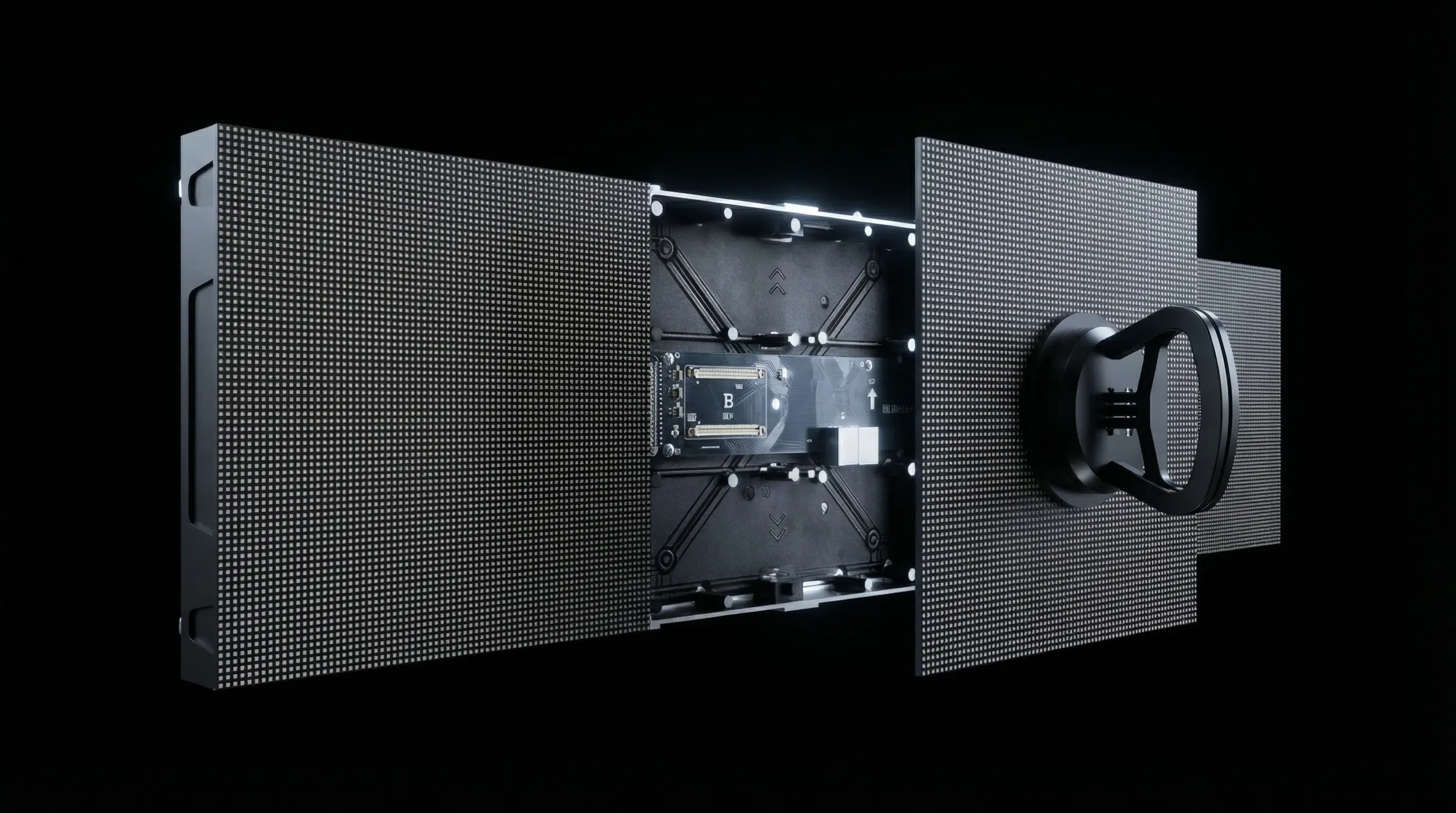

Enbon E Maintenance Method Image

Front Maintenance

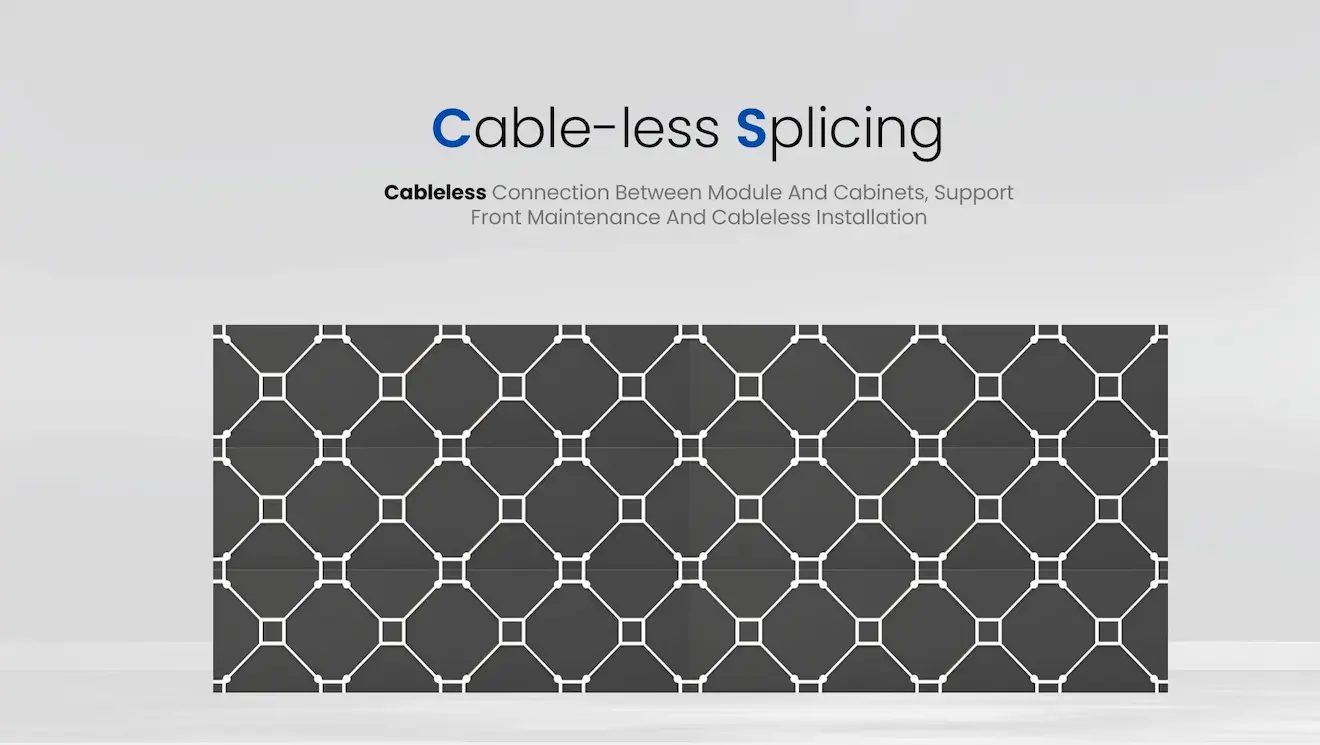

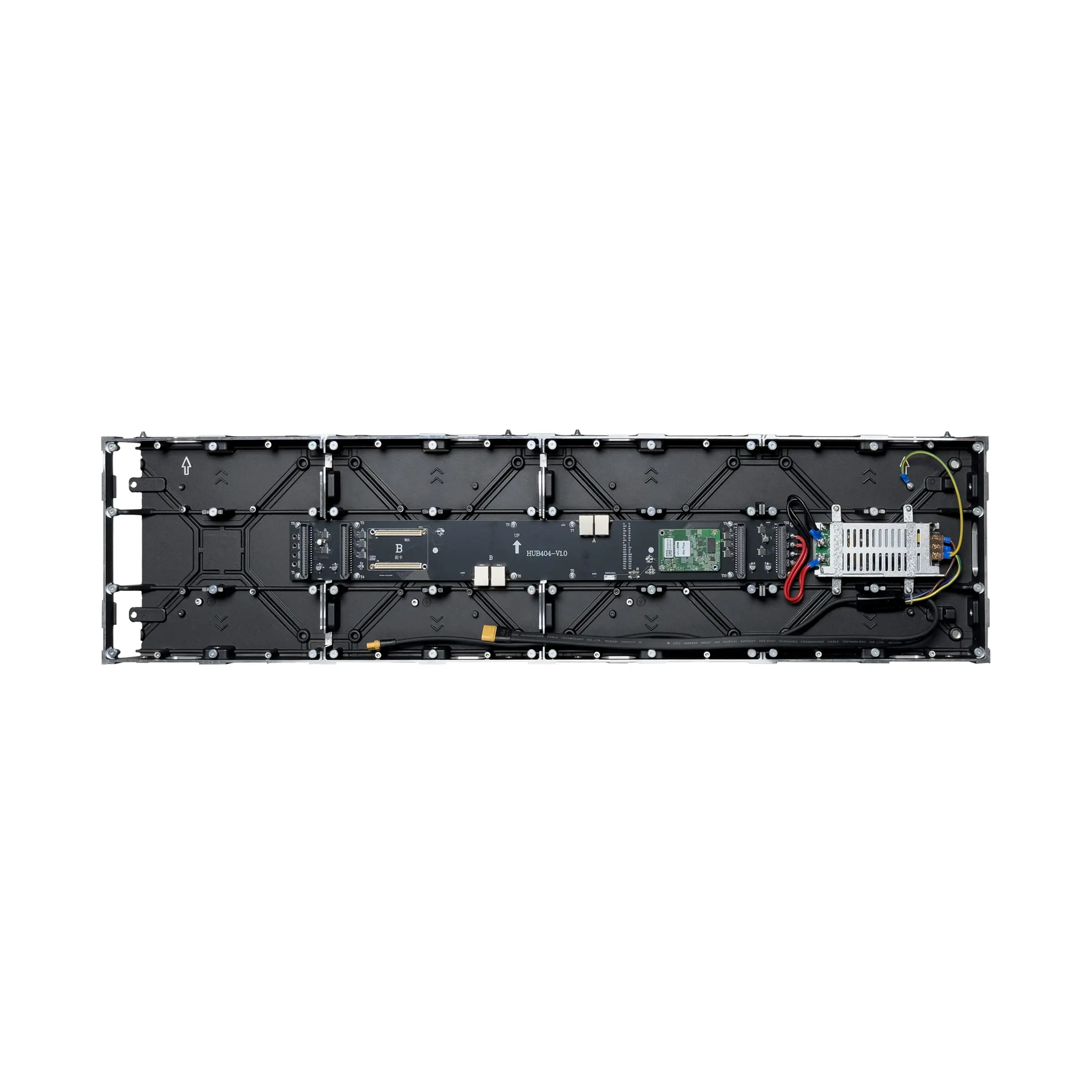

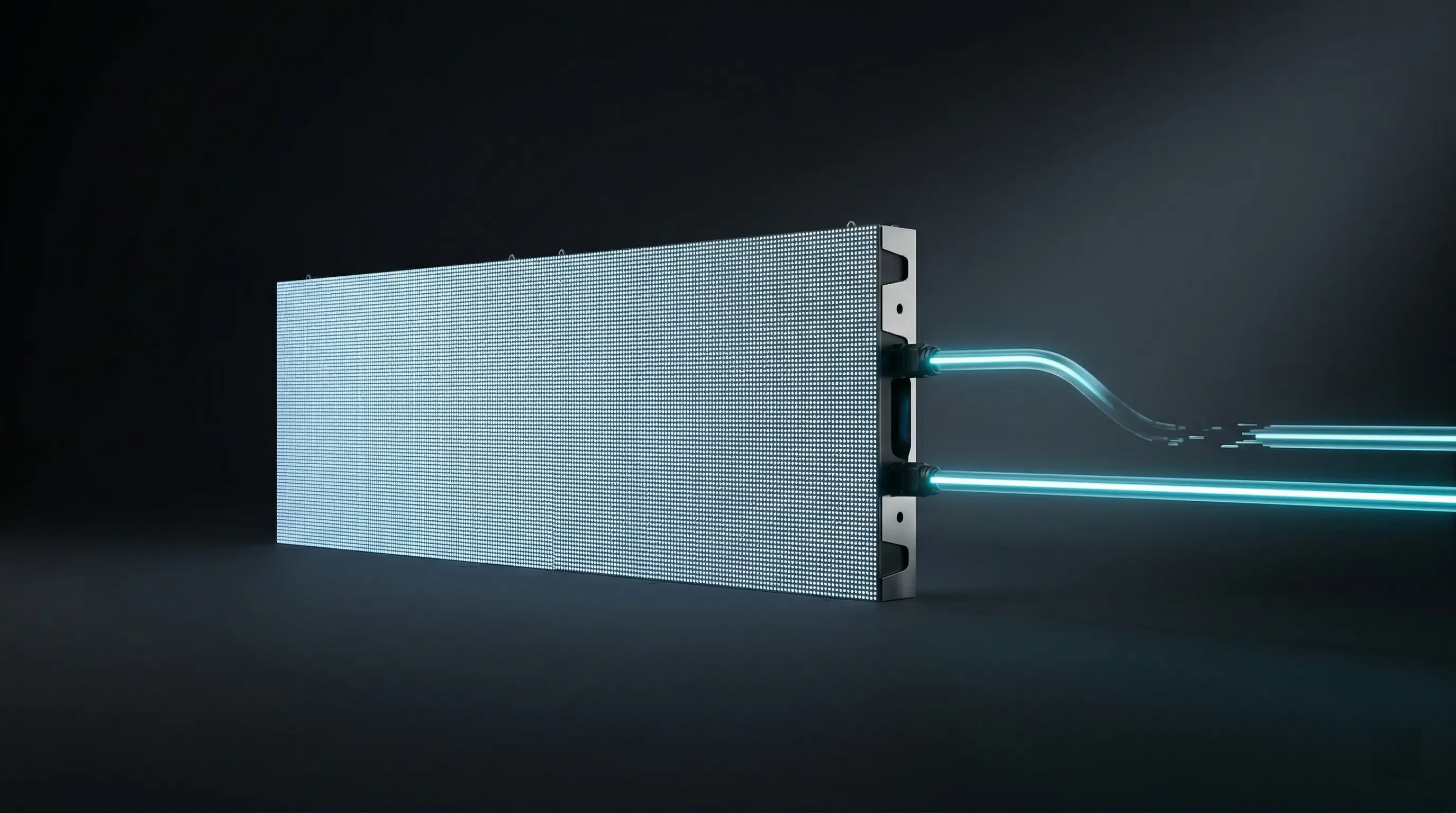

Cable-less Splicing

Cableless Connection Between Module And Cabinets, SupportFront Maintenance And Cableless installation/p>

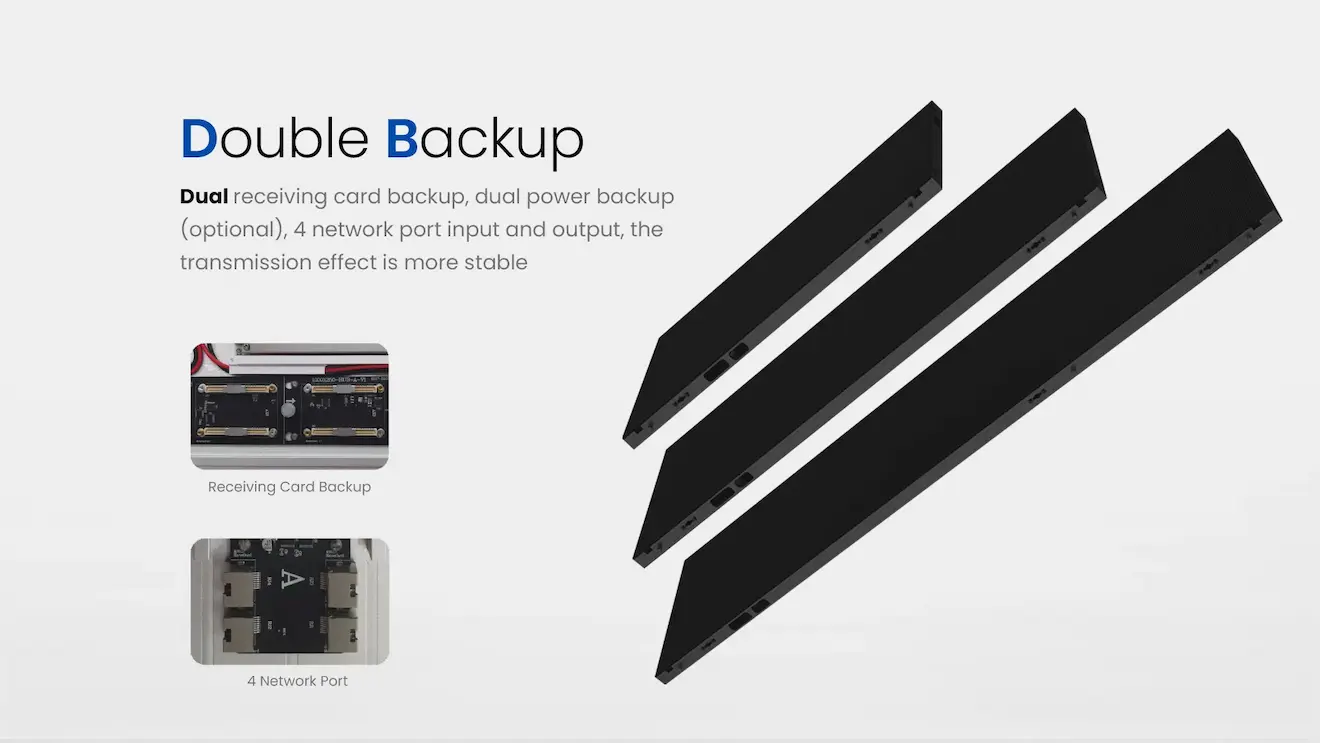

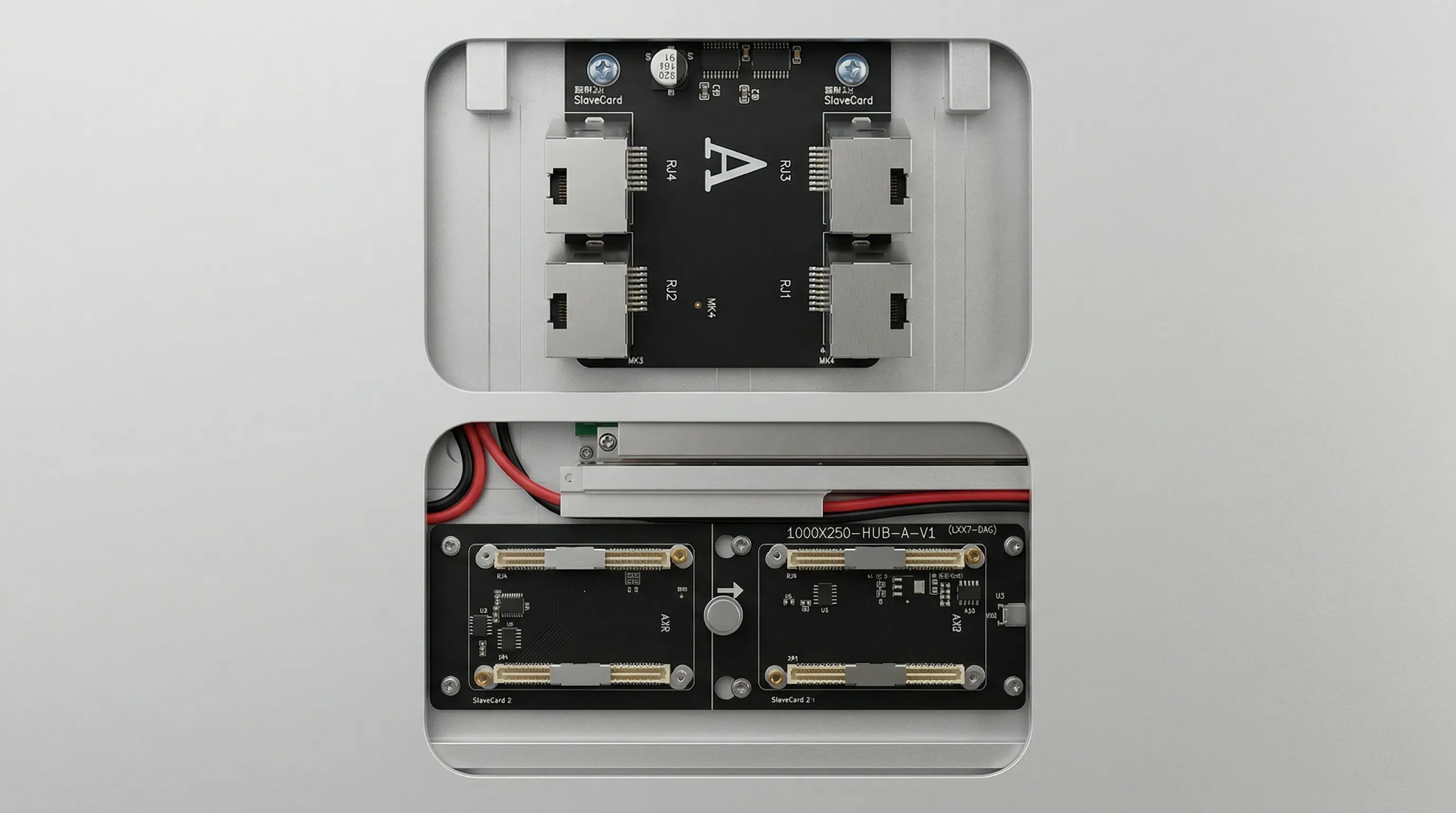

Double Backup

Dual receiving card backup, dual power backup(optional), 4 network port input and output, thetransmission effect is more stable

Receiving Card Backup

4 Network Port

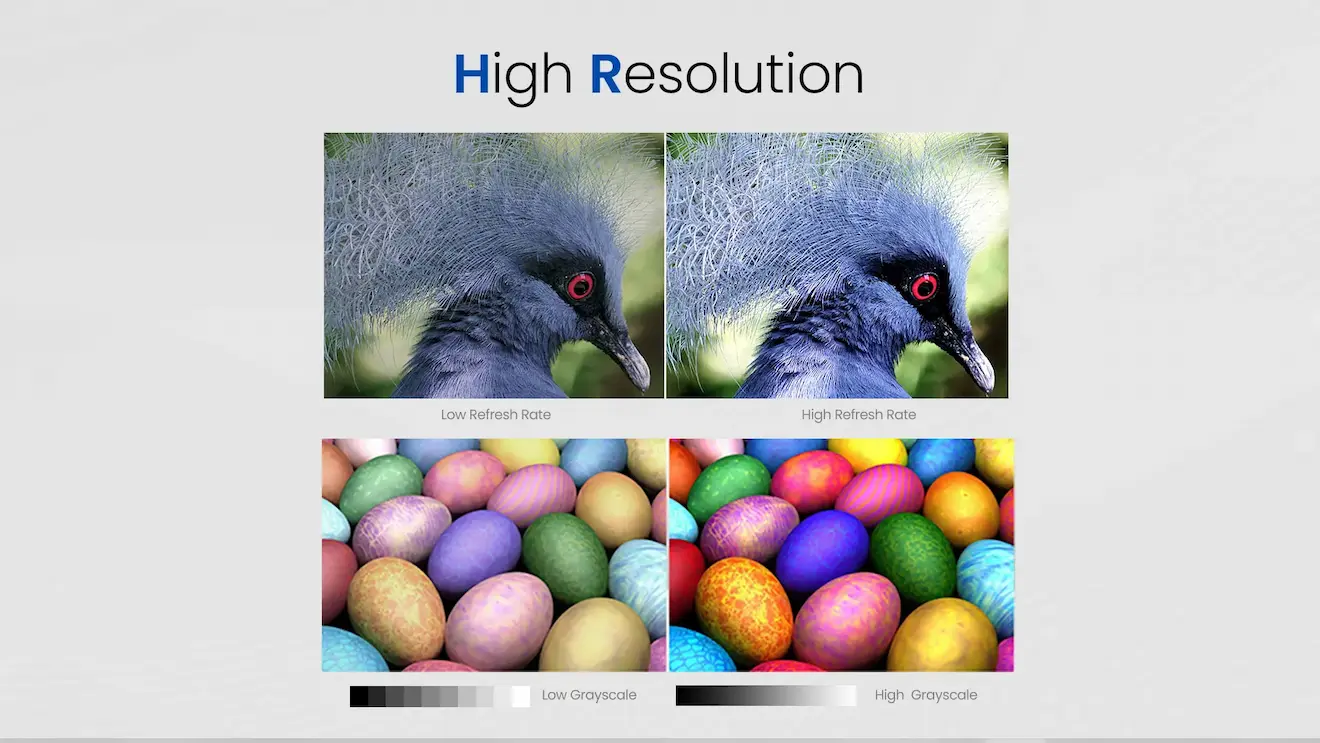

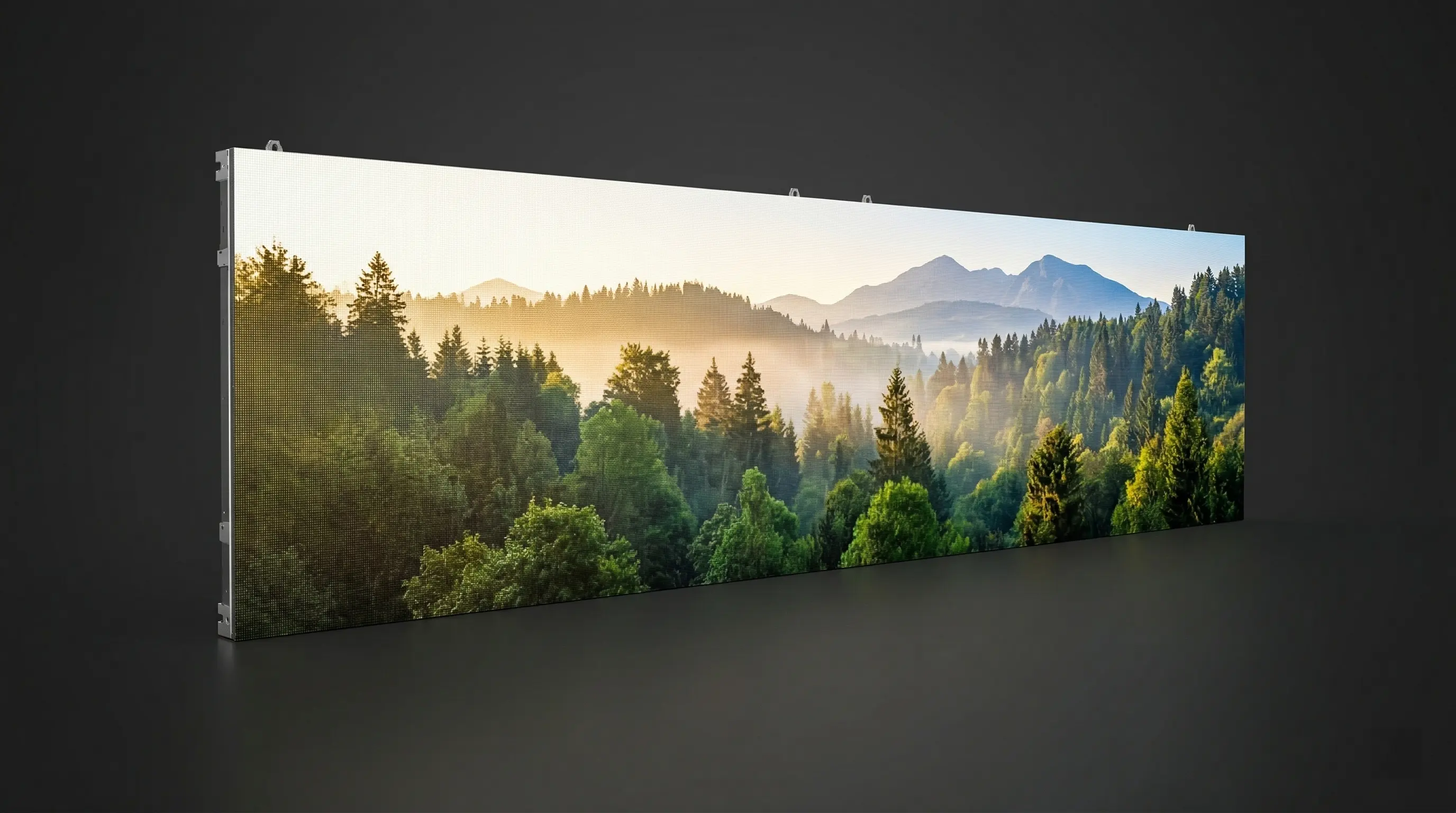

High Resolution

FS Refresh Rate Comparison Image

Low Refresh Rate

High Refresh Rate

FS Grayscale Comparison Image


Low Grayscale



High Grayscale

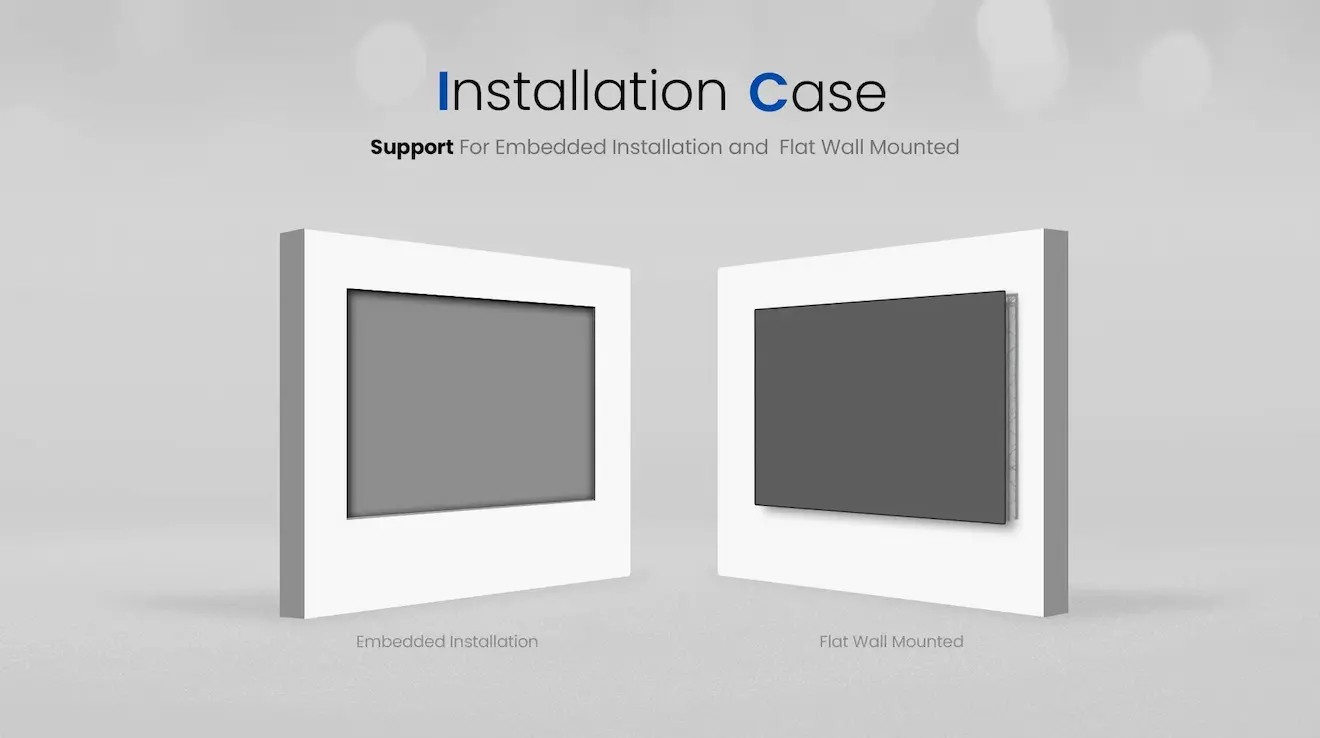

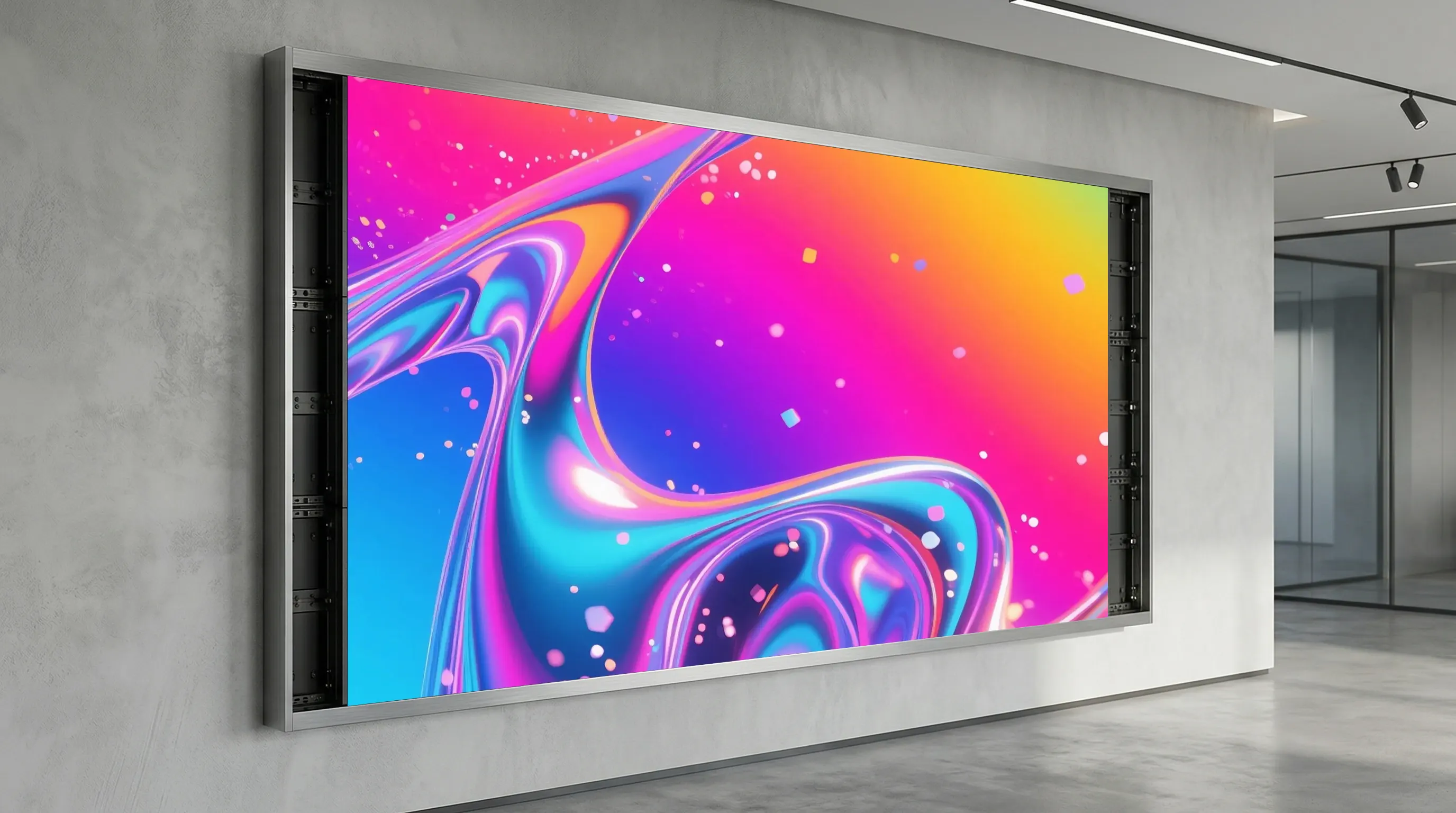

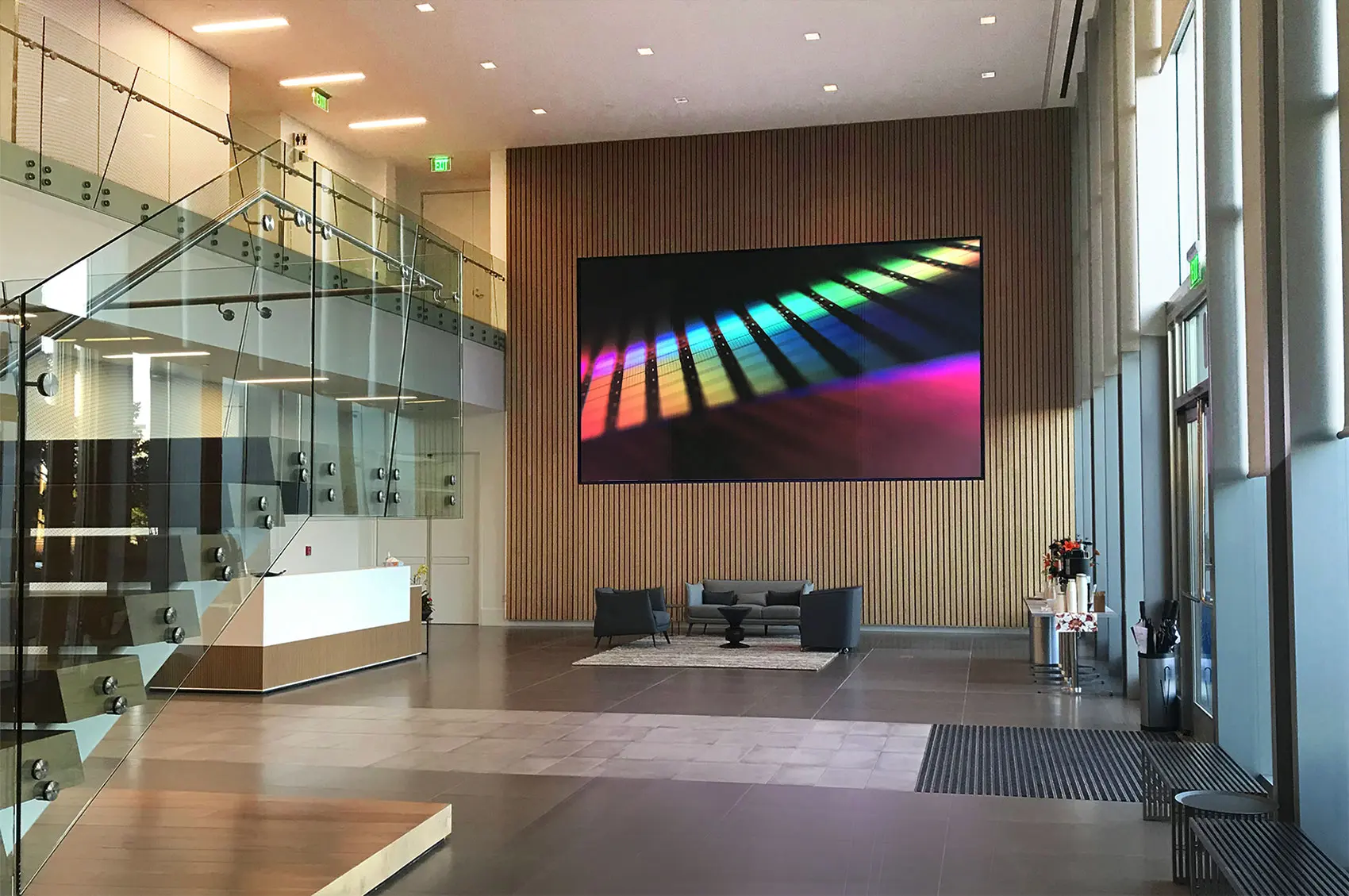

Installation Case

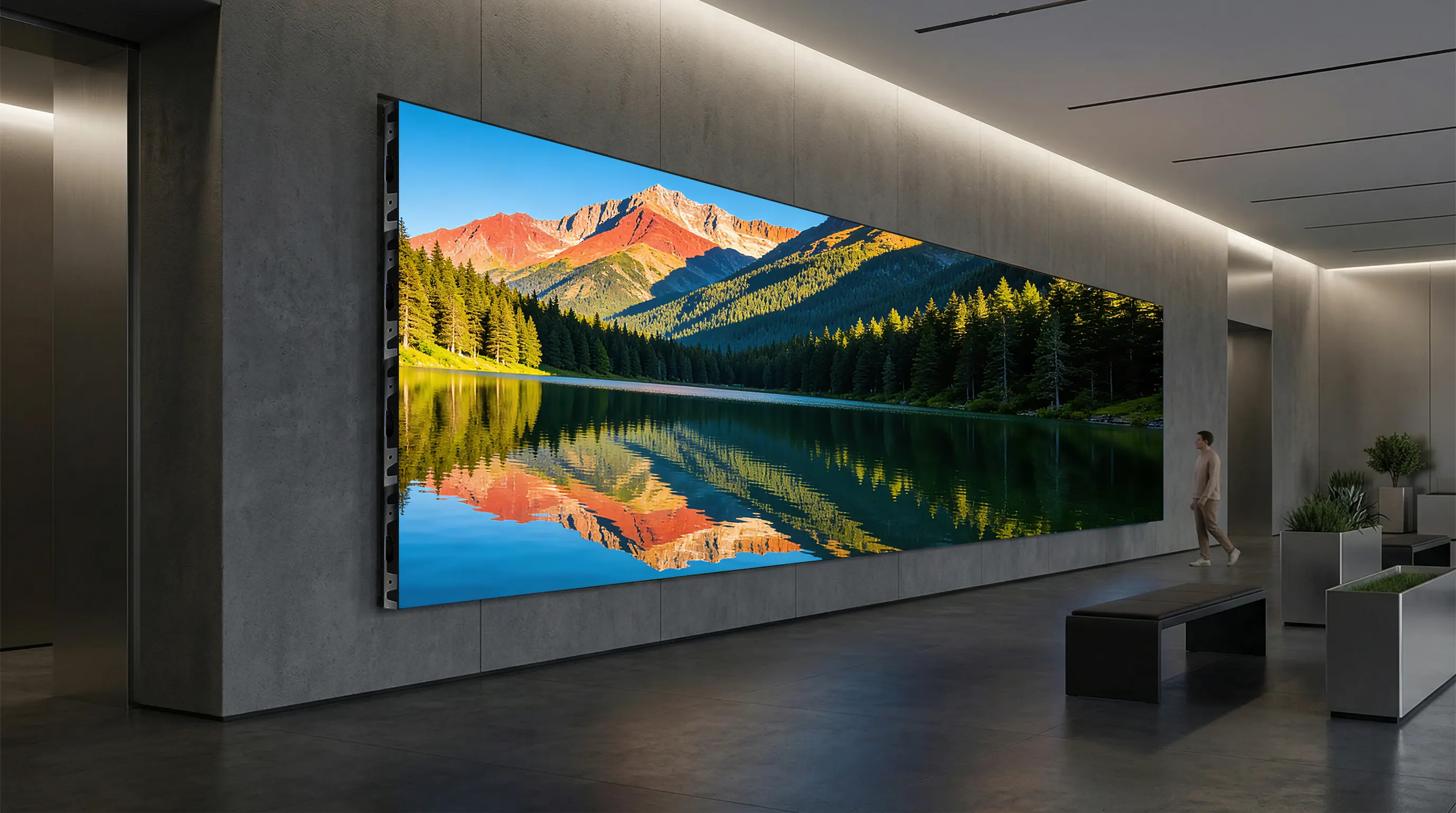

Embedded Installation

Embedded Installation

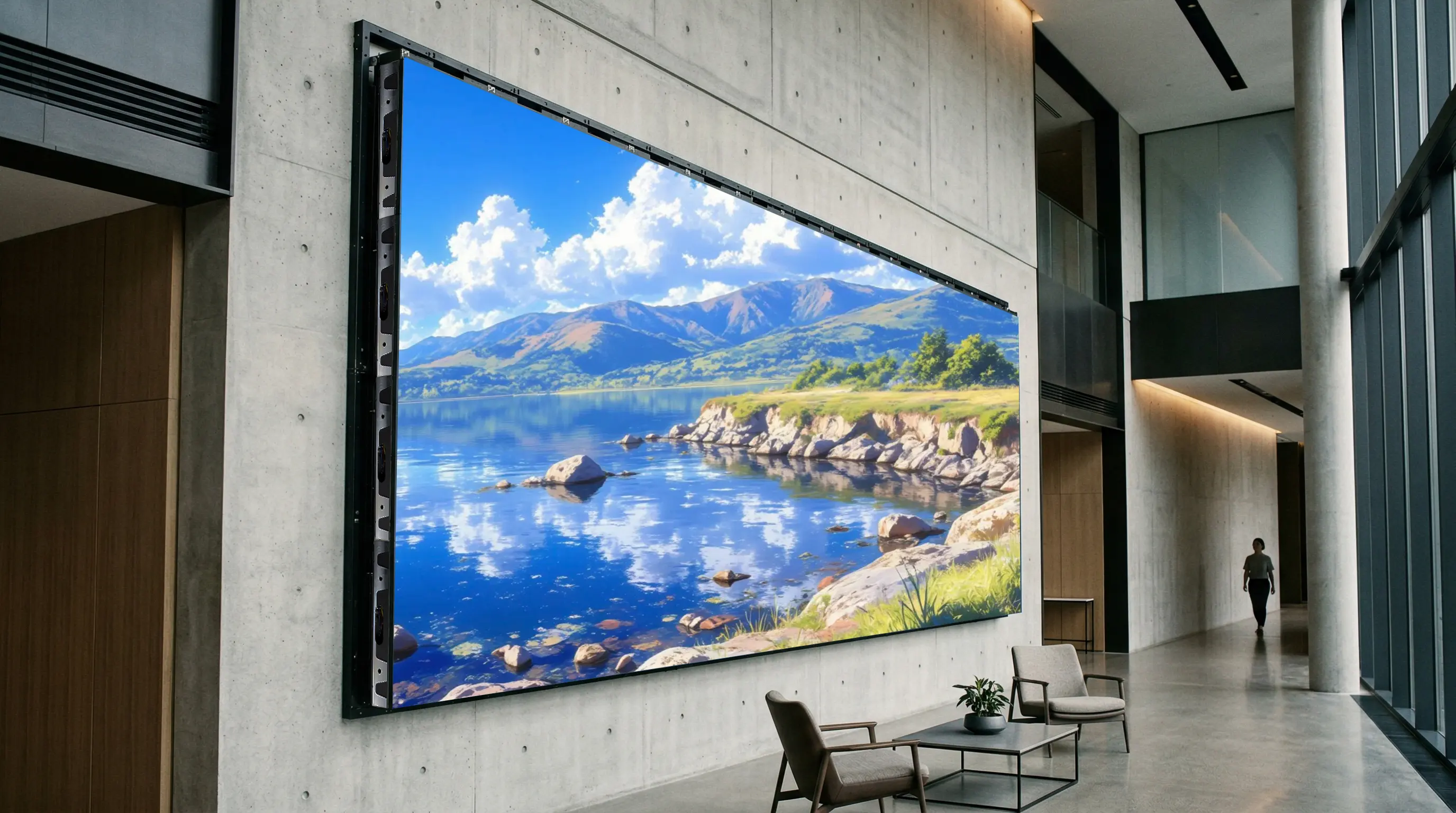

Flat Wall Mounted

Flat Wall Mounted

Product Specification

Item Indoor
Pixel Pitch 1.953 2.604 2.976 3.91 4.81
LED lamp SMD1515 SMD2020 SMD2020 SMD2020 SMD2020
Density(dots/m2) 262144 147456 112896 65536 43264
Brightness ≤800nits ≤1000nits ≤1000nits ≤1000nits ≤1000nits
IP rating IP31 IP31 IP31 IP31 IP31
Cabinet Materiel Die-casting Aluminum
Scan 32scan 32scan 21scan 16scan 13scan
Module weight 0.25kg 0.25kg 0.25kg 0.25kg 0.25kg
Cabinet Weight 6.5kg 6.5kg 6.5kg 6.5kg 6.5kg
Module size(mm) 250*250 250*250 250*250 250*500 250*500
Cabinet size(mm) 1000*250*85 1000*250*85 1000*250*85 1000*250*85 1000*250*85
Module pixel(dots) 128*128 96*96 84*84 64*64 52*52
Cabinet pixel(dots) 512*128 384*96 336*84 256*64 208*52
Max Power 630w/sqm 630w/sqm 620w/sqm 620w/sqm 610w/sqm
Average Power 230w/sqm 230w/sqm 230w/sqm 230w/sqm 230w/sqm
Viewing Angle Horizontal 140(+70/-70) deg               Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Gray Scale 16bit
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature  ﹣20 ~﹢65℃

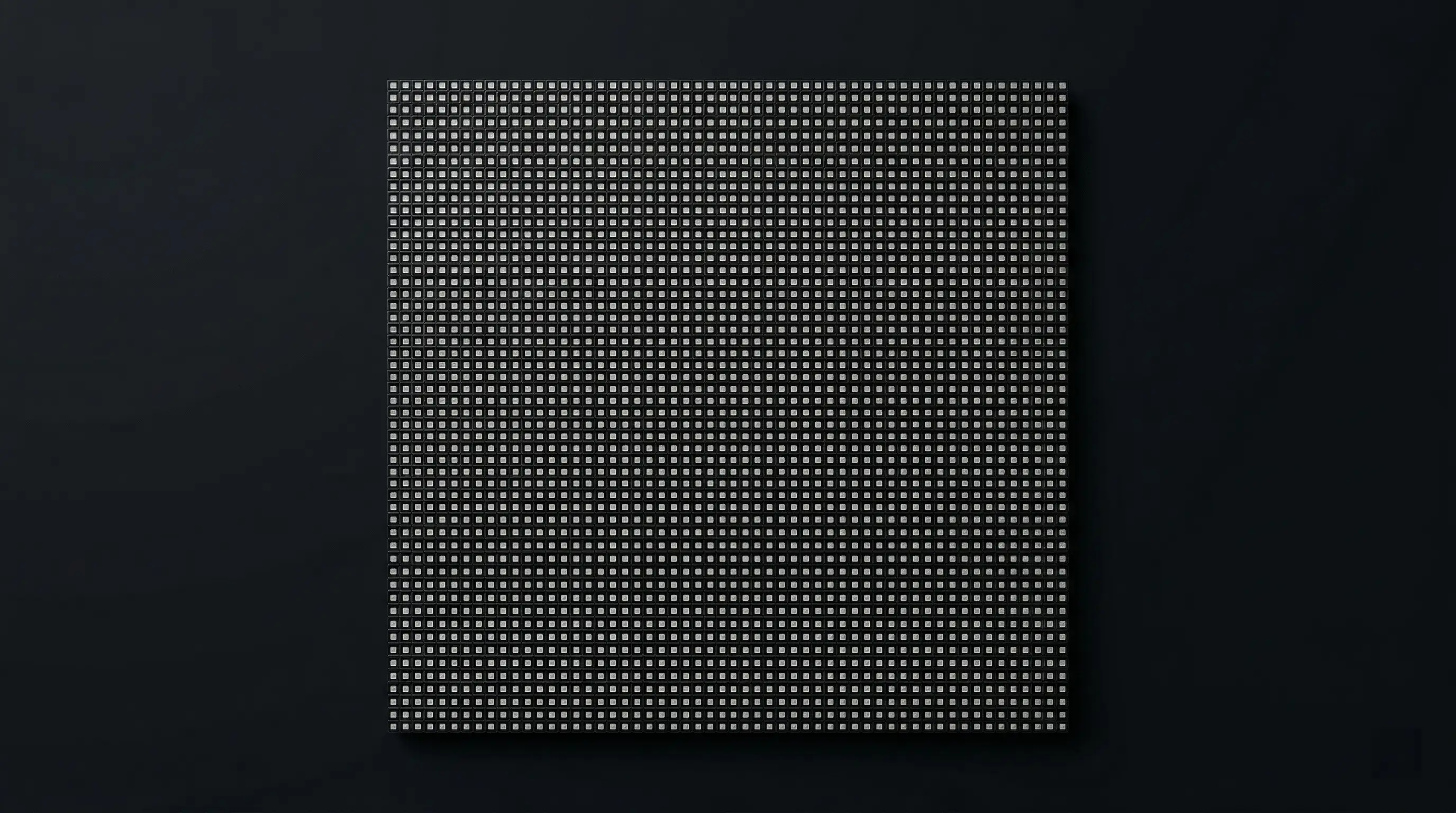

LED Module

Pixel Pitch P1.953, 2.604, 2.976, 3.91, 4.81
LED lamp SMD1515/2020
Brightness ≤1000nits
800nits(P1.953)
Module pixel 128*128/96*96/84*84/64*64/52*52dots
Cabinet pixel 512*128/384*96/336*84/256*64/208*52dots

Appearance

Module size 250*250mm
250*500mm(P3.91 4.81)
Cabinet size 1000*250*85mm
Module weight 0.25kg
Cabinet Weight 6.5kg


Working Environment

Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃


System parameter

Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Gray scale 16bit


Power

Max Power 630w/sqm(P1.953,2.604)
620w/sqm(P2.976,3.91)
610w/sqm(P4.81)
Average Power 230w/sqm


Waterproof grade

IP rating IP31

Control system

Control way Synchronous/Asynchronous
Viewing Angle H140(+70/-70) deg V140(+70/-70)deg
Scan 32scan/21scan/16scan/13scan

Material density

Density 262144/147456/112896/65536/43264(dots/m2)
Cabinet Materiel Die-casting Aluminum
